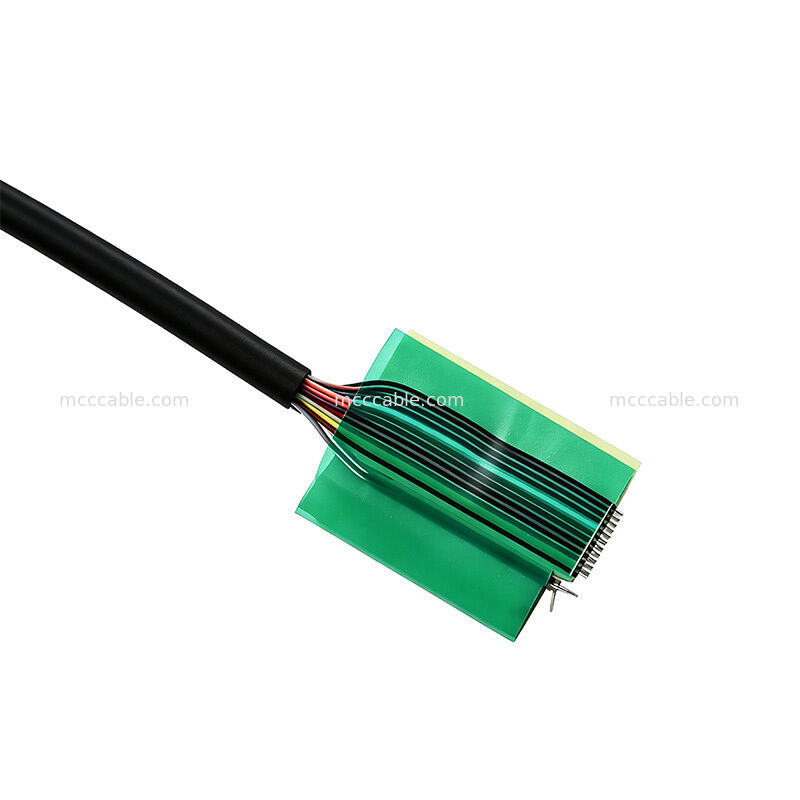

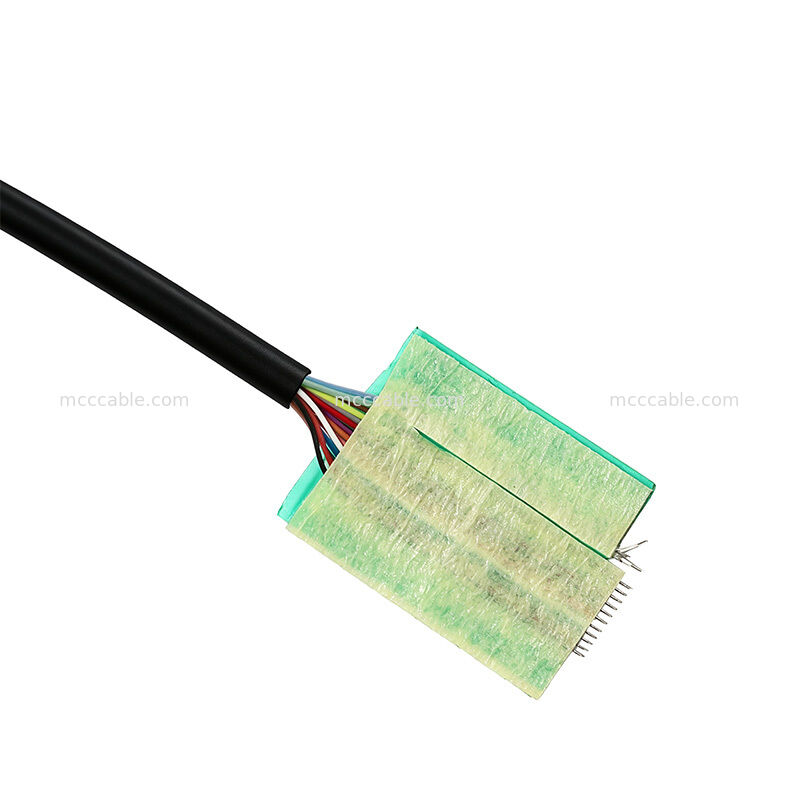

20373-R14T-06 14C Ultra Fine Micro Coaxial Cable Assembly

The 20373-R14T-06 14C Micro Coaxial Cable Assembly is a compact custom cable

assembly designed with a 14-conductor MCC coaxial structure. The cable configuration

combines 2 × 42 AWG and 12 × 36 AWG conductors, with 50Ω MCC coaxial

construction for compact signal transmission applications.

With a finished cable length of 150 ± 5 mm and an overall cable diameter of

2.10 ± 0.20 mm, this ultra fine micro coaxial cable assembly is suitable for applications

where compact cable routing and a small cable profile are important.

20373-R14T-06 Micro Coaxial Cable Assembly Structure

The 20373-R14T-06 cable assembly uses a 14C MCC coaxial configuration consisting

of 2 × 42 AWG and 12 × 36 AWG conductors. The 42 AWG MCC coaxial wires are

specified as 50Ω coaxial wires, while the 36 AWG wires are used as discrete conductors

within the cable assembly.

The cable assembly also incorporates UV glue 8806 HF RP for the specified cable

termination process.

20373-R14T-06 14C Cable Specifications

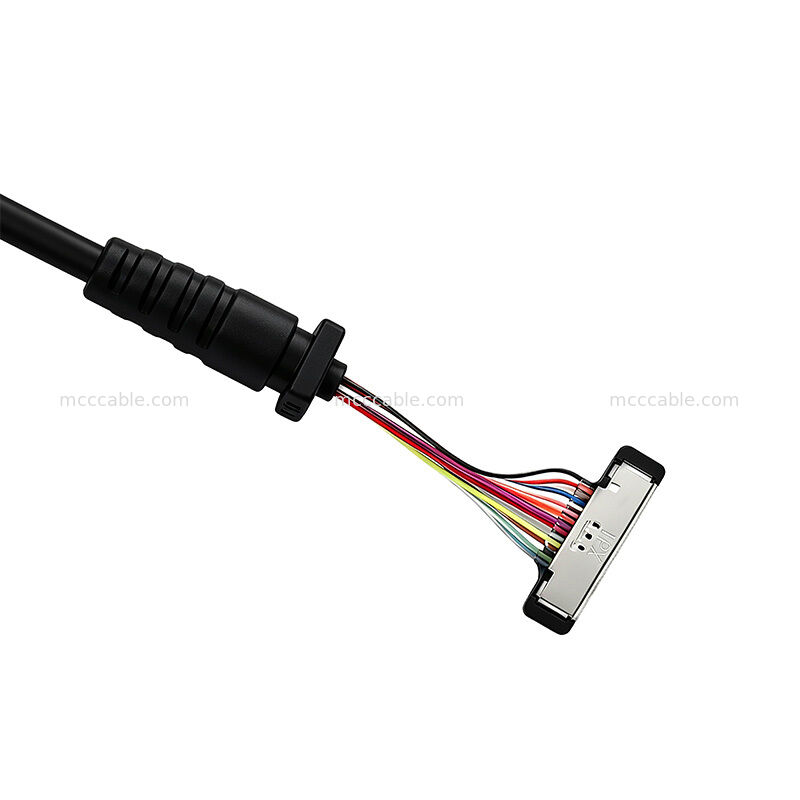

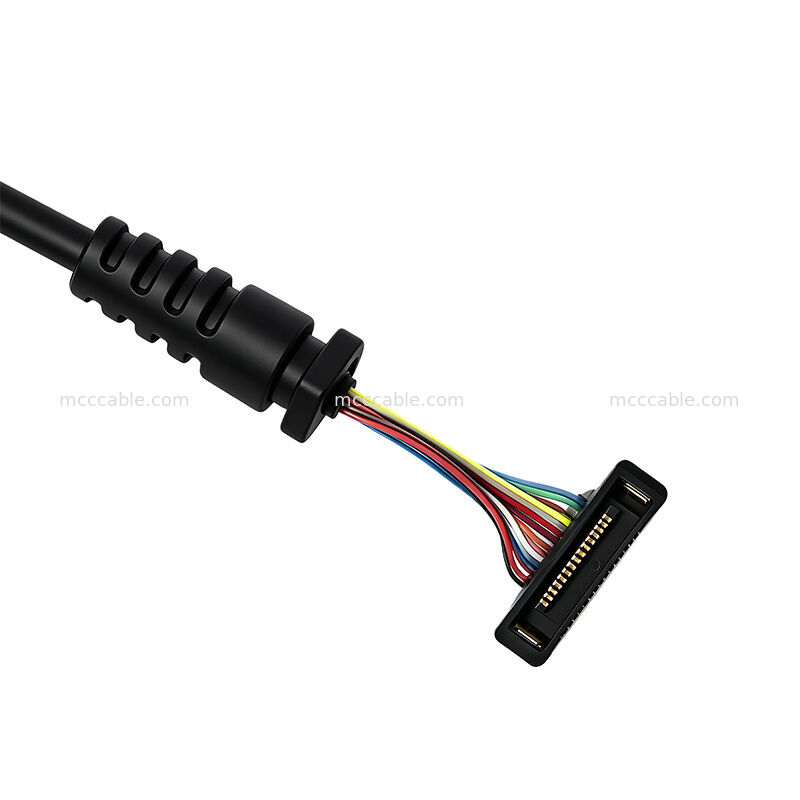

20373-R14T-06 Connector Configuration

The specified connector configuration includes a plug housing assembly and plug shell assembly.

The connector components identified for P1 are:

• Plug Housing Assembly: 20373-R14T-06

• Plug Shell-A: 2182-014-03

The specified termination process requires the shields of each coaxial wire to be terminated to

the connector shells. The connector tail is also specified with UV glue coverage of 1–2 mm.

20373-R14T-06 Electrical Performance

The 20373-R14T-06 cable assembly is specified with a maximum conductor resistance of 3.0 Ω

and an insulation resistance of 10 MΩ under the specified test conditions.

The production requirements also include 100% open, short and intermittent testing to verify

electrical continuity and assembly quality.

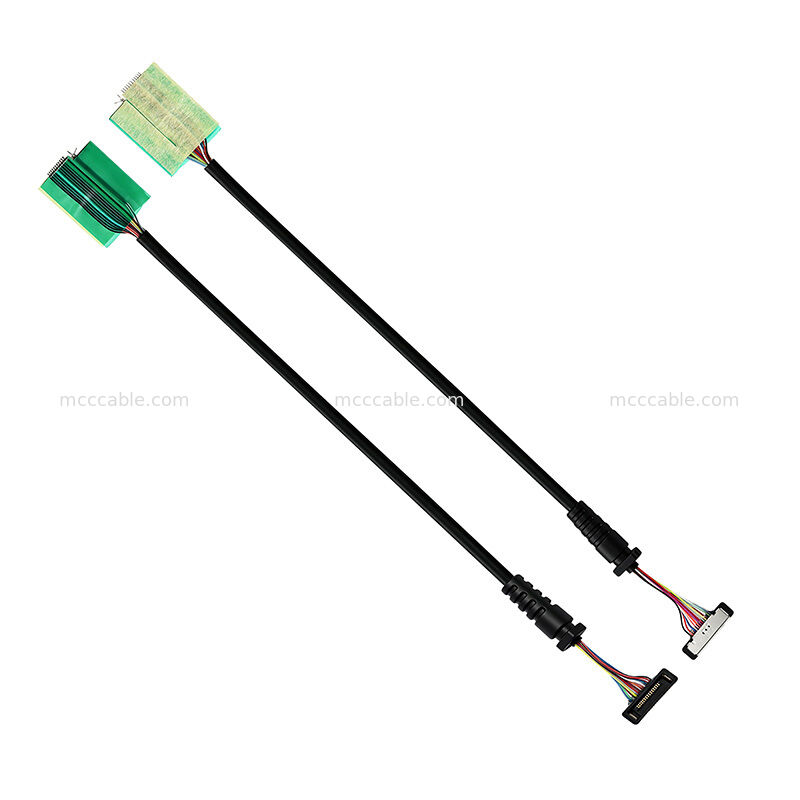

20373-R14T-06 Cable Dimensions

The standard configuration has a cable length of 150 ± 5 mm and an overall cable diameter

of 2.10 ± 0.20 mm.

The compact 14C micro coaxial construction helps maintain a small cable profile for applications

requiring multiple signal conductors within a limited routing space.

20373-R14T-06 Custom Cable Assembly Applications

The 20373-R14T-06 micro coaxial cable assembly is suitable for compact electronic equipment

and signal transmission applications requiring a multi-conductor coaxial cable configuration.

The 14C structure, 50Ω MCC coaxial wires, compact 2.10 mm nominal cable diameter and

custom 150 mm cable length make this configuration suitable for space-constrained cable

routing and customized electronic interconnection requirements.
