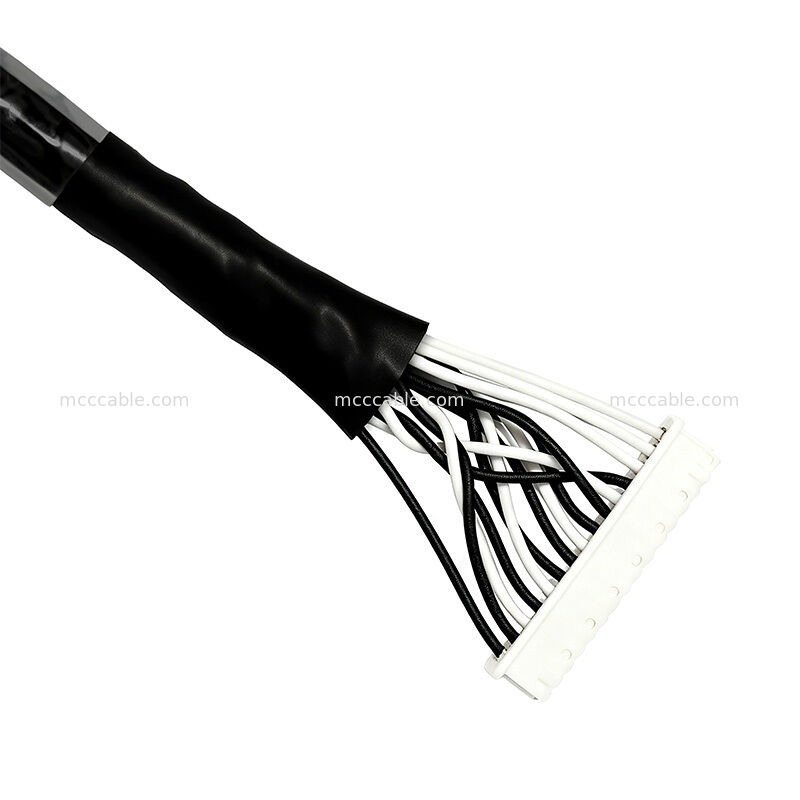

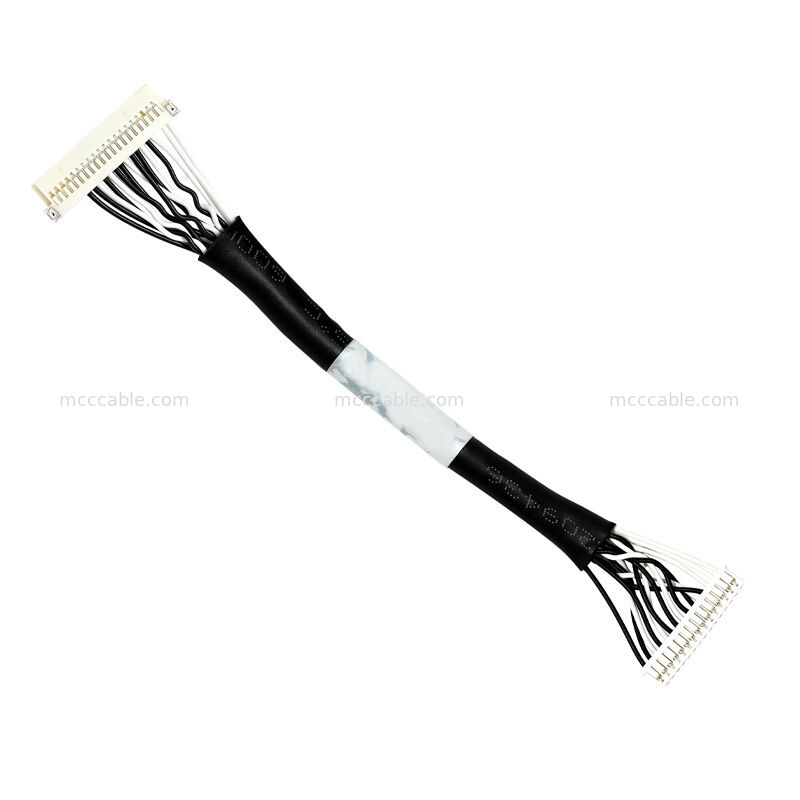

Custom 28AWG PVDF LVDS Cable Assembly

This custom LVDS cable assembly is designed for compact display and electronic equipment

applications. It uses 28AWG PVDF hook-up wire with a 0.75 mm outer diameter and supports

a compact connector configuration with a 1.0 mm pitch. The cable length is 100±5 mm,

providing a compact solution for internal signal connections.

Custom 28AWG LVDS Cable Assembly

The cable assembly combines a 28AWG PVDF insulated wire with compact connectors for

LVDS signal transmission. The wire is specified for 600V and 150°C operation, with an

outer diameter of 0.75 mm.

28AWG PVDF LVDS Cable Assembly Specifications

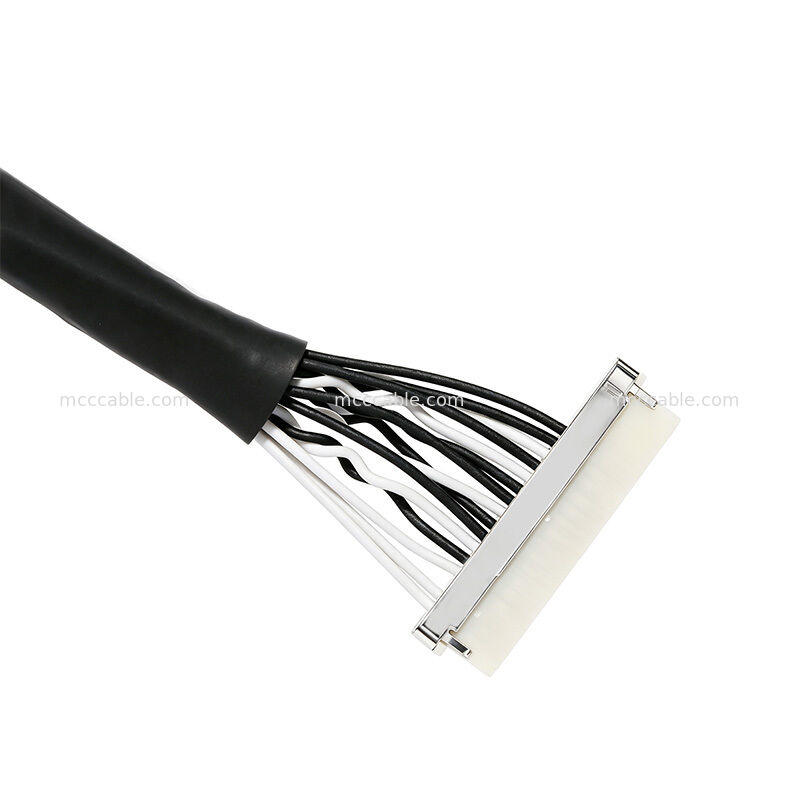

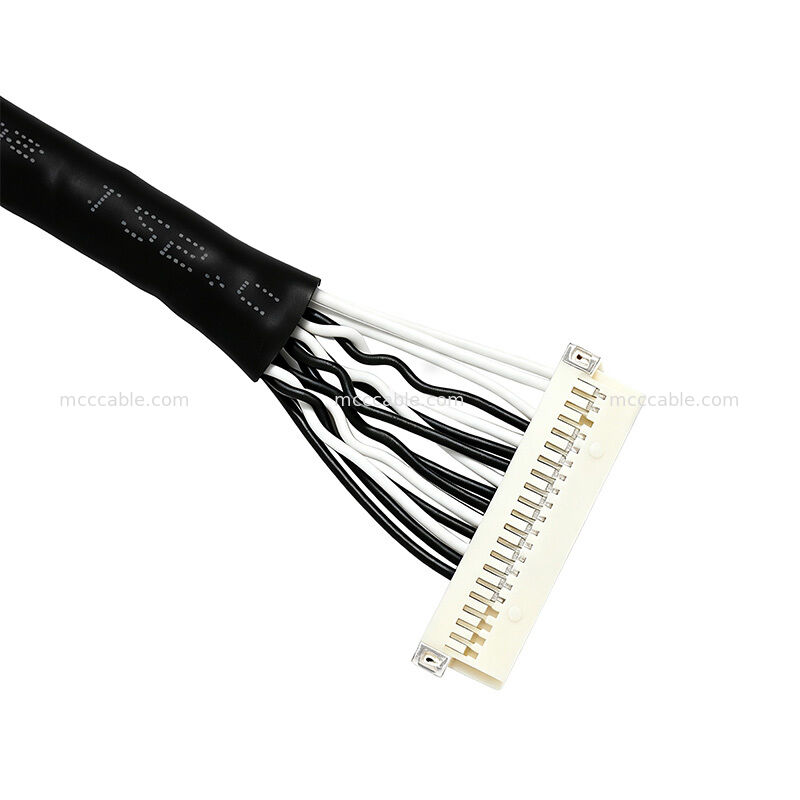

1.0mm Pitch LVDS Cable with Compact Connectors

This 28AWG LVDS cable assembly uses a compact 1.0 mm pitch connector on one side. The

connector specification identifies the 20-position DF19 series housing with a 1.0 mm pitch and

a compatible 28–30AWG crimp contact.

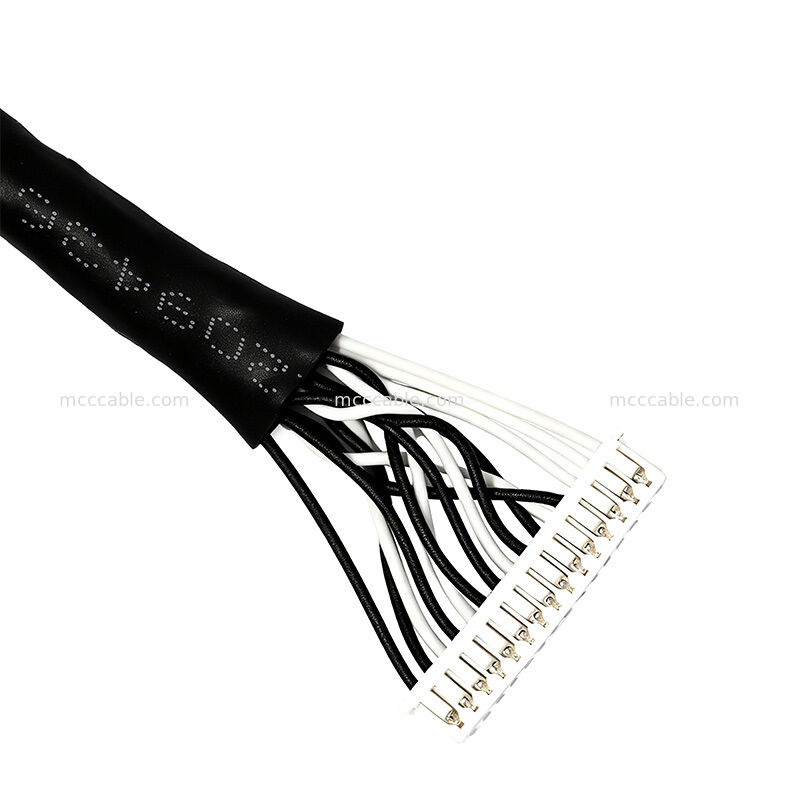

28AWG PVDF Cable Construction

The cable uses PVDF-insulated 28AWG hook-up wire with a 0.75 mm outer diameter. The

cable construction also includes twisted wire sections and a braided tin-plated copper

component as specified for the assembly.

Custom LVDS Cable Assembly for Display Applications

With its compact 100±5 mm length, fine-pitch connector configuration and 28AWG wire

construction, this custom LVDS cable assembly is suitable for compact internal signal

connections in display and electronic equipment. The product information specifically

identifies the assembly as an LVDS cable.

LVDS Cable Assembly Quality Testing

The cable assembly is specified with 100% open, short and intermittence testing. The

requirements also include a maximum conductor resistance of 3.0 ohms, minimum

insulation resistance of 20 Mohms at 200V DC, and a 200V Hi-Pot test. The assembly

is also marked RoHS compliant.
