Place of Origin:
China
Brand Name:
Customization
Certification:
UL ，ISO13485 , ISO9001.2005 , ISO14001
Model Number:

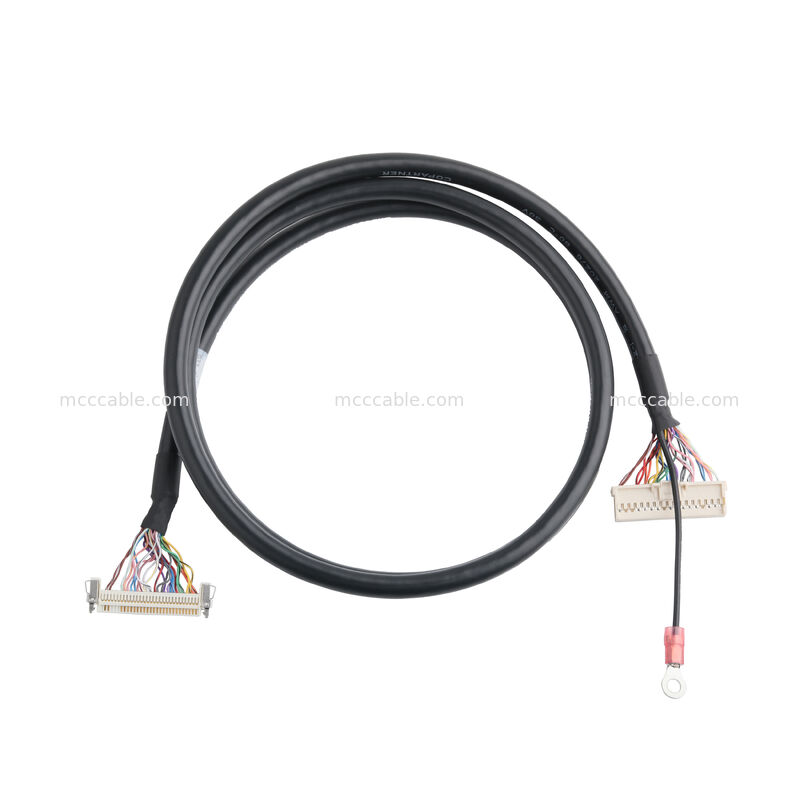

501646-3400 to FI-X30HL 34Pin LVDS Cable Assembly
501646-3400 to FI-X30HL 34Pin LVDS Cable Assembly
UL20276 10 Pair
LVDS Cable Assembly Overview:
This display cable assembly is designed for high-density signal transmission between
internal display modules and electronic control boards. The cable connects a 34-pin

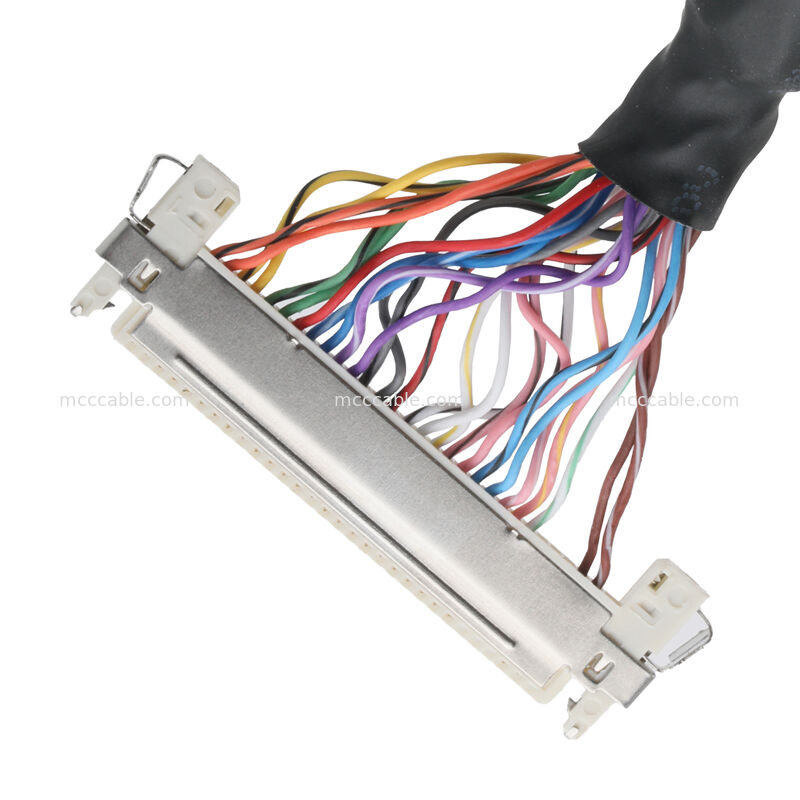

connector (501646-3400) to a 30-pin connector (FI-X30HL), enabling reliable
multi-channel signal transmission in display systems.
The harness uses UL20276 multi-core cable with 10 twisted signal pairs, providing
stable signal integrity and reduced electromagnetic interference for high-density data
transmission.
A dedicated drain wire with ring terminal grounding is integrated into the cable assembly
to improve shielding performance and system grounding reliability.
The cable assembly is commonly used in display modules, industrial equipment,
embedded systems, and control electronics where stable signal transmission between
boards and display units is required.
OEM and ODM cable assembly manufacturing services are supported according to
customer drawings or technical requirements.
LVDS Cable Assembly Construction:
Connector A
Connector B
Cable structure
Ground connection
Cable protection
All structural details follow the approved engineering drawings.
LVDS Cable Assembly Electrical Data:
| Item | Specification |
|---|---|
| Cable Type | Display Cable Assembly |
| Connector A | 501646-3400 34 Pin |
| Connector B | FI-X30HL 30 Pin |
| Cable Standard | UL20276 |
| Signal Pairs | 10 Twisted Pairs |
| Signal Wire Gauge | 28 AWG |
| Ground Wire | UL1007 20 AWG |
| Cable Length | 1143 mm |
| Shielding | Drain Wire Ground |
| Assembly Type | High Density Signal Cable |
LVDS Cable Assembly Applications:
This display cable assembly is suitable for signal transmission between electronic modules
in various systems, including:
The cable provides stable high-density signal routing between display interfaces and system
control boards.
LVDS Cable Assembly Customization:
This display cable assembly can be customized according to project requirements, including:
OEM and ODM cable assembly manufacturing services are supported.
