LVDS Display Cable Assembly with 20453 Connector and Multi-Twisted Wires

LVDS Display Cable Assembly with 20453 Connector and
Multi-Twisted Wires



What Is This LVDS Display Cable Assembly?

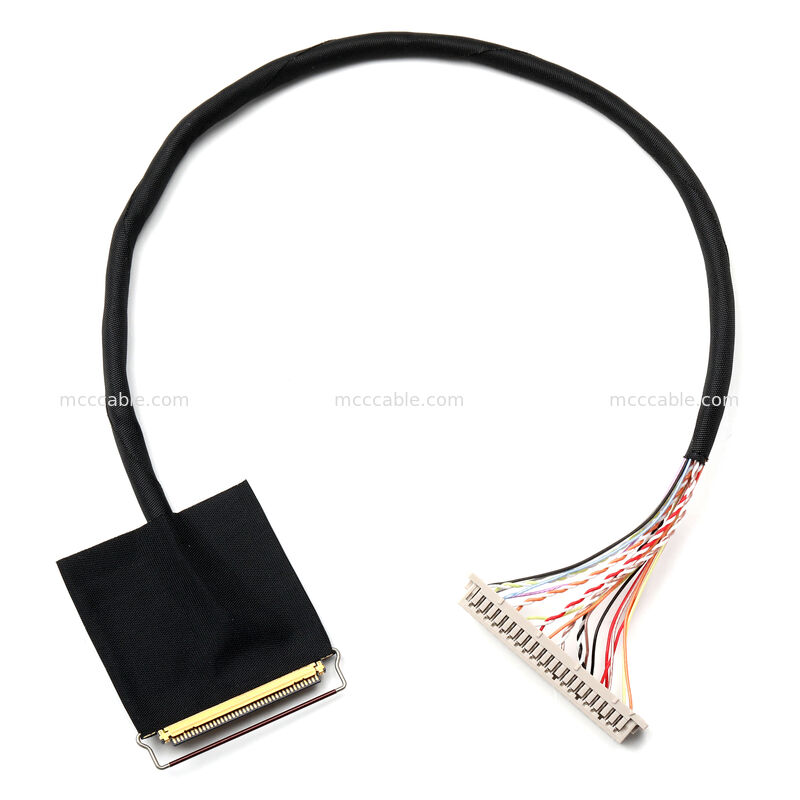

This LVDS display cable assembly is designed for high-speed differential signal transmission
between a display module and a control board. One end of the cable integrates a compact
board-mounted LVDS connector with gold-plated contacts and a metal retention bar, while

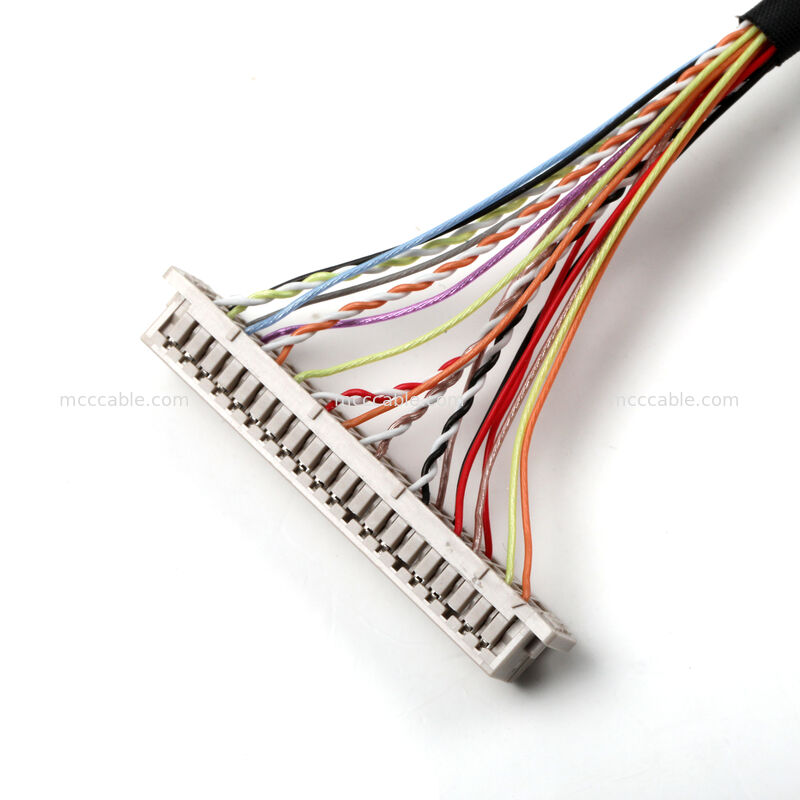

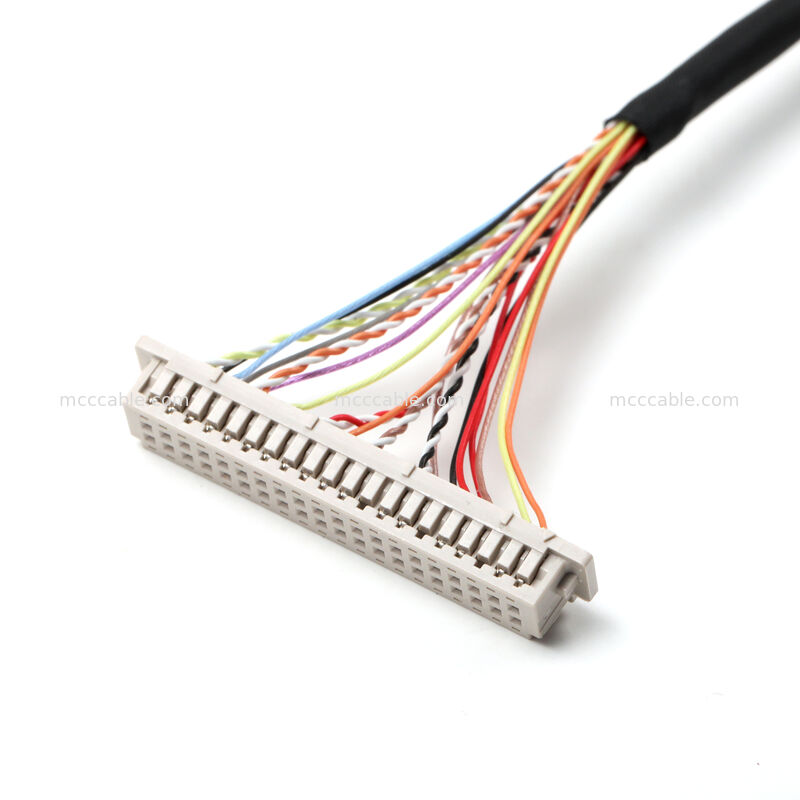

the other end transitions into a multi-wire harness terminated by a multi-pin housing connector.

The cable structure combines twisted differential pairs for LVDS signal channels with additional

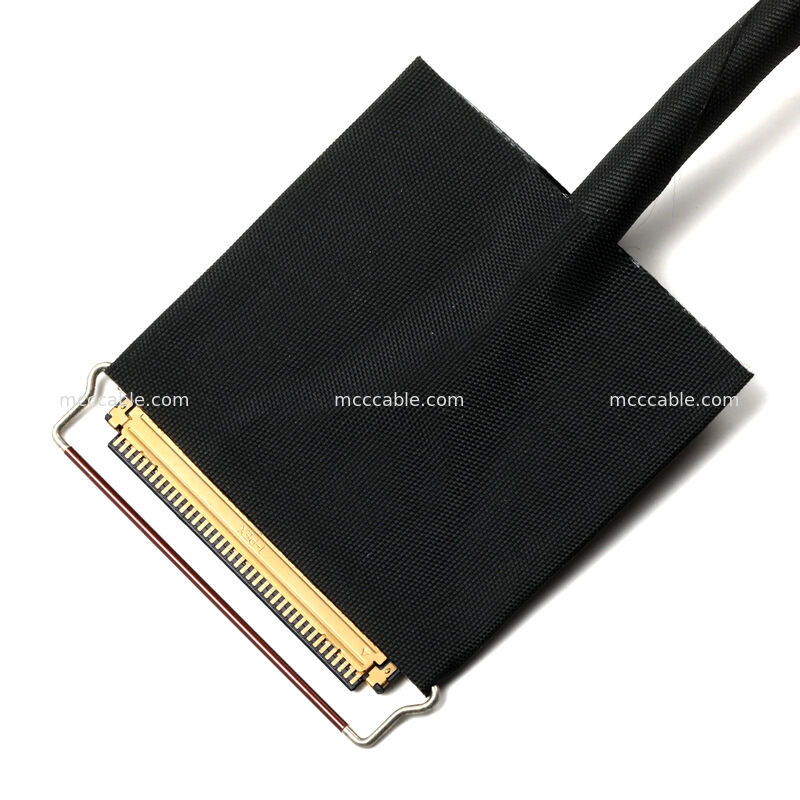

discrete wires for power and control signals. A fabric-wrapped shielding section near the display
connector provides mechanical protection and improved EMI stability in compact device
environments.

This configuration is commonly used in embedded displays where reliable signal integrity,
precise pin-out control, and flexible routing are required.

Electrical and Structural Design of the LVDS Display Cable:

The LVDS display cable adopts a mixed-construction layout optimized for both signal quality
and installation flexibility.

Key structural characteristics include:

1. Multiple twisted differential pairs dedicated to LVDS data transmission
2. Discrete single conductors for auxiliary signals and power lines
3. Controlled wire grouping to reduce crosstalk and signal skew
4. Fabric-wrapped transition section near the display-side connector for strain relief
5. Gold-plated contact interface to ensure stable long-term connectivity

This design supports short-to-medium distance LVDS transmission while maintaining
mechanical robustness during repeated installation or servicing.

LVDS Display Cable Applications:

This LVDS display cable assembly is suitable for a wide range of embedded and industrial
display systems, including:

1. Industrial control panels
2. Embedded computing displays
3. Medical imaging and diagnostic monitors
4. Automotive or transportation display modules
5. Custom electronic equipment with internal LCD or TFT panels

The mixed LVDS + wire harness structure allows the cable to carry both high-speed display
signals and supporting control lines within a single assembly, reducing internal wiring
complexity.


Key Advantages of This LVDS Display Cable Assembly:

Compared with standard flat or ribbon LVDS cables, this assembly offers several practical
advantages:

1. Improved signal stability through twisted-pair LVDS routing
2. Flexible cable routing enabled by round harness construction
3. Secure connector retention using a metal locking bar on the display side
4. Reduced installation risk thanks to defined pin-out and bundled wiring
5. Customizable configuration, including length, wire gauge, and pin mapping

These advantages make the cable especially suitable for OEM projects with space
constraints or non-standard internal layouts.

LVDS Display Cable Technical Information:

Sino-Media is a specialized cable assembly manufacturer. We utilize cutting-edge
automation equipment, premium raw materials, a robust quality assurance system,
and a skilled technical team to deliver high-quality, custom cable and harness
components in small quantities. Our engineering, production, and quality control
teams ensure the excellence of these unique components. Our mission is to enhance
product quality continuously, meet customer needs, and maintain expertise in the
materials we use and recommend. Our dedication to customer satisfaction drives
the company’s ongoing growth.

Q1. Is it a factory?
A:Yes,we have more than 16 years of design and manufacturring experience!
Q2. Is there any certification?
A:Yes,there are IS09001,ISO14001,TS16949,ISO13485,UL CERIFIED.
Q3. What is our specialty?
A:We can design products on the application.
Q4. Do you accept OEM/ODM orders?
A: Yes, we accept OEM/ODM orders. For oem orders, moq is 100pcs. For ODM orders, moq

1000PCs. Mould fee will be charged according to design.
Q5. How long will it need for completing an order?
A: For small order and products in stock, it will take less than 3 days for preparation and delive

ry, and shipment time depends on clients' choice, fastest 7 days and longest 1 month.
For big order, as we need to confirm all things include materiel preparation, production, this pro

cedure will take 5 to 21 working days according to order quantity, testing 1 to 3 working days, a

nd finally, packing 1 day, so fastest 7 days and longest 25 days without shipment.
Q6. As long term clients, what other service we can get?
1. New product will be offered with order, so you can see if it is potential product in the market a

nd promote it, and you will have the right to resell the product in your district.
2. Additional fee discount, cheaper price on purchasing products at smaller quantity.
3. We can offer assist on promotion images, and make images with clients' logo
Q7. How long is warranty for the cable, and if defective or faulty, how to protection your benifits?
A: All our cables are sold with 12-36 months warranty, and for big quantity order, we will offer 0.3%

to 0.5% backup for defective sent with order, so if you order 1000PCs, that means you can get 100

3pcs with backup. If you get faulty more than 5pcs, and less than 0.1%, please contact sales and

offer images, and we will solve your problem in the way of replacing with new order or refund.
Q8. Do you accept free sample order?
A: Yes, sample order is supported, some samples can be offered free exclusive of shipment freight.
