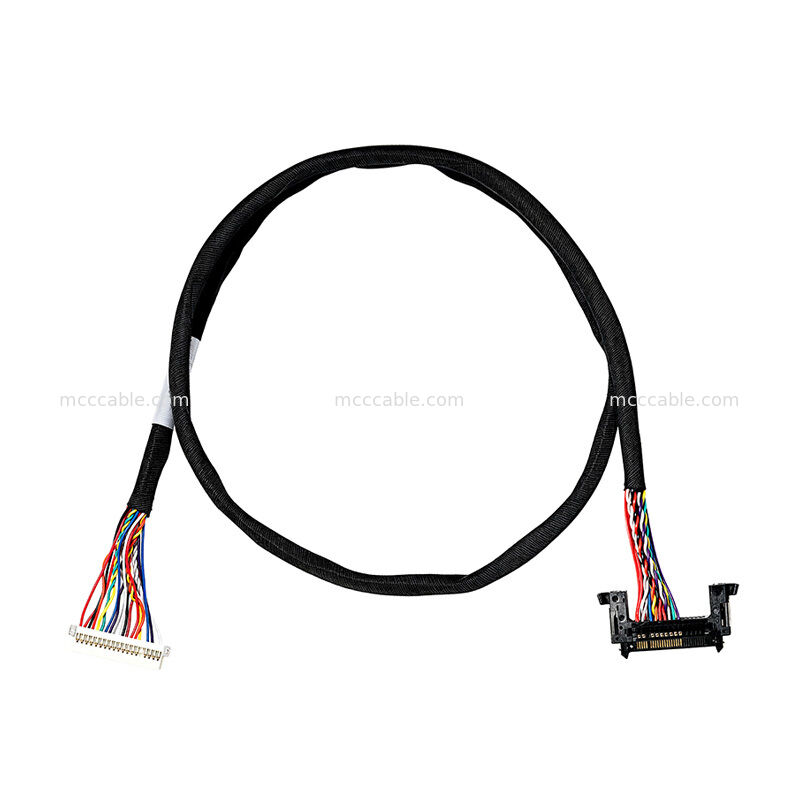

FI-RE31HL DF19-20P LVDS Cable Assembly Overview

The FI-RE31HL DF19-20P LVDS Cable Assembly is a custom cable assembly designed with
a 31-position FI-RE31HL connector on one end and a DF19-20P connector on the other end.
The assembly uses 28 AWG wire and is specified at approximately 24 inches (610 mm) in
overall cable length.

The cable assembly is suitable for compact electronic equipment requiring a defined LVDS

interconnection between mating interfaces. The drawing specifies open, short and intermittence

testing, conductor resistance of up to 3 ohms, and insulation resistance of at least 10 MΩ

at 200 V DC.

FI-RE31HL DF19-20P Cable Assembly Specifications

FI-RE31HL DF19-20P LVDS Cable Assembly Design

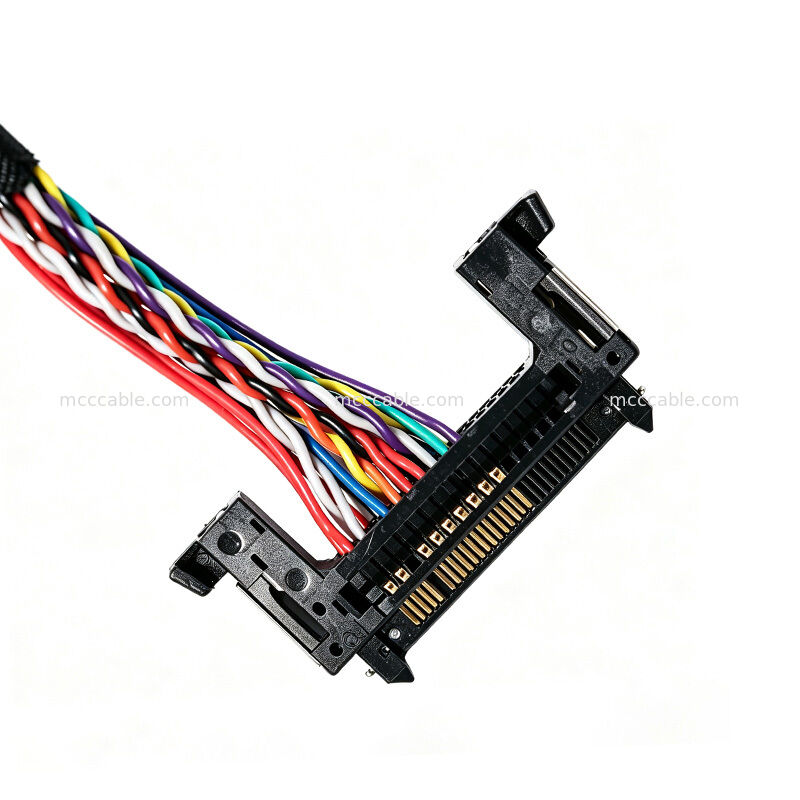

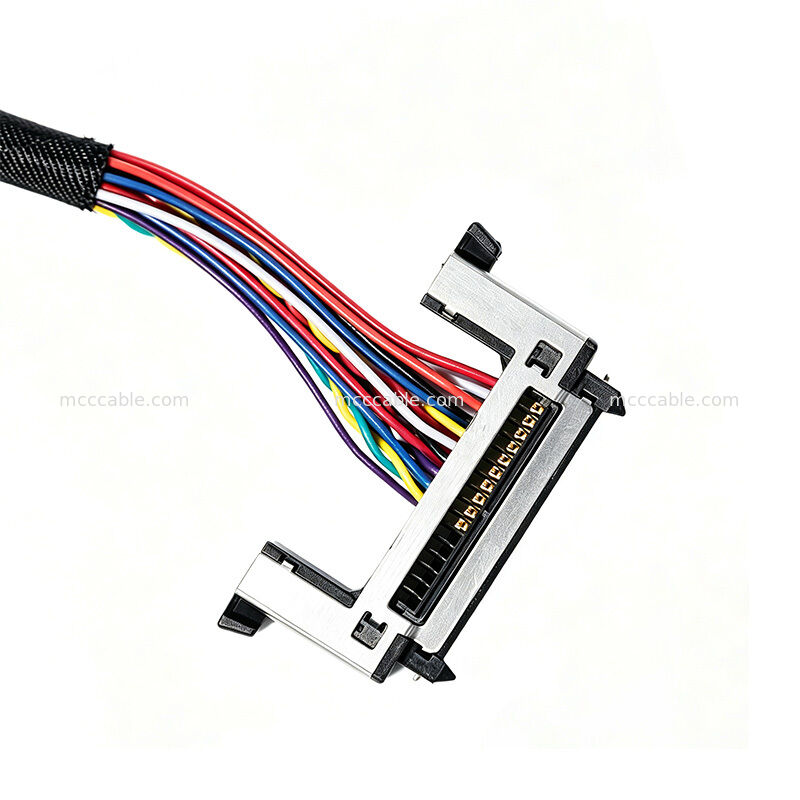

The FI-RE31HL DF19-20P LVDS Cable Assembly uses a compact connector configuration for

space-constrained electronic equipment. The FI-RE31HL connector specified in the drawing is

a 31-position connector with 0.5 mm pitch. Independent component references also identify

FI-RE31HL as a 31-position, 0.50 mm pitch connector used in LVDS applications.

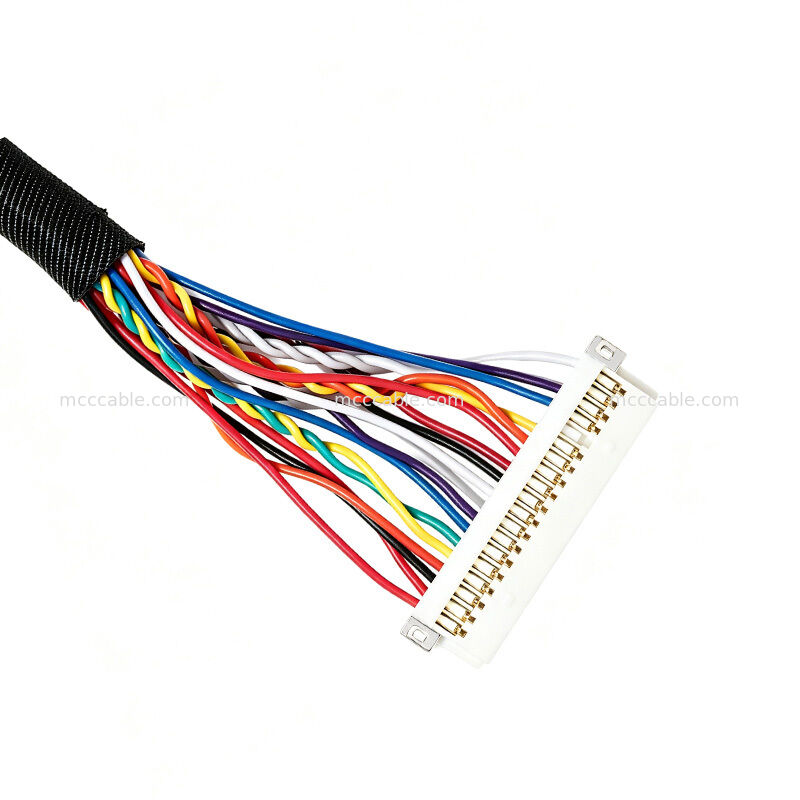

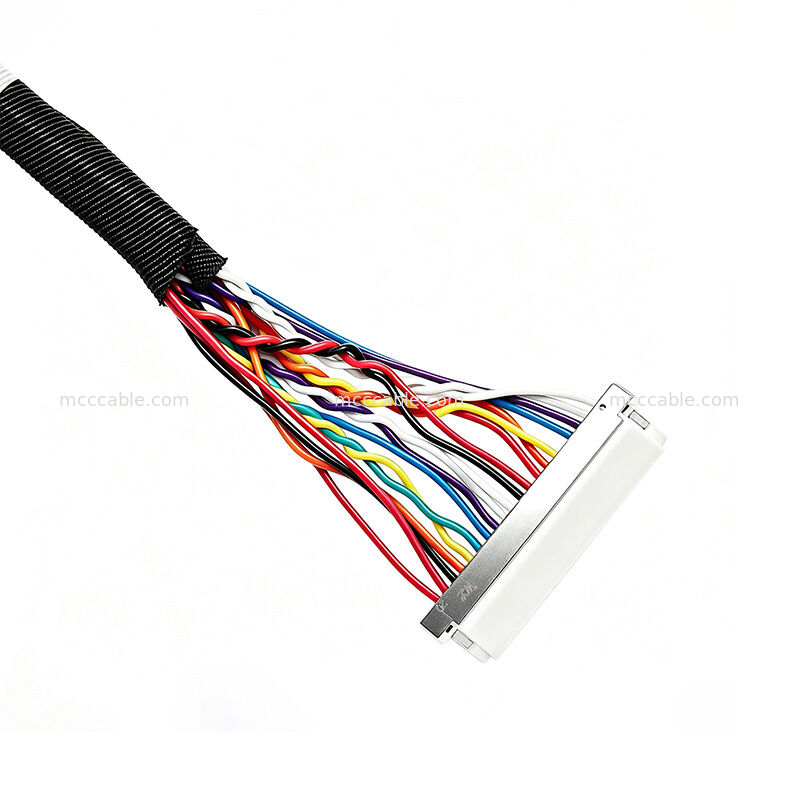

The opposite side uses a DF19-20P connector configuration. The DF19 series is a 1.0 mm pitch,

low-profile wire-to-board connector family.

The cable assembly incorporates black protective wrapping and conductive fabric tape in the

specified construction. The drawing also specifies a wire diagram with multiple signal and ground

connections.

FI-RE31HL DF19-20P LVDS Cable Assembly Electrical

Performance

The FI-RE31HL DF19-20P LVDS Cable Assembly is specified with electrical inspection requirements

intended to verify assembly integrity.

Each finished assembly is required to undergo 100% open, short and intermittence testing. The

specified maximum conductor resistance is 3 Ω, while insulation resistance is specified at a minimum

of 10 MΩ under 200 V DC testing conditions.

The cable specification also identifies tinned copper conductors and semi-rigid PVC insulation. The

wire specification gives a nominal conductor size of 7/0.127 mm and a reference conductor OD of 0.38 mm.

FI-RE31HL DF19-20P LVDS Cable Assembly Applications

The FI-RE31HL DF19-20P LVDS Cable Assembly can be positioned for applications requiring compact

LVDS interconnection and custom cable assembly configurations.

Potential application keywords for the product page include:

• LVDS cable assembly
• LVDS display cable
• high speed signal cable
• custom cable assembly
• 31 position LVDS cable
• 0.5 mm pitch connector cable
• low profile connector cable
• electronic equipment cable assembly
• display interface cable
• custom wire harness assembly

FI-RE31HL DF19-20P LVDS Cable Assembly Customization

The FI-RE31HL DF19-20P LVDS Cable Assembly can be produced according to defined cable length,

connector configuration, wire arrangement and assembly requirements.

For custom cable assembly projects, important parameters may include cable length, connector type,

wire gauge, wire color, pin assignment, termination configuration and protective cable wrapping.
