KEL XSLS Serise 30Pin 0.25mm pitch XSLS20-30P micro coaxial cable Connector OEM/ODM

KEL XSLS Serise 30Pin 0.25mm pitch XSLS20-30P micro coaxial cable Connector OEM/ODM

Place of Origin:

China

Brand Name:

SINO-CONN

Certification:

UL, ISO13485, ISO9001.2005, ISO14001

Model Number:

XSLS20-30P

Contact Us
Request A Quote
Product Details
Product Name:
Micro Coaxial Cable Assembly KEL XSLS20-30P
Connector:
XSLS20-30P
Micro-Coaxial Wire (AWG):
#46
Contact Pitch:
0.25mm
Item:
Micro Coaxial Cable
Service:
Design
Length:
Customize
Express:
DHL FEDEX UPS TNT
Payment & Shipping Terms
Minimum Order Quantity
Negotiable
Price
Contact our sales
Packaging Details
PE inner, carton outer
Delivery Time
2-10 days for samples,3-4 weeks for massive
Payment Terms
T/T, PayPal
Supply Ability
15,000pcs/week
Product Description
KEL XSLS Serise 30Pin 0.25mm pitch micro coaxial cable XSLS20-30P
Connector OEM/ODM

Kel XSLS20-30P product advantages:
Pursuing miniaturization and high-speed transmission,XSLS20-30P KEL connectors realize the most
advanced connection technology required for imaging equipmen
The "XSLS series" is complying with micro coaxial cables (AWG # 42, AWG # 44, AWG # 46) with
excellent transmission characteristics, and because it is also a cable with excellent flexibility, more
flexibility for the user's board design.

XSLS20-30P micro coaxial cable data sheet
SpecificationValue
Rated Current#44 AWG: 0.3A per contact<br>#46 AWG: 0.15A per contact
Contact ResistanceNot specified
Dielectric Withstanding Voltage100V AC for 1 minute
Insulation Resistance50MR min. at 100V DC
Operating Temperature-40°C to +85°C
Insertion and Withdrawal Durability30 times
Applicable Cable#44/46 AWG Micro coaxial cables<br>(Outermost diameter: max. 0.24 mm / 0.0097")

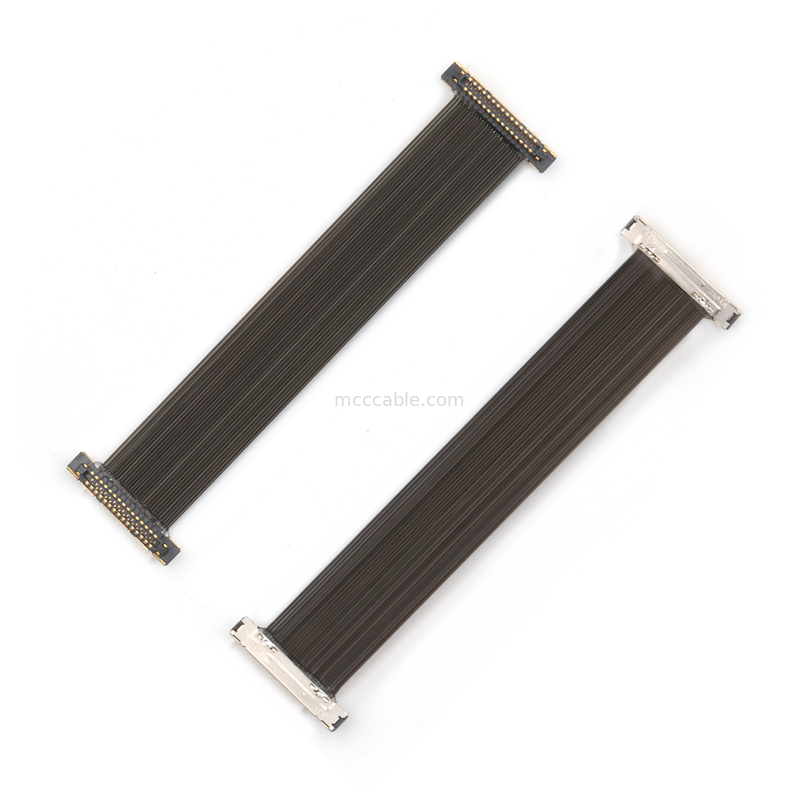

Kel XSLS20-30P micro coaxial cable:

KEL XSLS Serise 30Pin 0.25mm pitch XSLS20-30P micro coaxial cable Connector OEM/ODM 0

Kel XSLS20-30P Applications:
1. Digital Video Camera
2. Digital Still Camera
3. Surveillance Camera
4. Car Navigation System
5. Ultrasound System
6. Endoscope
7. ETC
8. CT
KEL XSLS Serise 30Pin 0.25mm pitch XSLS20-30P micro coaxial cable Connector OEM/ODM 1
KEL XSLS Serise 30Pin 0.25mm pitch XSLS20-30P micro coaxial cable Connector OEM/ODM 2


Q1. Is it a factory?
A: Yes,we have more than 16 years of design and manufacturring experience!
Q2. Is there any certification?
A: Yes,there are IS09001,ISO14001,TS16949,ISO13485,UL CERIFIED.
Q3. What is our specialty?
A: We can design products on the application.
Q4. Do you accept OEM/ODM orders?
A: Yes, we accept OEM/ODM orders. For oem orders, moq is 100pcs. For ODM orders, moq

1000PCs. Mould fee will be charged according to design.
Q5. How long will it need for completing an order?
A: For small order and products in stock, it will take less than 3 days for preparation and delive

ry, and shipment time depends on clients' choice, fastest 7 days and longest 1 month.
For big order, as we need to confirm all things include materiel preparation, production, this pro

cedure will take 5 to 21 working days according to order quantity, testing 1 to 3 working days, a

nd finally, packing 1 day, so fastest 7 days and longest 25 days without shipment.
Q6. As long term clients, what other service we can get?
1. New product will be offered with order, so you can see if it is potential product in the market a

nd promote it, and you will have the right to resell the product in your district.
2. Additional fee discount, cheaper price on purchasing products at smaller quantity.
3. We can offer assist on promotion images, and make images with clients' logo
Q7. How long is warranty for the cable, and if defective or faulty, how to protection your benifits?
A: All our cables are sold with 12-36 months warranty, and for big quantity order, we will offer 0.3%

to 0.5% backup for defective sent with order, so if you order 1000PCs, that means you can get 100

3pcs with backup. If you get faulty more than 5pcs, and less than 0.1%, please contact sales and

offer images, and we will solve your problem in the way of replacing with new order or refund.
Q8. Do you accept free sample order?
A: Yes, sample order is supported, some samples can be offered free exclusive of shipment freight.

How to contact us?
send your inquiry details in the below, click "send" now! free sample and best price are waiting for

you, if you can't find the product in our web, you can also send an inquiry to us, even if we don't make

it, we will find the same product with good quantity and good price.
