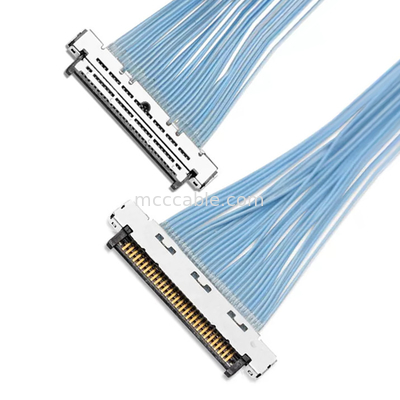

Product Details:
|
| Product Name: | Custom KEL Micro Coaxial Cable USL20-30SS-015 KEL 30pin 40pin Fo 0.4 Pitch Kel Cable | Micro-Coaxial Wire (AWG): | #42 |
|---|---|---|---|
| Contact Pitch: | 0.4 Mm Pitch | Connector: | USL20-30SS-01 |
| Item: | Micro Coaxial Cable | Service: | Design |
| Length: | Customize | Express: | DHL FEDEX UPS TNT |
| High Light: | KEL Micro Coaxial Cable,kel USL20 30SS 015,USL20 30SS 015 Micro Coaxial Cable |
||
fo 0.4 pitch kel cable
0.25 mm pitch, Right angle vertical mating type Micro-coaxial connector
Suitable for Small Connector Spaces
Slim Plug Design, Suitable For Through-hinge Assemblies
EMI Shielding and Multi-point Ground Design
| Electrical Characteristics | |
|---|---|
| Current rating | 0.25A per contact |
| Contact resistance | 100mΩ max. |
| Dielectric withstanding voltage | 200V AC for 1 minute |
| Insulation resistance | 100MΩ min. at 250V DC |
| Operating Temperature | -40℃ to +85℃ |
| Recommended cable | #42 AWG Micro coaxial cables |
The connectors of this series have a pitch of 0.4 mm and a low mounting height of 1.0 mm.
When compared with our current SSL Series of connectors for 0.5-mm pitch, ultra-fine coaxial cables, the
USL Series achieves a major reduction of approximately 50% in terms of coupled volume, thus contributing
greatly to weight reduction and device miniaturization.
This product features a right-angle type connector on the board side and a straight type on the cable side;
furthermore, 30- and 40-contact variations are currently available.
Micro coaxial Cable assemblies, eDP Cable assembly, LVDS Cable Assembly, I-PEX micro coaxial cable,
Fine pitch Wire Harness manufacturers
Q1. Is it a factory?
A:Yes,we have more than 16 years of design and manufacturring experience!
Q2. Is there any certification?
A:Yes,there are IS09001,ISO14001,TS16949,ISO13485,UL CERIFIED.
Q3. What is our specialty?
A:We can design products on the application.
Q4. Do you accept OEM/ODM orders?
A: Yes, we accept OEM/ODM orders. For oem orders, moq is 100pcs. For ODM orders, moq
1000PCs. Mould fee will be charged according to design.
Q5. How long will it need for completing an order?
A: For small order and products in stock, it will take less than 3 days for preparation and delive
ry, and shipment time depends on clients' choice, fastest 7 days and longest 1 month.
For big order, as we need to confirm all things include materiel preparation, production, this pro
cedure will take 5 to 21 working days according to order quantity, testing 1 to 3 working days, a
nd finally, packing 1 day, so fastest 7 days and longest 25 days without shipment.
Q6. As long term clients, what other service we can get?
1. New product will be offered with order, so you can see if it is potential product in the market a
nd promote it, and you will have the right to resell the product in your district.
2. Additional fee discount, cheaper price on purchasing products at smaller quantity.
3. We can offer assist on promotion images, and make images with clients' logo
Q7. How long is warranty for the cable, and if defective or faulty, how to protection your benifits?
A: All our cables are sold with 12-36 months warranty, and for big quantity order, we will offer 0.3%
to 0.5% backup for defective sent with order, so if you order 1000PCs, that means you can get 100
3pcs with backup. If you get faulty more than 5pcs, and less than 0.1%, please contact sales and
offer images, and we will solve your problem in the way of replacing with new order or refund.
Q8. Do you accept free sample order?
A: Yes, sample order is supported, some samples can be offered free exclusive of shipment freight.
How to contact us?
send your inquiry details in the below, click "send" now! free sample and best price are waiting for
you, if you can't find the product in our web, you can also send an inquiry to us, even if we don't make
it, we will find the same product with good quantity and good price.
