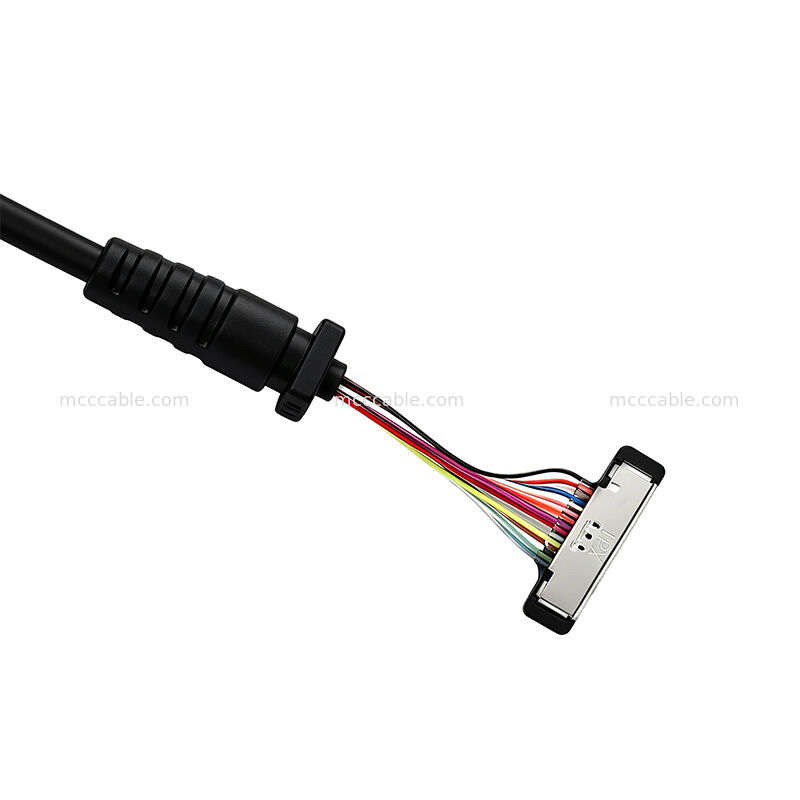

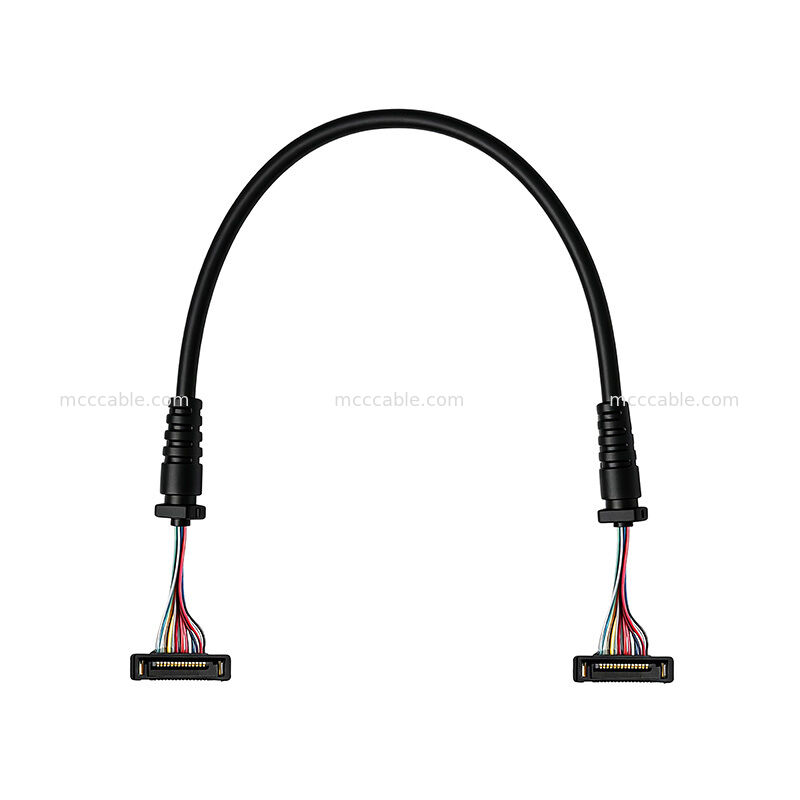

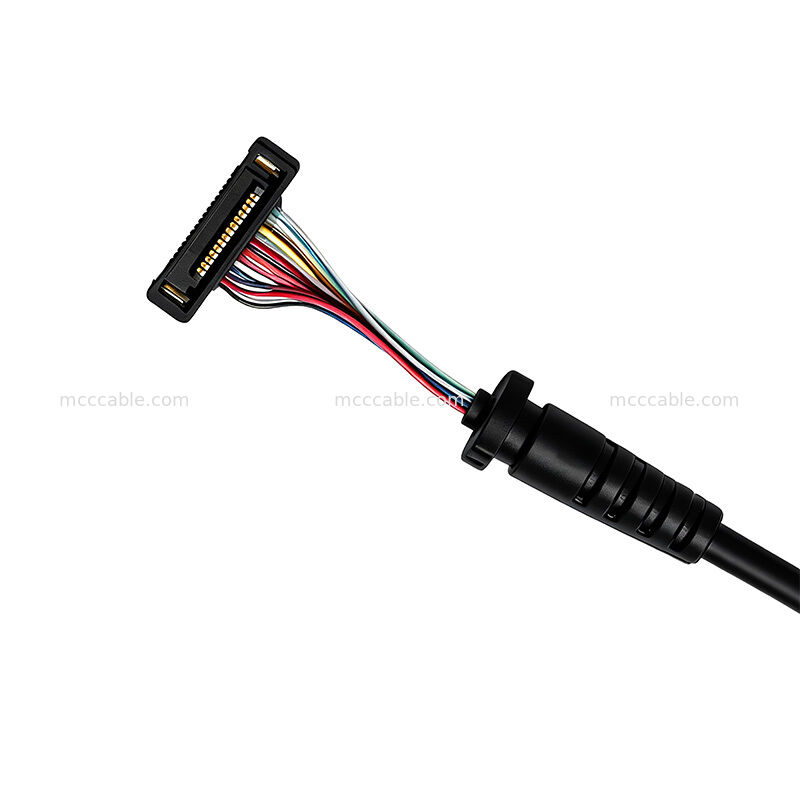

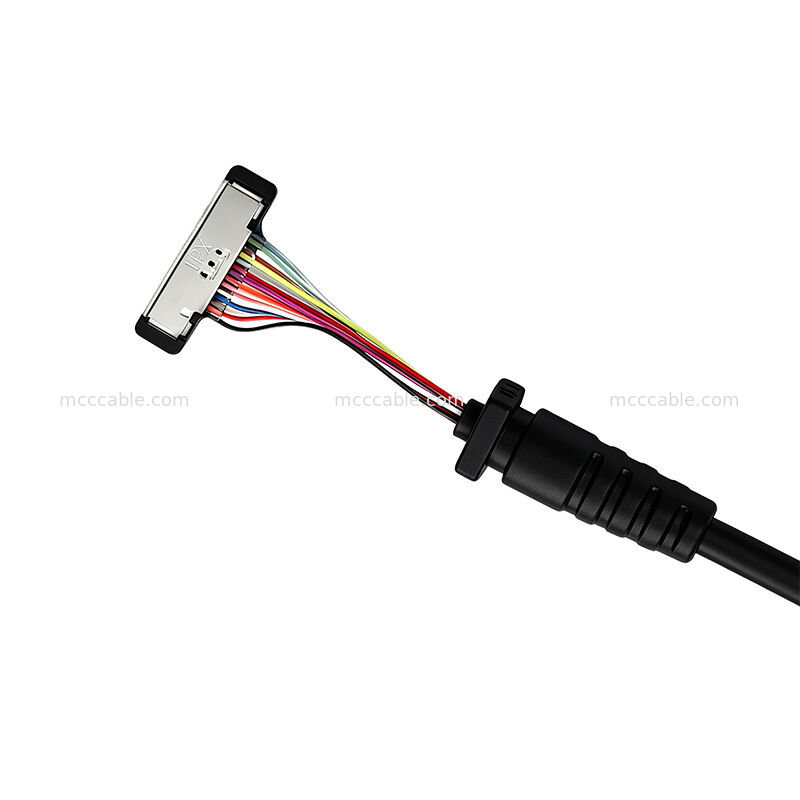

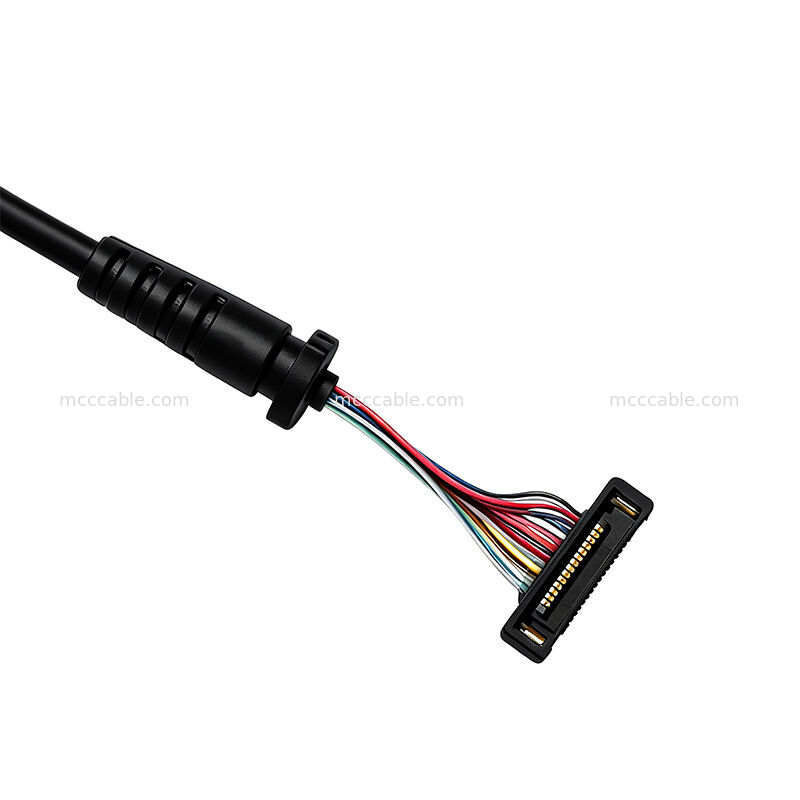

Custom 42AWG Micro Coaxial Cable Assembly

This custom micro coaxial cable assembly features a 14-conductor coaxial cable structure

with 2×42AWG and 12×36AWG conductors. It has a 50Ω impedance, 2.1±0.2 mm overall

cable diameter, and 150±5 mm cable length, providing a compact solution for multi-channel

signal connection.

Custom Micro Coaxial Cable Assembly

This custom micro coaxial cable assembly is designed with multiple coaxial signal paths in

a compact cable structure. The specified construction includes 14 coaxial conductors,

combining 42AWG and 36AWG conductor sizes.

42AWG Micro Coaxial Cable Assembly Specifications

14-Pin Micro Coaxial Cable with Compact Connectors

The assembly uses the same plug housing assembly at P1 and P2. The specified plug housing

is 20373-R14T-06, with 2182-014-03 specified as the corresponding plug shell.

50 Ohm Micro Coaxial Cable Construction

The cable uses a 50Ω coaxial structure with multiple signal paths. The specified conductor

configuration is 2×42AWG plus 12×36AWG, providing a compact multi-channel coaxial cable

assembly.

Custom 42AWG Coaxial Cable for Signal Connection

The compact 42AWG coaxial cable structure is suitable for applications requiring multiple

coaxial signal connections within a limited installation space. The specified cable length is

150±5 mm and the overall diameter is 2.1±0.2 mm.

Micro Coaxial Cable Shield Termination

The shields of the individual coaxial cables are specified to be terminated to the connector

shells at both P1 and P2. UV glue is also specified at the connector tails with a width of 1–2 mm.

Micro Coaxial Cable Assembly Quality Testing

The assembly requires 100% open, short and intermittence testing. The specified electrical

requirements include a maximum conductor resistance of 3.0 ohms and an insulation resistance

of 10M ohms under the specified test conditions. The assembly is also required to follow

RoHS requirements.
