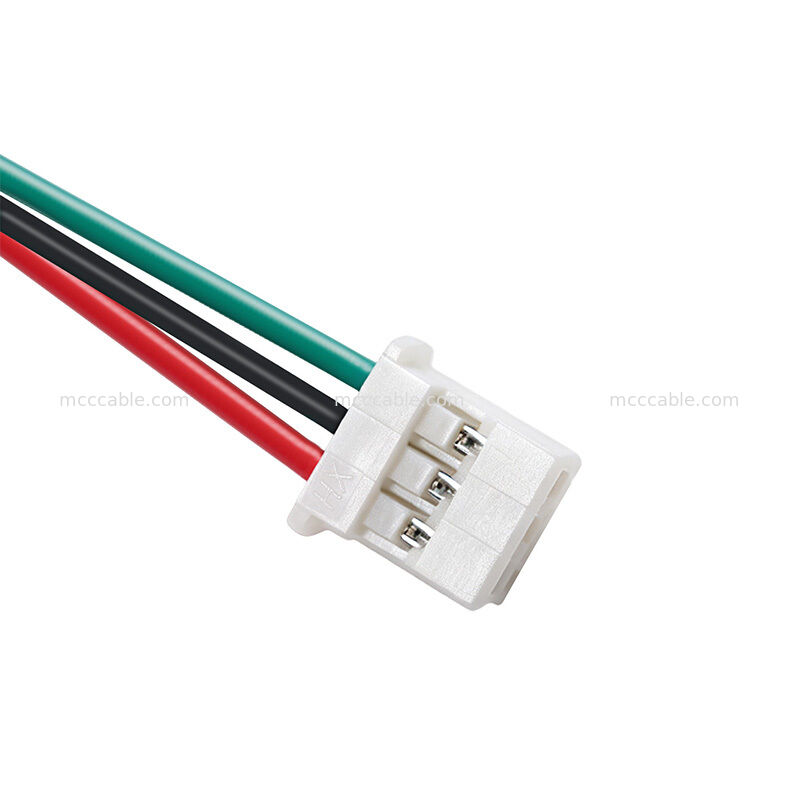

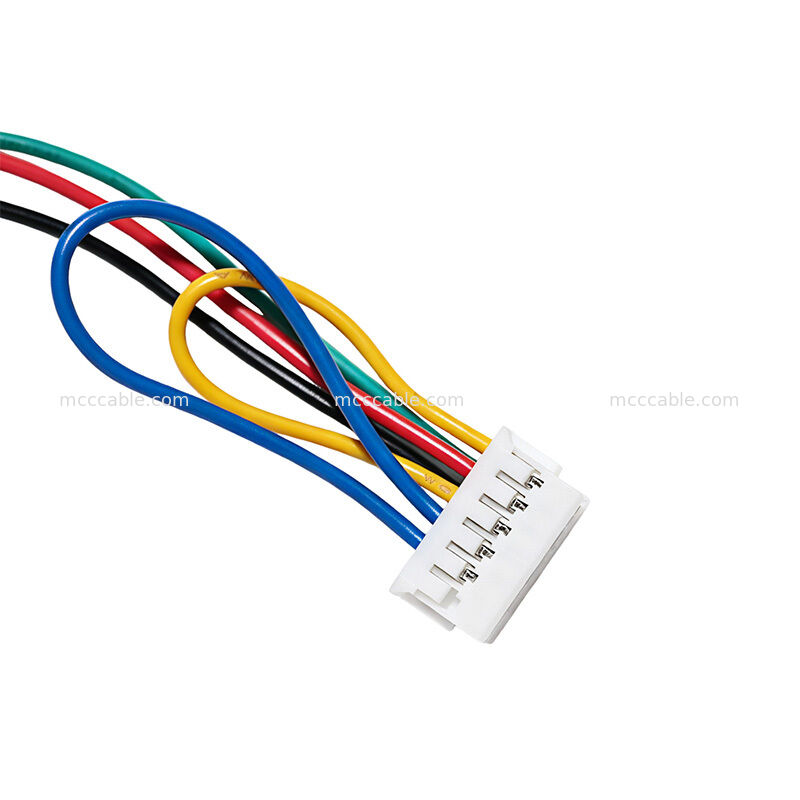

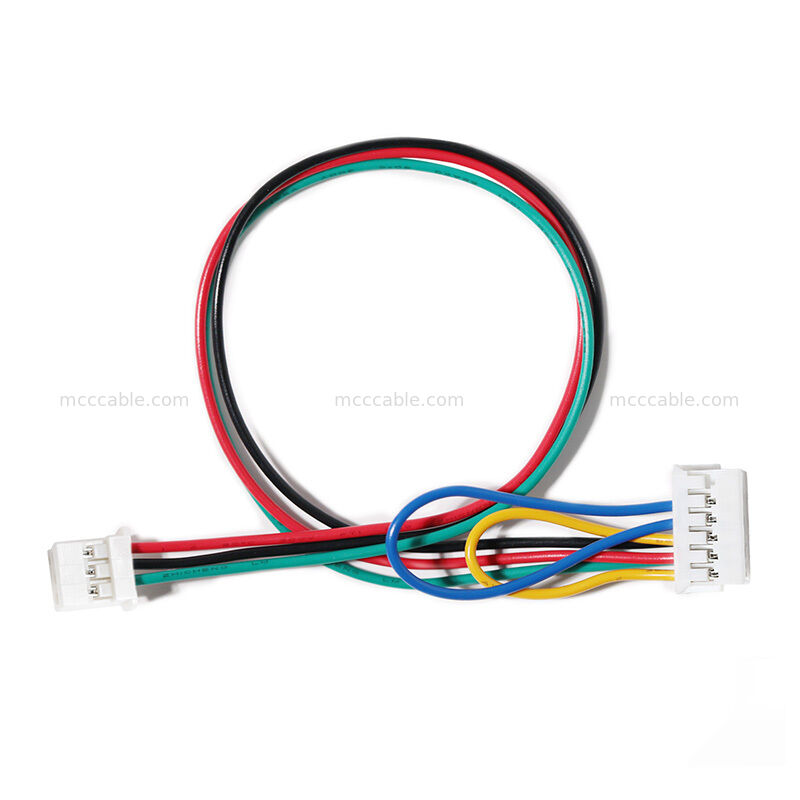

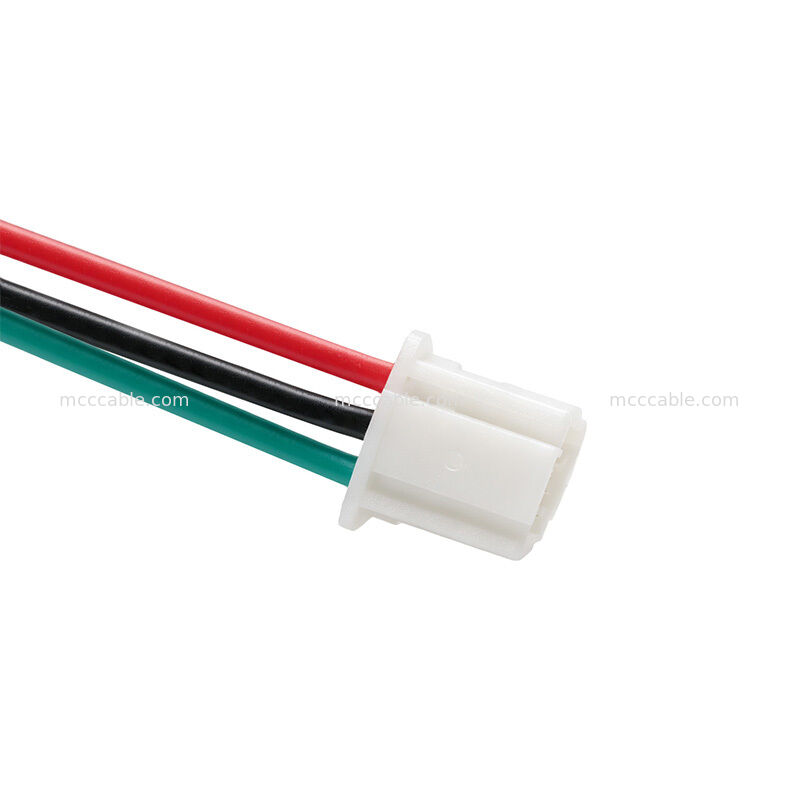

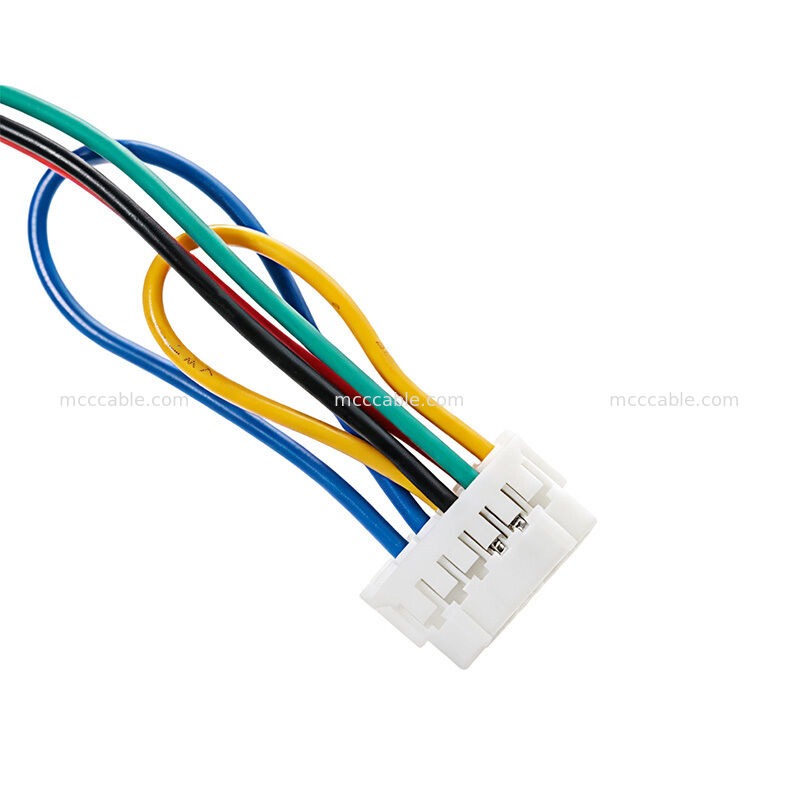

22AWG 5V Power Cable Assembly

This 22AWG 5V Power Cable Assembly is designed for auxiliary power supply connections

to electronic boards. The cable assembly uses UL1061 22 AWG wire and a 2.0 mm pitch

connector configuration for reliable board-level electrical connection.

With a defined wire color and pin-out configuration, this custom cable assembly can be

manufactured according to specific electrical, dimensional, and connector requirements.

22AWG 5V Power Cable Assembly Specifications

5V Power Cable for Board Connection

This 5V power cable assembly is designed for connecting an auxiliary 5V power supply to an

electronic board. The cable uses a multi-position connector configuration to provide the required

electrical connection between the power source and board.

The specified construction includes a 12-position connector on one side and a 3-position

connector on the other side, with a 2.0 mm pitch configuration.

This type of board power cable is suitable for electronic equipment and systems that require

a dedicated cable assembly for board-level power connection.

2.0mm Pitch Connector Cable Assembly

The 2.0mm pitch connector cable assembly uses connector housings and tin-plated crimp

terminals specified for the cable structure.

The drawing identifies:

• 2.0 mm pitch connector housing
• 12-position connector configuration
• 3-position connector configuration
• Tin-plated crimp terminals
• 22 AWG compatible wire

The specified connector components include a 2.0 mm pitch housing and crimp terminals

suitable for the specified wire size.

UL1061 22AWG Cable Construction

The UL1061 22AWG cable uses five individually identified wires in black, red, yellow, green,

and blue.

The specified wire structure provides clear color identification for the required pin-to-pin

wiring configuration.

The cable specification identifies UL1061 wire with a rated temperature of 80°C and rated

voltage of 300 V.

Custom 5V Cable Assembly Wiring

This custom 5V cable assembly follows a defined pin-out configuration to ensure consistent

electrical connection between the two connectors.

The five wire colors are:

• Yellow
• Green
• Red
• Black
• Blue

22AWG Power Cable Assembly Quality Testing

The 22AWG power cable assembly is subject to defined electrical inspection requirements.

The drawing specifies:

• 100% open, short and intermittence testing
• Maximum conductor resistance: 3 Ω
• Minimum insulation resistance: 10 MΩ at 200 V DC
• Inspection of specified dimensions
• RoHS 3.0 compliance

5V Board Power Cable Applications

The 5V board power cable is intended for auxiliary power supply connections to electronic

boards. Its 22 AWG wire, defined connector configuration, and specified pin-out make it

suitable for applications requiring a dedicated board power connection.

Typical application keywords for this cable include:

• 5V auxiliary power connection
• Board power connection
• Electronic equipment wiring
• Internal power supply connection
• Custom cable assembly
• Board-to-power-supply connection
