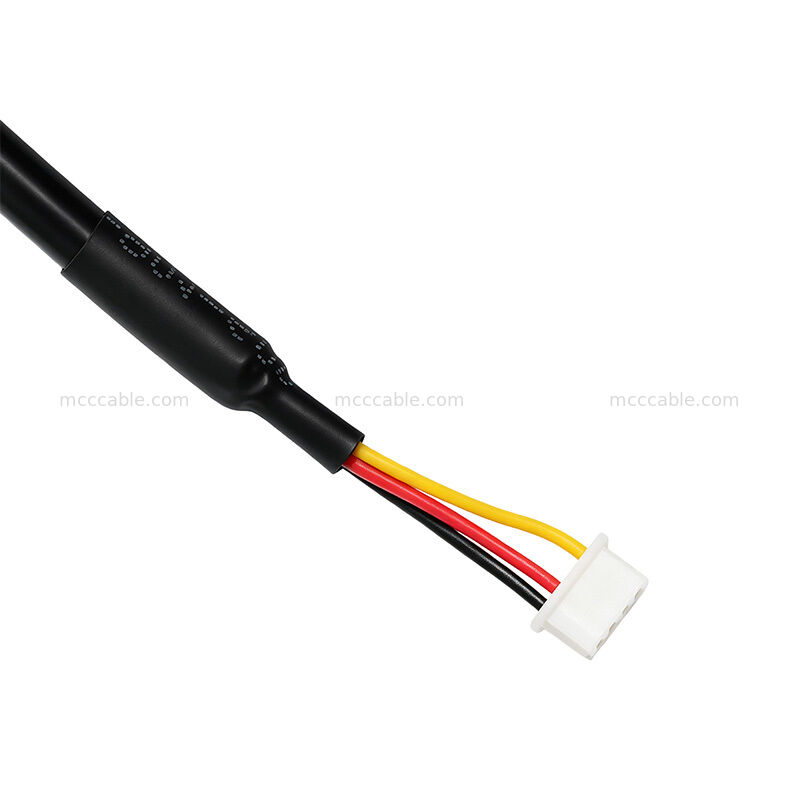

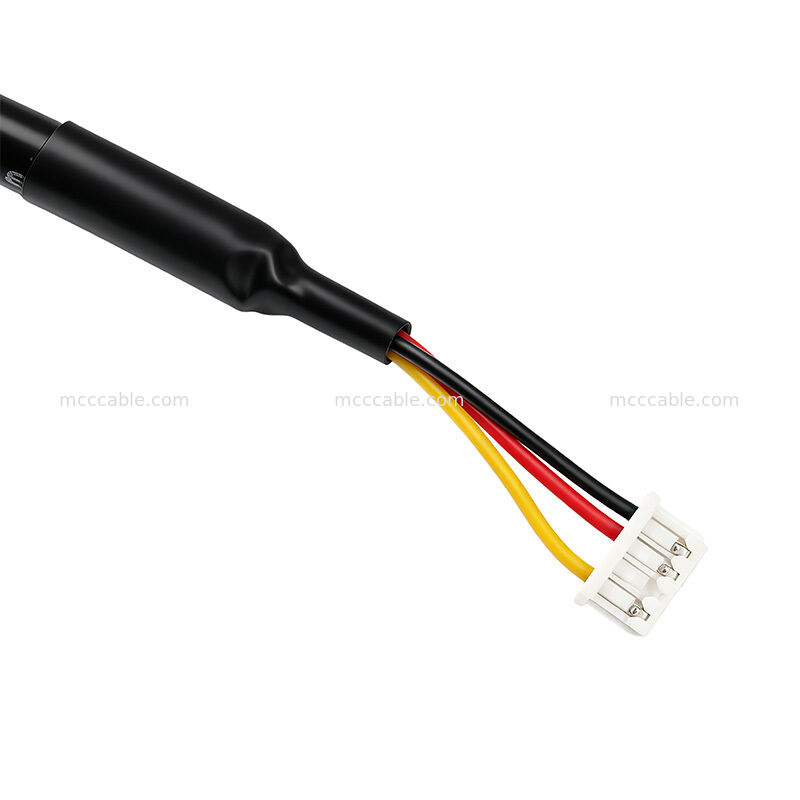

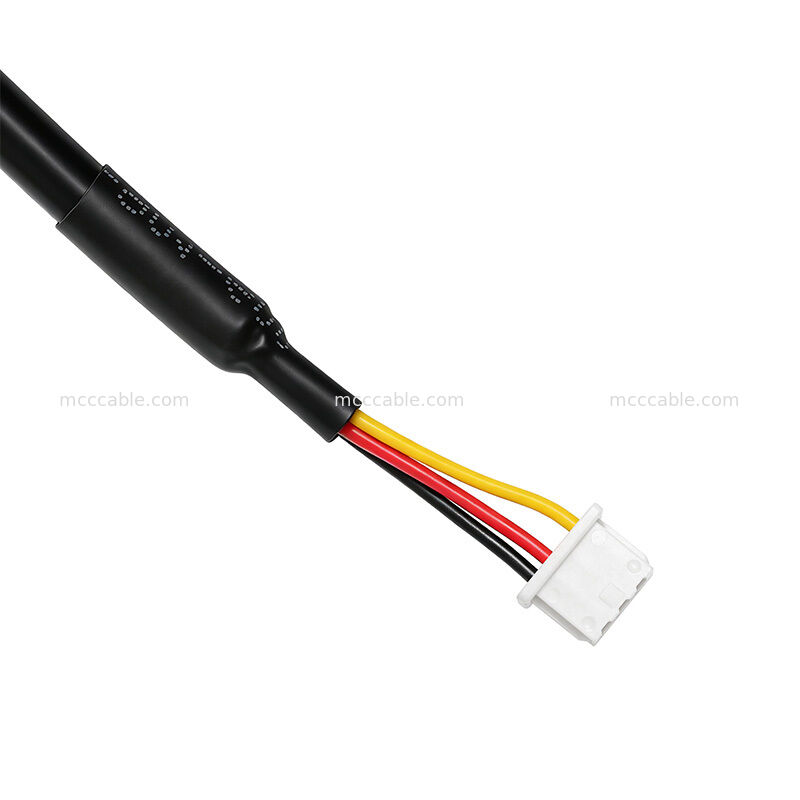

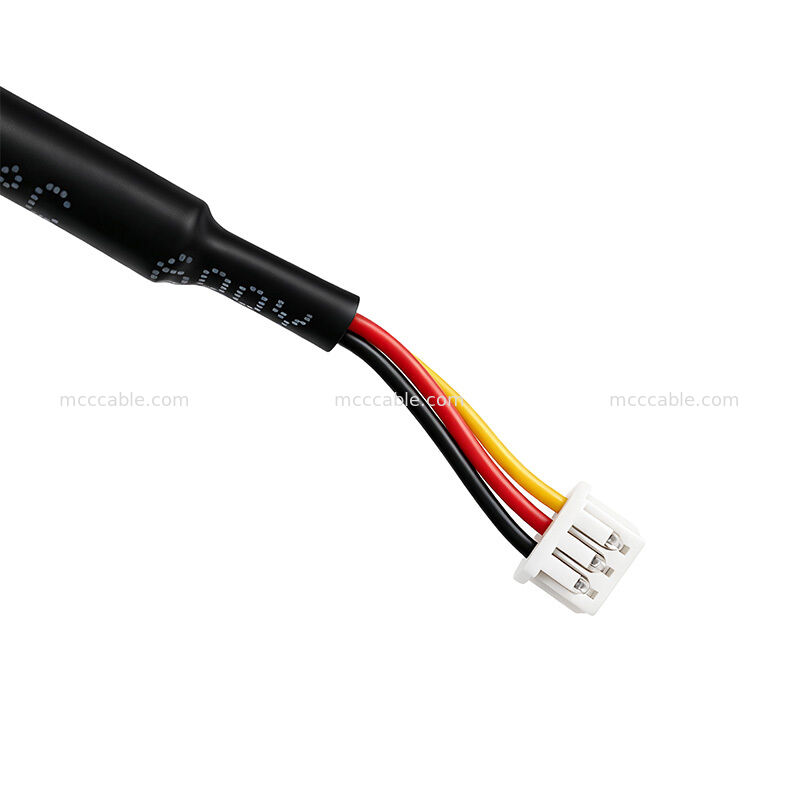

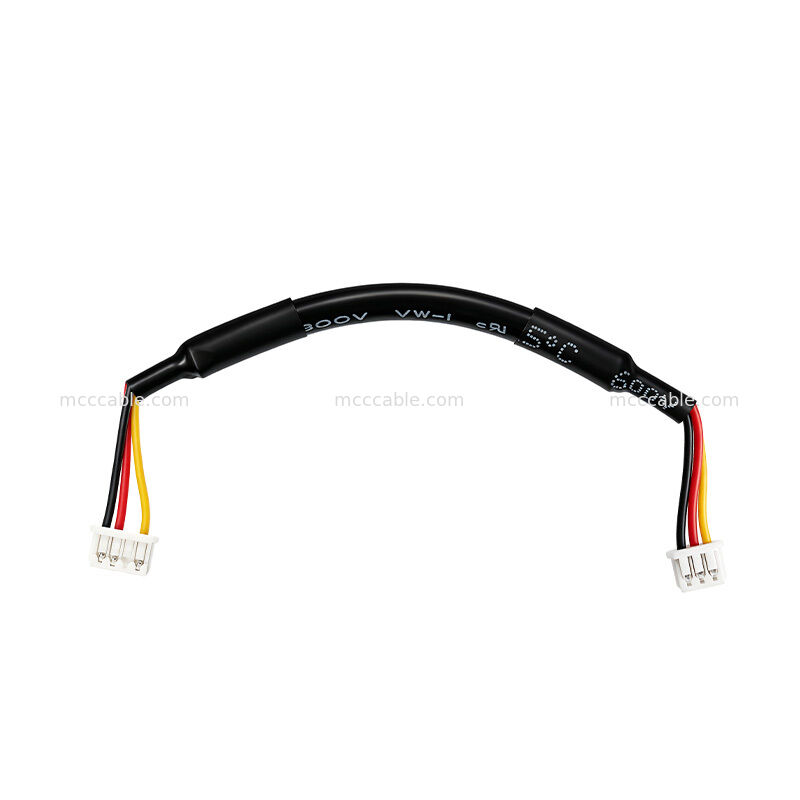

Custom FS-A8S Receiver Cable Assembly 3 Pin Twisted Wire Harness 100mm

FS-A8S Receiver Cable Assembly

The FS-A8S Receiver Cable Assembly is a custom modified cable assembly designed for the

FS-A8S receiver. The cable is modified with a 3-contact connector and a twisted wire

configuration according to the specified connection requirements.

The assembly uses three wires with defined color and contact assignments for the receiver

connection.

FS-A8S Cable Assembly Specifications

FS-A8S 3 Pin Receiver Cable

The FS-A8S cable assembly uses three contacts for the receiver connection. The connection

table identifies the three conductors by color:

• Yellow → Contact 1
• Red → Contact 2
• Black → Contact 3

This defined pin configuration provides the required connection between the modified cable

and the receiver connector.

FS-A8S Twisted Wire Harness

The cable uses a twisted wire configuration. During the specified modification process, the wire

is twisted back to its original state after the conductors are crimped and installed into the connector

according to the pinout requirements.

Custom FS-A8S Cable Assembly

This custom cable assembly is produced by modifying the cable included with the receiver assembly.

The specified process includes removing the original black connectors, removing the white wire from

the harness, crimping the required contacts and installing the contacts into the designated connector.

The resulting cable assembly uses the specified three-wire connection with Yellow, Red and Black

conductors.

FS-A8S Receiver Cable Connector

The assembly uses a 3-contact connector for the modified receiver cable. The drawing's bill of

materials identifies the contact and connector components by their respective part numbers, including

0500798000 and 510210300.

FS-A8S Receiver Cable Applications

The FS-A8S Receiver Cable Assembly is suitable for applications requiring a modified receiver

connection with a compact three-wire cable configuration.

Typical application keywords include:

• Receiver cable assembly
• RC receiver wiring
• 3-pin receiver cable
• Custom receiver cable
• Twisted wire harness
• Electronic receiver connection
• Replacement receiver cable
