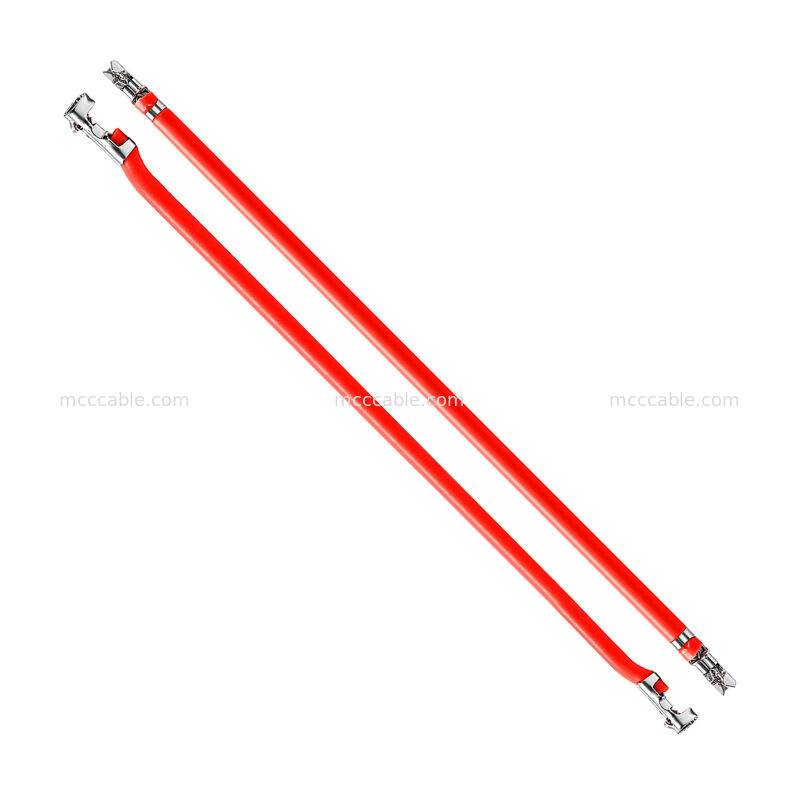

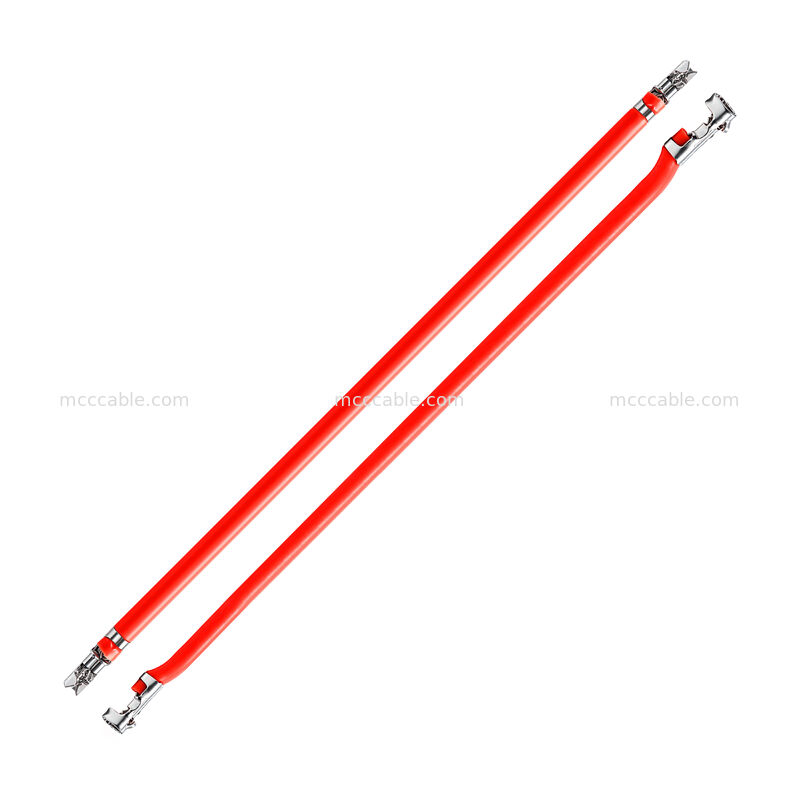

500588000 MX1.25 Terminal Cable Assembly Custom UL1061 Wire

The 500588000 MX1.25 Wire Harness Assembly is a custom cable assembly designed

with MX1.25 series terminal connectors and UL1061 wire.

This cable harness uses 28~26AWG UL1061 wire rated at 80℃ and 300V, providing a

compact and reliable connection solution for electronic equipment and internal wiring

applications.

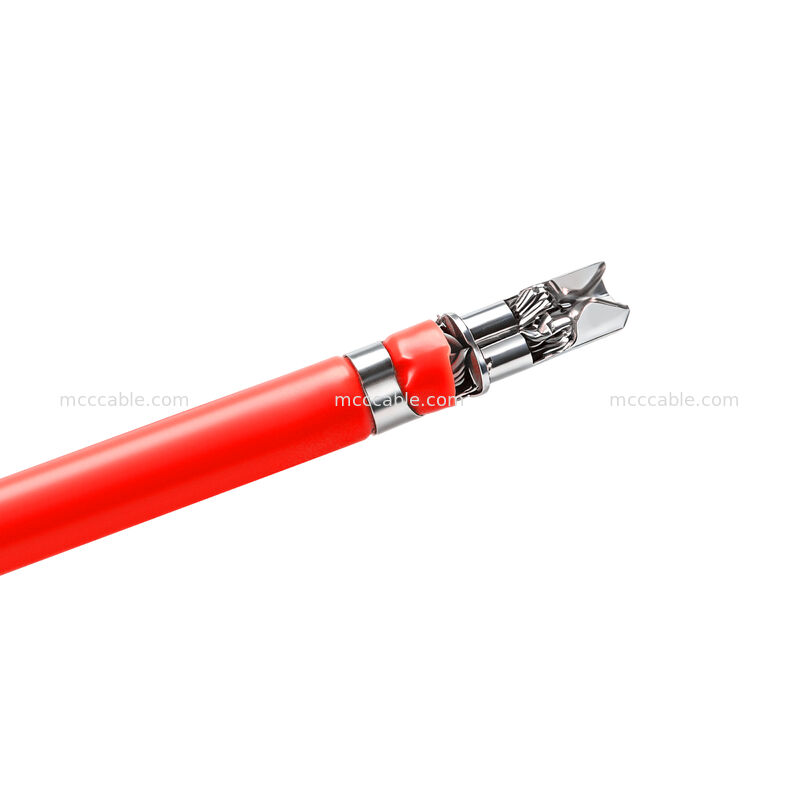

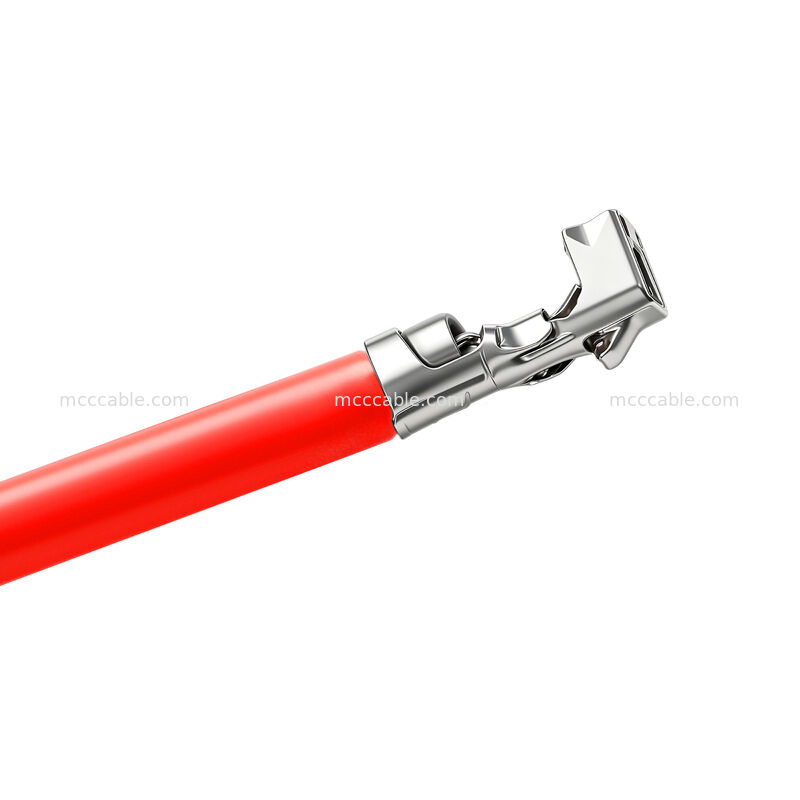

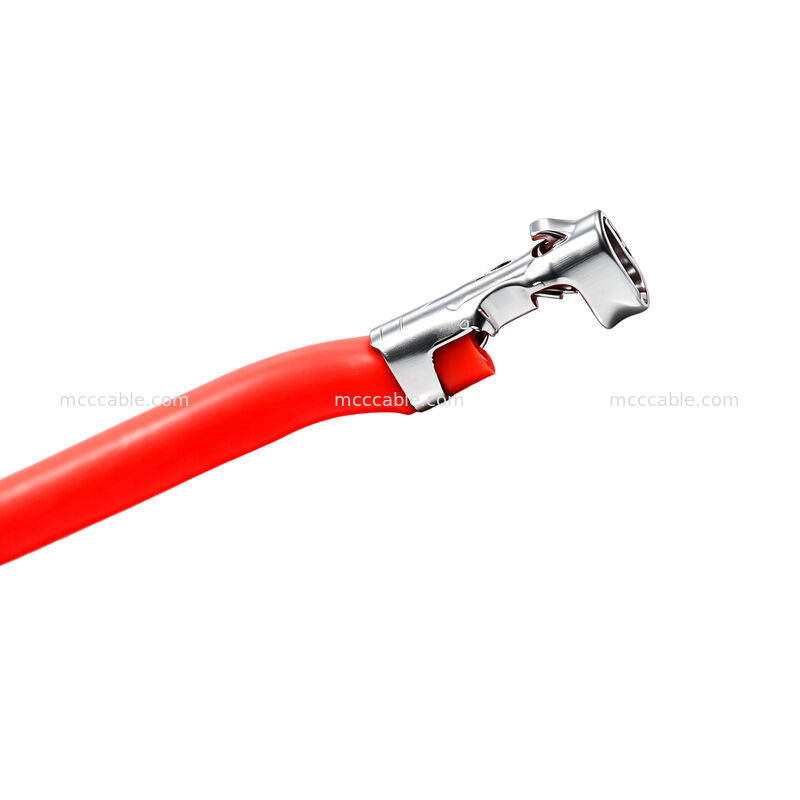

500588000 MX1.25 Wire Harness Assembly Structure

The 500588000 MX1.25 Wire Harness Assembly consists of MX1.25 terminal connectors

and UL1061 insulated wires.

The cable structure is optimized for compact electrical connection applications requiring

stable signal or power transmission in limited installation spaces.

Main structure features:

• MX1.25 terminal connector system
• UL1061 28~26AWG wire
• Custom cable length configuration
• Compact wire harness design

500588000 MX1.25 Cable Harness Specifications

500588000 MX1.25 Connector Cable Assembly Features

The 500588000 MX1.25 connector cable assembly provides a compact and customized

wiring solution for electronic devices.

Key features include:

• Custom wire harness manufacturing capability
• Compact MX1.25 terminal connection
• UL1061 cable construction
• Reliable electrical performance
• 100% open, short and intermittent testing

The production process includes electrical inspection to ensure each cable assembly

meets connection reliability requirements.

500588000 MX1.25 Wire Harness Electrical Performance

The 500588000 MX1.25 wire harness assembly is tested according to electrical

requirements including:

• 100% open circuit test
• 100% short circuit test
• 100% intermittent test
• Conductor resistance: 2Ω Max.
• Insulation resistance: 10MΩ / 300V DC / 10ms minimum

500588000 MX1.25 Custom Cable Harness Applications

The 500588000 MX1.25 cable harness assembly is suitable for applications requiring

compact internal wiring and reliable terminal connections.

Typical applications include:

• Consumer electronics
• Industrial control equipment
• Electronic modules
• Compact electrical systems
• Custom OEM wiring solutions

500588000 MX1.25 Cable Assembly Manufacturing Capability

We provide custom cable assembly services including connector termination, wire selection,

customized length production and electrical testing.

Each assembly can be produced according to customer requirements with flexible wire gauge,

cable length and connector configuration options.
