28AWG LVDS Cable Assembly with 0.5mm Pitch Connector
Video
Video
The Custom 28AWG LVDS Cable Assembly is designed for high-speed differential signal
transmission between electronic components and display-related systems.

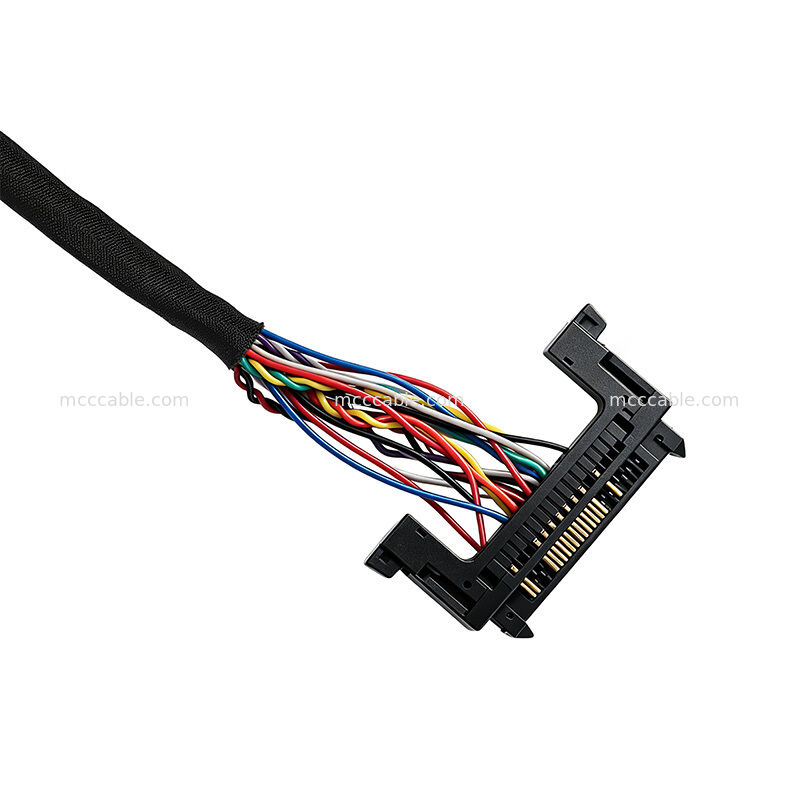

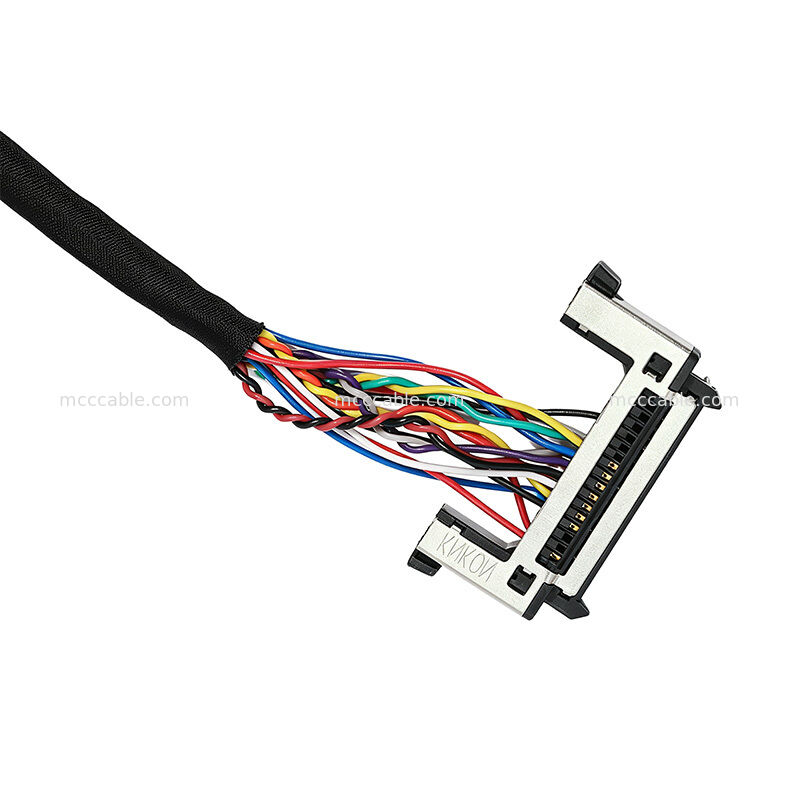

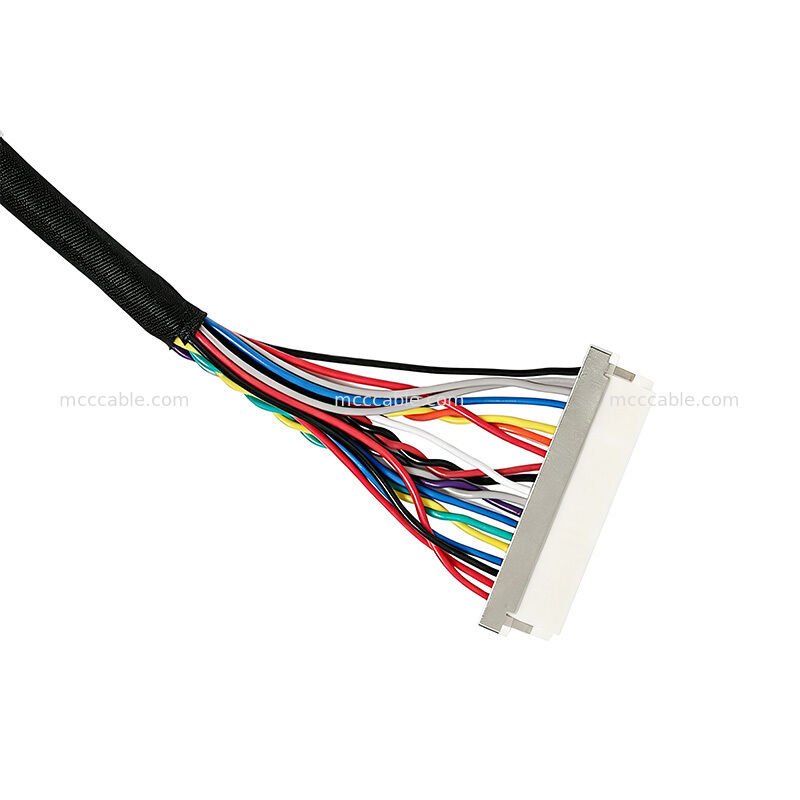

The cable assembly uses 28 AWG UL1571 wire and a fine-pitch connector configuration.
Multiple differential signal pairs are integrated into the cable assembly to support LVDS
signal connections.

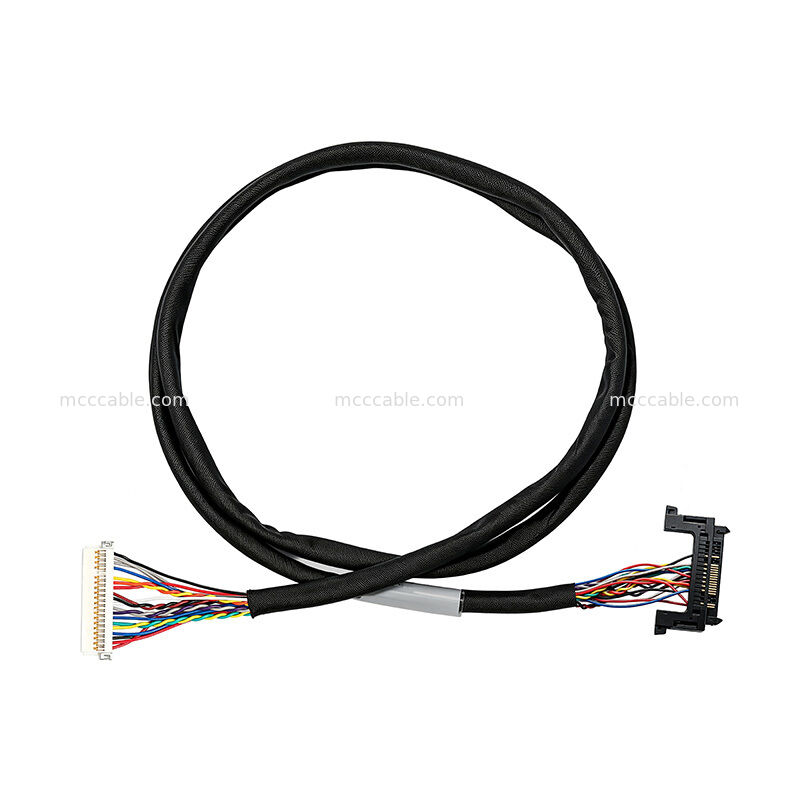

The cable length is approximately 610 mm (24 inches), with the connector and wiring
configuration manufactured according to the specified requirements.
| Item | Specification |
|---|---|
| Product Type | LVDS Cable Assembly |
| Conductor Size | 28 AWG |
| Wire Type | UL1571 |
| Cable Length | 610 ± 10 mm |
| Approx. Length | 24 inches |
| Connector Pitch | 0.5 mm |
| Connector Configuration | 31-Pin + 20-Position |
| Conductor Material | Tinned Copper |
| Insulation Material | SRPVC |
| Rated Temperature | 80°C |
| Rated Voltage | 30V |
| Compliance | RoHS 3.0 |

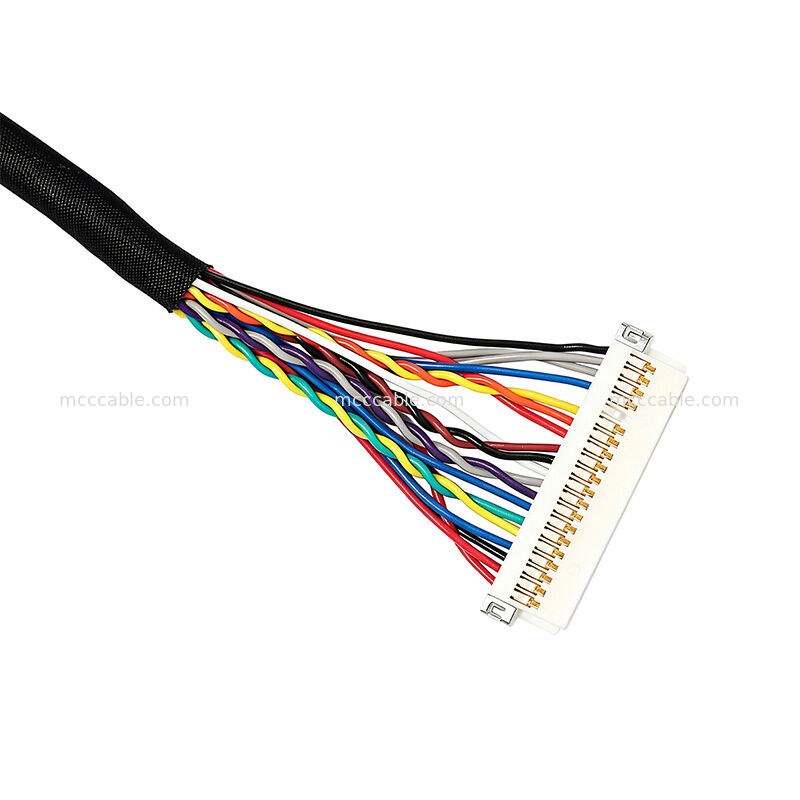

The 28AWG LVDS Cable Assembly uses a fine-pitch connector configuration designed for
compact electronic applications.
One connector uses a 0.5 mm pitch, 31-pin housing, while the opposite side uses a 20-position
connector. This configuration provides a compact interface for applications where connector
density and cable routing space are important.
The fine-pitch connector structure is suitable for compact electronic equipment requiring a
multi-pin LVDS connection.
The Custom LVDS Cable Assembly incorporates multiple differential signal pairs for LVDS
communication.
The specified signal configuration includes:
The wiring configuration also includes multiple ground connections to support the specified
interface structure.
This multi-pair configuration makes the cable suitable for applications requiring organized
LVDS differential signal transmission.
The 28AWG UL1571 cable uses tinned copper conductors with SRPVC insulation.
Key wire specifications include:
The specified cable also has a maximum conductor resistance of 239 Ω/km at 20°C.
The Custom LVDS Cable Assembly is suitable for electronic systems that require
compact multi-pin differential signal connections.
Its combination of 28 AWG UL1571 wiring, fine-pitch connector construction, multiple
LVDS differential pairs, and a defined cable length makes it suitable for applications
where space-efficient signal cabling is required.
Potential applications include:
The LVDS Cable Assembly is subject to defined electrical inspection requirements.
The specified quality requirements include:
These inspection requirements support consistent electrical performance and
production quality for the finished cable assembly.
