Place of Origin:
China
Brand Name:
Customization
Certification:
UL ，ISO13485 , ISO9001.2005 , ISO14001
Model Number:
USL20-30SS-016C

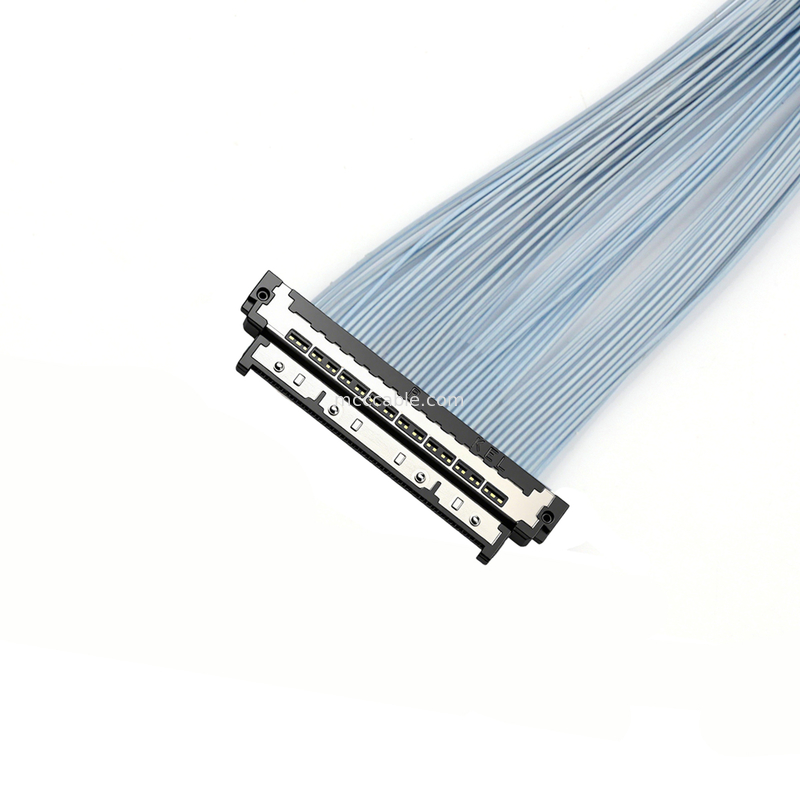

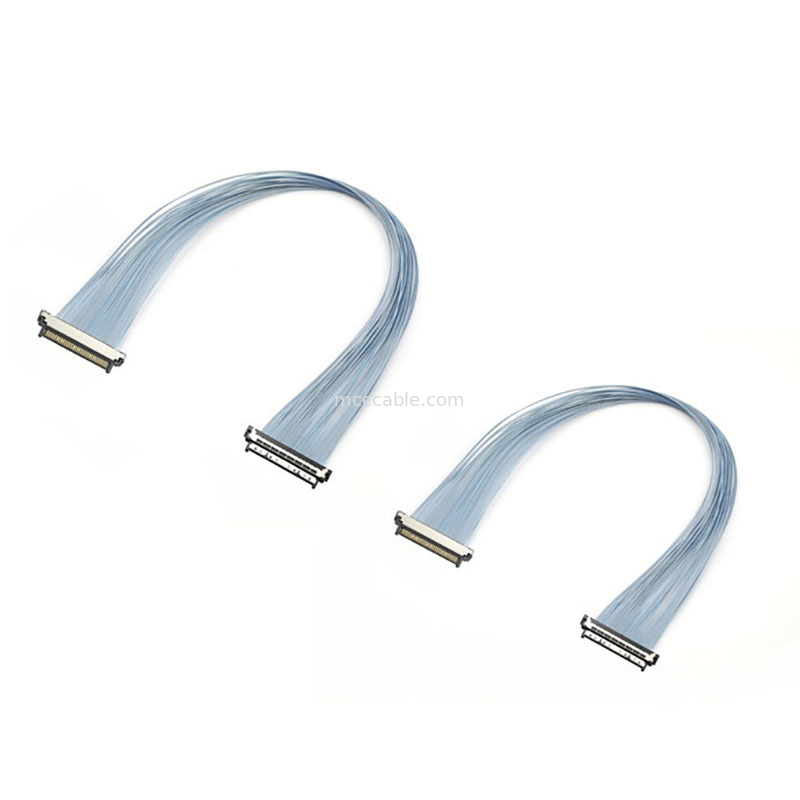

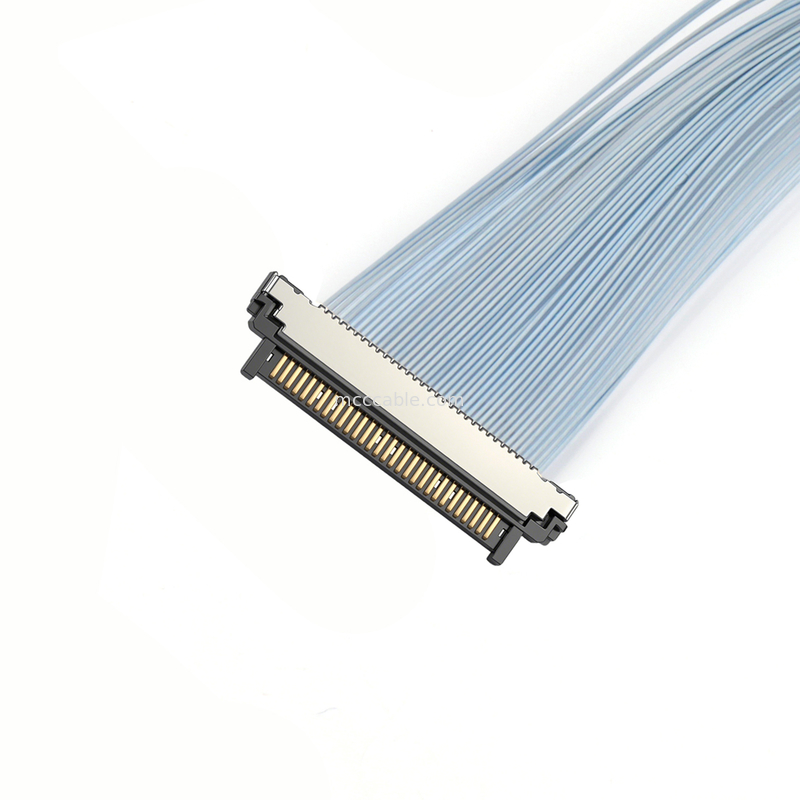

Precision 0.4mm USL20-30SS-016C ZIF Connector
for 8MP+ High-Resolution Surveillance Cameras
USL20-30SS-016C Material & Surface Treatment:
| Insulator Material | LCP (glass fiber-filled) UL94V-0 material, black |
| Contact Material | Copper alloy |
| Contact Finish | Nickel-plated base, gold-plated finish |
| Shell Material | Copper alloy |
| Shell Finish | Nickel-plated base, tin-copper plated finish |
| Cover Material | [USL20] LCP (with glass fiber) UL94V-0 material, white |
USL20-30SS-016C Ratings:
| Rated Current | 0.25 A per contact |
| Contact Resistance | 100 mΩ or less |
| Withstand Voltage | 200 V AC, 1 minute |
| Insulation Resistance | 250 V DC, 100 mΩ min. |
| Operating Temperature Range | -40 to +85°C |
| Applicable Cable | AWG#42 micro coaxial cable |
USL20-30SS-016C Recommended models:
USL20-30SS-010-C USL20-30SS-010-B USL20-30SS-015-C USL20-30SS-015-B
USL20-30SS-010-C USL20-30SS-010-B USL20-30SS-015-C USL20-30SS-015-B
USL20-40SS-010-C USL20-40SS-010-B USL20-40SS-015-C USL20-40SS-015-B
USL20-40SS-020-C USL20-40SS-020-B USL20-40SS-030-C USL20-40SS-030-B
Recommended line number:
#42 AWG Micro coaxial cables
Current rating :
0.25A per contact
Contact resistance:
100mΩ max.
Q1. Is it a factory?
A:Yes, we have over 15 years of experience in design and manufacturing!
Q2. Is there any certification?
A:Yes, we hold ISO9001, ISO14001, TS16949, ISO13485, and UL certifications.
Q3. What is our specialty?
A:Our expertise lies in creating products tailored to their applications.
Q4. Do you accept OEM/ODM orders?
A: Yes, we take OEM/ODM orders. OEM orders require a 100-piece MOQ, while ODM orders
need 1000 pieces, with a mold fee based on the design.
Q5. How long will it need for completing an order?
A: For small orders and in-stock items, preparation and delivery take under 3 days, with shipping
time based on client preference (7 days to 1 month). For large orders, material prep and production
require 5–21 working days based on quantity, testing takes 1–3 days, and packing takes 1 day,
so 7–25 days total, excluding shipping.
Q6. As long term clients, what other service we can get?
A: New products come with orders to evaluate their market fit and promote, with reselling rights in
your area. 2. Extra discounts and cheaper prices for smaller orders. 3. Support with promotional
images, including those featuring your logo.
Q7. How long is warranty for the cable, and if defective or faulty, how to protection your benifits?
A: Our cables come with a 12–36-month warranty. For bulk orders, 0.3%–0.5% extra units are
included for defects. For 1000pcs, you receive 3–5 spares. If defects exceed 5pcs but are under
0.1%, contact sales with images for a replacement or refund.
Q8. Do you accept free sample order?
A: Yes, we provide sample orders; select samples are free, aside from shipping fees.
