QSH-060-01-H-D-A to QTH-060-04-H-D-A-TR 60 Pin High Speed Differential Cable

QSH-060-01-H-D-A to QTH-060-04-H-D-A-TR 60 Pin High Speed Differential Cable Assembly

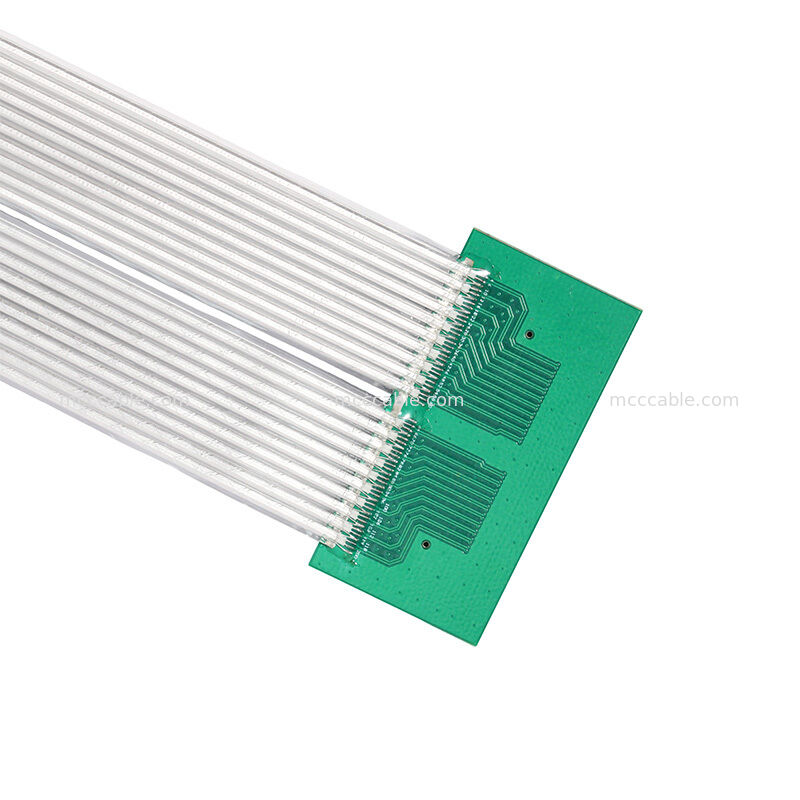

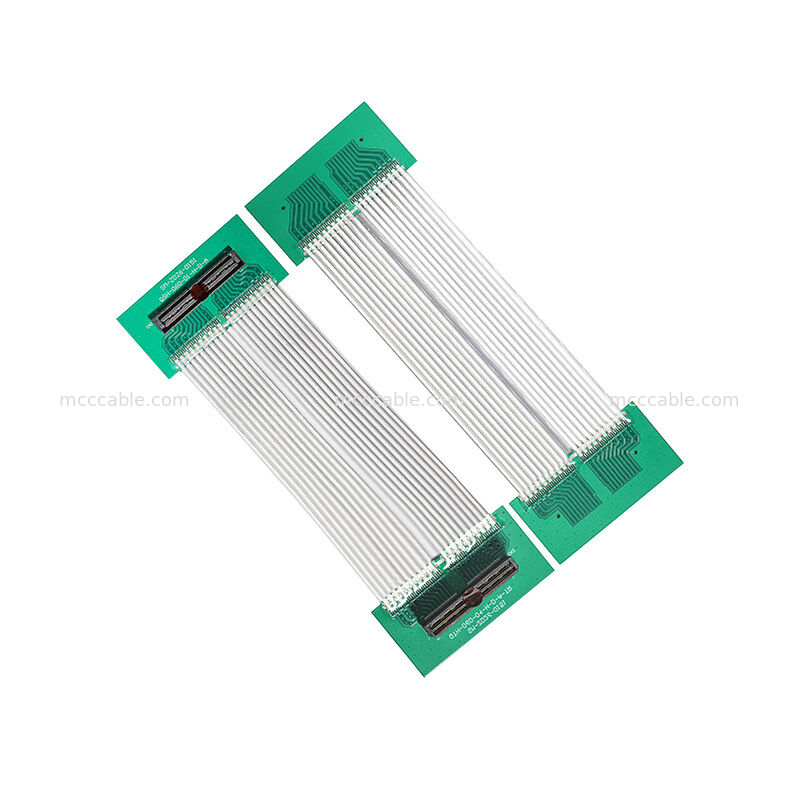

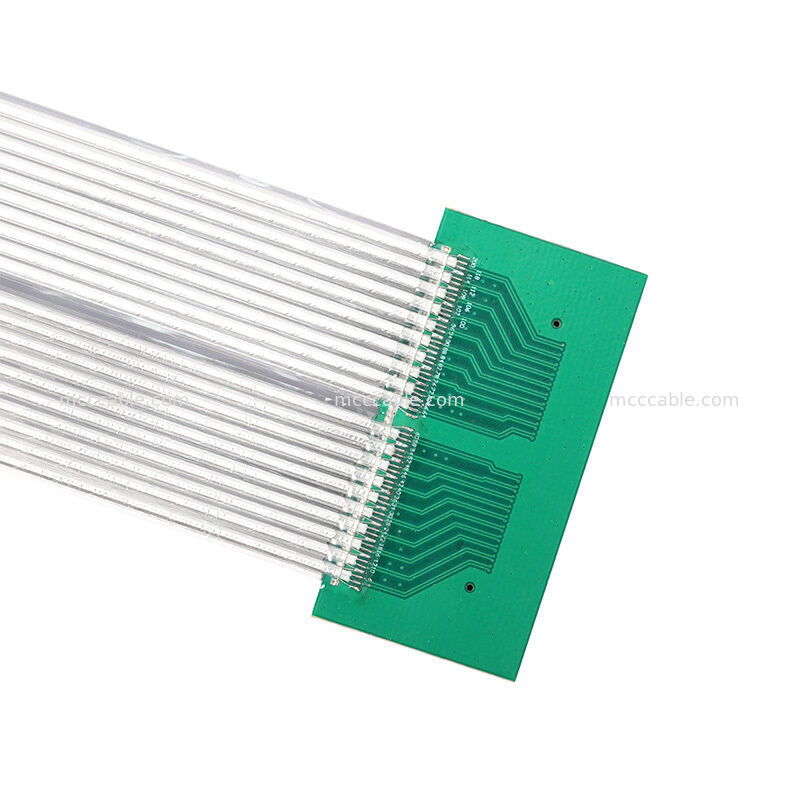

This 60-pin high speed differential cable assembly connects a QSH-060-01-H-D-A connector

to a QTH-060-04-H-D-A-TR connector, designed for high-density board-to-board and

board-to-cable signal transmission in compact electronic systems. The assembly uses

white 2-core high-speed differential flat cable (O.D. 0.84mm) with UV glue reinforcement

for strain relief and durability.

QSH-060-01-H-D-A and QTH-060-04-H-D-A-TR Connector Configuration

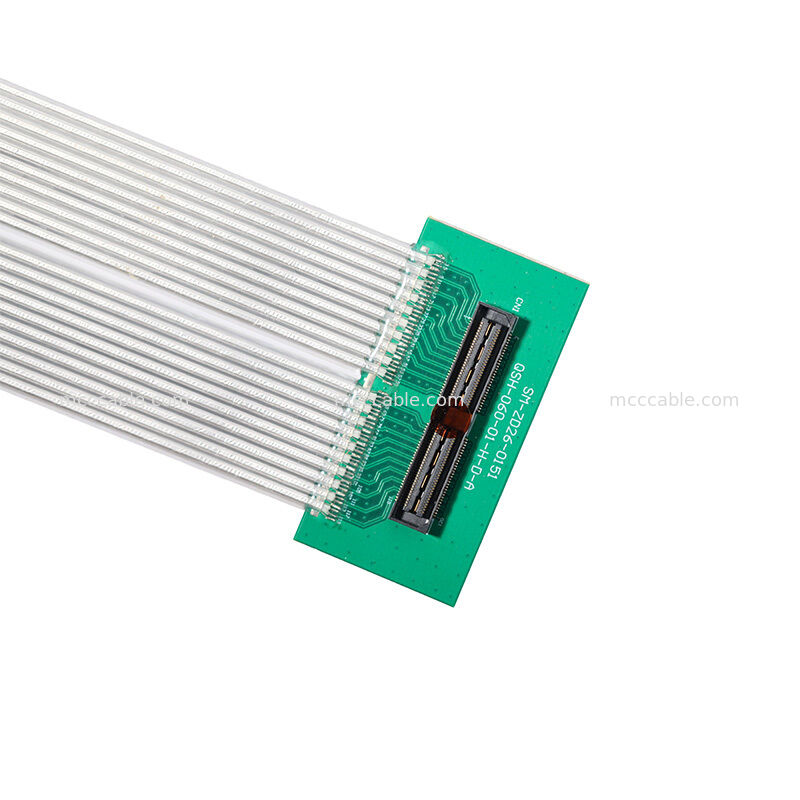

The CN1 side uses the QSH-060-01-H-D-A connector, while the CN2 side uses

the QTH-060-04-H-D-A-TR connector. The 60-pin pinout provides straight-through

1:1 mapping with GND pins distributed across the connector for signal integrity. The

white 2-core high-speed differential flat cable supports differential pair routing, and

UV glue is applied at the termination points to protect the solder joints and improve

mechanical reliability.

QSH-060-01-H-D-A 60 Pin Cable Assembly Specifications

High Speed Differential Flat Cable Performance and Testing

The white 2-core high-speed differential flat cable (O.D. 0.84mm) is designed for differential

signal transmission with controlled impedance and low skew, suitable for high-speed data

interfaces in compact devices. Each assembly undergoes 100% on/off, short circuit, open

circuit, misalignment, and intermittent contact testing, with on-resistance of 3Ω maximum,

dielectric strength tested at DC 200V with insulation resistance of 10MΩ minimum, and

withstand voltage of AC 200V for 1 second with leakage current of 2.0mA maximum.

QSH-060-01-H-D-A Cable Assembly Applications and Customization

This 60-pin high speed differential cable assembly is ideal for high-density board-to-board

connections, embedded computing, medical imaging devices, and industrial control systems

where compact size and signal integrity are critical. The UV glue reinforcement ensures

durability in vibration-prone environments, and custom cable lengths, connector configurations,

and pinout mapping are available for OEM projects. All products are manufactured under

RoHS-compliant processes with full hazardous substance control.

Sino-Media is a specialized cable assembly manufacturer. We utilize cutting-edge
automation equipment, premium raw materials, a robust quality assurance system,
and a skilled technical team to deliver high-quality, custom cable and harness
components in small quantities. Our engineering, production, and quality control
teams ensure the excellence of these unique components. Our mission is to enhance
product quality continuously, meet customer needs, and maintain expertise in the
materials we use and recommend. Our dedication to customer satisfaction drives
the company’s ongoing growth.
