Place of Origin:
China
Brand Name:
Customization
Certification:
UL ，ISO13485 , ISO9001.2005 , ISO14001
Model Number:
USL20-30SS-017C

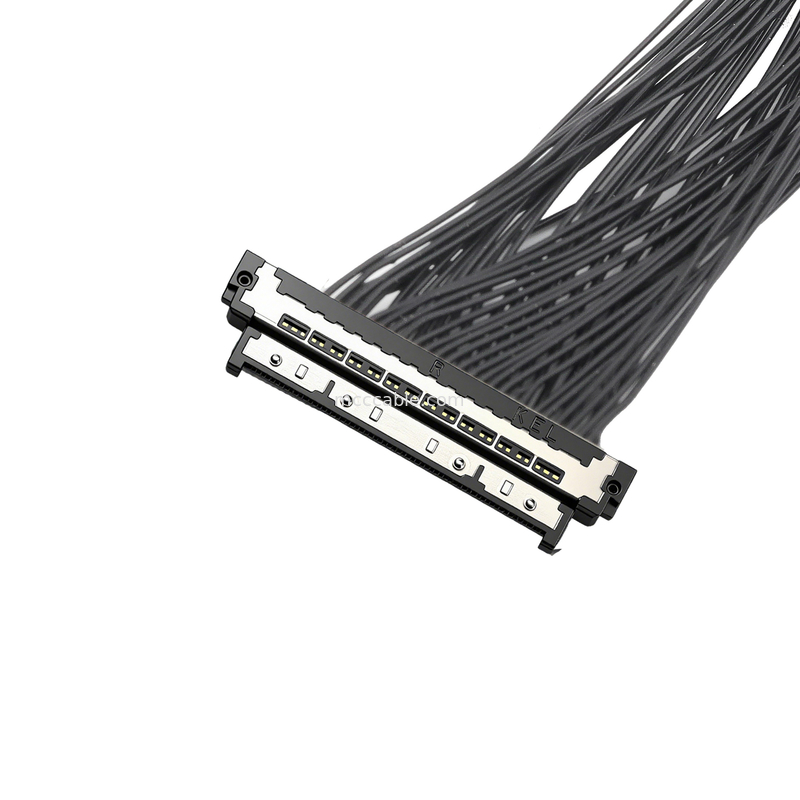

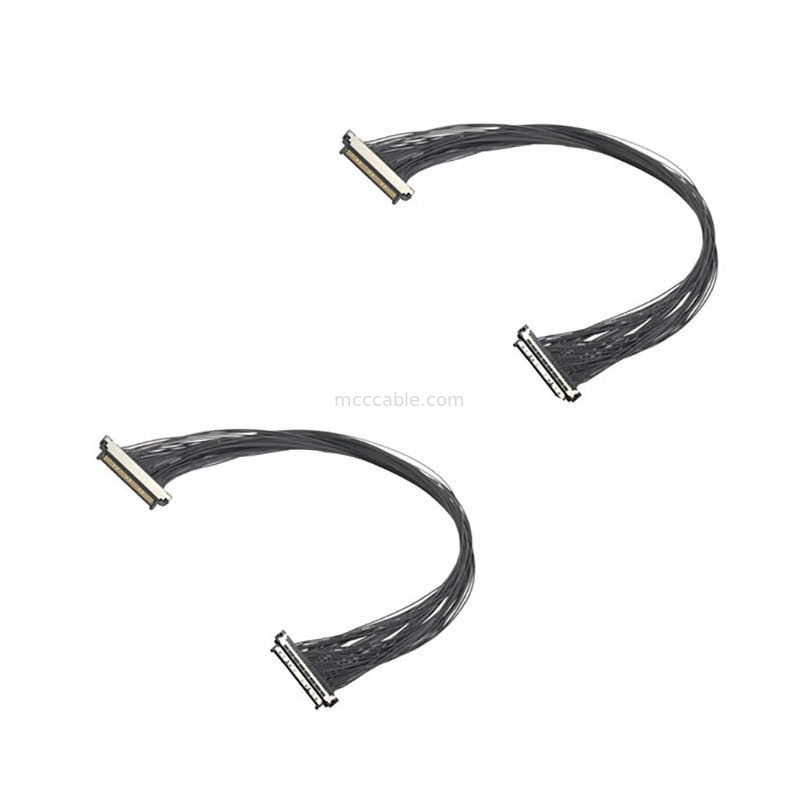

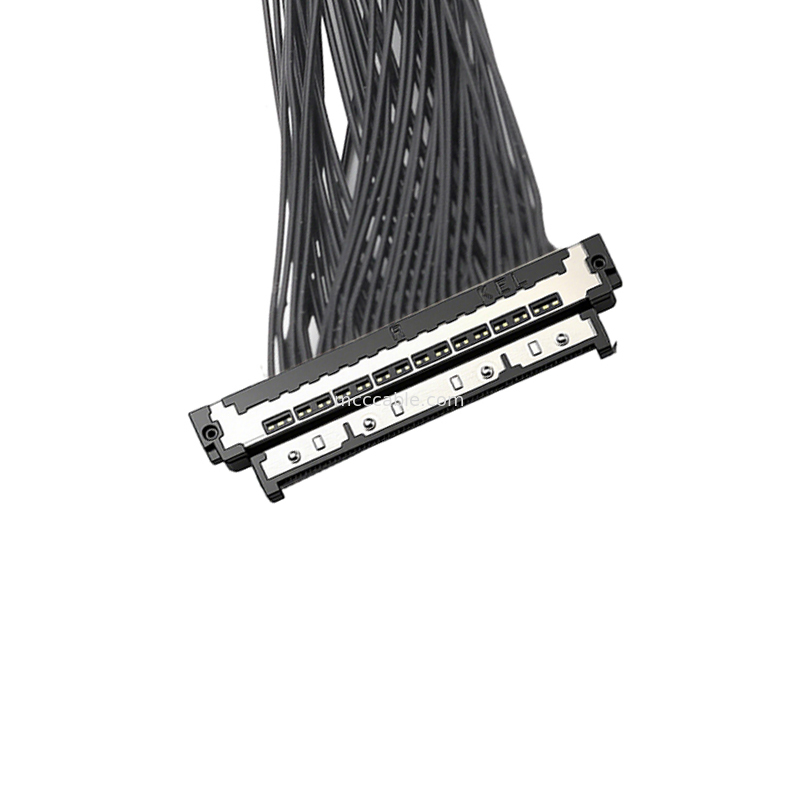

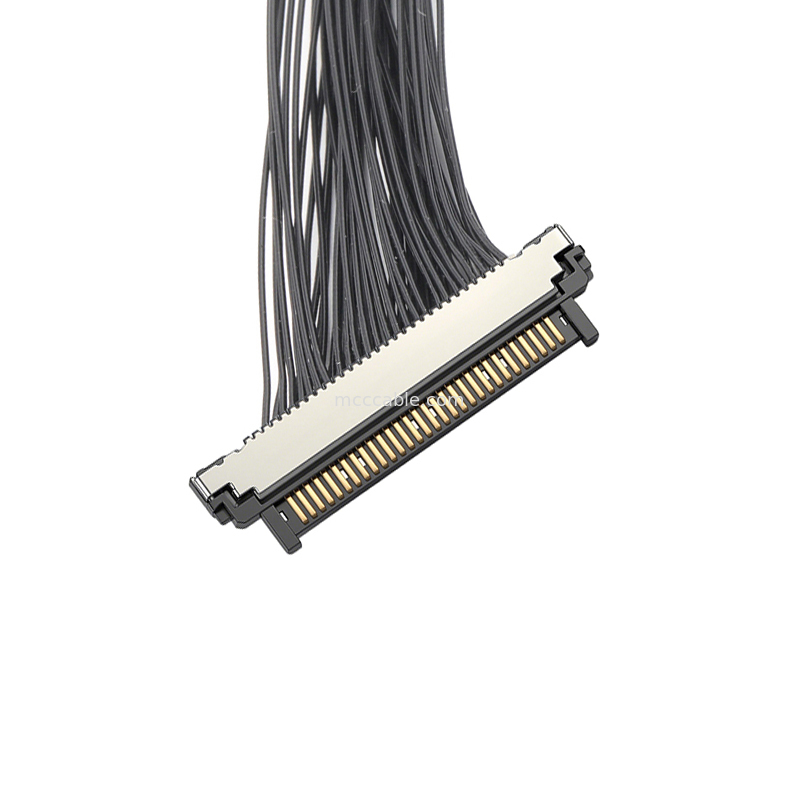

0.4mm Micro Pitch USL20-30SS-017C - IP67 Rated
for Harsh Environment Camera Installation
USL20-30SS-017C Material & Surface Treatment:
| Insulator Material | LCP (glass fiber-filled) UL94V-0 material, black |
| Contact Material | Copper alloy |
| Contact Finish | Nickel-plated base, gold-plated finish |
| Shell Material | Copper alloy |
| Shell Finish | Nickel-plated base, tin-copper plated finish |
| Cover Material | [USL20] LCP (with glass fiber) UL94V-0 material, white |
USL20-30SS-017C Ratings:
| Rated Current | 0.25 A per contact |
| Contact Resistance | 100 mΩ or less |
| Withstand Voltage | 200 V AC, 1 minute |
| Insulation Resistance | 250 V DC, 100 mΩ min. |
| Operating Temperature Range | -40 to +85°C |
| Applicable Cable | AWG#42 micro coaxial cable |
USL20-30SS-017C Recommended models:
USL20-30SS-010-C USL20-30SS-010-B USL20-30SS-015-C USL20-30SS-015-B
USL20-30SS-010-C USL20-30SS-010-B USL20-30SS-015-C USL20-30SS-015-B
USL20-40SS-010-C USL20-40SS-010-B USL20-40SS-015-C USL20-40SS-015-B
USL20-40SS-020-C USL20-40SS-020-B USL20-40SS-030-C USL20-40SS-030-B
Recommended line number:
#42 AWG Micro coaxial cables
Current rating :
0.25A per contact
Contact resistance:
100mΩ max.
Q1. Is it a factory?
A:Yes, our experience in design and manufacturing exceeds 15 years!
Q2. Is there any certification?
A:Definitely, we hold ISO9001, ISO14001, TS16949, ISO13485, and UL certifications.
Q3. What is our specialty?
A:Our specialty is designing products for specific applications.
Q4. Do you accept OEM/ODM orders?
A: Yes, we support OEM/ODM orders. OEM orders have a 100-piece minimum, and ODM
orders require 1000 pieces, with a design-based mold fee.
Q5. How long will it need for completing an order?
A: For small or stocked orders, preparation and delivery take under 3 days, with shipping time per
client choice (7 days to 1 month). For big orders, material prep and production take 5–21 working
days, testing requires 1–3 days, and packing takes 1 day, so 7–25 days without shipping.
Q6. As long term clients, what other service we can get?
A:1. Orders include new products to test their market potential and promote, with reselling rights in
your area. 2. Additional fee reductions and cheaper prices for smaller orders. 3. Assistance with
promotional images, featuring your logo.
Q7. How long is warranty for the cable, and if defective or faulty, how to protection your benifits?
A: All cables have a 12–36-month warranty. Large orders include 0.3%–0.5% backup units (3–5
spares for 1000pcs). If faults are over 5pcs but under 0.1%, contact sales with photos for replacement
or refund.
Q8. Do you accept free sample order?
A: Indeed, we accept sample orders; some samples are free, not counting shipment costs.
