Place of Origin:
China
Brand Name:
Customization
Certification:
UL ，ISO13485 , ISO9001.2005 , ISO14001
Model Number:
USL20-30SS-016B

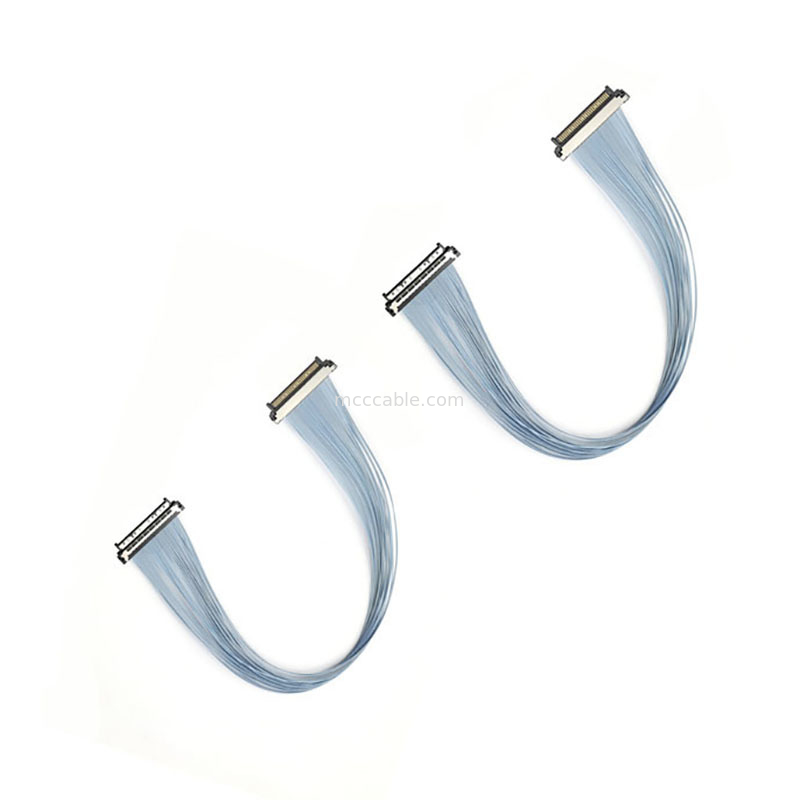

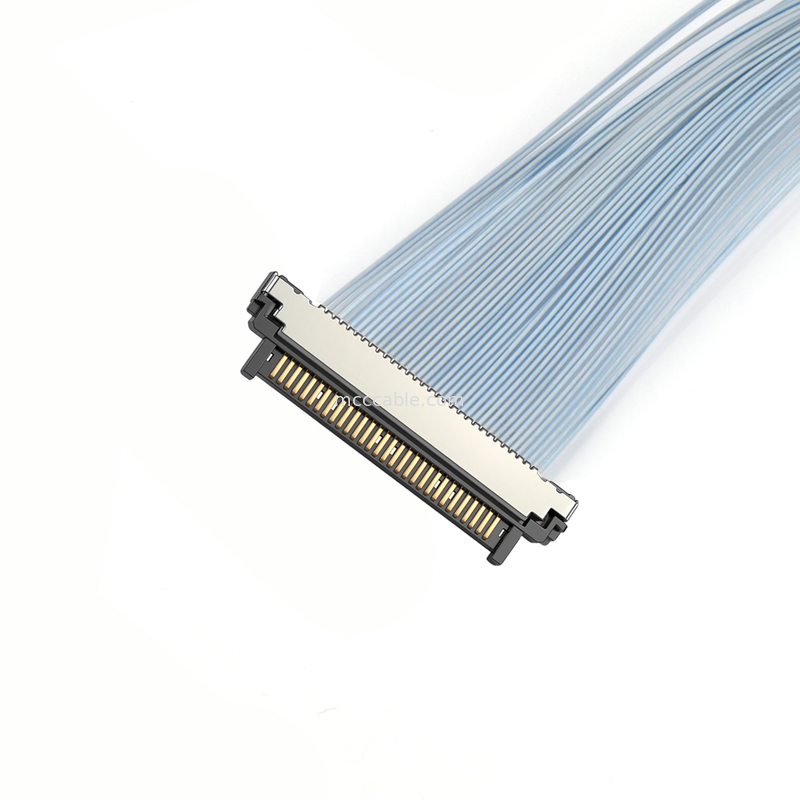

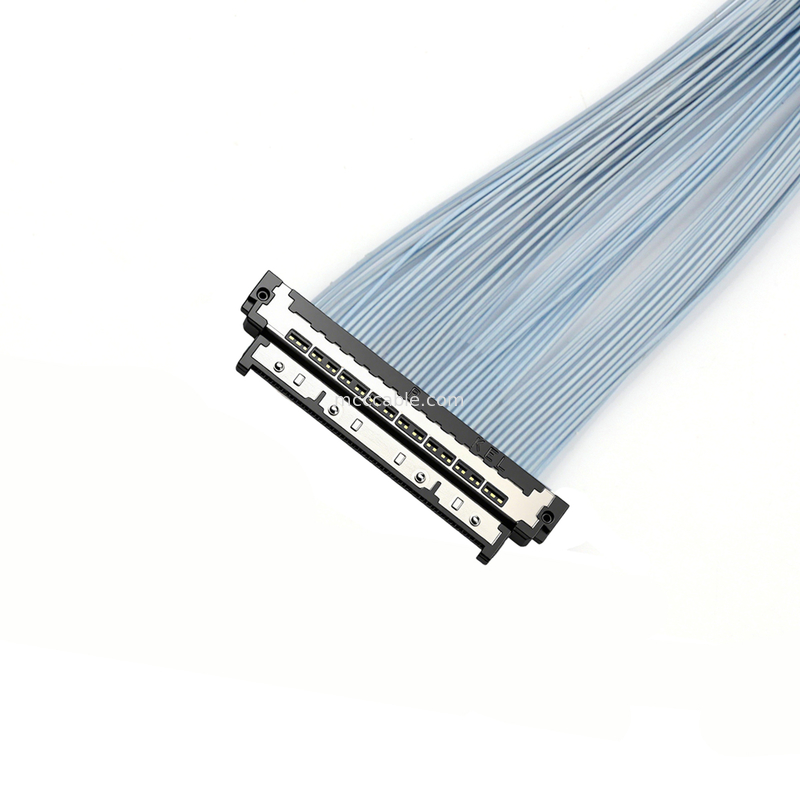

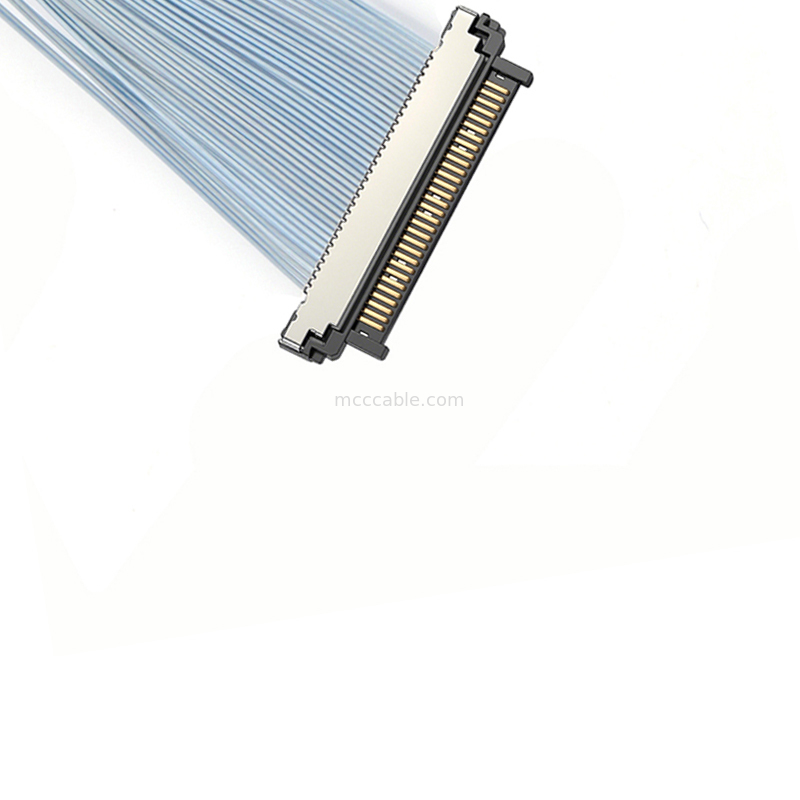

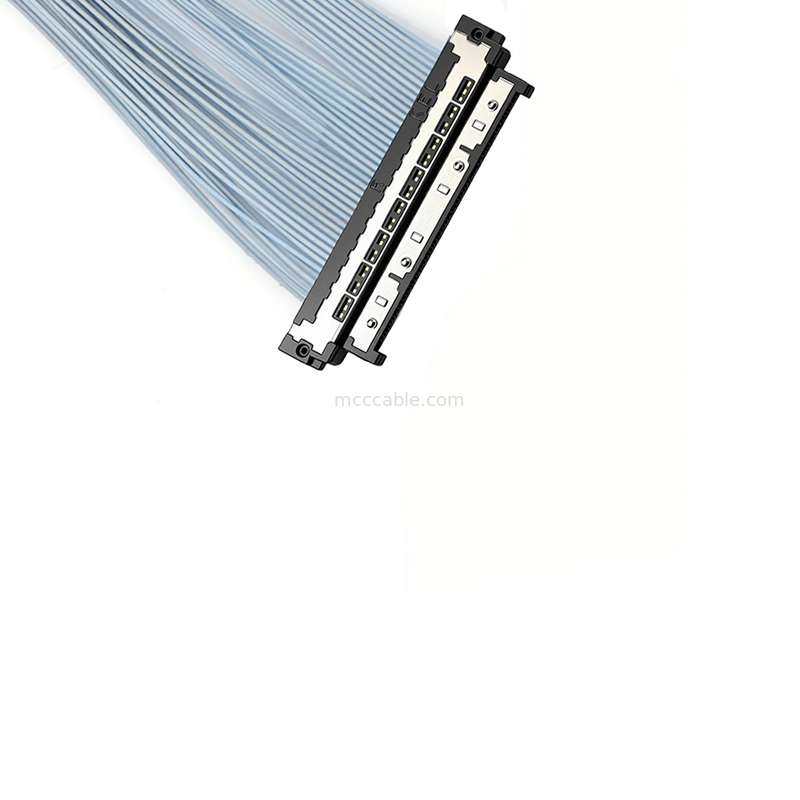

0.4mm Ultra-HD Video Transmission USL20-30SS-016B
- Supports 4K@60fps Camera Systems
USL20-30SS-016B Material & Surface Treatment:
| Insulator Material | LCP (glass fiber-filled) UL94V-0 material, black |
| Contact Material | Copper alloy |
| Contact Finish | Nickel-plated base, gold-plated finish |
| Shell Material | Copper alloy |
| Shell Finish | Nickel-plated base, tin-copper plated finish |
| Cover Material | [USL20] LCP (with glass fiber) UL94V-0 material, white |
USL20-30SS-016B Ratings:
| Rated Current | 0.25 A per contact |
| Contact Resistance | 100 mΩ or less |
| Withstand Voltage | 200 V AC, 1 minute |
| Insulation Resistance | 250 V DC, 100 mΩ min. |
| Operating Temperature Range | -40 to +85°C |
| Applicable Cable | AWG#42 micro coaxial cable |
USL20-30SS-016B Recommended models:
USL20-30SS-010-C USL20-30SS-010-B USL20-30SS-015-C USL20-30SS-015-B
USL20-30SS-010-C USL20-30SS-010-B USL20-30SS-015-C USL20-30SS-015-B
USL20-40SS-010-C USL20-40SS-010-B USL20-40SS-015-C USL20-40SS-015-B
USL20-40SS-020-C USL20-40SS-020-B USL20-40SS-030-C USL20-40SS-030-B
Recommended line number:
#42 AWG Micro coaxial cables
Current rating :
0.25A per contact
Contact resistance:
100mΩ max.
Q1. Is it a factory?
A:Correct, our design and manufacturing experience spans over 15 years!
Q2. Is there any certification?
A:Yes, our certifications include ISO9001, ISO14001, TS16949, ISO13485, and UL.
Q3. What is our specialty?
A:We specialize in product design tailored to applications.
Q4. Do you accept OEM/ODM orders?
A: Correct, we accept OEM/ODM orders. OEM requires a 100-piece MOQ, ODM needs 1000
pieces, and a mold fee applies based on design.
Q5. How long will it need for completing an order?
A: For small or in-stock orders, prep and delivery take under 3 days, with shipping time depending
on the client (7 days to 1 month). Big orders require 5–21 working days for production and materials,
1–3 days for testing, and 1 day for packing, so 7–25 days, not including shipping.
Q6. As long term clients, what other service we can get?
A:1.Orders include new products to test market potential and promote, with resell rights in your district.
2. Additional discounts and reduced prices for smaller quantities.3. Help with promo images, including
ones with your logo.
Q7. How long is warranty for the cable, and if defective or faulty, how to protection your benifits?
A: Our cables are warranted for 12–36 months. Bulk orders get 0.3%–0.5% extra units for defects
(e.g., 3–5 for 1000pcs). If defective units exceed 5pcs but are less than 0.1%, reach out to sales
with images for a replacement or refund.
Q8. Do you accept free sample order?
A: Yes, we provide sample orders; select samples are free, aside from shipping fees.
