Place of Origin:
China
Brand Name:
Customization
Certification:
UL ，ISO13485 , ISO9001.2005 , ISO14001
Model Number:
USL20-30SS-017B

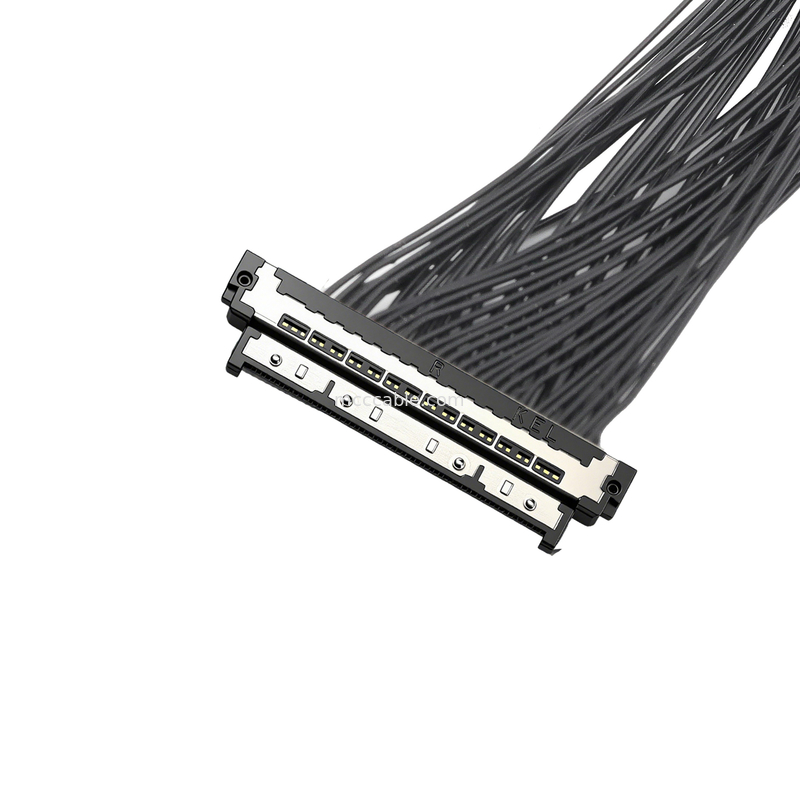

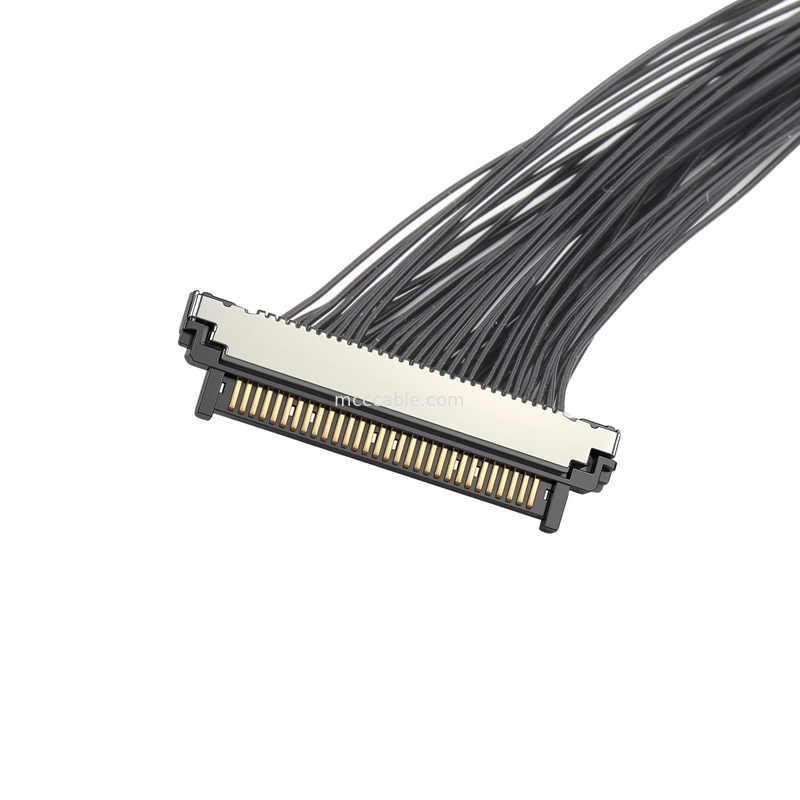

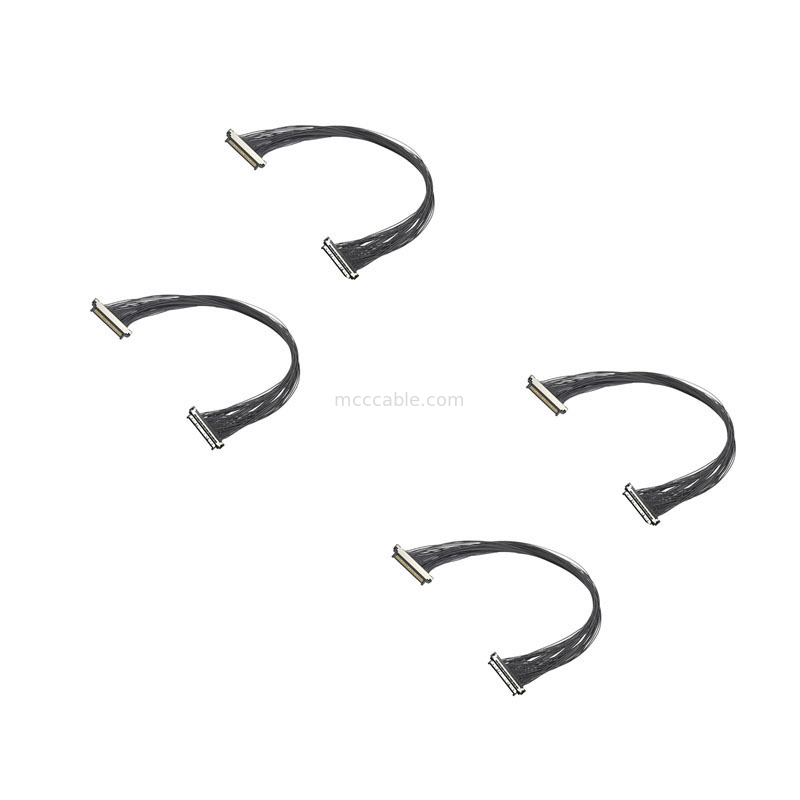

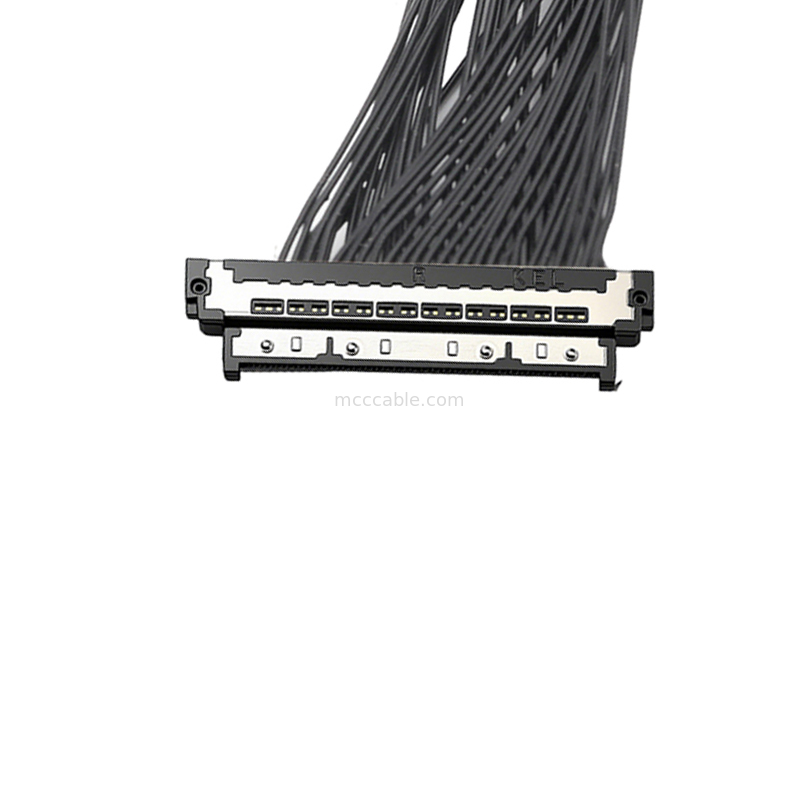

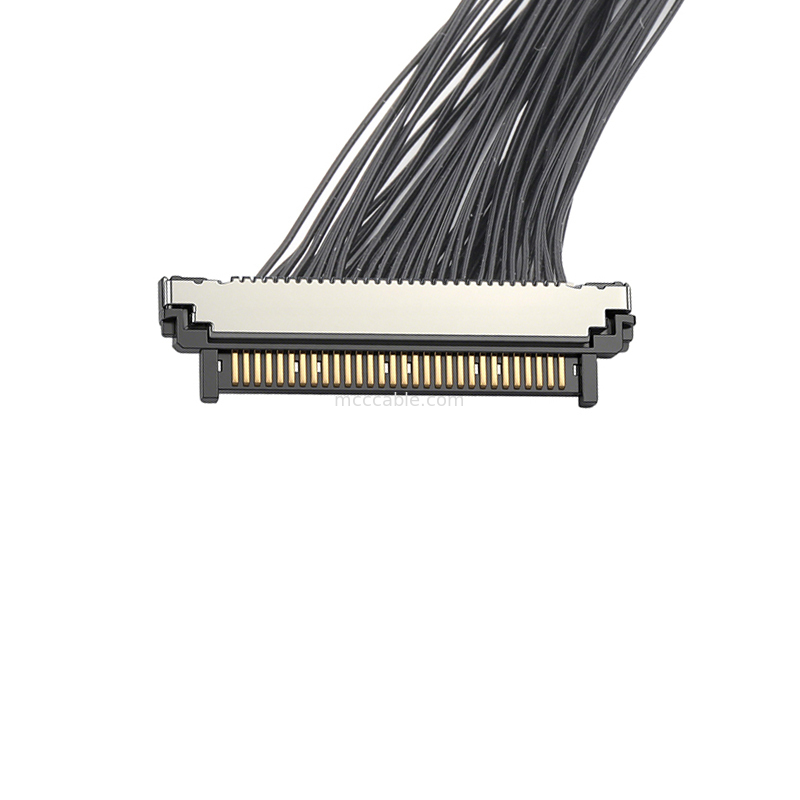

30-Position 0.4mm USL20-30SS-017B - 10Gbps
High-Speed Data Connector for AI Cameras
USL20-30SS-017B Material & Surface Treatment:
| Insulator Material | LCP (glass fiber-filled) UL94V-0 material, black |
| Contact Material | Copper alloy |
| Contact Finish | Nickel-plated base, gold-plated finish |
| Shell Material | Copper alloy |
| Shell Finish | Nickel-plated base, tin-copper plated finish |
| Cover Material | [USL20] LCP (with glass fiber) UL94V-0 material, white |
USL20-30SS-017B Ratings:
| Rated Current | 0.25 A per contact |
| Contact Resistance | 100 mΩ or less |
| Withstand Voltage | 200 V AC, 1 minute |
| Insulation Resistance | 250 V DC, 100 mΩ min. |
| Operating Temperature Range | -40 to +85°C |
| Applicable Cable | AWG#42 micro coaxial cable |
USL20-30SS-017B Recommended models:
USL20-30SS-010-C USL20-30SS-010-B USL20-30SS-015-C USL20-30SS-015-B
USL20-30SS-010-C USL20-30SS-010-B USL20-30SS-015-C USL20-30SS-015-B
USL20-40SS-010-C USL20-40SS-010-B USL20-40SS-015-C USL20-40SS-015-B
USL20-40SS-020-C USL20-40SS-020-B USL20-40SS-030-C USL20-40SS-030-B
Recommended line number:
#42 AWG Micro coaxial cables
Current rating :
0.25A per contact
Contact resistance:
100mΩ max.
Q1. Is it a factory?
A:Definitely, we have over 15 years of design and production experience!
Q2. Is there any certification?
A:Yes, our certifications include ISO9001, ISO14001, TS16949, ISO13485, and UL.
Q3. What is our specialty?
A:We are skilled in creating products aligned with their applications.
Q4. Do you accept OEM/ODM orders?
A: Yes, we support OEM/ODM orders. OEM orders have a 100-piece minimum, and ODM orders
require 1000 pieces, with a design-based mold fee.
Q5. How long will it need for completing an order?
A: For small orders or stock items, prep and delivery take less than 3 days, with shipping time based
on client choice (7 days to 1 month). Big orders require 5–21 working days for production and materials,
1–3 days for testing, and 1 day for packing, so 7–25 days, excluding shipping.
Q6. As long term clients, what other service we can get?
A:New products are provided with orders to check market viability and promote, with regional resell rights.
2. Extra fee reductions and lower costs for small orders. 3. Assistance with promotional visuals, including
your logo.
Q7. How long is warranty for the cable, and if defective or faulty, how to protection your benifits?
A: Our cables are warranted for 12–36 months. Bulk orders get 0.3%–0.5% extra units for defects
(e.g., 3–5 for 1000pcs). If defective units exceed 5pcs but are less than 0.1%, reach out to sales
with images for a replacement or refund.
Q8. Do you accept free sample order?
A: Yes, we accept sample orders; select samples are free, not including shipping costs.
