Place of Origin:
China
Brand Name:
Customization
Certification:
UL ，ISO13485 , ISO9001.2005 , ISO14001
Model Number:
USL20-30SS-013C

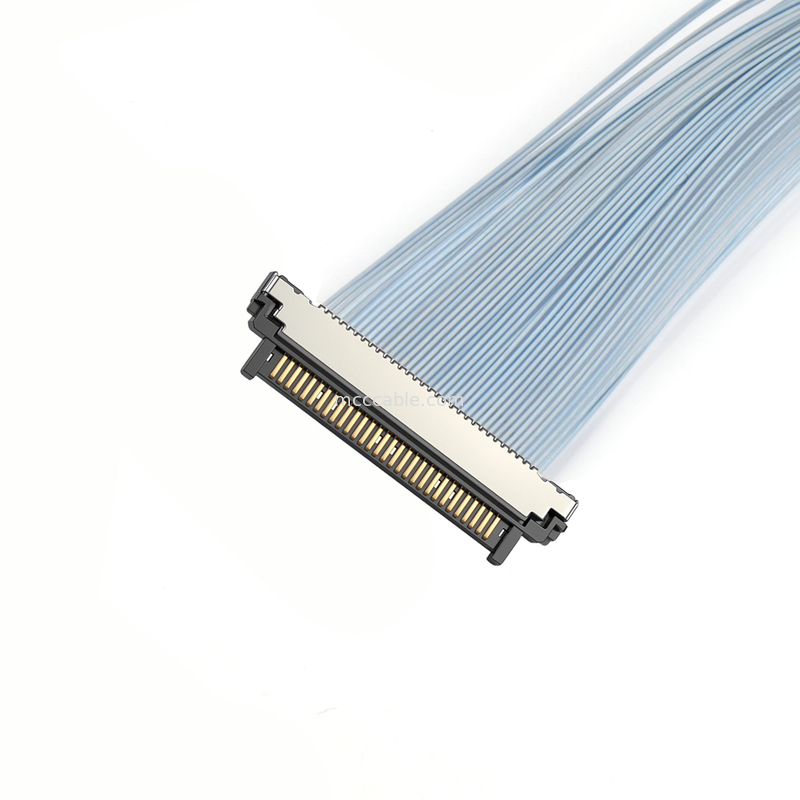

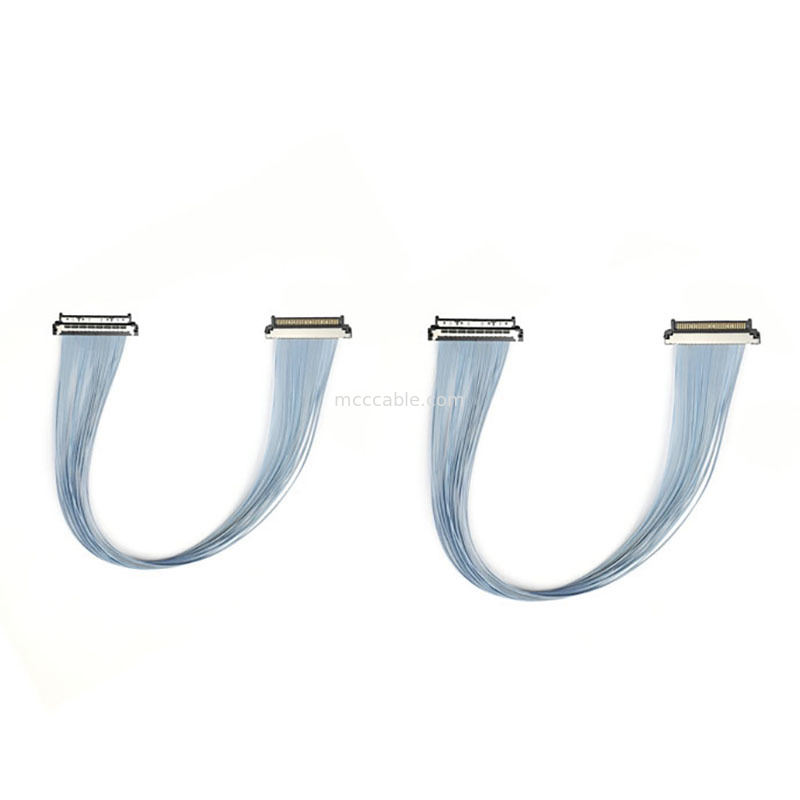

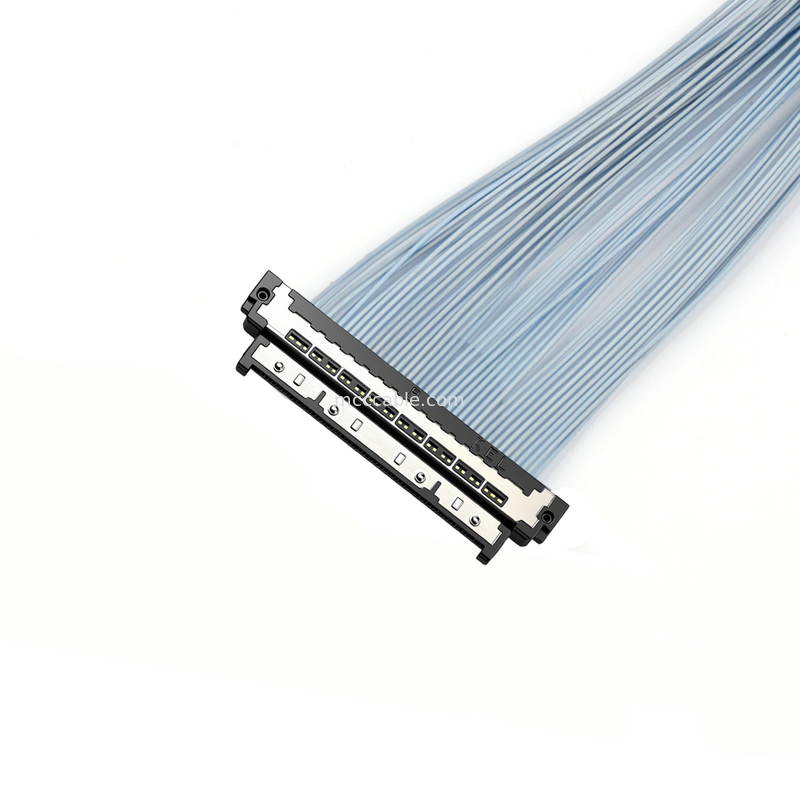

USL20-30SS-013C 0.4mm - Premium Quality for
Automotive & Smart Home Cameras
USL20-30SS-013C Material & Surface Treatment:
| Insulator Material | LCP (glass fiber-filled) UL94V-0 material, black |
| Contact Material | Copper alloy |
| Contact Finish | Nickel-plated base, gold-plated finish |
| Shell Material | Copper alloy |
| Shell Finish | Nickel-plated base, tin-copper plated finish |
| Cover Material | [USL20] LCP (with glass fiber) UL94V-0 material, white |
USL20-30SS-013C Ratings:
| Rated Current | 0.25 A per contact |
| Contact Resistance | 100 mΩ or less |
| Withstand Voltage | 200 V AC, 1 minute |
| Insulation Resistance | 250 V DC, 100 mΩ min. |
| Operating Temperature Range | -40 to +85°C |
| Applicable Cable | AWG#42 micro coaxial cable |
USL20-30SS-013C Recommended models:
USL20-30SS-010-C USL20-30SS-010-B USL20-30SS-015-C USL20-30SS-015-B
USL20-30SS-010-C USL20-30SS-010-B USL20-30SS-015-C USL20-30SS-015-B
USL20-40SS-010-C USL20-40SS-010-B USL20-40SS-015-C USL20-40SS-015-B
USL20-40SS-020-C USL20-40SS-020-B USL20-40SS-030-C USL20-40SS-030-B
Recommended line number:
#42 AWG Micro coaxial cables
Current rating :
0.25A per contact
Contact resistance:
100mΩ max.
Q1. Is it a factory?
A:Correct, we have more than 15 years of experience in designing and manufacturing products.
Q2. Is there any certification?
A:Yes, we’re certified under ISO9001, ISO14001, TS16949, ISO13485, and UL standards.
Q3. What is our specialty?
A:We specialize in product design tailored to application needs.
Q4. Do you accept OEM/ODM orders?
A: Absolutely, we support OEM/ODM orders. OEM orders need 100 units, ODM orders require
1,000 units, and mould fees depend on the design.
Q5. How long will it need for completing an order?
A: For small or in-stock orders, expect under 3 days for preparation and delivery, with shipping
times between 7 days and 1 month per client selection. Big orders require 5–21 working days
for materials and production, 1–3 days for testing, and 1 day for packing, so 7–25 days excluding
shipment.
Q6. As long term clients, what other service we can get?
A: As valued clients, you’ll get new products with orders to assess market viability and secure
reselling rights in your area, lower prices on smaller orders, and support with custom-branded
promotional images.
Q7. How long is warranty for the cable, and if defective or faulty, how to protection your benifits?
A: Our cables are warranted for 12–36 months. For bulk orders, we provide 0.3%–0.5% additional
units for defects. If you get over 5 faulty units (below 0.1%), notify sales with photos, and we’ll
replace or refund.
Q8. Do you accept free sample order?
A: Yes, we support free sample orders for some items, though shipping fees apply.
