Place of Origin:
China
Brand Name:
Customization
Certification:
UL ，ISO13485 , ISO9001.2005 , ISO14001
Model Number:
USL20-30SS-013B

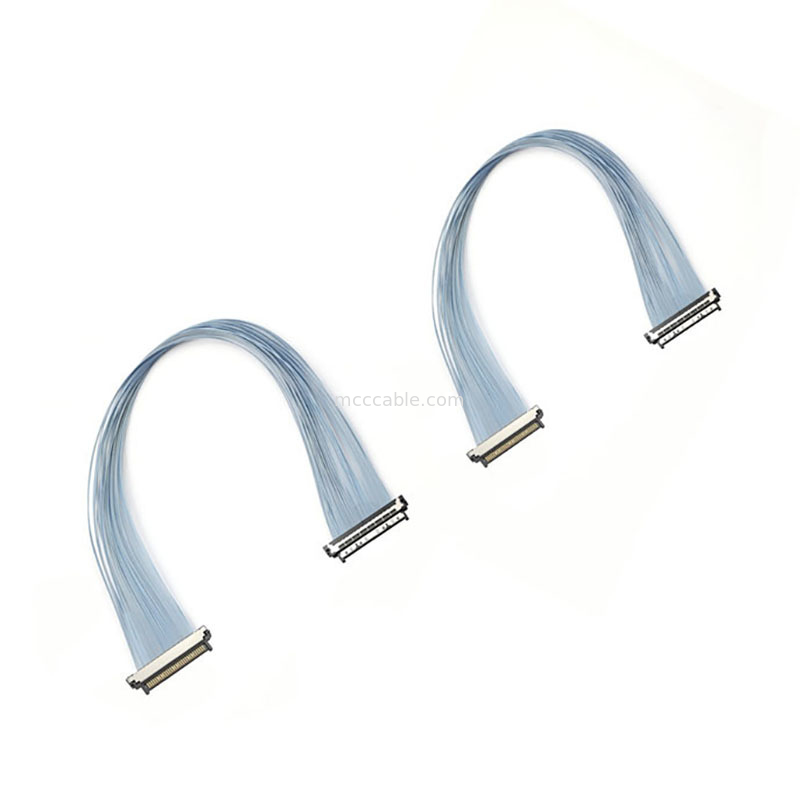

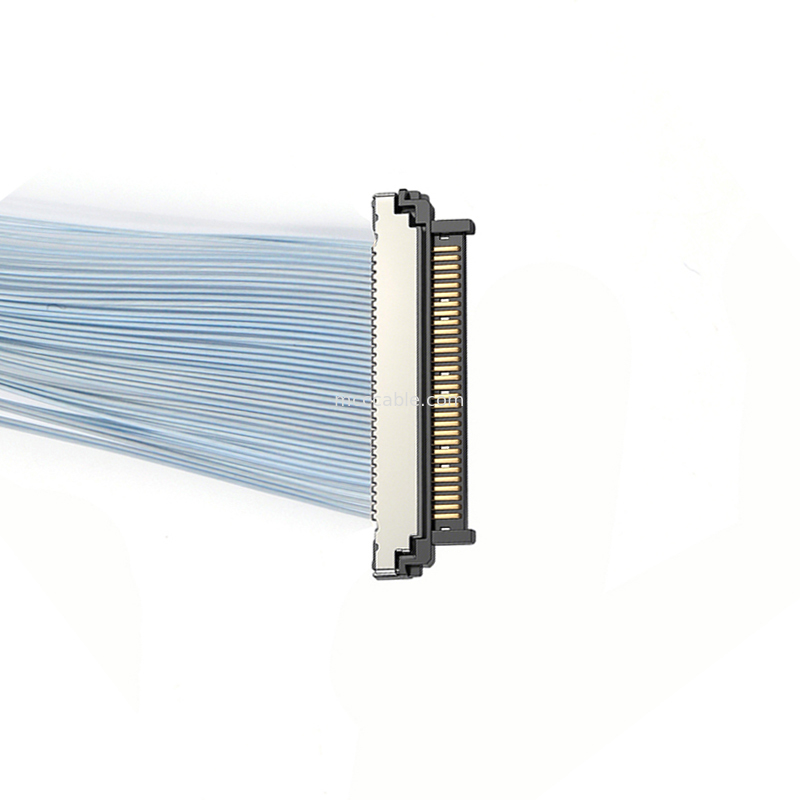

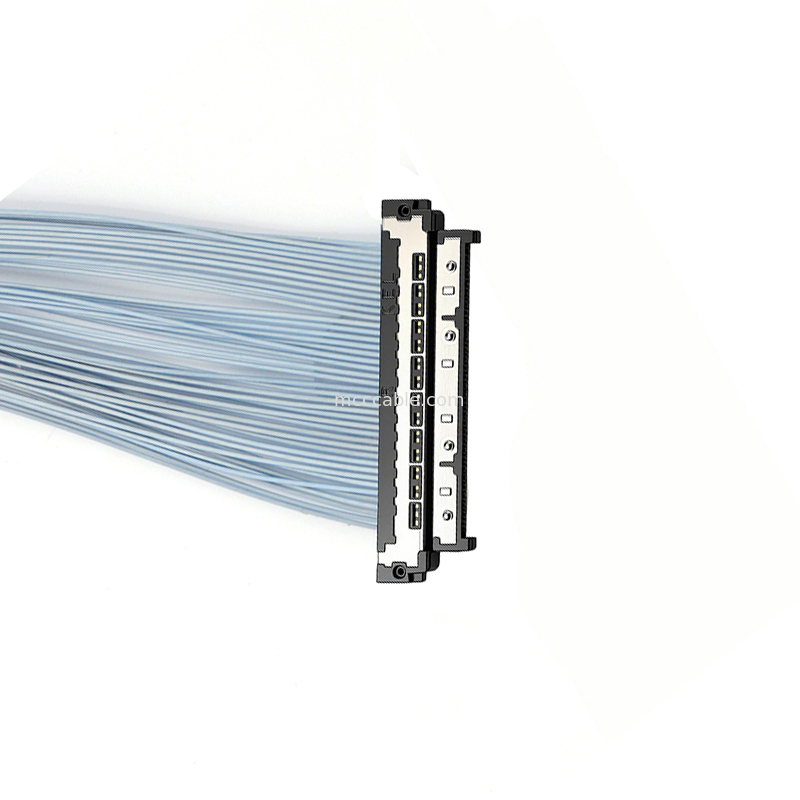

0.4mm Fine Pitch USL20-30SS-013B - Essential
for 360° Panoramic Video Systems
USL20-30SS-013B Material & Surface Treatment:
| Insulator Material | LCP (glass fiber-filled) UL94V-0 material, black |
| Contact Material | Copper alloy |
| Contact Finish | Nickel-plated base, gold-plated finish |
| Shell Material | Copper alloy |
| Shell Finish | Nickel-plated base, tin-copper plated finish |
| Cover Material | [USL20] LCP (with glass fiber) UL94V-0 material, white |
USL20-30SS-013B Ratings:
| Rated Current | 0.25 A per contact |
| Contact Resistance | 100 mΩ or less |
| Withstand Voltage | 200 V AC, 1 minute |
| Insulation Resistance | 250 V DC, 100 mΩ min. |
| Operating Temperature Range | -40 to +85°C |
| Applicable Cable | AWG#42 micro coaxial cable |
USL20-30SS-013B Recommended models:
USL20-30SS-010-C USL20-30SS-010-B USL20-30SS-015-C USL20-30SS-015-B
USL20-30SS-010-C USL20-30SS-010-B USL20-30SS-015-C USL20-30SS-015-B
USL20-40SS-010-C USL20-40SS-010-B USL20-40SS-015-C USL20-40SS-015-B
USL20-40SS-020-C USL20-40SS-020-B USL20-40SS-030-C USL20-40SS-030-B
Recommended line number:
#42 AWG Micro coaxial cables
Current rating :
0.25A per contact
Contact resistance:
100mΩ max.
Q1. Is it a factory?
A:Yes, we’re a factory with a 15+ year legacy in design and production.
Q2. Is there any certification?
A:Absolutely, we have certifications such as ISO9001, ISO14001, TS16949, ISO13485, and UL.
Q3. What is our specialty?
A:We focus on designing products customized for their applications.
Q4. Do you accept OEM/ODM orders?
A: Yes, OEM/ODM orders are accepted. The MOQ is 100 pieces for OEM and 1,000 pieces for
ODM, with a mould fee charged per design.
Q5. How long will it need for completing an order?
A: For small orders or in-stock products, preparation and delivery take under 3 days, with shipping
times varying from 7 days to 1 month based on client preference. For large orders, including material
preparation and production, it takes 5–21 working days depending on quantity, plus 1–3 days for
testing and 1 day for packing, so 7–25 days total, excluding shipping.
Q6. As long term clients, what other service we can get?
A: Long-term customers get new products with orders to evaluate market fit and resell in their area,
cheaper prices for smaller orders, and support with promotional images featuring their logo.
Q7. How long is warranty for the cable, and if defective or faulty, how to protection your benifits?
A: Our cables come with a 12–36-month warranty. For large orders, we include 0.3%–0.5% extra units
as backups for defects. If you receive more than 5 faulty units (under 0.1%), contact our sales team with
images, and we’ll resolve it by replacing them in a new order or issuing a refund.
Q8. Do you accept free sample order?
A: Absolutely, sample orders are accepted, with certain samples provided free, aside from freight charges.
