Place of Origin:
China
Brand Name:
SINO-TECH
Certification:
ISO9001
Model Number:
Micro-Coax Cable

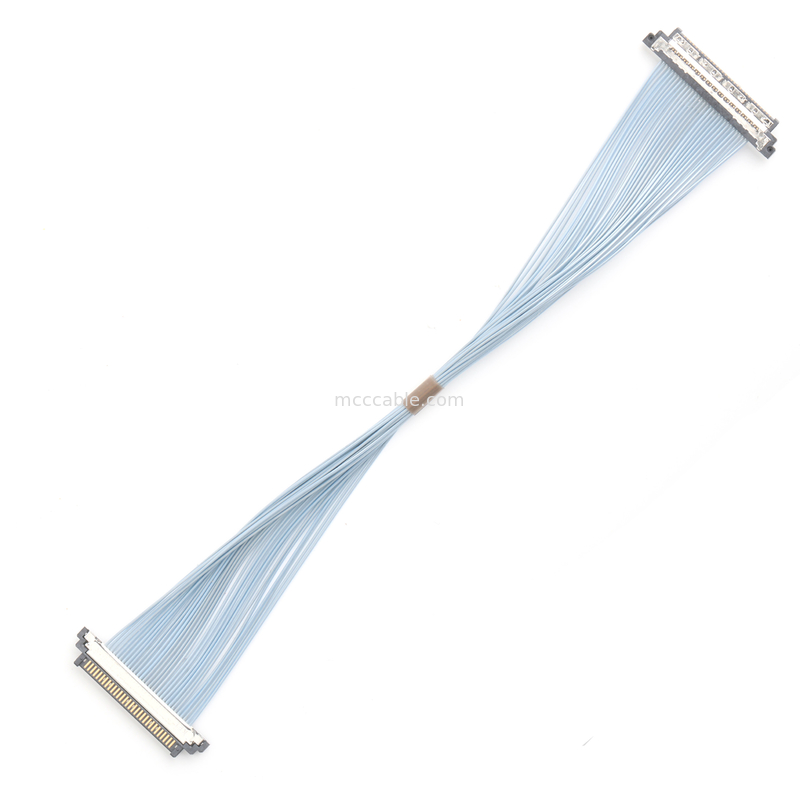

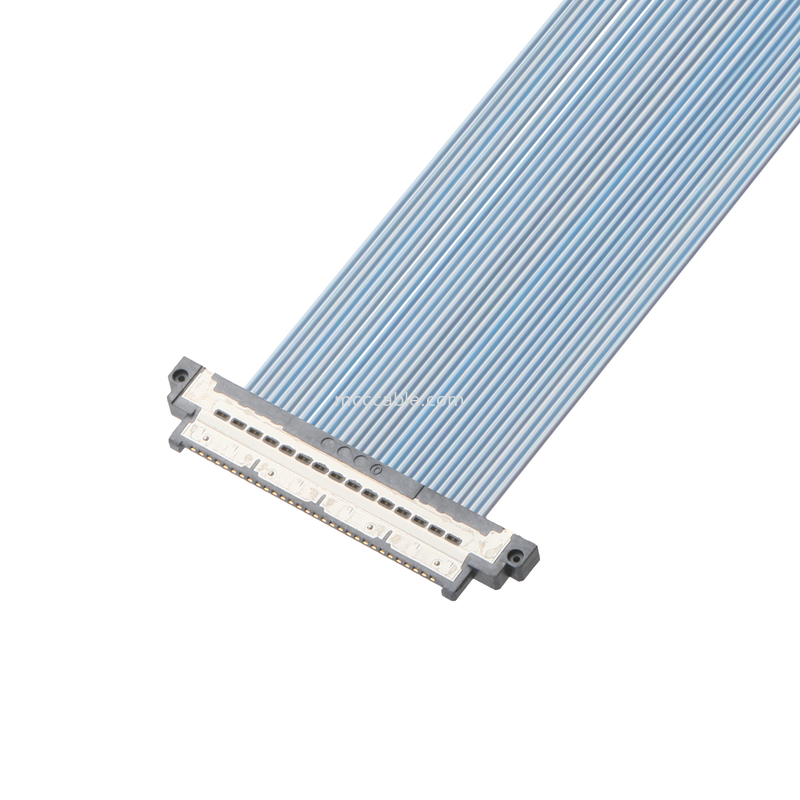

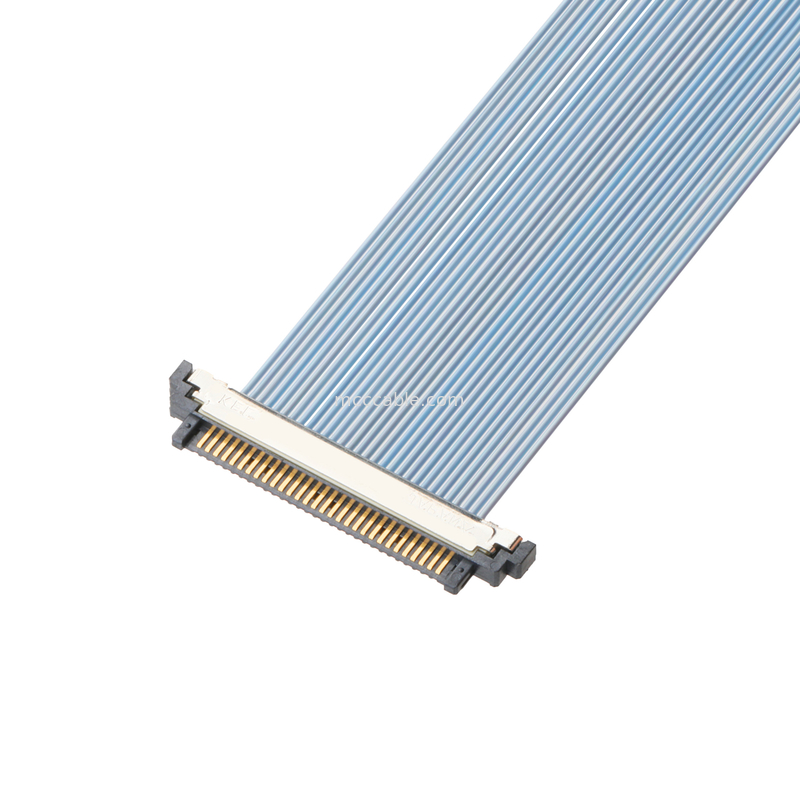

KEL SSL20-30SB Micro-Coaxial Cable 0.5mm Pitch OEM/ODM
KEL SSL20-30SB Micro-Coaxial Cable:
| Parameter Category | Key Specifications |
| Connector Type | KEL SSL20-30SB (0.5mm pitch, gold fingers, upward-facing) |
| Cable Data | 40AWG PFA-insulated micro-coaxial, shielded |
| Electrical | Withstand voltage: AC 200V, Insulation resistance: 100MΩ, Cut-off current: 1mA |
| Mechanical | Pitch: 0.5mm, Length: 100mm ±3mm, Tape reinforced (Nitto, W=5mm, L=15mm) |
| Testing Data | Withstand time: 0.5 sec/point, Insulation test: DC 250V/1 sec |
| Compliance | RoHS compliant, customizable wire harness options |
| Environmental | Halogen-free PFA insulation, semi-transparent Nitto tape for strain relief |
Engineered for high-voltage reliability, this KEL SSL20-30SB Micro-Coaxial Cable
features a 0.5mm pitch and 40AWG PFA insulation, rated for AC 200V/100MΩ.
Gold finger connectors ensure stable signal integrity,while Nitto tape reinforcement
enhances flex endurance. Ideal for compact, high-density applications—custom
lengths and tapes available to meet exact specifications. Fully tested to withstand
DC 250V insulation for mission-critical deployments.
Q1. Is it a factory?
A:Yes,we have more than 16 years of design and manufacturring experience!
Q2. Is there any certification?
A:Yes,there are IS09001,ISO14001,TS16949,ISO13485,UL CERIFIED.
Q3. What is our specialty?
A:We can design products on the application.
Q4. Do you accept OEM/ODM orders?
A: Yes, we accept OEM/ODM orders. For oem orders, moq is 100pcs. For ODM orders, moq
1000PCs. Mould fee will be charged according to design.
Q5. How long will it need for completing an order?
A: For small order and products in stock, it will take less than 3 days for preparation and delive
ry, and shipment time depends on clients' choice, fastest 7 days and longest 1 month.
For big order, as we need to confirm all things include materiel preparation, production, this pro
cedure will take 5 to 21 working days according to order quantity, testing 1 to 3 working days, a
nd finally, packing 1 day, so fastest 7 days and longest 25 days without shipment.
Q6. As long term clients, what other service we can get?
1. New product will be offered with order, so you can see if it is potential product in the market a
nd promote it, and you will have the right to resell the product in your district.
2. Additional fee discount, cheaper price on purchasing products at smaller quantity.
3. We can offer assist on promotion images, and make images with clients' logo
Q7. How long is warranty for the cable, and if defective or faulty, how to protection your benifits?
A: All our cables are sold with 12-36 months warranty, and for big quantity order, we will offer 0.3%
to 0.5% backup for defective sent with order, so if you order 1000PCs, that means you can get 100
3pcs with backup. If you get faulty more than 5pcs, and less than 0.1%, please contact sales and
offer images, and we will solve your problem in the way of replacing with new order or refund.
Q8. Do you accept free sample order?
A: Yes, sample order is supported, some samples can be offered free exclusive of shipment freight.
How to contact us?
send your inquiry details in the below, click "send" now! free sample and best price are waiting for
you, if you can't find the product in our web, you can also send an inquiry to us, even if we don't make
it, we will find the same product with good quantity and good price.
