Place of Origin:
China
Brand Name:
SINO-TECH
Certification:
ISO9001
Model Number:
Micro-Coax Cable

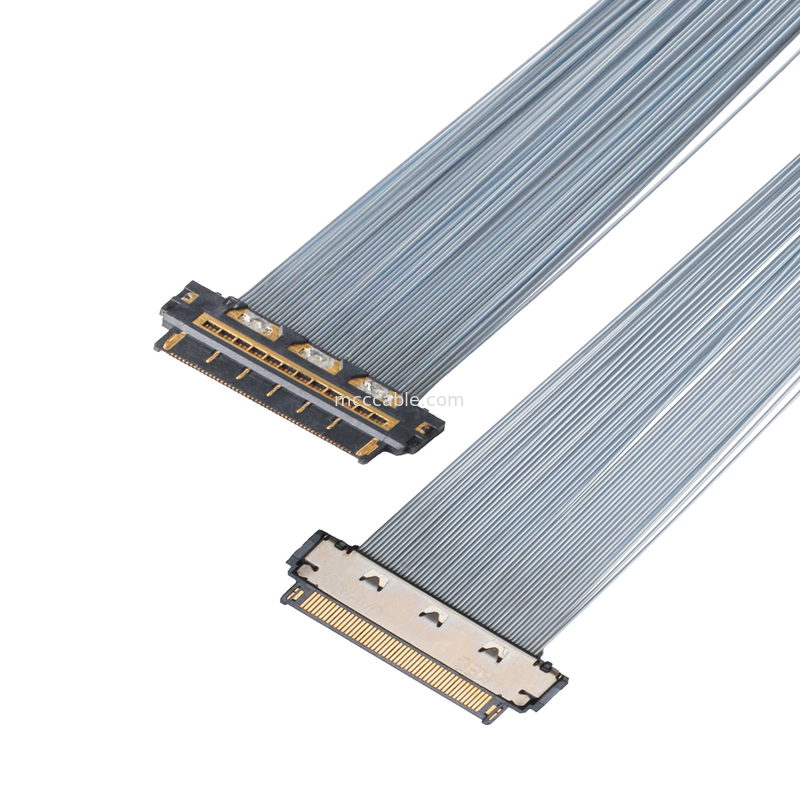

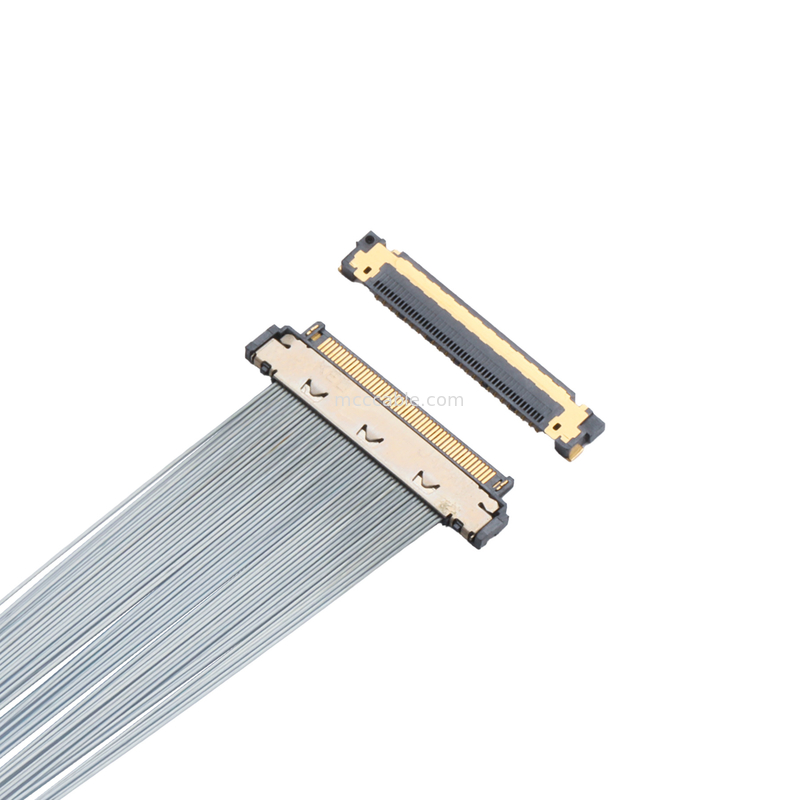

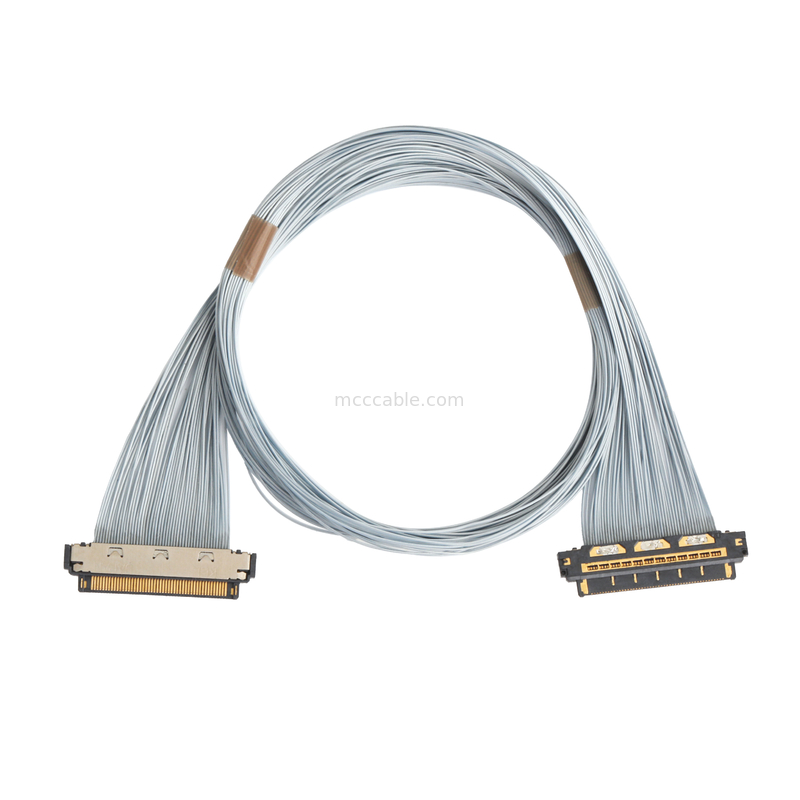

KEL XSL20-48S Micro-Coax Cable 0.25mm Pitch OEM/ODM
KEL XSL20-48S Micro-Coax Cable:
| Parameter Category | Key Specifications |
| Connector Type | KEL XSL20-48S (0.25mm pitch, gold fingers, double-sided UV adhesive at roots) |
| Cable Data | 44AWG PFA-insulated micro-coaxial, shielded |
| Electrical | Withstand voltage: AC 100V, Insulation resistance: 30MΩ, Cut-off current: 1mA |
| Mechanical | Pitch: 0.25mm, Length: 150mm ±3mm, Tape reinforcement (Nitto, W=5mm, L=15mm) |
| Testing Data | Withstand time: 0.5 sec/point, Insulation test: DC 100V/1 sec |
| Compliance | RoHS compliant, customizable wire harness options |
| Environmental | UV-resistant adhesive, transparent/half-transparent tape options |
Precision-engineered for high-density connections, this KEL XSL20-48S Micro-Coaxial Cable
features a 0.25mm pitch with 44AWG PFA insulation for ultra-fine signal transmission. Dual UV
adhesive at connector roots ensures rugged durability, while gold finger contacts guarantee
low impedance. Fully customizable for your wire harness needs—tested to withstand AC
100V/30MΩ insulation. Ideal for compact electronics demanding reliability.
Q1. Is it a factory?
A:Yes,we have more than 16 years of design and manufacturring experience!
Q2. Is there any certification?
A:Yes,there are IS09001,ISO14001,TS16949,ISO13485,UL CERIFIED.
Q3. What is our specialty?
A:We can design products on the application.
Q4. Do you accept OEM/ODM orders?
A: Yes, we accept OEM/ODM orders. For oem orders, moq is 100pcs. For ODM orders, moq
1000PCs. Mould fee will be charged according to design.
Q5. How long will it need for completing an order?
A: For small order and products in stock, it will take less than 3 days for preparation and delive
ry, and shipment time depends on clients' choice, fastest 7 days and longest 1 month.
For big order, as we need to confirm all things include materiel preparation, production, this pro
cedure will take 5 to 21 working days according to order quantity, testing 1 to 3 working days, a
nd finally, packing 1 day, so fastest 7 days and longest 25 days without shipment.
Q6. As long term clients, what other service we can get?
1. New product will be offered with order, so you can see if it is potential product in the market a
nd promote it, and you will have the right to resell the product in your district.
2. Additional fee discount, cheaper price on purchasing products at smaller quantity.
3. We can offer assist on promotion images, and make images with clients' logo
Q7. How long is warranty for the cable, and if defective or faulty, how to protection your benifits?
A: All our cables are sold with 12-36 months warranty, and for big quantity order, we will offer 0.3%
to 0.5% backup for defective sent with order, so if you order 1000PCs, that means you can get 100
3pcs with backup. If you get faulty more than 5pcs, and less than 0.1%, please contact sales and
offer images, and we will solve your problem in the way of replacing with new order or refund.
Q8. Do you accept free sample order?
A: Yes, sample order is supported, some samples can be offered free exclusive of shipment freight.
