High-Speed 20453-240T-03 264-Pin Medical Cable| Custom OEM Solution |

264-Core Medical Grade Cable Assembly For Medical Imaging

Systems OEM/ODM

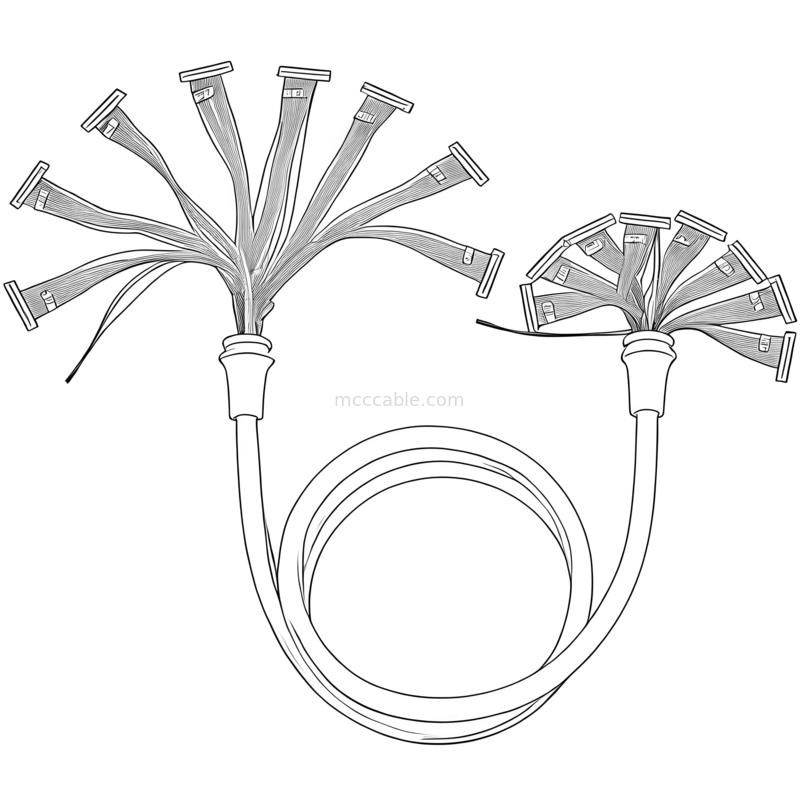

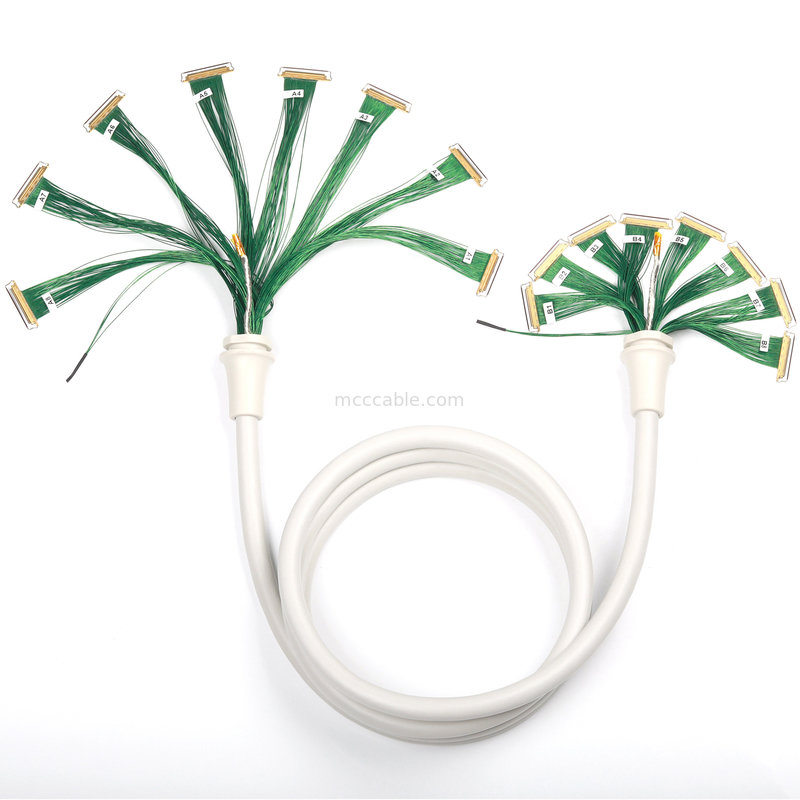

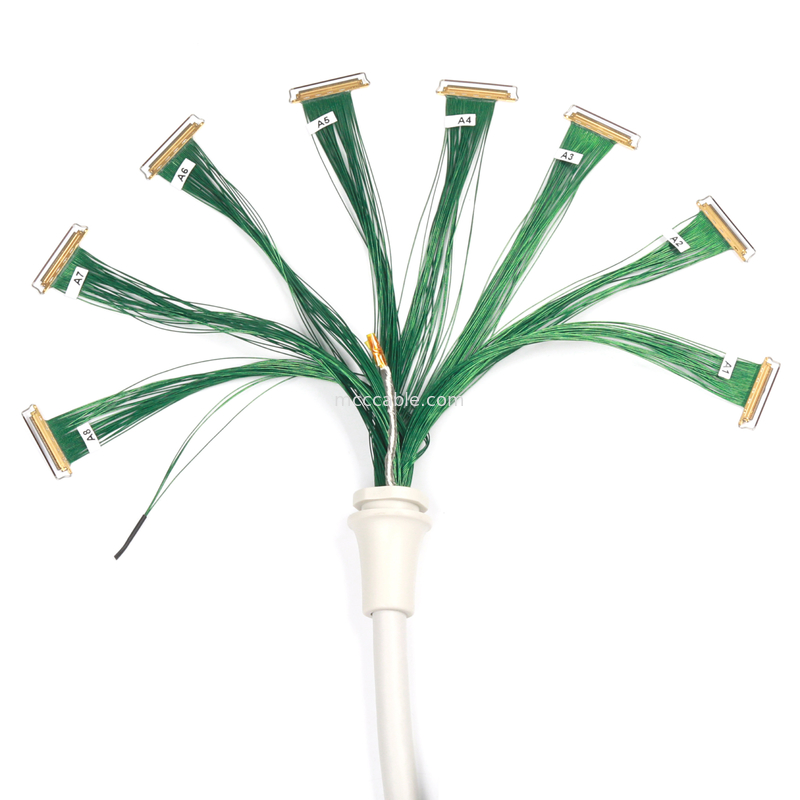

264-Pin Medical Coaxial Cable Assembly,  20453-240T-03:

Compatibility:Adopt 20454 series connector (40Pin), compatible with LCD display module
(EDP/LVDS), medical ultrasound equipment and other standardized interfaces, supporting
high-resolution signal transmission.
Customizable connector type to meet the diverse needs of industrial-grade medical
equipment, AR/VR glasses, etc.

Reliability:Conductor resistance ≤10Ω, insulation resistance ≥5MΩ (200V DC/AC), passed
100% open/short circuit/intermittent test.
The conductor adopts 38AWG ultra-fine coaxial cable (320C*MCC) and copper foil shielding
layer, with stable impedance (50Ω±10%) and strong anti-interference.

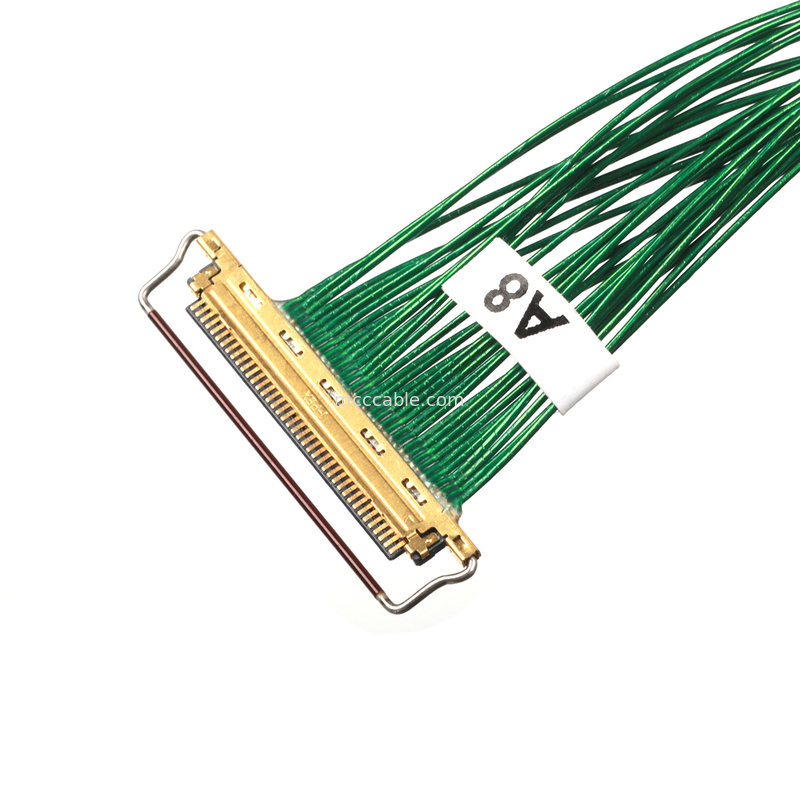

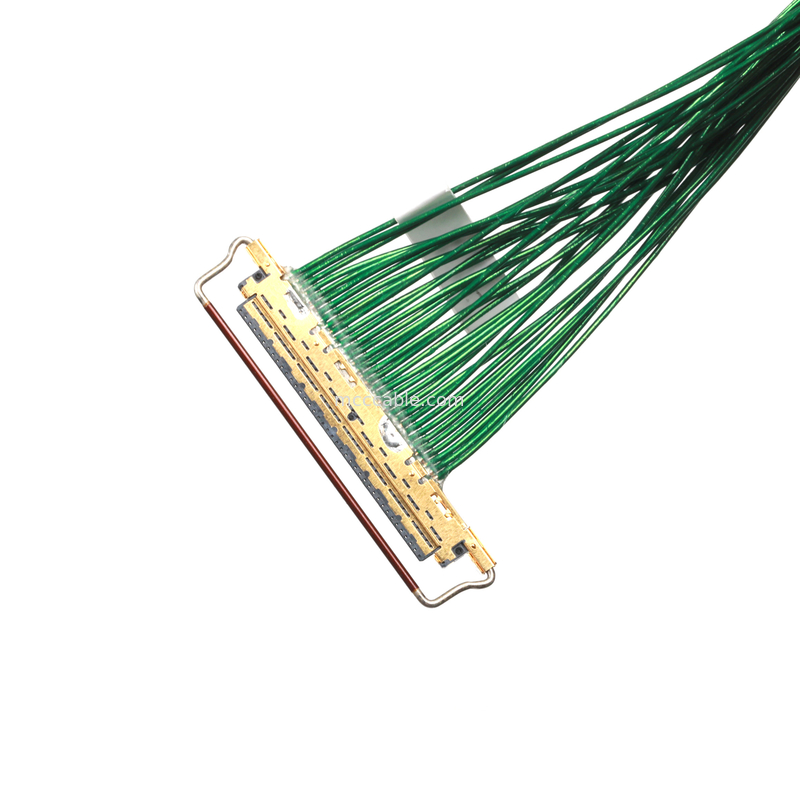

UV glue fixation (width 1-2mm) + stress relief design to ensure long-term reliability of the
connector in a vibration environment.
Comply with RoHS environmental protection standards, no harmful materials.

Efficiency: Support high-speed differential signal transmission (such as LVDS/EDP) to meet
the real-time high-resolution data requirements of medical images and display screens.
Low latency and low power consumption design, suitable for long-term operation of medical
equipment.
Provide OEM/ODM services, can quickly adapt to the pin configuration of different devices
(such as 20-50Pin optional), shorten the development cycle.

Q1. Is it a factory?
A:Yes,we have more than 16 years of design and manufacturring experience!
Q2. Is there any certification?
A:Yes,there are IS09001,ISO14001,TS16949,ISO13485,UL CERIFIED.
Q3. What is our specialty?
A:We can design products on the application.
Q4. Do you accept OEM/ODM orders?
A: Yes, we accept OEM/ODM orders. For oem orders, moq is 100pcs. For ODM orders, moq

1000PCs. Mould fee will be charged according to design.
Q5. How long will it need for completing an order?
A: For small order and products in stock, it will take less than 3 days for preparation and delive

ry, and shipment time depends on clients' choice, fastest 7 days and longest 1 month.
For big order, as we need to confirm all things include materiel preparation, production, this pro

cedure will take 5 to 21 working days according to order quantity, testing 1 to 3 working days, a

nd finally, packing 1 day, so fastest 7 days and longest 25 days without shipment.
Q6. As long term clients, what other service we can get?
1. New product will be offered with order, so you can see if it is potential product in the market a

nd promote it, and you will have the right to resell the product in your district.
2. Additional fee discount, cheaper price on purchasing products at smaller quantity.
3. We can offer assist on promotion images, and make images with clients' logo
Q7. How long is warranty for the cable, and if defective or faulty, how to protection your benifits?
A: All our cables are sold with 12-36 months warranty, and for big quantity order, we will offer 0.3%

to 0.5% backup for defective sent with order, so if you order 1000PCs, that means you can get 100

3pcs with backup. If you get faulty more than 5pcs, and less than 0.1%, please contact sales and

offer images, and we will solve your problem in the way of replacing with new order or refund.
Q8. Do you accept free sample order?
A: Yes, sample order is supported, some samples can be offered free exclusive of shipment freight.
