USL20-30SS

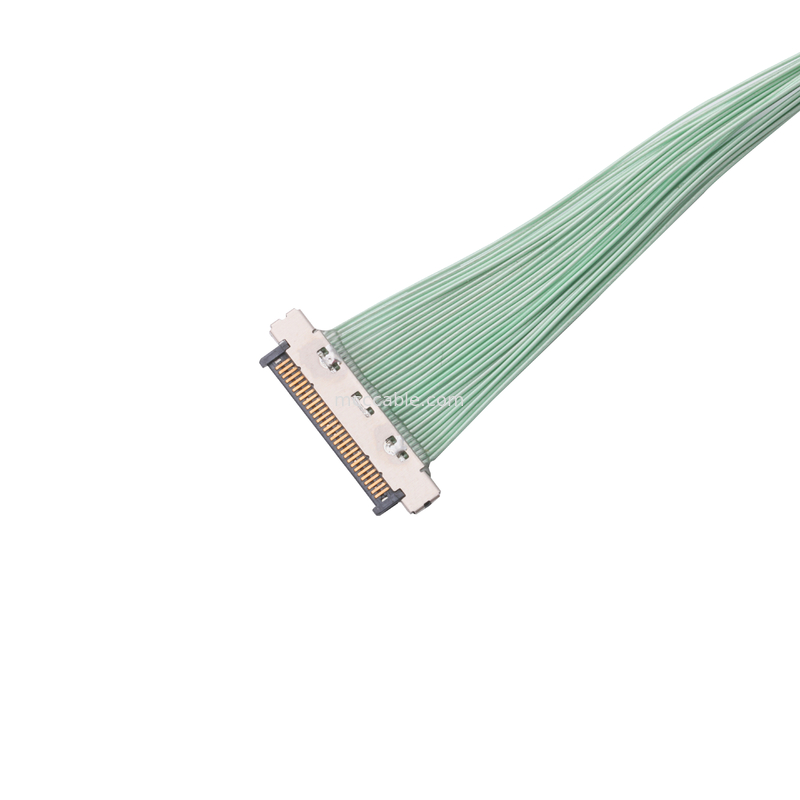

30pin 40pin Slim Plug Design
0.4 mm pitch, Right angle vertical mating type Micro-coaxial connector
Suitable for Small Connector Spaces
Slim Plug Design, Suitable For Through-hinge Assemblies
EMI Shielding and Multi-point Ground Design
| Electrical Characteristics | |
|---|---|
| Current rating | 0.25A per contact |
| Contact resistance | 100mΩ max. |
| Dielectric withstanding voltage | 200V AC for 1 minute |
| Insulation resistance | 100MΩ min. at 250V DC |
| Operating Temperature | -40℃ to +85℃ |
| Recommended cable | #42 AWG Micro coaxial cables |
The connectors of this series have a pitch of 0.4 mm and a low mounting height of 1.0 mm.
When compared with our current SSL Series of connectors for 0.5-mm pitch, ultra-fine coaxial cables, the
USL Series achieves a major reduction of approximately 50% in terms of coupled volume, thus contributing
greatly to weight reduction and device miniaturization.
This product features a right-angle type connector on the board side and a straight type on the cable side;
furthermore, 30- and 40-contact variations are currently available.
Micro coaxial Cable assemblies, eDP Cable assembly, LVDS Cable Assembly, I-PEX micro coaxial cable,
Fine pitch Wire Harness manufacturers
