Custom 150mm 3 Wire Light Bar Cable Assembly with 3 Pin Connectors for Displays

150mm 3 Wire Light Bar Cable Assembly

The 150mm 3 Wire Light Bar Cable Assembly is a compact custom cable solution designed

for light bar and display-related applications. It uses three individual wires with connectors

assembled at both ends for direct connection between mating components.

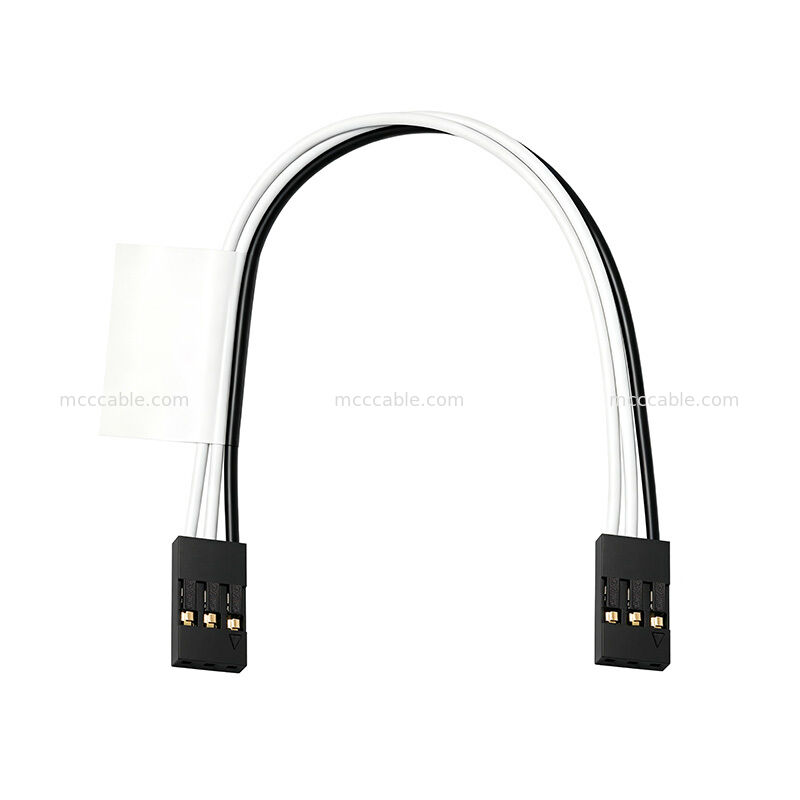

The cable assembly is designed with a straight-through pin connection and a compact

150mm overall cable length, making it suitable for applications where organized internal

wiring and reliable connector termination are required.

150mm 3 Wire Light Bar Cable Specifications

150mm 3 Wire Cable Assembly Construction

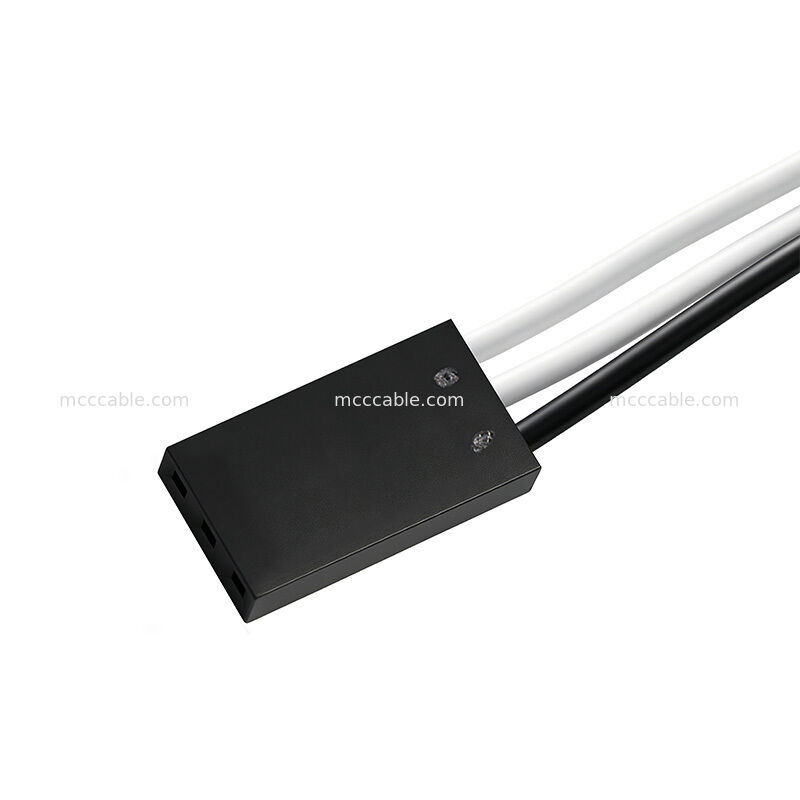

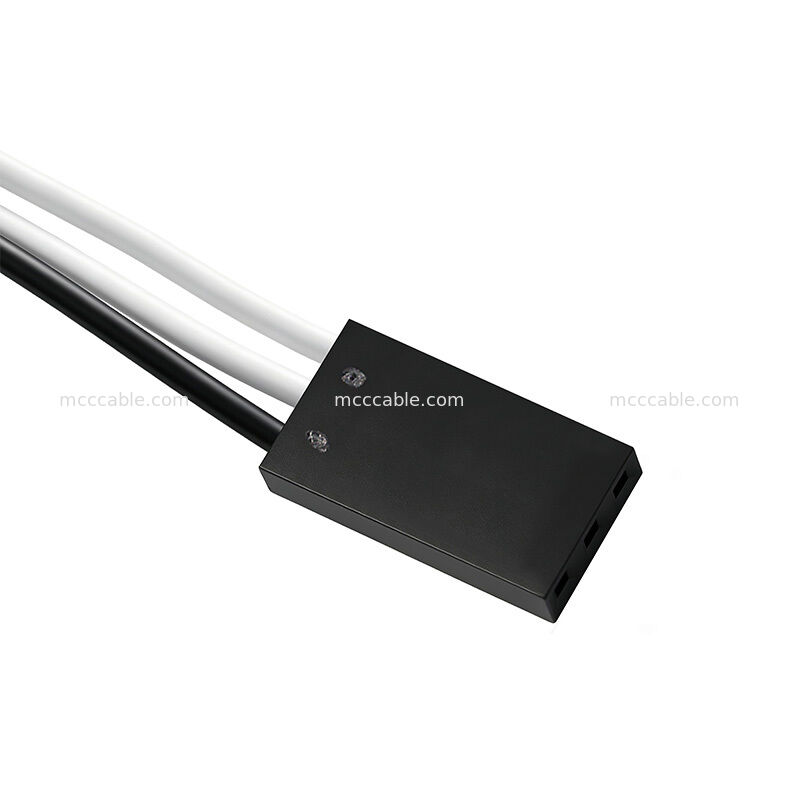

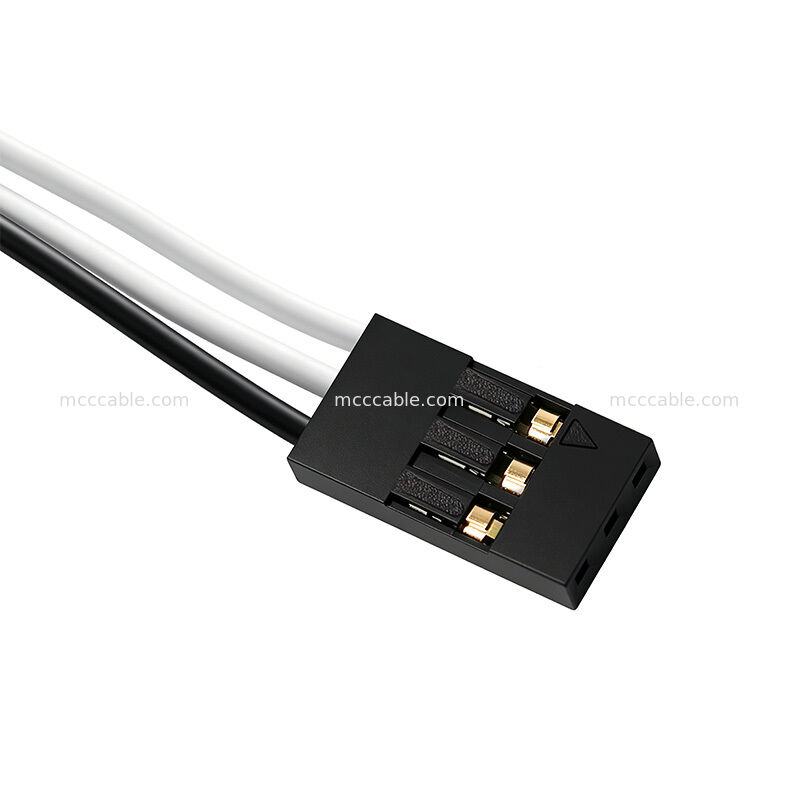

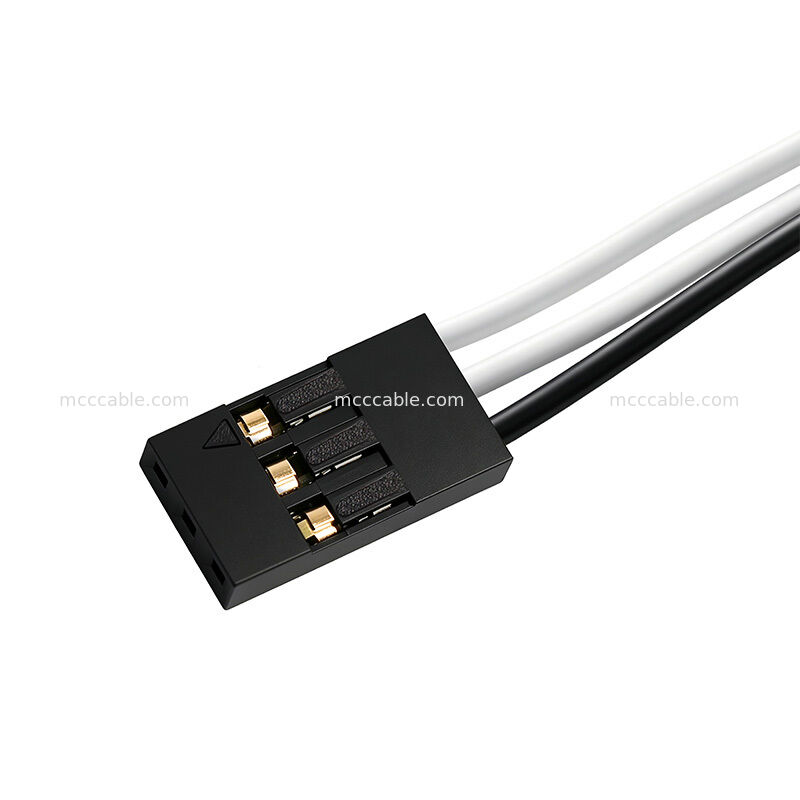

The 150mm 3 Wire Light Bar Cable Assembly consists of three individual wires terminated with

3-pin connectors at both ends. The cable structure provides a simple and compact connection

solution for light bar and display wiring.

The three wires are arranged according to the specified pin-to-pin connection, with each wire

maintaining its corresponding connection between the two ends of the assembly.

150mm Light Bar Cable Pin-to-Pin Connection

The 150mm 3 Wire Light Bar Cable uses a direct pin-to-pin wiring configuration:

• Pin 3 → Pin 3
• Pin 2 → Pin 2
• Pin 1 → Pin 1

The specified wire colors are white for Pin 3, white for Pin 2, and black for Pin 1. This

straight-through configuration helps simplify installation and wiring identification.

Custom 3 Wire Light Bar Cable Assembly

This 3 Wire Light Bar Cable Assembly can be produced as a custom cable assembly

according to required cable length, wire configuration, connector type and assembly

specifications.

For applications requiring a compact connection between a light bar and related display

or electronic components, the cable can be configured according to the required

mechanical and electrical requirements.

3 Pin Connector Light Bar Cable Applications

The 3 Pin Connector Light Bar Cable is suitable for compact internal wiring and connection

applications involving light bars, displays and electronic equipment.

Typical application areas may include:

• Light bar connection
• Display equipment wiring
• Internal electronic equipment connections
• Compact lighting assemblies
• Custom electronic cable assemblies
