Custom 310mm 3 Pin Light Bar Cable Assembly HX25402-3Y UL1007 24AWG Wire Harness

310mm 3 Pin Light Bar Cable Assembly

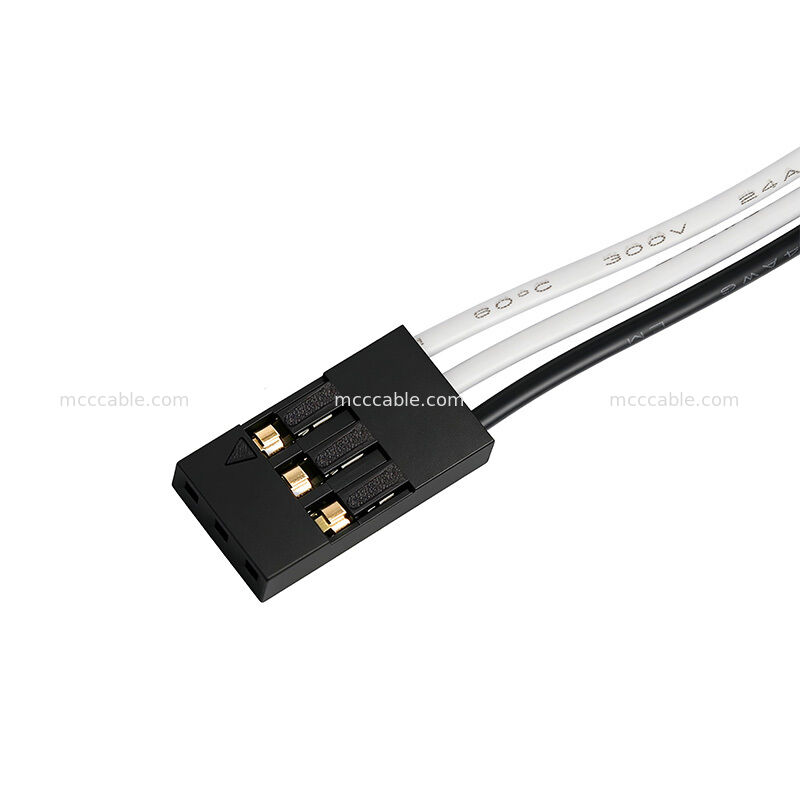

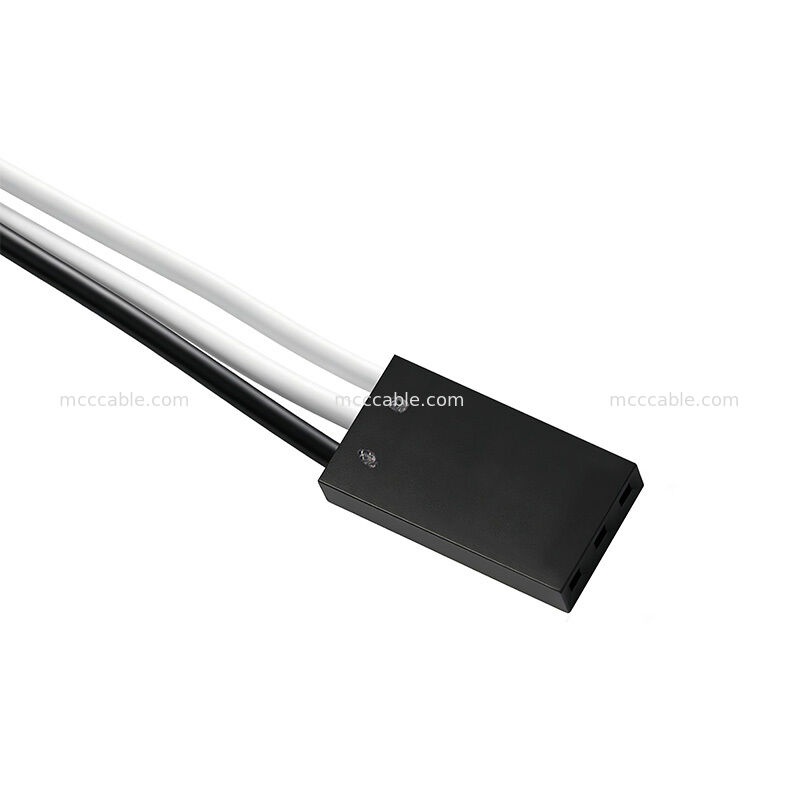

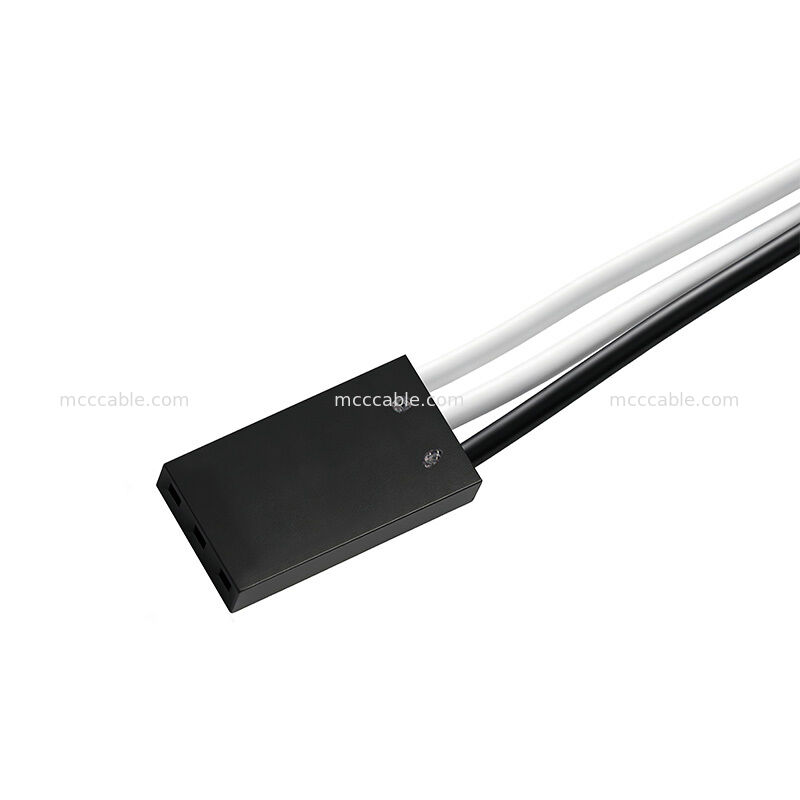

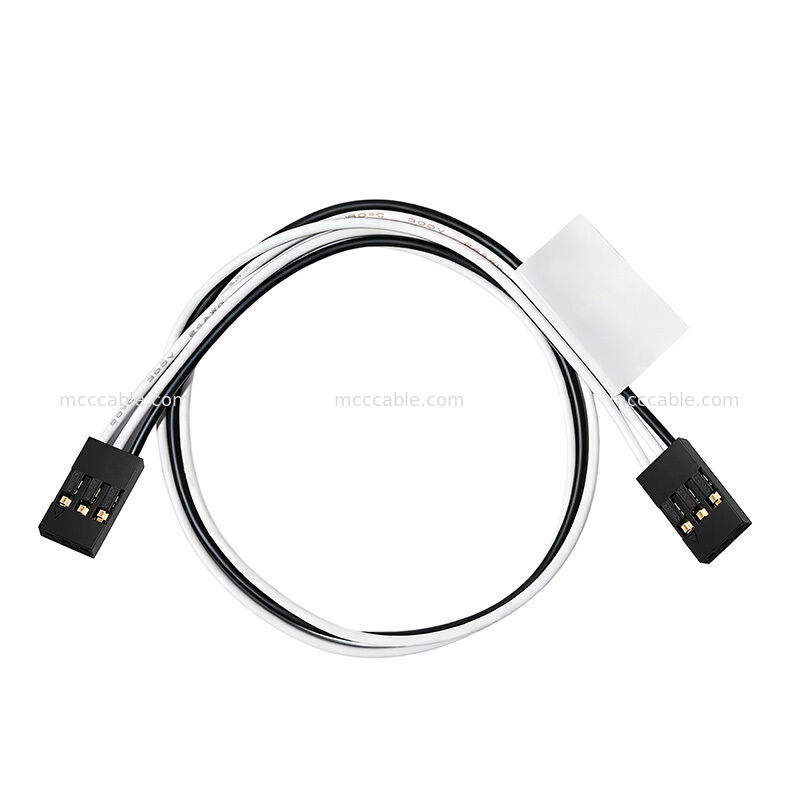

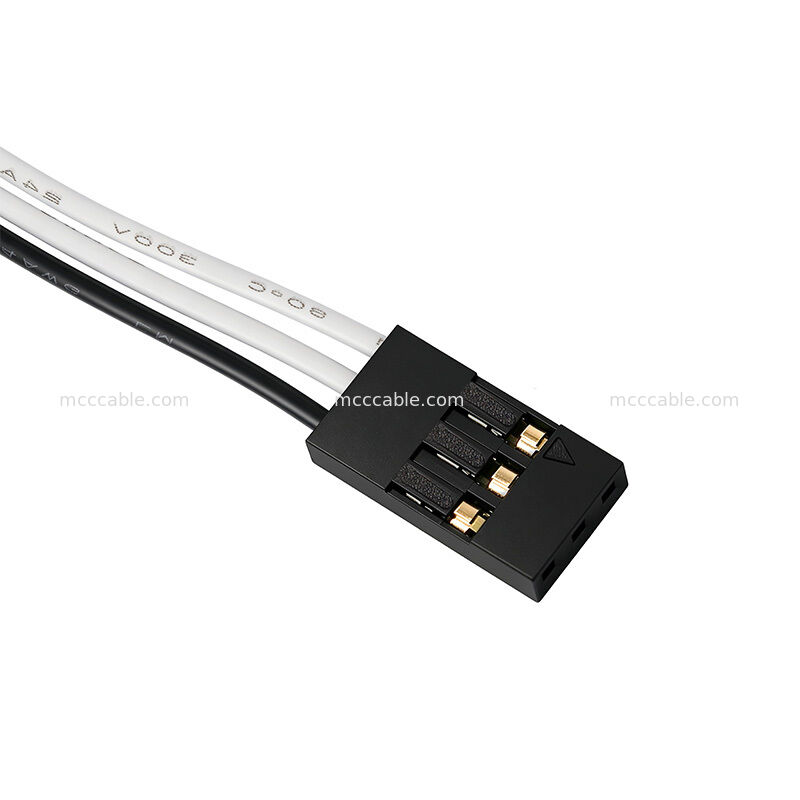

This 310mm 3-pin light bar cable assembly is a custom-engineered wire harness

designed for reliable internal wiring in display modules and compact lighting systems.

Featuring HX25402-3Y connectors on both ends and UL1007 24AWG wire, this

assembly ensures stable signal and power transmission with a straight-through pin

configuration.

HX25402-3Y Connector Configuration and Pinout

The assembly utilizes the HX25402-3Y connector at both P1 and P2 ends. The wiring

 logic follows a direct pin-to-pin mapping: Pin 3 to Pin 3 (White), Pin 2 to Pin 2 (White),

and Pin 1 to Pin 1 (Black). This straight-through design simplifies installation and

reduces the risk of miswiring during maintenance or assembly.

310mm 3 Wire Light Bar Cable Specifications

UL1007 24AWG Wire Performance and Compliance

The cable uses UL1007 style 24AWG hook-up wire, which is rated for internal wiring of

electronic equipment. The PVC insulation provides flexibility and abrasion resistance,

while the 24AWG gauge supports low-voltage signal and power transmission. The assembly

is fully RoHS compliant, meeting current environmental standards for export to European

and North American markets.

Custom Light Bar Cable Assembly Applications

This 3-pin cable assembly is suitable for compact internal connections where space is

limited and reliable termination is required. Typical applications include light bar interconnects,

display module wiring, and internal electronic device connections. The 310mm length offers

flexibility for routing within small to medium-sized enclosures.
