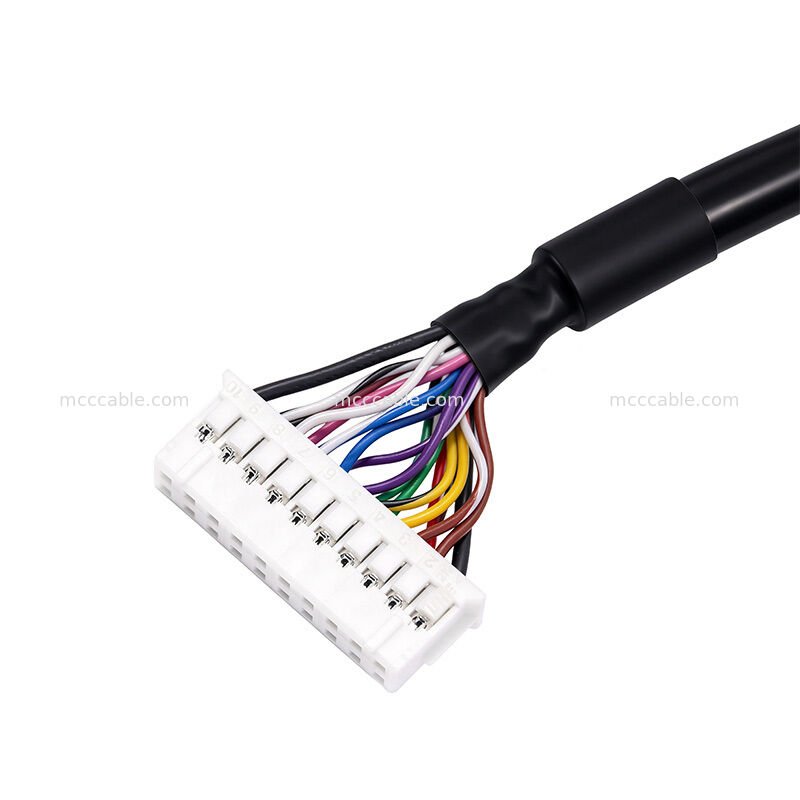

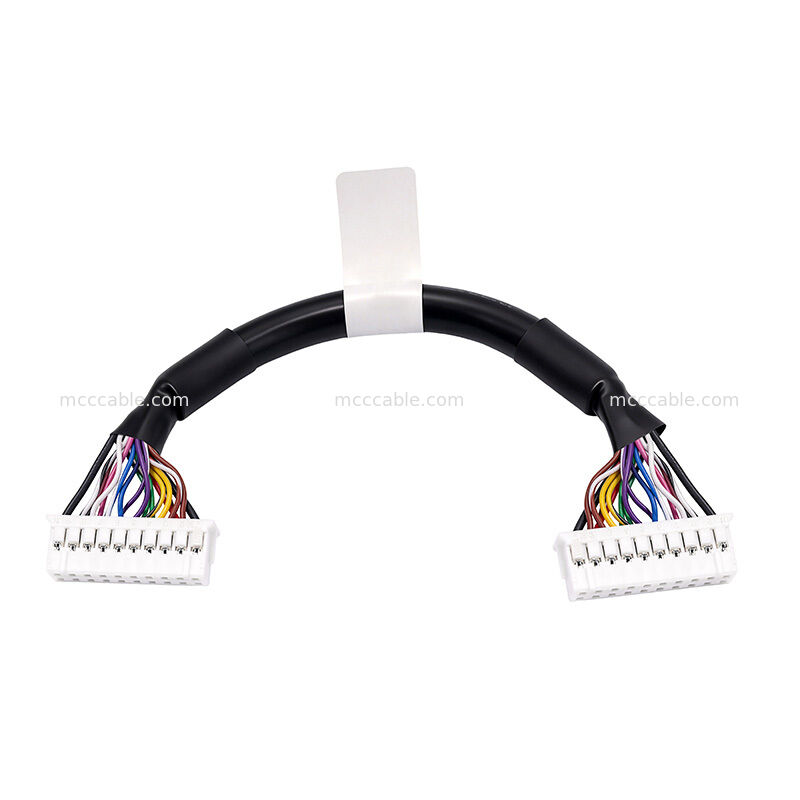

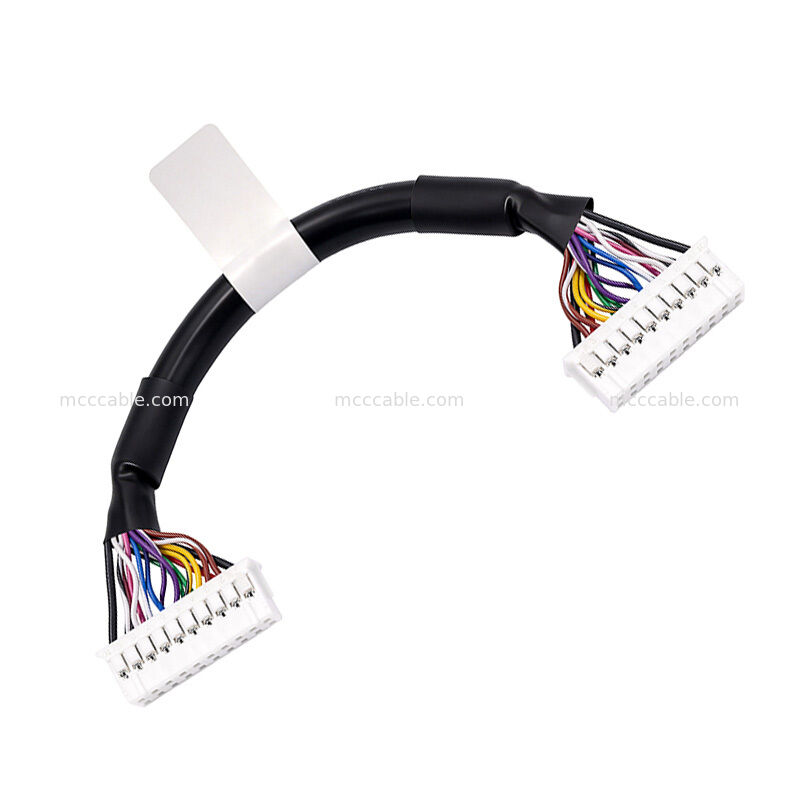

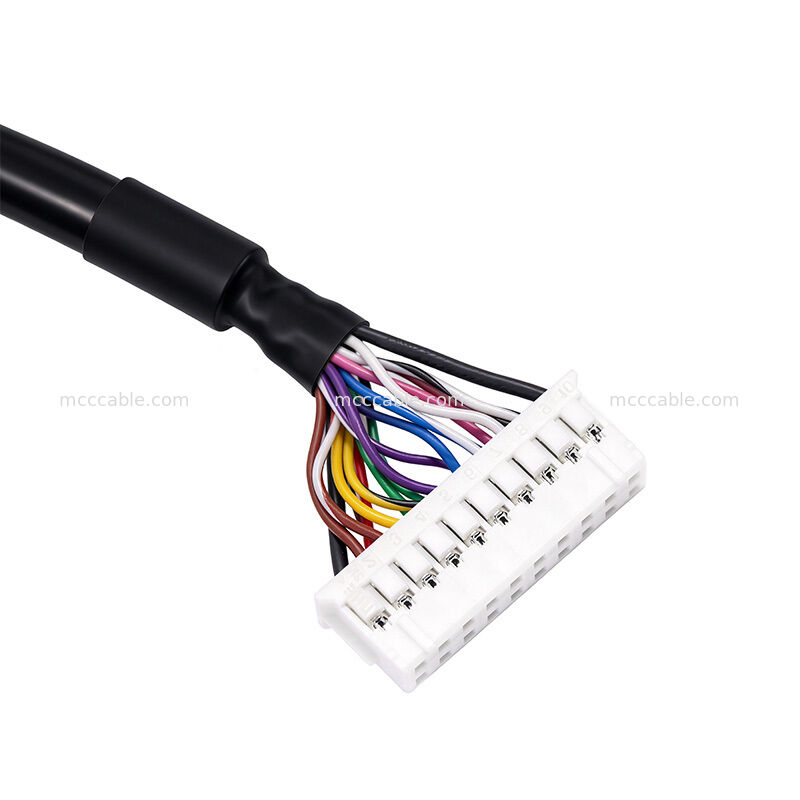

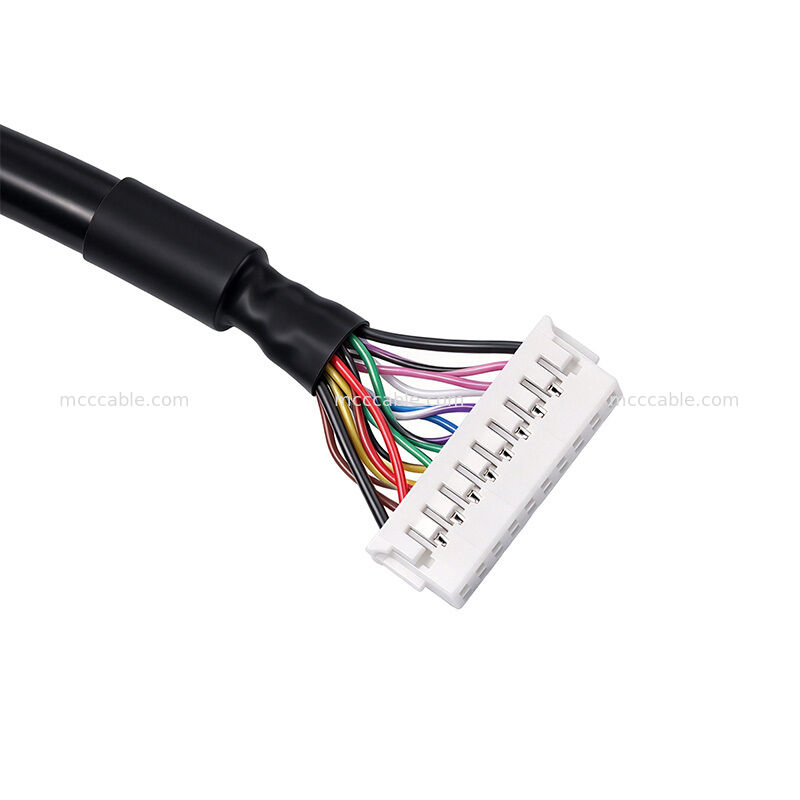

Custom M.2 to Adapter Board Cable Assembly with 20-Pin PHDR-20VS Connectors

PHDR-20VS Cable Assembly Overview

The custom M.2 to adapter board cable assembly is designed for internal electronic connections between compatible M.2 interfaces and adapter boards. It features 20-pin connectors at both ends, a 10-pair 28 AWG cable structure, and shielding consisting of aluminum Mylar foil and tinned copper braid. The approximately 100 mm cable length makes it suitable for compact electronic integration where a short, organized cable connection is required.

PHDR-20VS Cable Assembly Specifications

PHDR-20VS Cable Assembly with Shielded Cable

The PHDR-20VS cable assembly uses a 10-pair, 28 AWG cable with aluminum Mylar foil and tinned copper braid shielding. The cable features a black PVC outer jacket and a compact construction suitable for internal electronic wiring. The individual conductors are arranged in color-coded pairs according to the specified wiring configuration.

PHDR-20VS Cable Assembly Connector Configuration

The PHDR-20VS cable assembly incorporates 20-pin connector housings at both ends, with crimp terminals specified for the assembly. The connector arrangement and pin-to-pin wiring follow the approved technical drawing. The pin assignment includes designated drain connections and no-connect positions. Connector compatibility and the final pinout should be verified against the application requirements before production.

PHDR-20VS Cable Assembly Quality Testing

The cable assembly drawing specifies electrical and mechanical inspection requirements to support product quality and connection reliability. The listed requirements include 100% open, short, and intermittency testing, conductor resistance testing, insulation resistance testing, high-potential testing, and terminal tensile pull evaluation according to the specified criteria.

Production inspection and acceptance are carried out according to the applicable approved drawing and agreed technical requirements.

PHDR-20VS Cable Assembly Customization and Applications

This custom cable assembly is intended for M.2-to-adapter-board interconnection in compatible electronic equipment. Customization can be discussed for cable length, wiring configuration, connector arrangement, and assembly details, subject to connector compatibility and engineering review.

For customized cable assembly projects, please provide the application details, target quantity, and technical drawing for evaluation. Our team can review the specifications and confirm manufacturing feasibility, sample availability, and quotation details.
