Custom VHR-3N 3 Pin Power Cable Assembly 18AWG UL1015 187 Faston Harness

Custom VHR-3N 3 Pin Power Cable Assembly

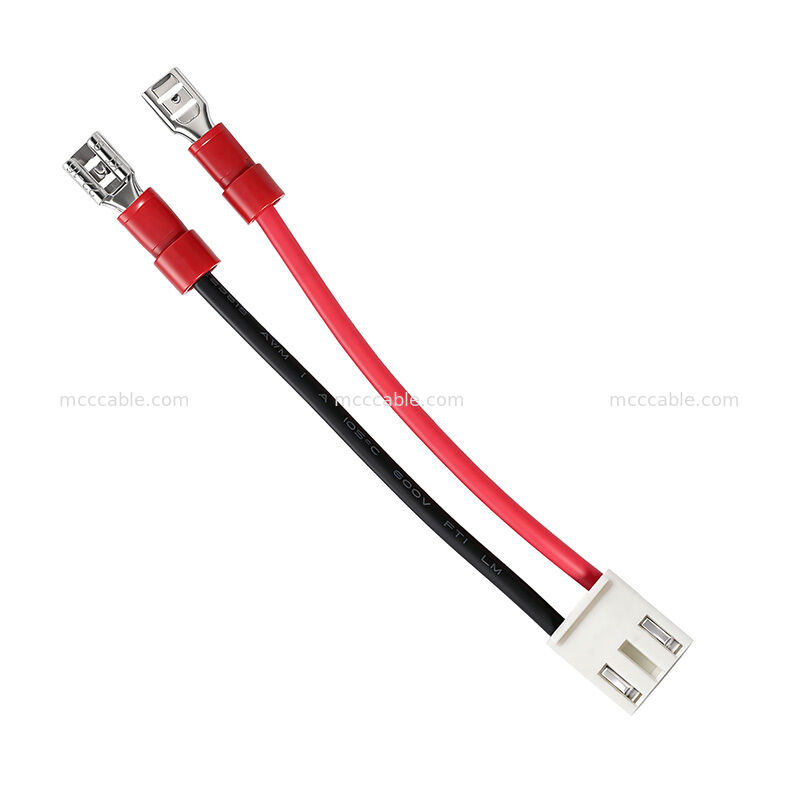

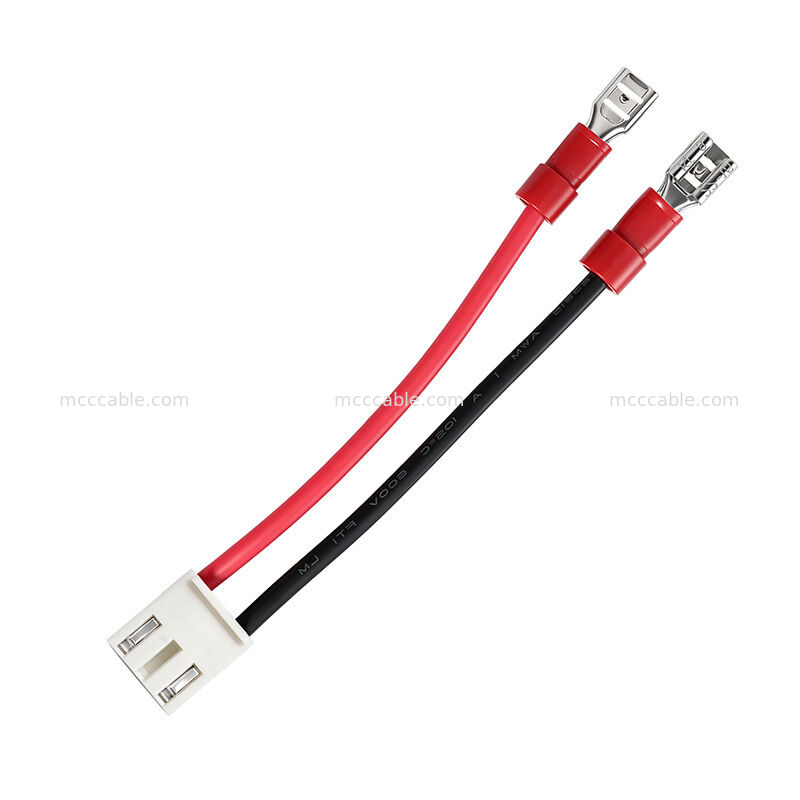

This custom VHR-3N 3-pin power cable assembly is a precision-engineered wire harness

designed for reliable power distribution in lighting systems, control panels, and industrial

electronic devices. Featuring a VHR-3N 3.96mm pitch connector on P1 and two 187

Faston (4.8x0.8mm) terminals on P2, this assembly delivers secure connections with

UL1015 18AWG wire for higher current capacity.

VHR-3N Connector and 187 Faston Terminal Configuration

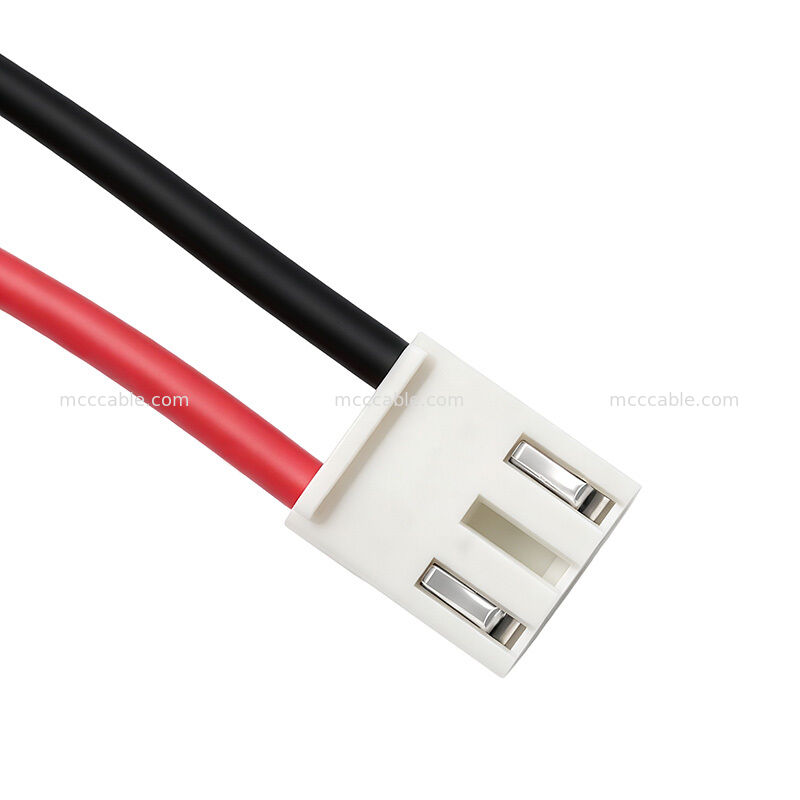

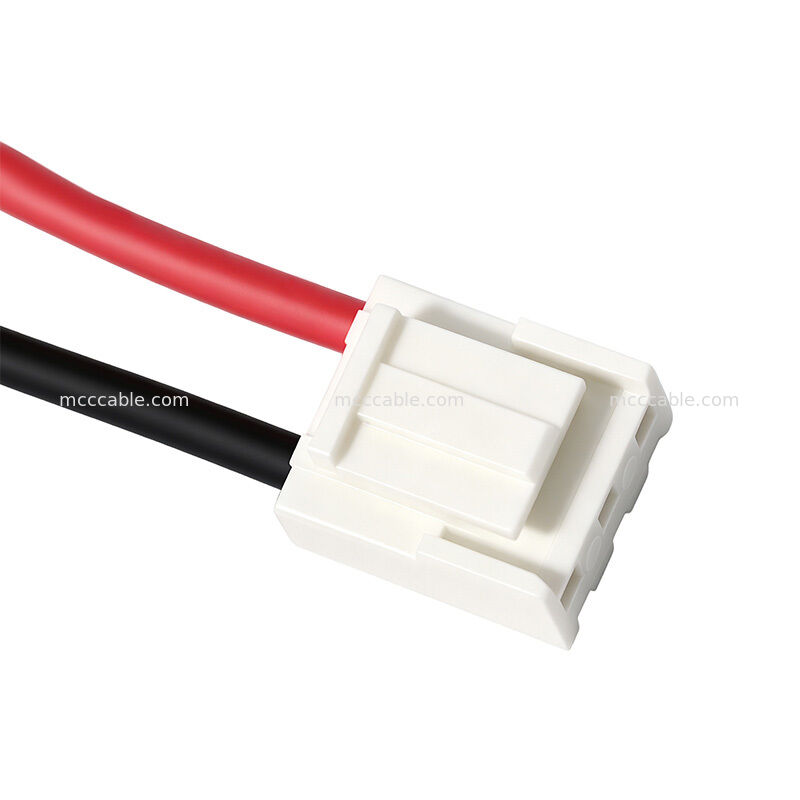

The P1 side uses the VHR-3N 3-pin white connector (3.96mm pitch) with SVH-21T-P1.1

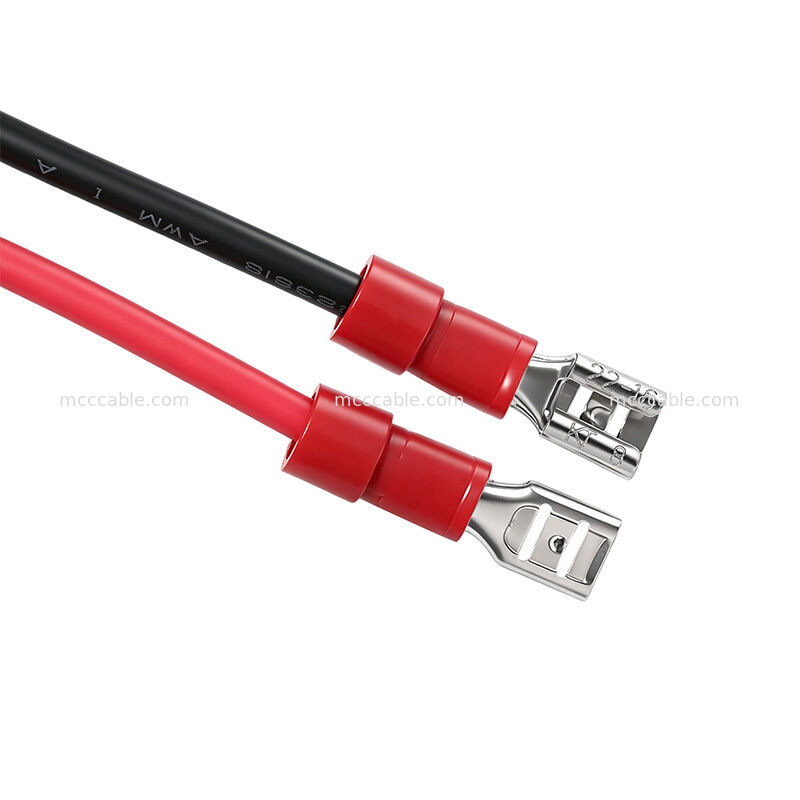

tin-plated crimp terminals. The P2 side terminates in two nylon-insulated single-crimp 187 Faston

terminals (0.8x4.8mm, red, 16-22AWG). The pinout maps P1 Pin 1 to P2 "L" (Red wire),

P1 Pin 2 to P2 "N" (No connection/NC), and P1 Pin 3 to P2 "N" (Black wire), supporting

L/N power routing for lighting applications.

VHR-3N 3 Pin Power Cable Assembly Specifications

UL1015 18AWG Wire Performance and Electrical Testing

The cable uses UL1015 18AWG wire, which offers higher current-carrying capacity than thinner

gauges, making it suitable for power transmission in lighting and industrial control applications.

 Each assembly undergoes 100% open/short testing, Hi-Pot testing at AC-100V for 0.1 seconds,

insulation resistance testing (DC-200V, 20MΩ minimum), and contact resistance testing

(5Ω maximum) to ensure reliable performance.

Custom VHR-3N Power Cable Applications and Customization

This VHR-3N 3-pin power cable assembly is ideal for LED lighting interconnects, control panel

wiring, and industrial power distribution where a 3.96mm pitch connector and 187 Faston terminals

are required. The 60±5mm length suits compact enclosures, and the L/N pinout supports lighting

power routing. Custom wire lengths, colors, and terminal configurations are available for OEM projects.
