DF11-20DS-2C 20-Pin IDC Front Panel Cable Custom Medical High Speed Ribbon Harness

DF11-20DS-2C 20-Pin IDC Front Panel Cable for Medical High-Speed Applications

This DF11-20DS-2C front panel cable assembly is designed for medical and high-speed

signal transmission systems. It combines a 20-position IDC connector with a 20-position

DF11-series connector, using 28AWG ribbon cable for reliable point-to-point wiring in

compact electronic assemblies.

Key Features of the DF11-20DS-2C Front Panel Cable

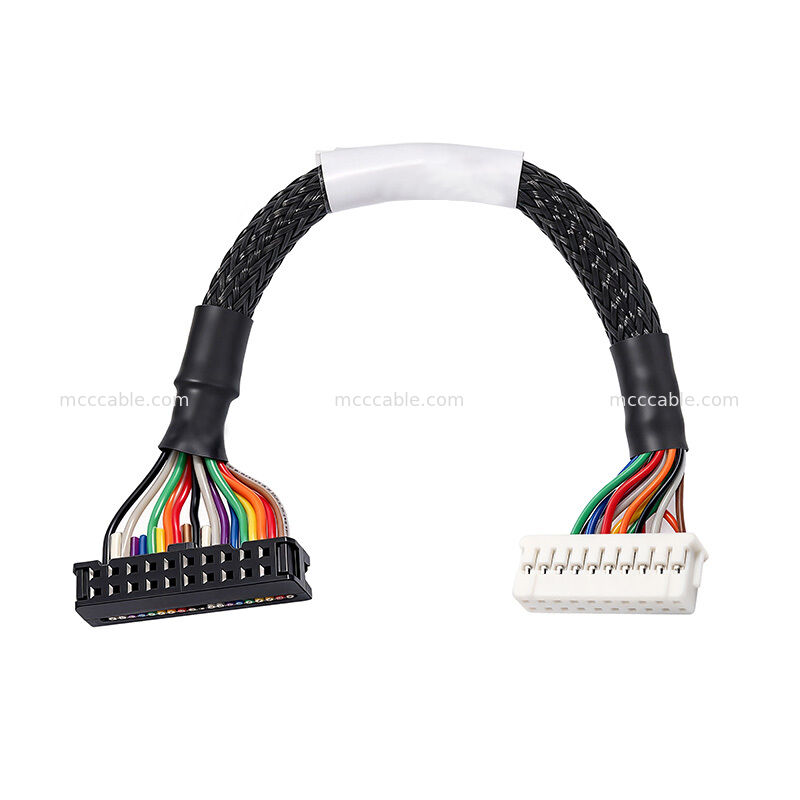

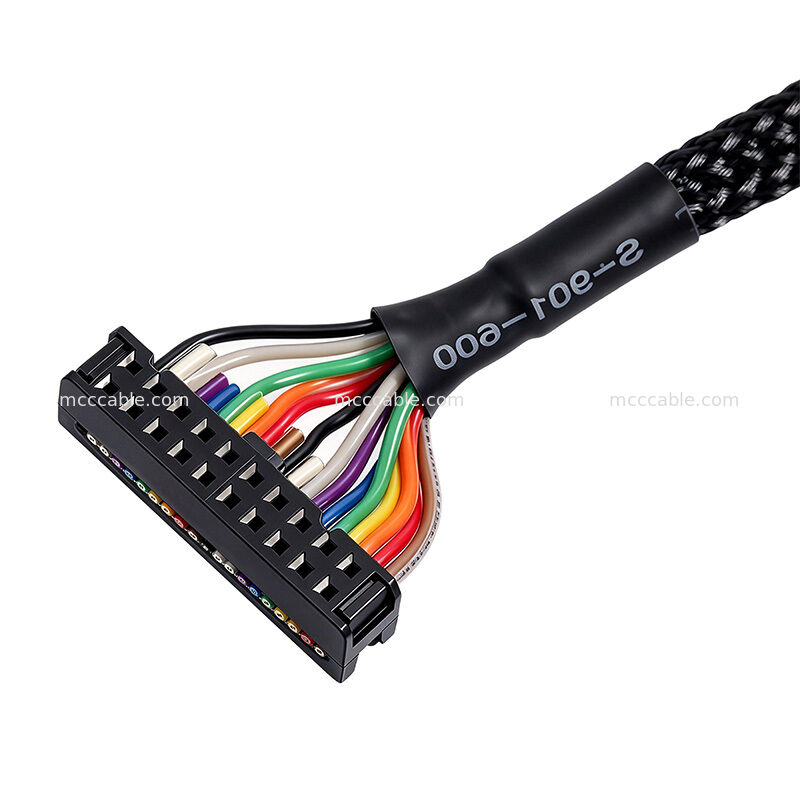

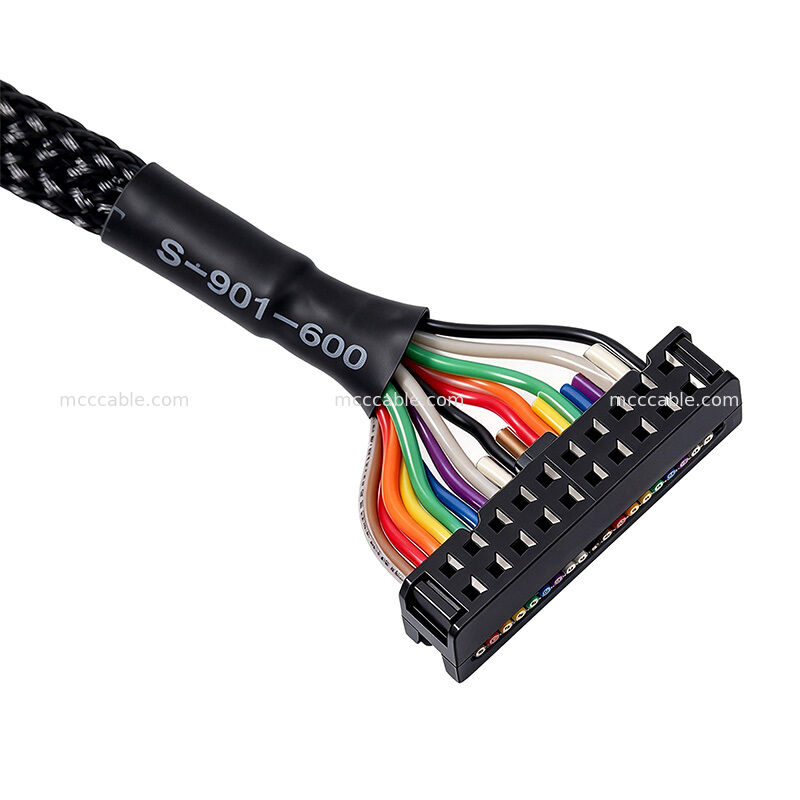

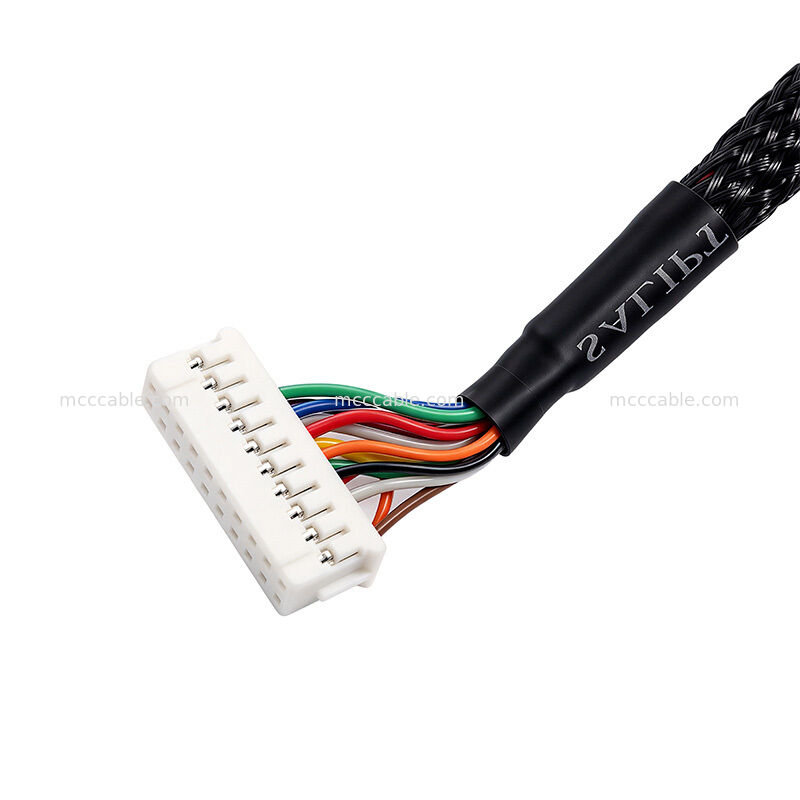

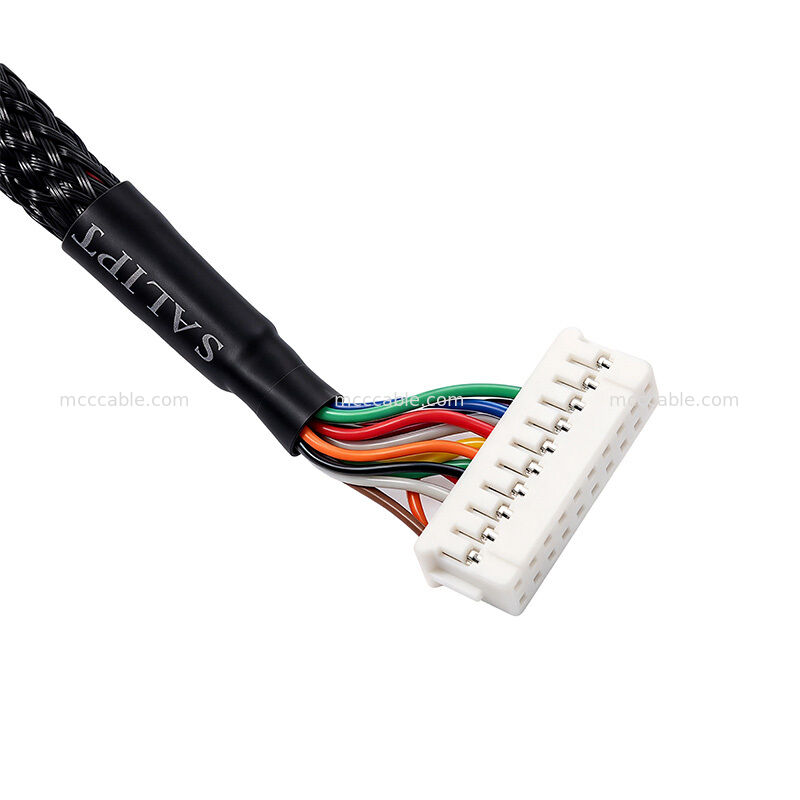

The DF11-20DS-2C cable assembly features a 20-position IDC connector and a 20-position

DF11-series connector, providing a secure and space-saving solution for front panel I/O. The

cable uses 28AWG UL2651 ribbon cable, wrapped with braided sleeving and heat shrink

tubing for mechanical protection and strain relief.

Technical Specifications of the DF11-20DS-2C Cable Assembly

Applications and Compatibility

The DF11-20DS-2C front panel cable is suitable for medical equipment, front panel interfaces,

and high-speed data transmission where a compact 20-pin connection is required. It can be

used in diagnostic devices, industrial control panels, and embedded computing systems that

need a reliable 20-pin IDC to DF11 cable assembly.

Customization and Ordering Information

The DF11-20DS-2C cable assembly can be customized to meet specific length, connector, and

labeling requirements. Approved substitutes are available for key components, including IDC

connectors, DF11 connectors, ribbon cable, braided sleeving, heat shrink tubing, and wrap-around

labels. Please contact us with your target application and quantity for a tailored quote.

Quality and Compliance of the DF11-20DS-2C Cable

The DF11-20DS-2C cable is manufactured with UL-recognized components and is RoHS compliant.

Each assembly is visually inspected and labeled with the part number, revision, and supplier information.

The cable is designed to pass over the center polarization key of the CN1 connector housing,

ensuring correct orientation during installation.

Sino-Media is a specialized cable assembly manufacturer. We utilize cutting-edge
automation equipment, premium raw materials, a robust quality assurance system,
and a skilled technical team to deliver high-quality, custom cable and harness
components in small quantities. Our engineering, production, and quality control
teams ensure the excellence of these unique components. Our mission is to enhance
product quality continuously, meet customer needs, and maintain expertise in the
materials we use and recommend. Our dedication to customer satisfaction drives
the company’s ongoing growth.

Q1. Is it a factory?
A:Yes,we have more than 16 years of design and manufacturring experience!
Q2. Is there any certification?
A:Yes,there are IS09001,ISO14001,TS16949,ISO13485,UL CERIFIED.
Q3. What is our specialty?
A:We can design products on the application.
Q4. Do you accept OEM/ODM orders?
A: Yes, we accept OEM/ODM orders. For oem orders, moq is 100pcs. For ODM orders, moq

1000PCs. Mould fee will be charged according to design.
Q5. How long will it need for completing an order?
A: For small order and products in stock, it will take less than 3 days for preparation and delive

ry, and shipment time depends on clients' choice, fastest 7 days and longest 1 month.
For big order, as we need to confirm all things include materiel preparation, production, this pro

cedure will take 5 to 21 working days according to order quantity, testing 1 to 3 working days, a

nd finally, packing 1 day, so fastest 7 days and longest 25 days without shipment.
Q6. As long term clients, what other service we can get?
1. New product will be offered with order, so you can see if it is potential product in the market a

nd promote it, and you will have the right to resell the product in your district.
2. Additional fee discount, cheaper price on purchasing products at smaller quantity.
3. We can offer assist on promotion images, and make images with clients' logo
Q7. How long is warranty for the cable, and if defective or faulty, how to protection your benifits?
A: All our cables are sold with 12-36 months warranty, and for big quantity order, we will offer 0.3%

to 0.5% backup for defective sent with order, so if you order 1000PCs, that means you can get 100

3pcs with backup. If you get faulty more than 5pcs, and less than 0.1%, please contact sales and

offer images, and we will solve your problem in the way of replacing with new order or refund.
Q8. Do you accept free sample order?
A: Yes, sample order is supported, some samples can be offered free exclusive of shipment freight.

How to contact us?
send your inquiry details in the below, click "send" now! free sample and best price are waiting for

you, if you can't find the product in our web, you can also send an inquiry to us, even if we don't make

it, we will find the same product with good quantity and good price.
