5013300600 6 Pin Wire Harness MX1.0 Pitch 1.0mm UL1061 28AWG Custom Cable Assembly

5013300600 6 Pin MX1.0 Wire Harness with UL1061 28AWG

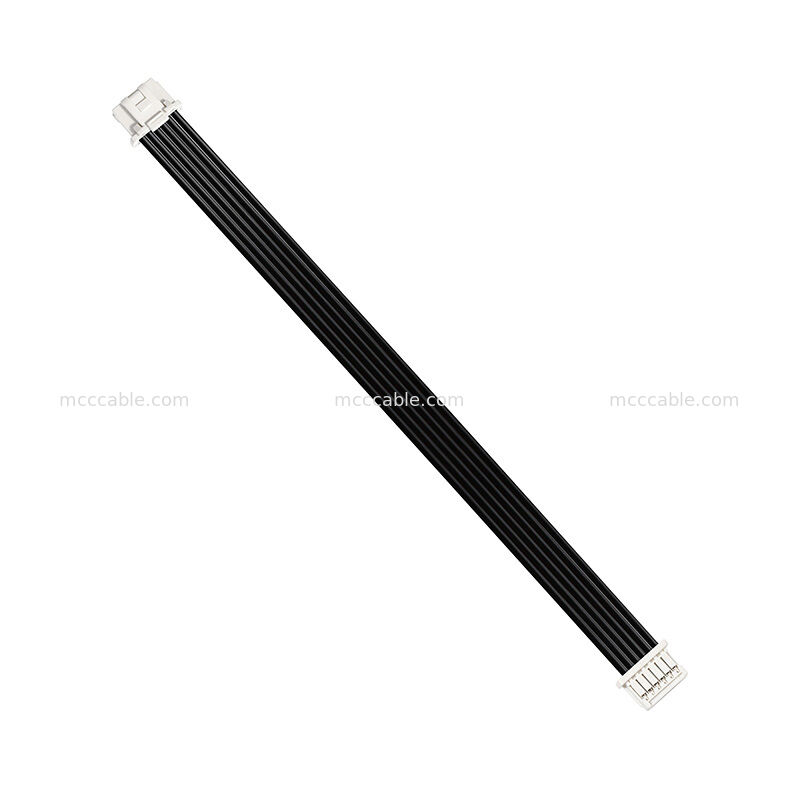

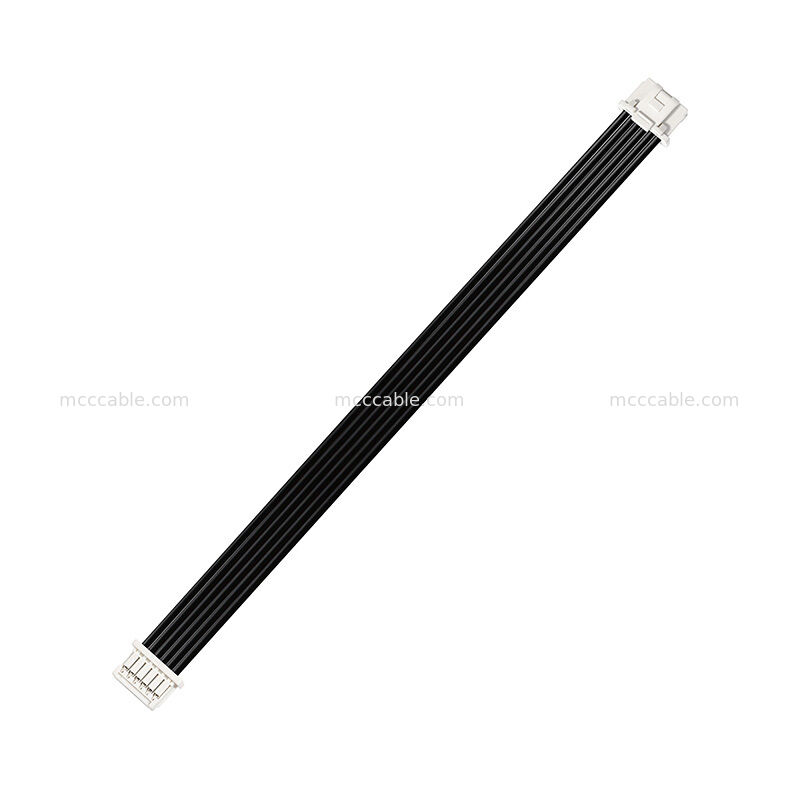

This 5013300600 wire harness is a pre-assembled 6-pin cable assembly built with

MX1.0 1.00mm pitch connector housings on both ends and UL1061 28AWG black

lead wires. The assembly uses a double-ended 6P-6P configuration, with all six

conductors color-coded black. The cable length is 100 ±10 mm, and the harness

is 100% tested for open/short before shipment.

The connector housing is RoHS compliant, and the assembly is suitable for

compact internal wiring in appliances and electronic equipment.

5013300600 Wire Harness Overview

This 5013300600 wire harness is a pre-terminated 6-pin cable assembly designed

for compact wire-to-board connections in appliances, electronic devices, and

control equipment.

The assembly combines MX1.0 1.00mm pitch connector housings at both ends

with UL1061 28AWG conductors, providing a ready-to-install harness rather than

loose wire and separate connectors. All six conductors are black, and the defined

wire length makes the assembly suitable for equipment wiring where a specified,

plug-and-play connection is required.

6 Pin MX1.0 Wire Harness Construction

The 5013300600 wire harness uses UL1061 28AWG conductors in a 6P-6P

configuration.

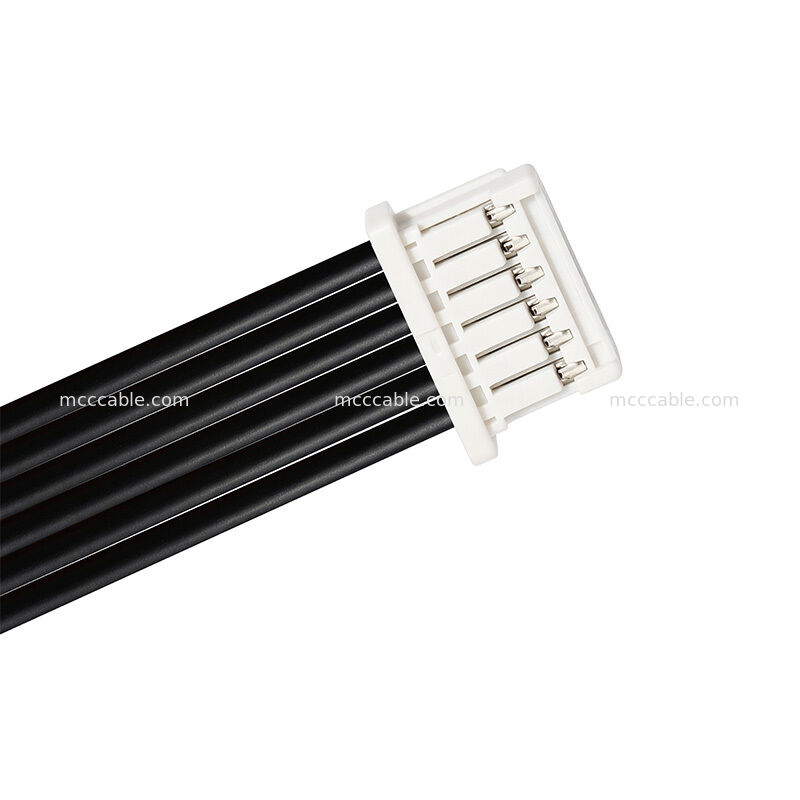

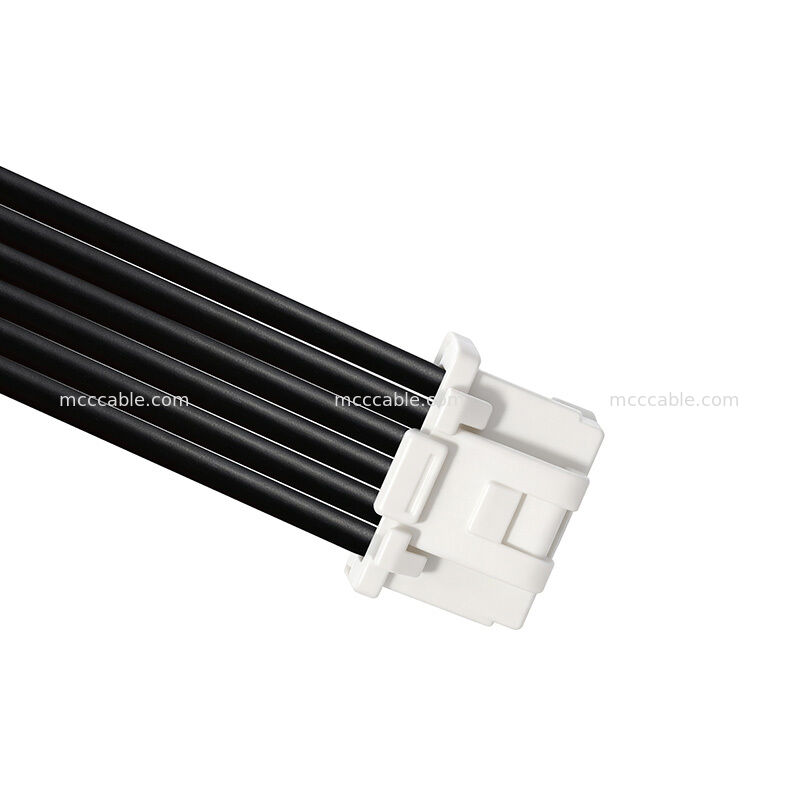

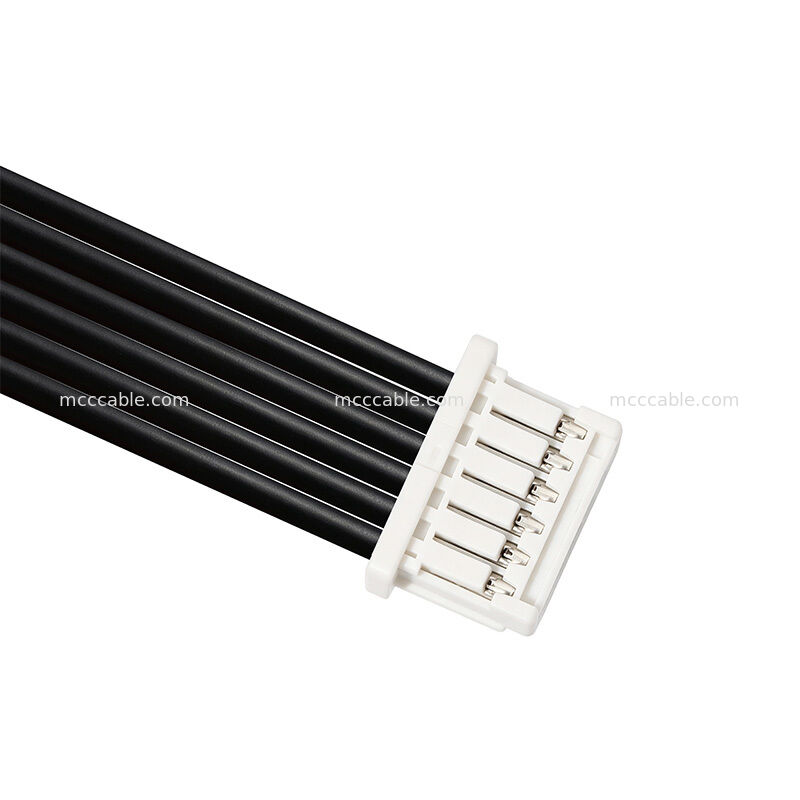

MX1.0 Connector Termination

This 5013300600 wire harness uses MX1.0 1.00mm pitch connector housings for conductor

termination. The 6-position housing accepts crimped terminals and provides a compact,

positive-lock interface for wire-to-board connections. The 1.00mm pitch design supports

dense connector layouts where board space is constrained.

UL1061 28AWG Wire Configuration

Each conductor of the 5013300600 harness is UL1061 28AWG black wire. The 28AWG

gauge supports signal and low-power transmission in internal wiring applications. The

six conductors are maintained as separate paths within the assembly, with the connector

housing providing a secure interface at both ends.

Custom 6 Pin Wire Harness for OEM Equipment

This custom wire harness is suitable for OEM equipment and electronic systems that

require a compact, pre-terminated 6-pin connection. The specified configuration is

particularly suited to applications requiring:

• 6-pin wire-to-board connection
• MX1.0 1.00mm pitch interface
• UL1061 28AWG conductors
• Double-ended 6P-6P assembly
• Defined wire length
• Black conductor identification
• V0 rated connector housing
• RoHS compliance
