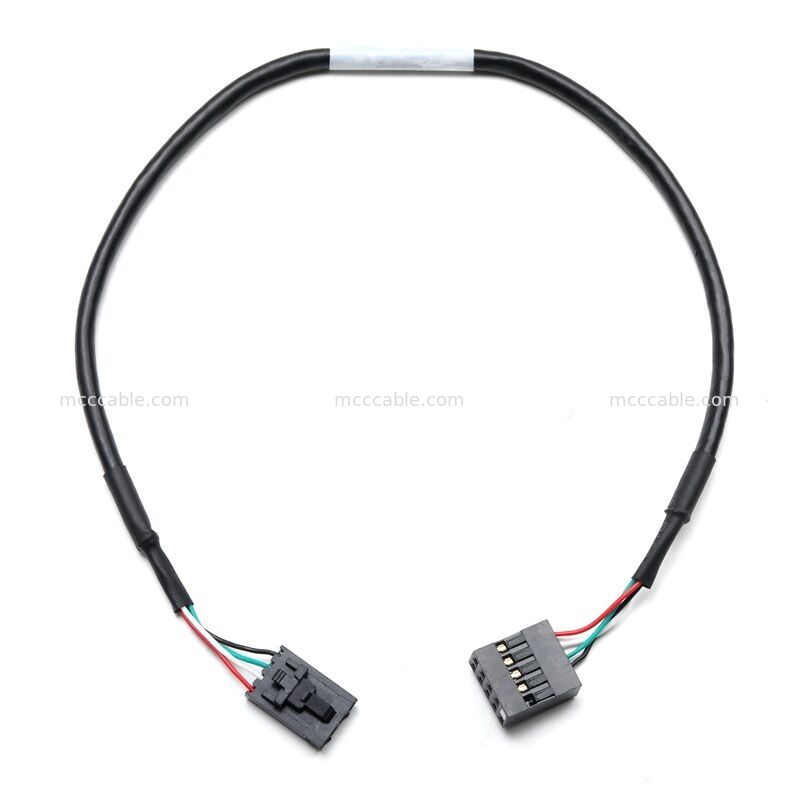

4 Pin USB Signal Cable Assembly Overview

The 4 Pin USB Signal Cable Assembly is designed for reliable USB communication and
power transmission between embedded controller boards, LED modules, industrial control

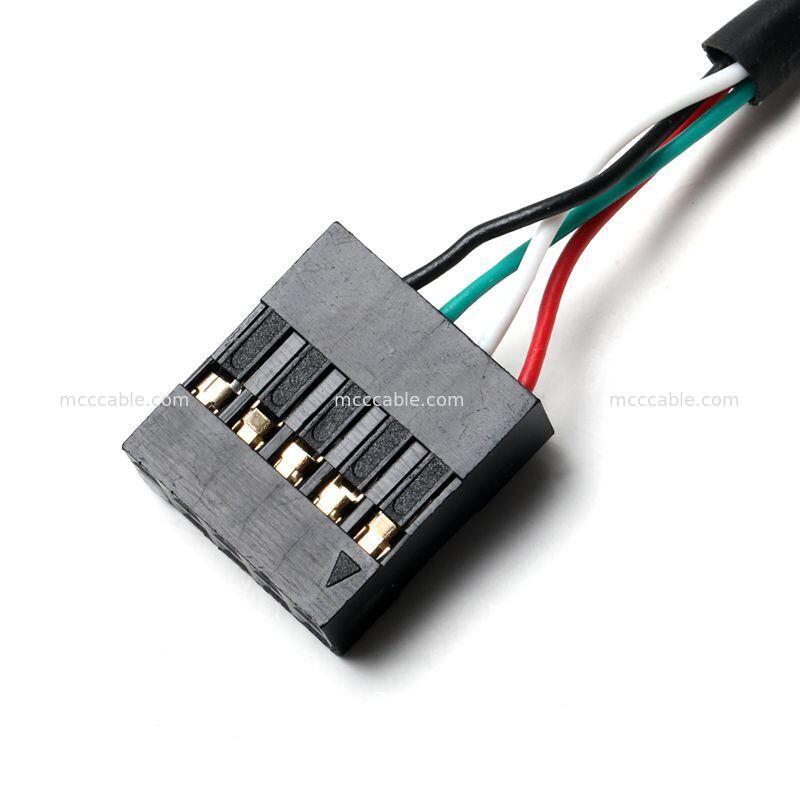

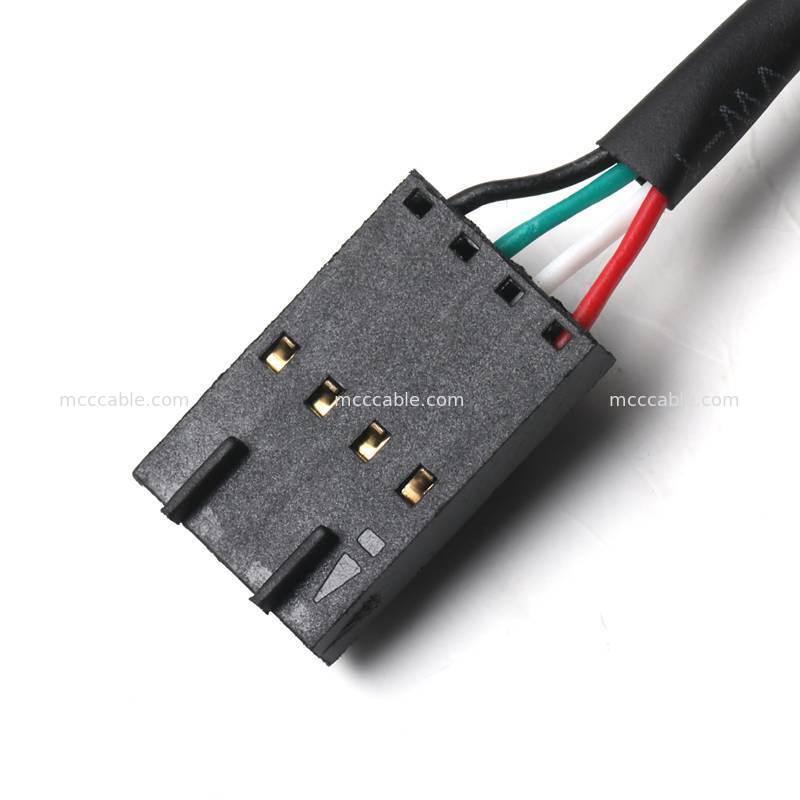

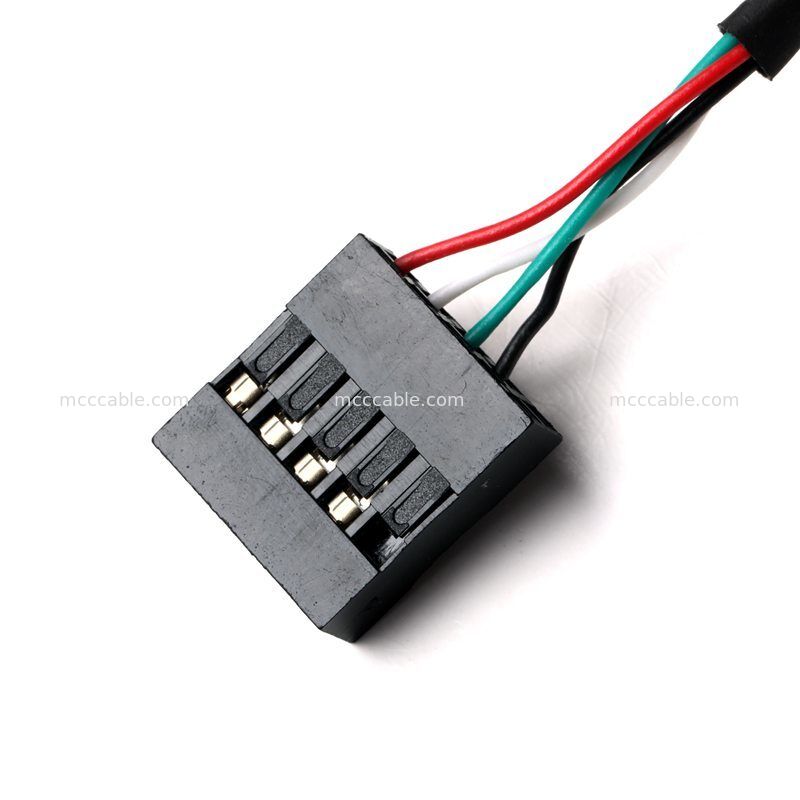

systems, and electronic equipment. Featuring a compact 4-position locking connector on
one side and a 10-position board interface on the other, the assembly provides stable signal
routing for USB 2.0 communication applications.

Built using shielded 28AWG multi-conductor cable construction, this assembly helps reduce
electromagnetic interference while maintaining signal integrity over extended cable lengths.
The polarized connector design prevents incorrect installation and improves overall system
reliability in industrial and commercial electronics.

This cable assembly is widely used in embedded computing systems, LED display controllers,
industrial automation equipment, kiosk systems, HMI devices, and custom electronic platforms.

4 Pin USB Signal Cable Assembly Specifications

4 Pin USB Signal Cable Assembly Features

USB 2.0 Signal Integrity

Supports stable USB communication between embedded electronic devices.

Shielded Cable Construction

Reduces EMI interference and improves transmission reliability.

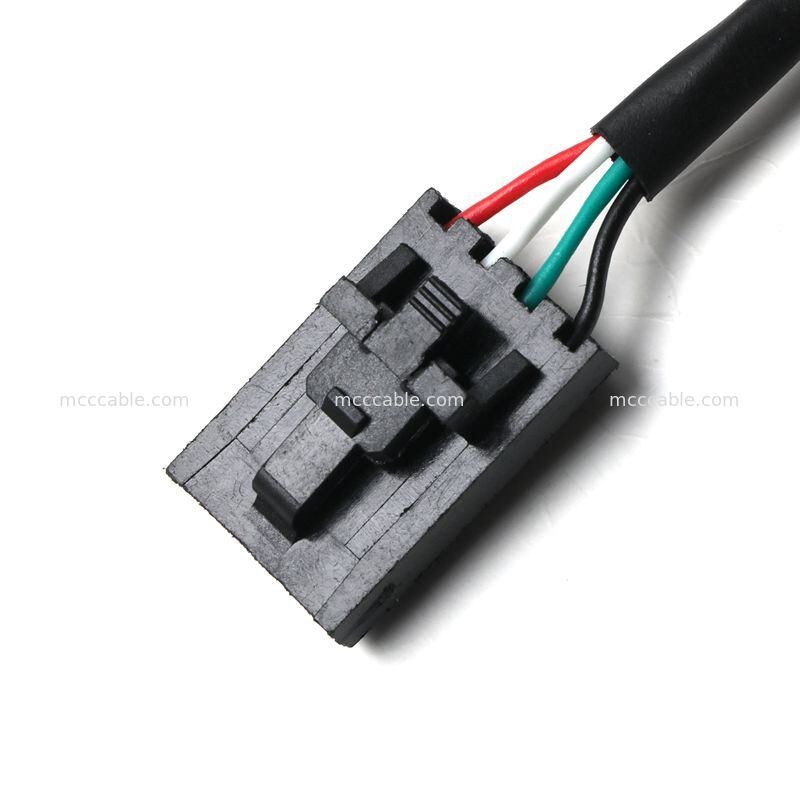

Locking Connector Design

Provides secure mating and vibration resistance.

Polarized Interface

Prevents incorrect installation during assembly.

Compact Internal Wiring Solution

Suitable for space-limited embedded electronics.

Fully Customizable

Supports custom lengths, wire gauges, connector styles, and pin definitions.

Applications of 4 Pin USB Signal Cable Assembly

Industrial LED Control Boards

Connects LED controller modules and embedded USB devices.

Embedded Computing Systems

Provides internal USB communication between boards.

Industrial Automation Equipment

Used for data transfer and device communication.

HMI and Touchscreen Systems

Supports USB-based control interfaces.

Kiosk and POS Equipment

Provides reliable internal USB wiring.

Electronic Product Development

Suitable for prototype and production-level embedded applications.

Customization Capabilities

As a custom cable assembly manufacturer, Sino-conn supports:

• Custom cable lengths
• Alternative connector configurations
• Shielded and unshielded cable options
• Different wire gauges
• Customized pin assignments
• Heat shrink tubing options
• Label printing
• OEM packaging
• Prototype production
• Mass production manufacturing

Sino-Media is a specialized cable assembly manufacturer. We utilize cutting-edge
automation equipment, premium raw materials, a robust quality assurance system,
and a skilled technical team to deliver high-quality, custom cable and harness
components in small quantities. Our engineering, production, and quality control
teams ensure the excellence of these unique components. Our mission is to enhance
product quality continuously, meet customer needs, and maintain expertise in the
materials we use and recommend. Our dedication to customer satisfaction drives
the company’s ongoing growth.
