Place of Origin:
China
Brand Name:
Customization
Certification:
UL ，ISO13485 , ISO9001.2005 , ISO14001
Model Number:
MX3.0 6-Pin Wire Harness Assembly
Custom MX3.0 6-Pin Wire Harness Assembly with UL1007
20AWG Cable
MX3.0 6-Pin Wire Harness Assembly Product Overview:

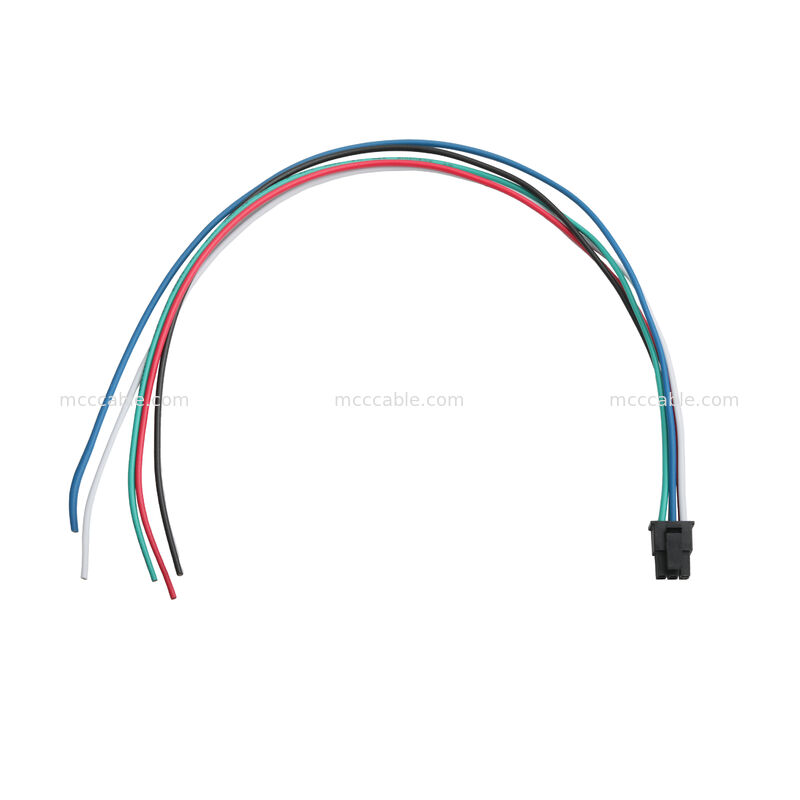

The MX3.0 6-Pin Wire Harness Assembly is a custom-built cable assembly designed
for stable power and signal transmission in compact electronic systems.

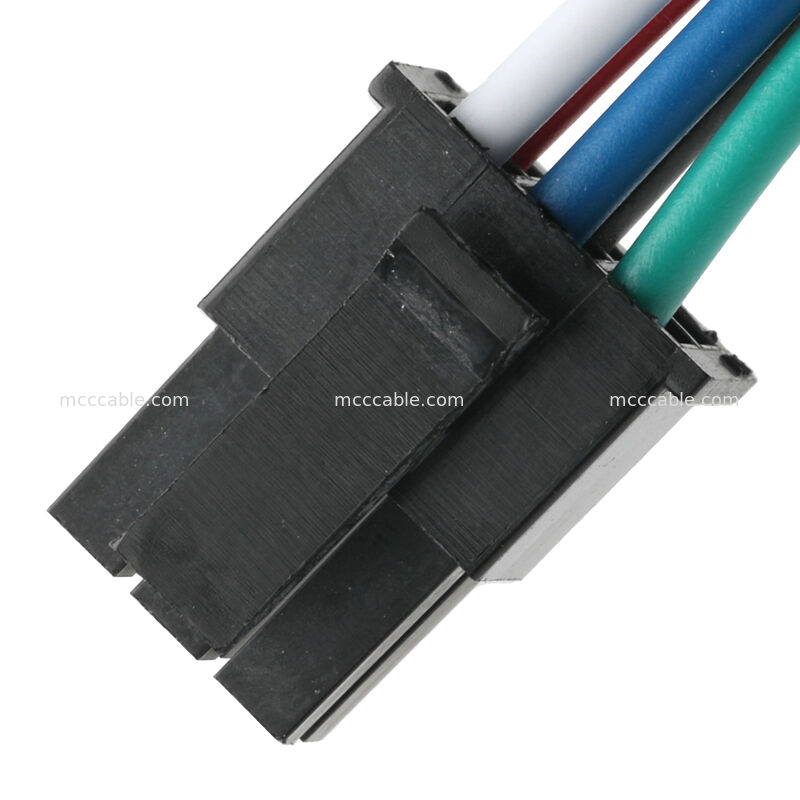

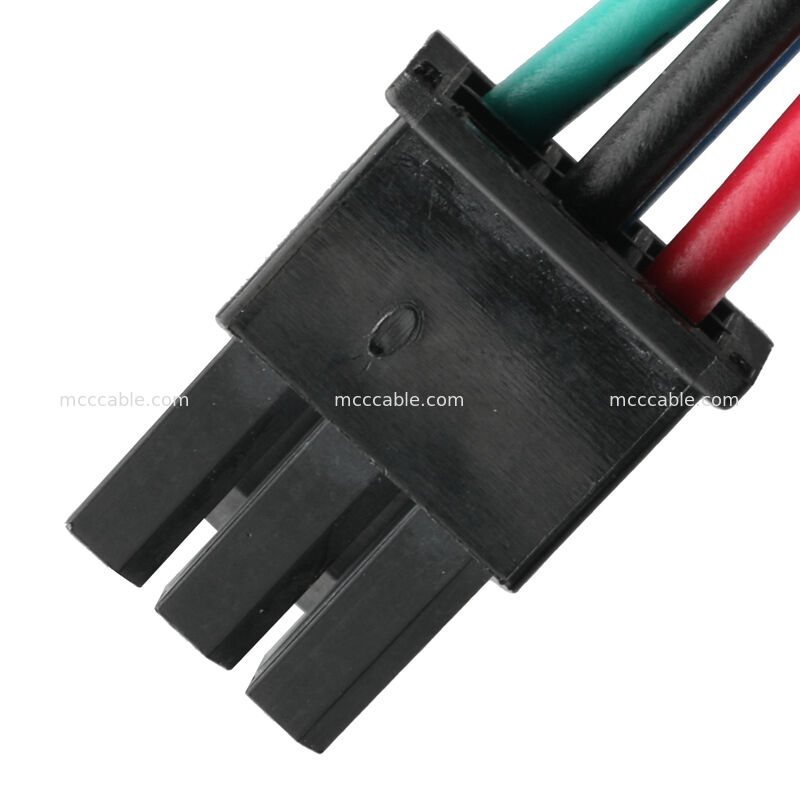

This assembly features a 3.0 mm pitch MX3.0 connector (2×3 pin layout), combined
with UL1007 20AWG wires, ensuring reliable electrical performance and mechanical
durability.
Manufactured according to customer-specific drawings, this harness is 100% electrically
tested and suitable for OEM and ODM applications where consistency, safety, and
precision are critical.
MX3.0 6-Pin Wire Harness Assembly Key Features:

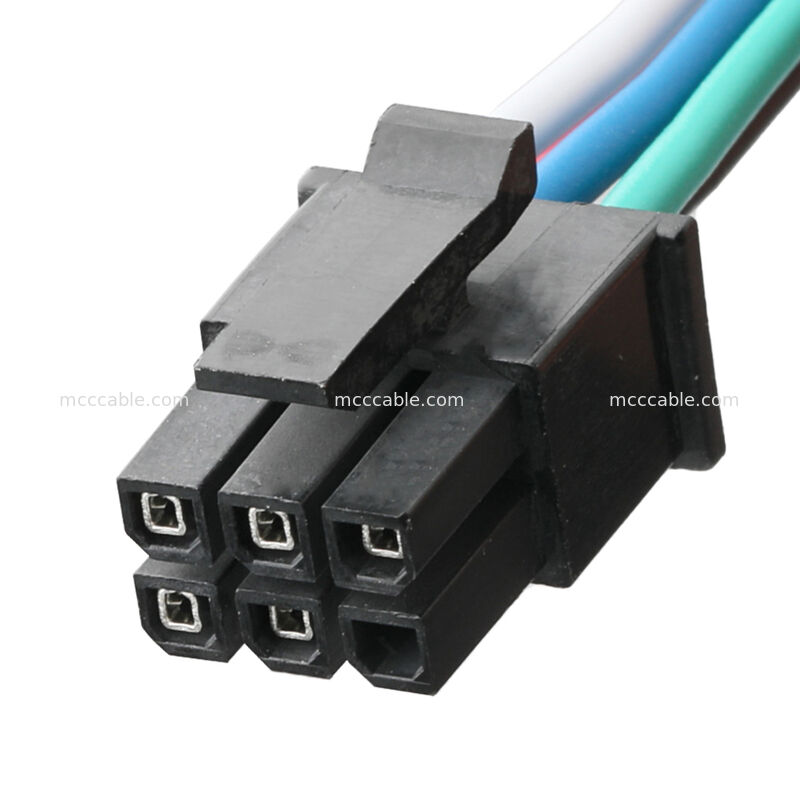

MX3.0 2×3 Pin Connector
Uses a 3.0 mm pitch MX3.0 housing and terminals, ensuring secure mating and stable
contact.

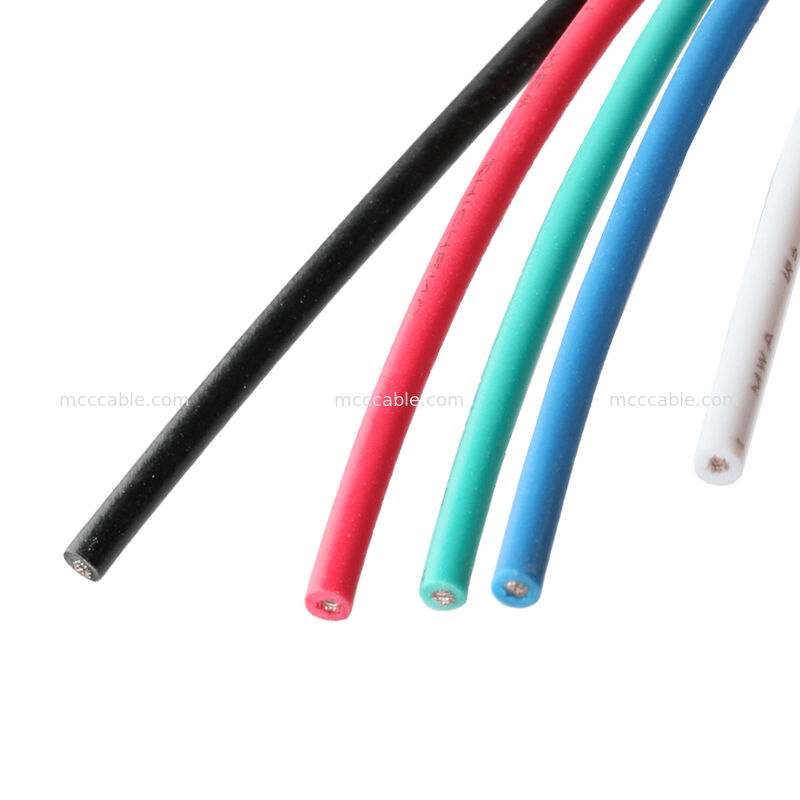

UL1007 20AWG Wire Construction
Provides excellent current-carrying capacity with durable insulation for internal wiring
applications.
Electrical Reliability Assured
Tested for open/short, hi-pot, insulation resistance, and contact resistance.
Precision Length Control
Standard length: 300 mm, manufactured with tight tolerance per engineering drawing.
OEM Drawing-Based Production
Built strictly according to customer-approved drawings and pin-out definitions.
Factory 100% Testing
Each assembly undergoes full electrical testing before shipment.
MX3.0 6-Pin Wire Harness Assembly Typical Applications:
Consumer electronics internal wiring
Industrial control modules
Power distribution sub-assemblies
Display and control boards
OEM electronic equipment
Custom electronic harness systems
MX3.0 6-Pin Wire Harness Assembly Technical Specifications:
| Item | Specification |
|---|---|
| Model No. | FJ-SONY-23032804 |
| Connector Type | MX3.0, 2×3 Pin |
| Pitch | 3.0 mm |
| Wire Type | UL1007 |
| Wire Gauge | 20 AWG |
| Wire Length | 300 mm |
| Contact Resistance | ≤ 3 Ω |
| Insulation Resistance | ≥ 20 MΩ (DC 200 V) |
| Hi-Pot Test | AC 100 V / 0.1 s |
| Electrical Test | 100% Open & Short Test |
| Operating Standard | OEM / Custom Drawing |
MX3.0 6-Pin Wire Harness Assembly Customization Options:
Wire length customization
Wire color configuration per pin-out
Alternative wire gauges (upon request)
Connector brand substitution (compatible MX3.0 series)
Labeling or marking options
Packaging per customer requirement
Sino-Media is a specialized cable assembly manufacturer. We utilize cutting-edge
automation equipment, premium raw materials, a robust quality assurance system,
and a skilled technical team to deliver high-quality, custom cable and harness
components in small quantities. Our engineering, production, and quality control
teams ensure the excellence of these unique components. Our mission is to enhance
product quality continuously, meet customer needs, and maintain expertise in the
materials we use and recommend. Our dedication to customer satisfaction drives
the company’s ongoing growth.
Q1. Is it a factory?
A:Yes,we have more than 16 years of design and manufacturring experience!
Q2. Is there any certification?
A:Yes,there are IS09001,ISO14001,TS16949,ISO13485,UL CERIFIED.
Q3. What is our specialty?
A:We can design products on the application.
Q4. Do you accept OEM/ODM orders?
A: Yes, we accept OEM/ODM orders. For oem orders, moq is 100pcs. For ODM orders, moq
1000PCs. Mould fee will be charged according to design.
Q5. How long will it need for completing an order?
A: For small order and products in stock, it will take less than 3 days for preparation and delive
ry, and shipment time depends on clients' choice, fastest 7 days and longest 1 month.
For big order, as we need to confirm all things include materiel preparation, production, this pro
cedure will take 5 to 21 working days according to order quantity, testing 1 to 3 working days, a
nd finally, packing 1 day, so fastest 7 days and longest 25 days without shipment.
Q6. As long term clients, what other service we can get?
1. New product will be offered with order, so you can see if it is potential product in the market a
nd promote it, and you will have the right to resell the product in your district.
2. Additional fee discount, cheaper price on purchasing products at smaller quantity.
3. We can offer assist on promotion images, and make images with clients' logo
Q7. How long is warranty for the cable, and if defective or faulty, how to protection your benifits?
A: All our cables are sold with 12-36 months warranty, and for big quantity order, we will offer 0.3%
to 0.5% backup for defective sent with order, so if you order 1000PCs, that means you can get 100
3pcs with backup. If you get faulty more than 5pcs, and less than 0.1%, please contact sales and
offer images, and we will solve your problem in the way of replacing with new order or refund.
Q8. Do you accept free sample order?
A: Yes, sample order is supported, some samples can be offered free exclusive of shipment freight.
