Place of Origin:
China
Brand Name:
SINO-TECH
Certification:
UL ，ISO13485 , ISO9001.2005 , ISO14001
Model Number:
4Pin Heaphone Earphone Plug MALE
Video
Cable connector assembly OEM/ODM

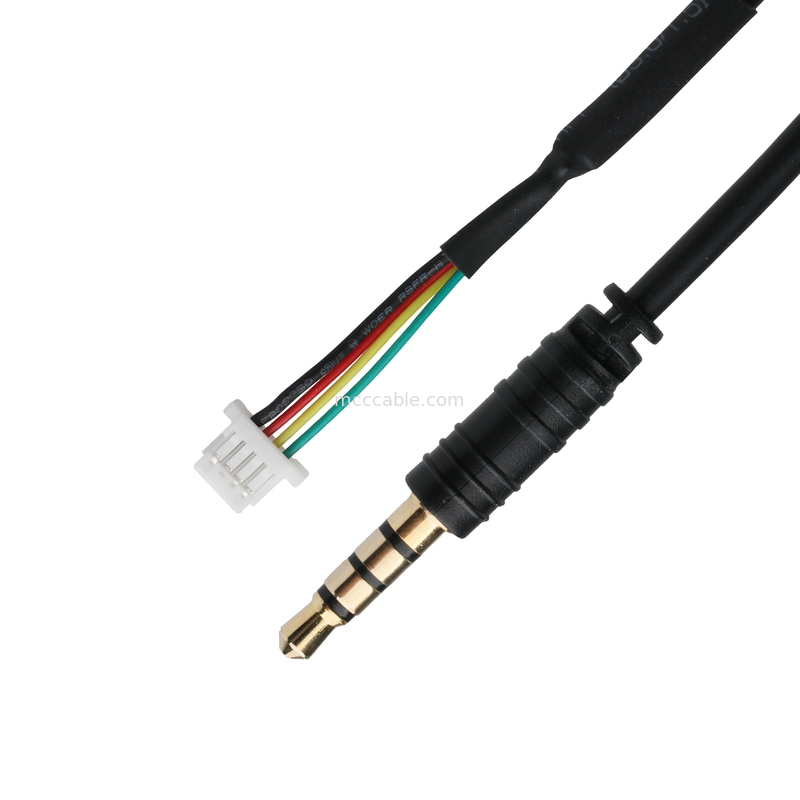

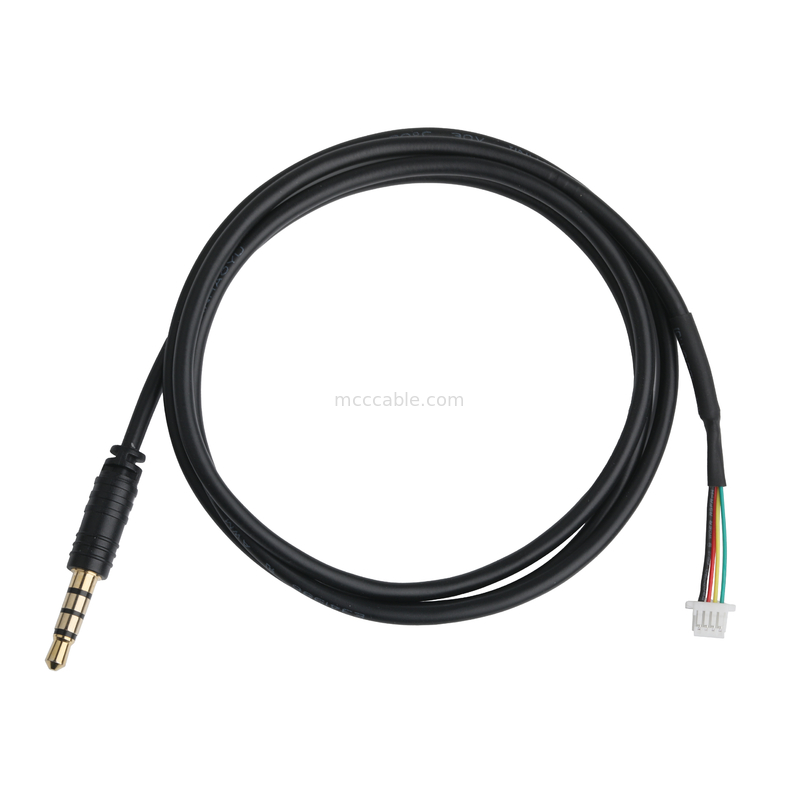

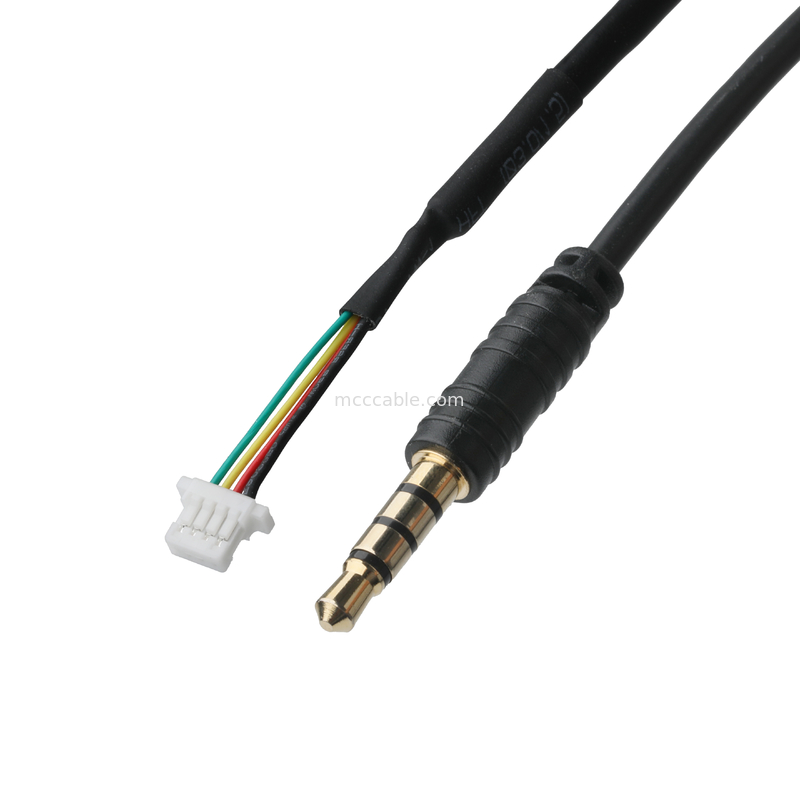

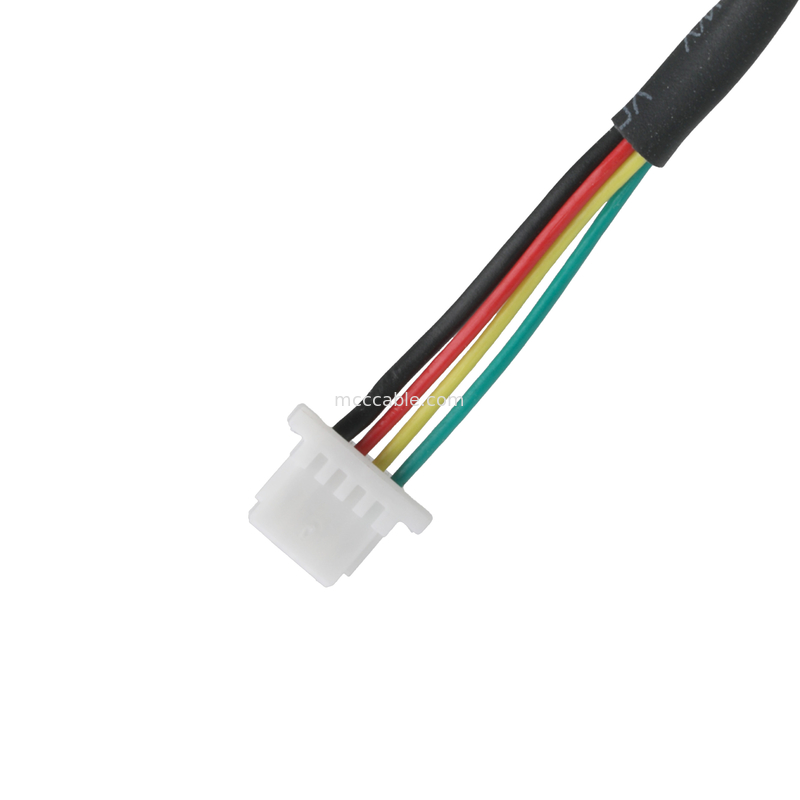

4Pin Heaphone Earphone Plug MALE to JST SHR-04V-S-B Cable:
| Test Item | Requirement |
|---|---|
| Open/Short Test | 100% testing |
| High Voltage | AC 100V for 0.1 second |
| Insulation Resistance | Minimum 10 megaohms at DC 300V |
| Contact Resistance | Maximum 3 ohms |
1. Open/Short Test (100% testing): This test ensures that there are no open circuits or short circuits in the electrical
system by conducting thorough testing on all connections and components.
2. High Voltage (AC 100V for 0.1 second): This test applies a high voltage of AC 100V for a duration of 0.1 second
to check the insulation and withstand capability of the electrical components under high voltage conditions.
3. Insulation Resistance (Minimum 10 megaohms at DC 300V): This test measures the insulation resistance of the electrical
system when subjected to a direct current (DC) voltage of 300V, with a minimum requirement of 10 megaohms to ensure
adequate insulation between conductors.
4. Contact Resistance (Maximum 3 ohms): This test evaluates the resistance between contacts in electrical connectors, ensuring that it does not exceed a maximum value of 3 ohms to maintain efficient electrical conductivity and minimize voltage drops.
We specialize in the design and manufacture of micro coaxial cables, LVDS cables, eDP cables, fine
pitch micro coaxial cables, radio frequency cable assemblies, ultra fine pitch cable assemblies, thin
coaxial cable assemblies, and mini flexible coaxial cables. These cable assembly products are widely
used in LCD screens, notebook panels, automotive systems, industrial cameras, notebook computers,
notebook computers, tablet computers, and smart home appliances.
Company Profile
1.SINO-TECH has more than 16 years of experience in designing and customizing cable assemblies and
waterproof cables, depending on your needs.
2.The types of custom cable assemblies that our factory can build are: lvds cable assemblies, micro coaxial
cable assemblies, i-pex cable assemblies, LVDS EDP cable assemblies, molex cable assemblies, jst cable
assemblies.
Q1. Is it a factory?
A:Yes,we have more than 16 years of design and manufacturring experience!
Q2. Is there any certification?
A:Yes,there are IS09001,ISO14001,TS16949,ISO13485,UL CERIFIED.
Q3. What is our specialty?
A:We can design products on the application.
Q4. Do you accept OEM/ODM orders?
A: Yes, we accept OEM/ODM orders. For oem orders, moq is 100pcs. For ODM orders, moq
1000PCs. Mould fee will be charged according to design.
Q5. How long will it need for completing an order?
A: For small order and products in stock, it will take less than 3 days for preparation and delive
ry, and shipment time depends on clients' choice, fastest 7 days and longest 1 month.
For big order, as we need to confirm all things include materiel preparation, production, this pro
cedure will take 5 to 21 working days according to order quantity, testing 1 to 3 working days, a
nd finally, packing 1 day, so fastest 7 days and longest 25 days without shipment.
Q6. As long term clients, what other service we can get?
1. New product will be offered with order, so you can see if it is potential product in the market a
nd promote it, and you will have the right to resell the product in your district.
2. Additional fee discount, cheaper price on purchasing products at smaller quantity.
3. We can offer assist on promotion images, and make images with clients' logo
Q7. How long is warranty for the cable, and if defective or faulty, how to protection your benifits?
A: All our cables are sold with 12-36 months warranty, and for big quantity order, we will offer 0.3%
to 0.5% backup for defective sent with order, so if you order 1000PCs, that means you can get 100
3pcs with backup. If you get faulty more than 5pcs, and less than 0.1%, please contact sales and
offer images, and we will solve your problem in the way of replacing with new order or refund.
Q8. Do you accept free sample order?
A: Yes, sample order is supported, some samples can be offered free exclusive of shipment freight.
