Place of Origin:
China
Brand Name:
Customization
Certification:
UL ，ISO13485 , ISO9001.2005 , ISO14001
Model Number:
50P female D-SUB to 20454-30P and DP20P
Document:
Video

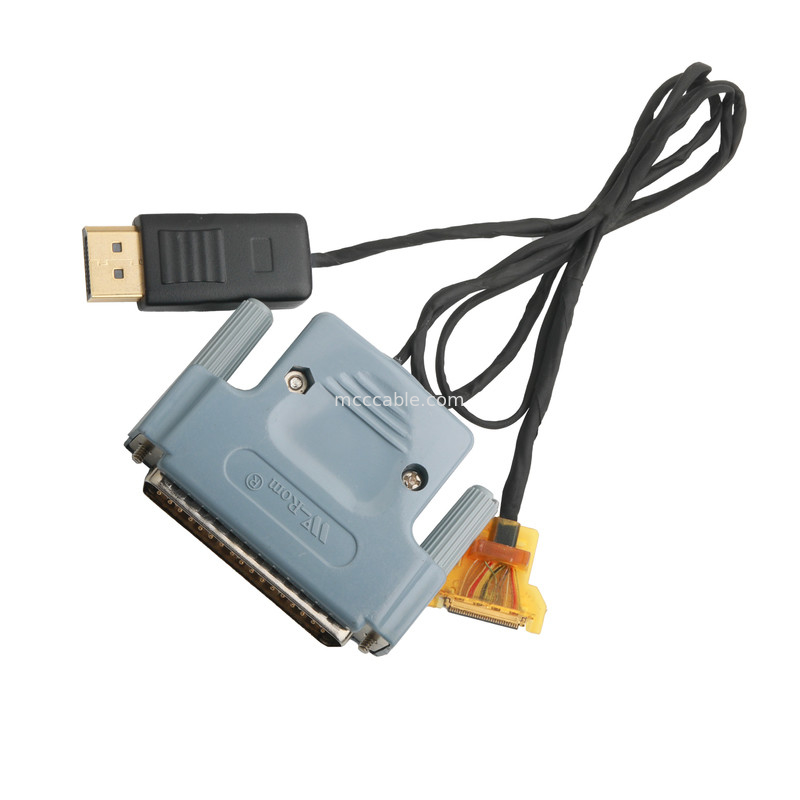

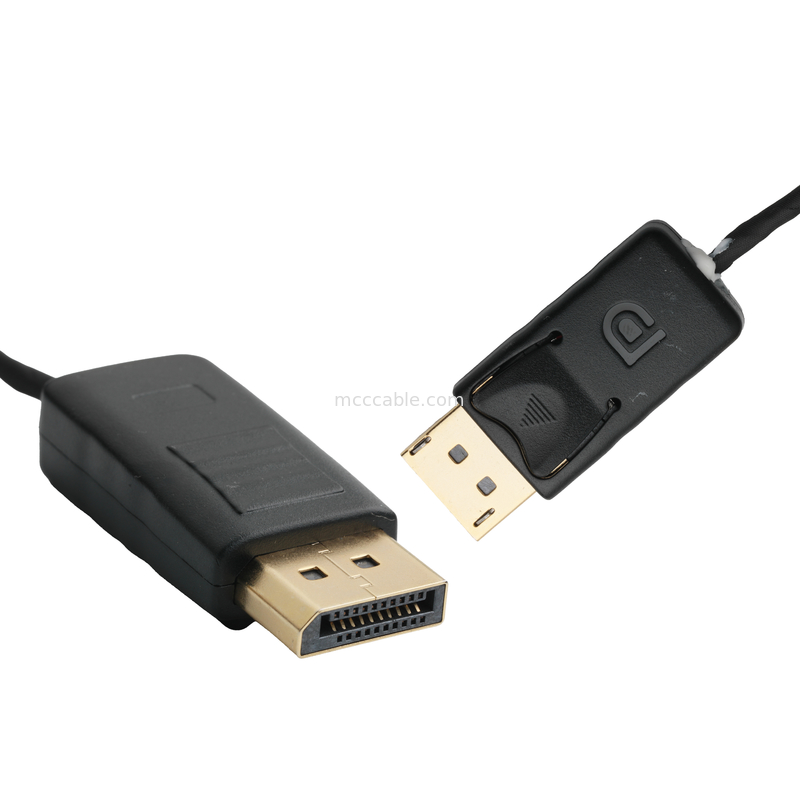

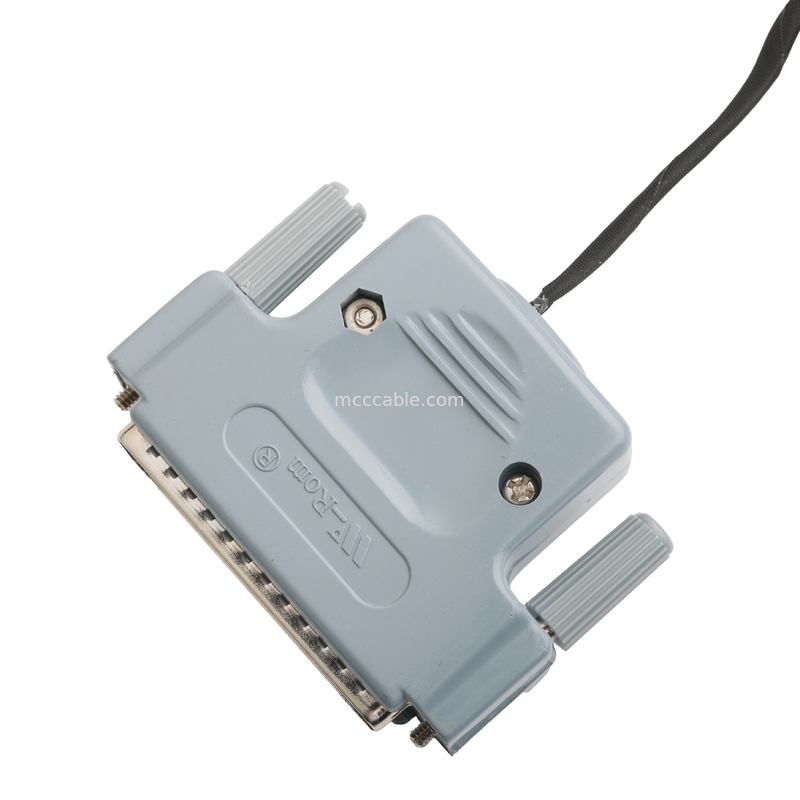

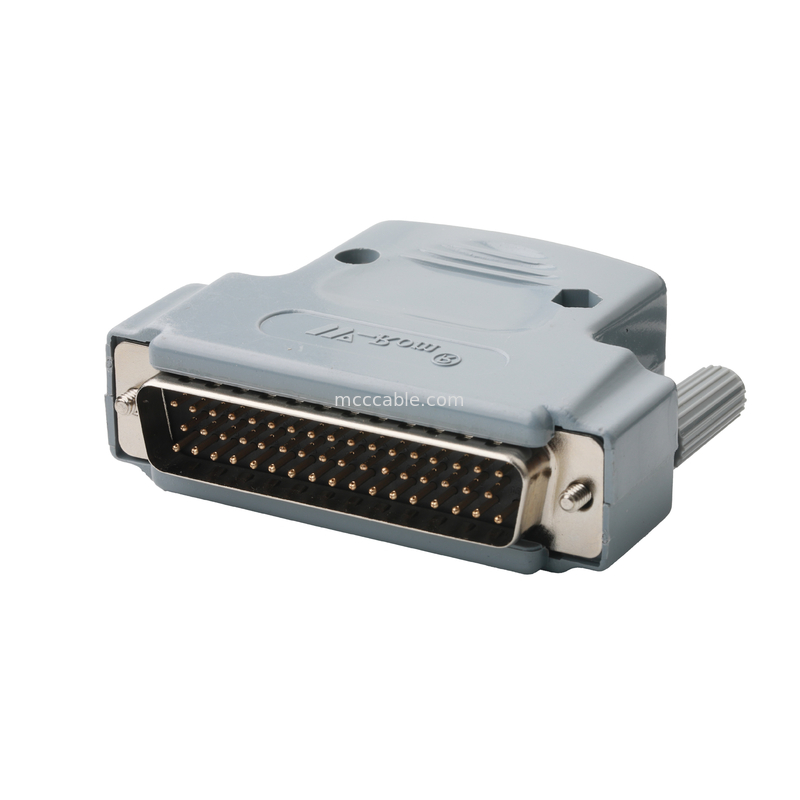

50P female D-SUB connector to 20454-30P and DP20P
HD Data Cable Adapter OEM/ODM

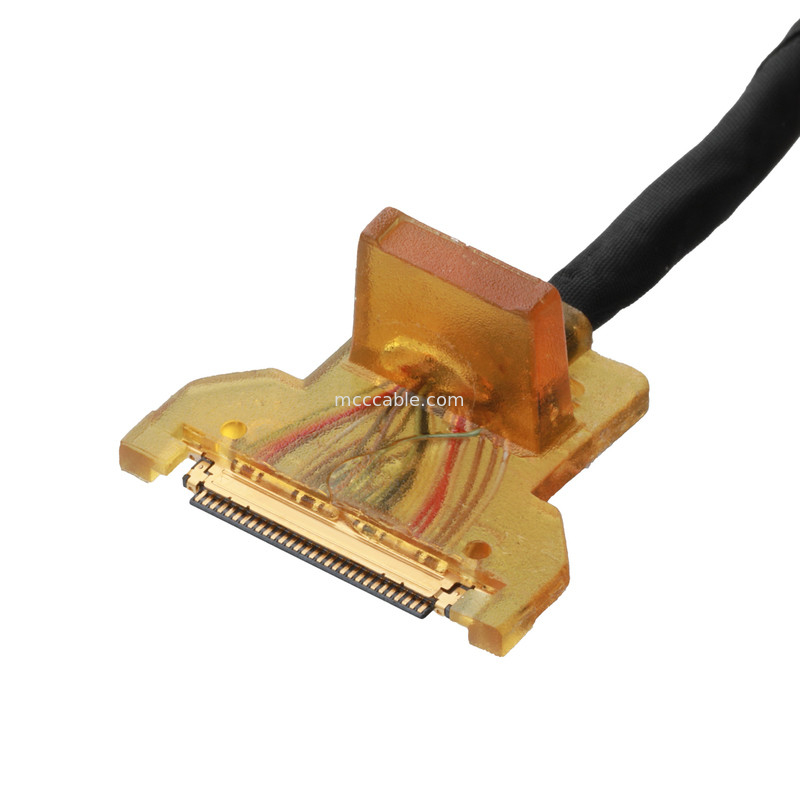

20454-30P connector:
| Mating Direction |
Horizontal
|
| Contact pitch |
0.50 mm
|
| Height |
1.10 Max (1.00 Nom.) ,
|
| Depth |
5.80 mm
|
| Width Formula |
7.55+(0.5*?p) mm
|
| Pin count |
20 30 40 50
|
| Micro-Coaxial Cable (AWG) |
#36 #38 #40 #42 #44 #46
|
| Discrete Cable (AWG) |
#32 #34 #36 #38 #39 #40 #42 #44 #46
|
| Current rating |
0.1A AC/DC [AWG #44] per contact/up to 50 contacts 0.24A AC/DC [AWG #42] per contact/up to 50 contacts 0.3A AC/DC [AWG #40] per contact/up to 50 contacts 0.5A AC/DC [AWG #38] per contact/up to 14 contacts 0.8A AC/DC [AWG #36] per contact/up to 10 contacts 1.0A AC/DC [AWG #34] per contact/up to 6 contacts 1.0A AC/DC [AWG #32] per contact/up to 6 contacts
|
| Applicable Standards (Reference Only) |
USB4 Gen3/Thunderbolt 4 (20Gbps/lane) USB 3.1 Gen 2 (10 Gbps) USB 3.1 Gen 1 (5 Gbps) eDP HBR 3 (8.1 Gbps) eDP HBR 2 (5.4 Gbps) eDP (2.7 Gbps) HDMI 2.0 (6 Gbps) V-By-One HS 1.4 (4 Gbps) MiPi standards
|
Contact Currect Rating: 0.5 AmpDielectric Withstanding
Voltage:500V AC/MinInsulation
Resistance:500MQ/Min
Contact Resistance:35m Q/Max
Operaion Temperature: -45°C~ +85C
We have advanced automation equipment, high-quality raw materials, perfect quality inspection system
and professional technical team. Our engineering department, production and quality control ensure the h
ighest quality of these unique components.Our mission is to continuously improve product quality, respond
to customer requirements and understand the materials we cooperate and recommend. We provide custo
mers with a small number of highly specialized cable and harness components.
