Custom 40 Pin Lvds Cable Assembly 0.5mm Pitch lcd lvds cable Horizontal mating type micro-coaxial connector

Custom 40 Pin Lvds Cable Assembly 0.5mm Pitch lcd lvds cable Horizontal mating type micro-coaxial connector
Custom 40 Pin Lvds Cable Assembly 0.5mm Pitch lcd lvds cable Horizontal mating type micro-coaxial connector
Custom 40 Pin Lvds Cable Assembly 0.5mm Pitch lcd lvds cable Horizontal mating type micro-coaxial connector Custom 40 Pin Lvds Cable Assembly 0.5mm Pitch lcd lvds cable Horizontal mating type micro-coaxial connector Custom 40 Pin Lvds Cable Assembly 0.5mm Pitch lcd lvds cable Horizontal mating type micro-coaxial connector Custom 40 Pin Lvds Cable Assembly 0.5mm Pitch lcd lvds cable Horizontal mating type micro-coaxial connector Custom 40 Pin Lvds Cable Assembly 0.5mm Pitch lcd lvds cable Horizontal mating type micro-coaxial connector

Large Image :  Custom 40 Pin Lvds Cable Assembly 0.5mm Pitch lcd lvds cable Horizontal mating type micro-coaxial connector

Product Details:
Place of Origin: China
Brand Name: SINO-TECH
Certification: UL ,ISO13485 , ISO9001.2005 , ISO14001
Model Number: IPEX To HIROSE And JST
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Price: Most favorable
Packaging Details: PE inner, carton outer
Delivery Time: 10-28 days upon receipt of payment
Payment Terms: T/T, Western Union
Supply Ability: 500,000pcs/week

Custom 40 Pin Lvds Cable Assembly 0.5mm Pitch lcd lvds cable Horizontal mating type micro-coaxial connector

Description
Item: Lvds Cable Connector A: 20453-240T-11
Connector B: HIROSE DF14-40 Connector C: JST EHR-7
Micro-Coaxial Wire (AWG): #32 Pitch: 0.5/0.8/1.0/1.25/1.27/2.0mm/2.54mm Etc
Color: Client's Request Pin-Out: Customized
Length: Customized Service: Design
Express: DHL FEDEX UPS TNT MOQ: 100
High Light:

40 pin lvds cable assembly

,

0.5mm pitch lvds cable assembly

,

40 pin custom lvds cable

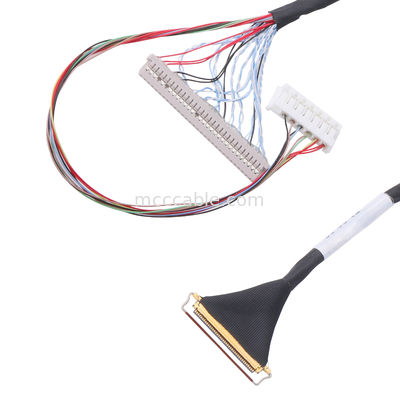

Hirose 1.25mm Pitch DF14-40 and 2.5mm Pitch JST EHR-7 to

0.5mm Pitch IPEX 20453-240T-11 40Pin lvds cable assembly



Products Description

Mating Direction
Horizontal
Contact pitch
0.50 mm
Height
1.10 Max (1.00 Nom.) ,
Depth
5.80 mm
Width Formula
7.55+(0.5*?p) mm
Pin count
20 30 40 50
Micro-Coaxial Cable (AWG)
#36 #38 #40 #42 #44 #46
Discrete Cable (AWG)
#32 #34 #36 #38 #39 #40 #42 #44 #46
Current rating
0.1A AC/DC [AWG #44] per contact/up to 50 contacts 0.24A AC/DC [AWG #42] per contact/up to 50 contacts 0.3A AC/DC [AWG #40] per contact/up to 50 contacts 0.5A AC/DC [AWG #38] per contact/up to 14 contacts 0.8A AC/DC [AWG #36] per contact/up to 10 contacts 1.0A AC/DC [AWG #34] per contact/up to 6 contacts 1.0A AC/DC [AWG #32] per contact/up to 6 contacts
Applicable Standards (Reference Only)
USB4 (20 Gbps/lane) USB 3.1 Gen 2 (10 Gbps) USB 3.1 Gen 1 (5 Gbps) eDP HBR 3 (8.1 Gbps) eDP HBR 2 (5.4 Gbps) eDP (2.7 Gbps) HDMI 2.0 (6 Gbps) V-By-One HS 1.4 (4 Gbps) MiPi standards
Full shielding (ZenShield®)
No
Mechanical lock
Yes





Custom 40 Pin Lvds Cable Assembly 0.5mm Pitch lcd lvds cable Horizontal mating type micro-coaxial connector 0



Company Profile



Custom 40 Pin Lvds Cable Assembly 0.5mm Pitch lcd lvds cable Horizontal mating type micro-coaxial connector 1

Custom 40 Pin Lvds Cable Assembly 0.5mm Pitch lcd lvds cable Horizontal mating type micro-coaxial connector 2

Custom 40 Pin Lvds Cable Assembly 0.5mm Pitch lcd lvds cable Horizontal mating type micro-coaxial connector 3Custom 40 Pin Lvds Cable Assembly 0.5mm Pitch lcd lvds cable Horizontal mating type micro-coaxial connector 4

Custom 40 Pin Lvds Cable Assembly 0.5mm Pitch lcd lvds cable Horizontal mating type micro-coaxial connector 5

Q1. Is it a factory?
A:Yes,we have more than 15 years of design and manufacturring experience!
Q2. How long does it take to place an order?
A: 3-4 weeks
Q3. Is there any certification?
A:Yes,there are IS09001,ISO14001,TS16949,ISO13485,UL CERIFIED.
Q4. What is our specialty?
A:We can design products on the application.
Q5.Do you accept OEM/ODM orders?
A: Yes, we accept OEM/ODM orders. For oem orders, moq is 100pcs. For ODM orders, moq

1000PCs. Mould fee will be charged according to design.
Q6. How long will it need for completing an order?
A: For small order and products in stock, it will take less than 3 days for preparation and delive

ry, and shipment time depends on clients' choice, fastest 7 days and longest 1 month.
For big order, as we need to confirm all things include materiel preparation, production, this pro

cedure will take 5 to 21 working days according to order quantity, testing 1 to 3 working days, a

nd finally, packing 1 day, so fastest 7 days and longest 25 days without shipment.
Q7. As long term clients, what other service we can get?
1. New product will be offered with order, so you can see if it is potential product in the market a

nd promote it, and you will have the right to resell the product in your district.
2. Additional fee discount, cheaper price on purchasing products at smaller quantity.
3. We can offer assist on promotion images, and make images with clients' logo
Q8. How long is warranty for the cable, and if defective or faulty, how to protection your benifits?
A: All our cables are sold with 12-36 months warranty, and for big quantity order, we will offer 0.3%

to 0.5% backup for defective sent with order, so if you order 1000PCs, that means you can get 100

3pcs with backup. If you get faulty more than 5pcs, and less than 0.1%, please contact sales and

offer images, and we will solve your problem in the way of replacing with new order or refund.
Q9. Do you accept free sample order?
A: Yes, sample order is supported, some samples can be offered free exclusive of shipment freight.
