213814-1104 4 PIN High-Temperature Power Cable Assembly Custom UL1180 16AWG

213814-1104 4 PIN High-Temperature Power Cable Assembly Custom UL1180 16AWG

Place of Origin:

China

Brand Name:

Customization

Certification:

UL ,ISO13485 , ISO9001.2005 , ISO14001

Model Number:

213814-1104 4 PIN High-Temperature Power Cable Assembly

Contact Us
Request A Quote
Product Details
Connector A:
105 415-0004
Connector B:
105417-0334
Circuit Count:
4 PIN
Wire Gauge:
16AWG
Cable Structure:
High-Temperature PTFE Cable Assembly
Customizable Items:
Length / Wire Gauge / Connector / Ferrite / Label
Payment & Shipping Terms
Minimum Order Quantity
5
Price
Contact us
Packaging Details
PE inner, carton outer
Delivery Time
2-10 days for samples,3-4 weeks for massive
Payment Terms
T/T
Supply Ability
15,000pcs/week
Product Description

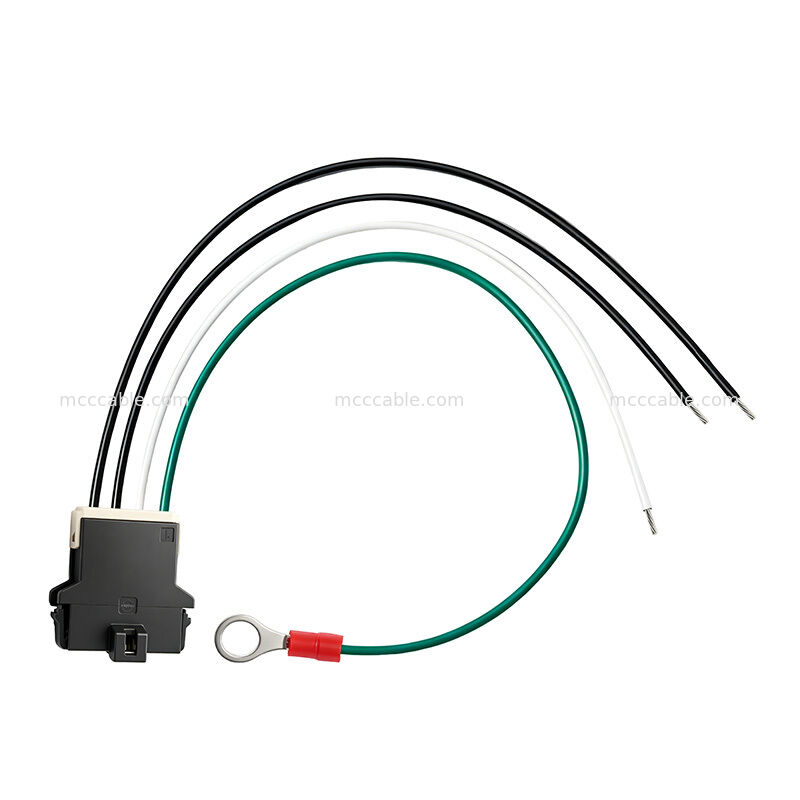

213814-1104 4-Circuit High-Temperature Power Cable Assembly Custom UL1180 16AWG

The 213814-1104 4-Circuit High-Temperature Power Cable Assembly is a custom cable

assembly designed with UL1180 PTFE 16AWG wire, a 4-circuit panel-mount connector,

crimp terminals and a ring terminal connection.

The cable uses high-temperature PTFE insulation with a 300V voltage rating and a rated

temperature range of -60°C to +260°C. The assembly is suitable for electrical connection

and power cable applications requiring high-temperature wire performance, reliable

connections and customized cable lengths.

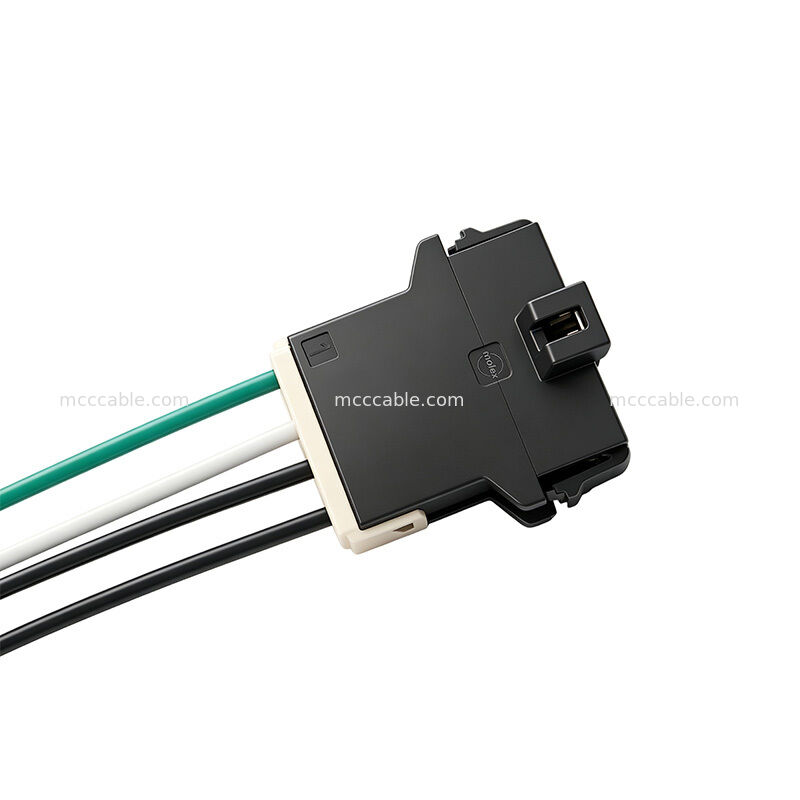

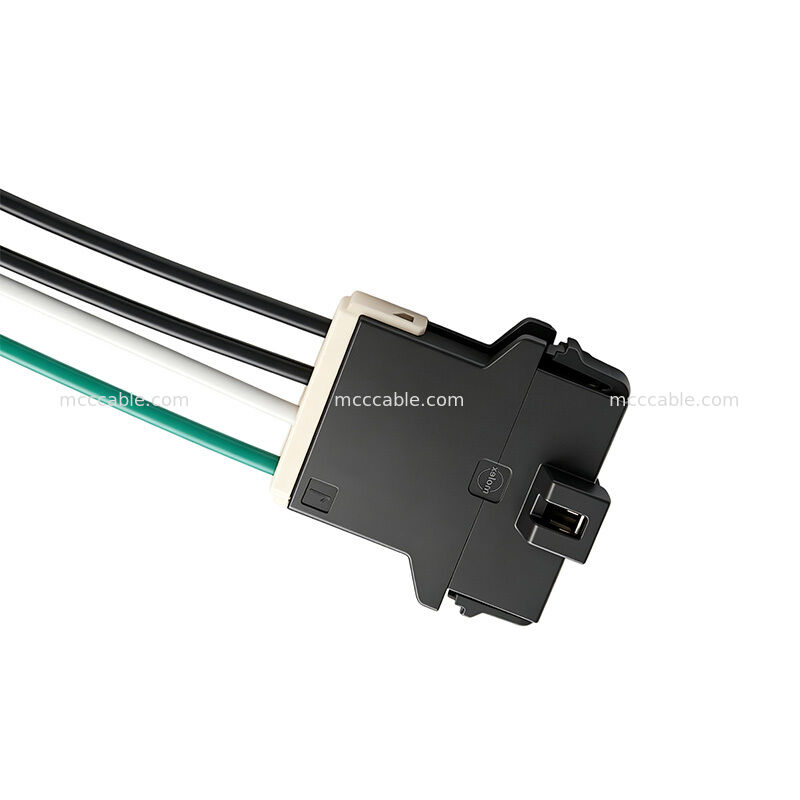

213814-1104 4-Circuit Power Cable Assembly Structure

The 213814-1104 cable assembly consists of four UL1180 PTFE 16AWG wires in black,

green and white, with a 4-circuit panel-mount connector and corresponding terminal

components.

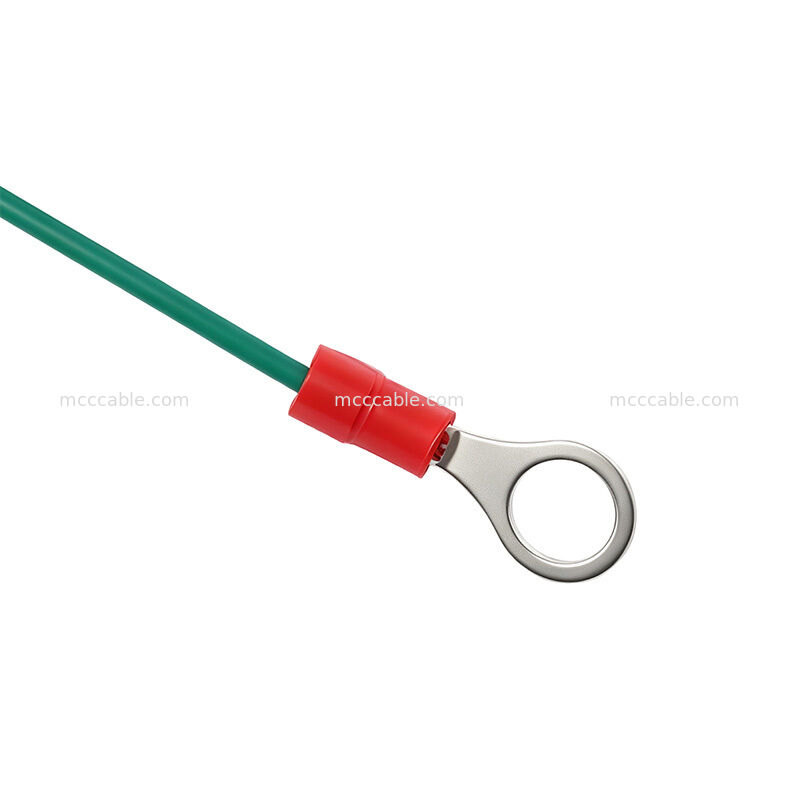

The connector uses a 5.7mm pitch 4-circuit configuration. The assembly also incorporates

a 4-circuit TPA component and a tinned ring terminal for the specified connection structure.

213814-1104 UL1180 PTFE 16AWG Cable Specifications

Specification Details
Product Model 213814-1104
Cable Type UL1180 PTFE High-Temperature Cable
Circuit Count 4 Circuits
Wire Size 16AWG
Wire Construction 19/0.30 Stranded Conductor
Conductor Material Nickel Plated Copper
Insulation Material PTFE
Rated Voltage 300V
Rated Temperature -60°C to +260°C
Wire Diameter 2.18 ± 0.10 mm
Flame Rating VW-1
Spark Test 2.0KV AC / 0.15 sec
Assembly Testing 100% Open, Short & Intermittence Test
RoHS RoHS 3.0 Compliant

213814-1104 4 PIN High-Temperature Power Cable Assembly Custom UL1180 16AWG

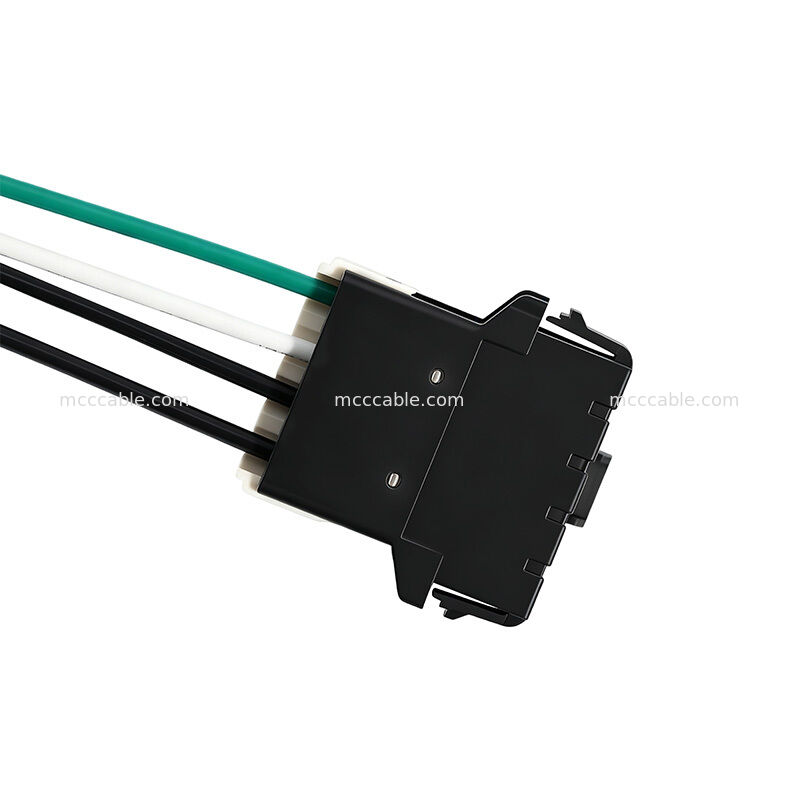

213814-1104 5.7mm Pitch Connector Cable Assembly

The 213814-1104 cable assembly uses a 4-circuit panel-mount plug configuration with a 5.7mm

pitch. The 4-circuit connector configuration is specified for the 213814 series, while the

associated terminal and TPA components are designed for the corresponding connection system.

The 4-circuit TPA component is specified as 105415-0004, and the terminal is specified for

14/16AWG wire.

213814-1104 High-Temperature PTFE Cable Features

The 213814-1104 cable assembly combines a high-temperature PTFE-insulated wire with a

multi-circuit connector structure for demanding electrical connection applications.

Key features include:

  • 16AWG UL1180 PTFE wire
  • 300V rated voltage
  • -60°C to +260°C rated temperature range
  • Nickel-plated copper stranded conductor
  • VW-1 flame test performance
  • 2.0KV AC spark test
  • 5.7mm pitch connector configuration
  • 4-circuit cable assembly
  • Custom cable length and assembly configuration
  • RoHS 3.0 compliant

213814-1104 Custom Cable Assembly Electrical Testing

Each 213814-1104 cable assembly is specified for 100% open, short and intermittence testing.

The assembly specification also defines a maximum conductor resistance of 3Ω and a minimum

insulation resistance of 10MΩ at 200V DC for 10ms. These electrical tests help verify connection

continuity and insulation performance during cable assembly production.

213814-1104 Custom High-Temperature Cable Applications

The 213814-1104 custom cable assembly can be used for electrical connection and power cable

applications where high-temperature wire insulation, multi-circuit connectivity and reliable terminal

connections are required.

Typical application requirements may include:

  • High-temperature electrical wiring
  • Equipment power connections
  • Internal equipment wiring
  • Custom control and power connections
  • Multi-circuit electrical assemblies
  • Equipment requiring PTFE-insulated wiring

The final application should be selected according to the customer's electrical, mechanical,

temperature and installation requirements.

213814-1104 Custom Cable Assembly Manufacturing

As a custom cable assembly, the 213814-1104 configuration can be manufactured according

to specified wire type, circuit count, connector configuration, terminal structure and cable length.

The supplied specification includes multiple wire cutting lengths for the individual circuits,

allowing the cable assembly to be configured for the required installation geometry.

Our custom cable assembly service can support prototype development, customized cable

lengths, connector termination and production according to customer specifications.
