Place of Origin:
China
Brand Name:
Customization
Certification:
UL ，ISO13485 , ISO9001.2005 , ISO14001
Model Number:
ECON25 4-Pin Wire Harness Assembly

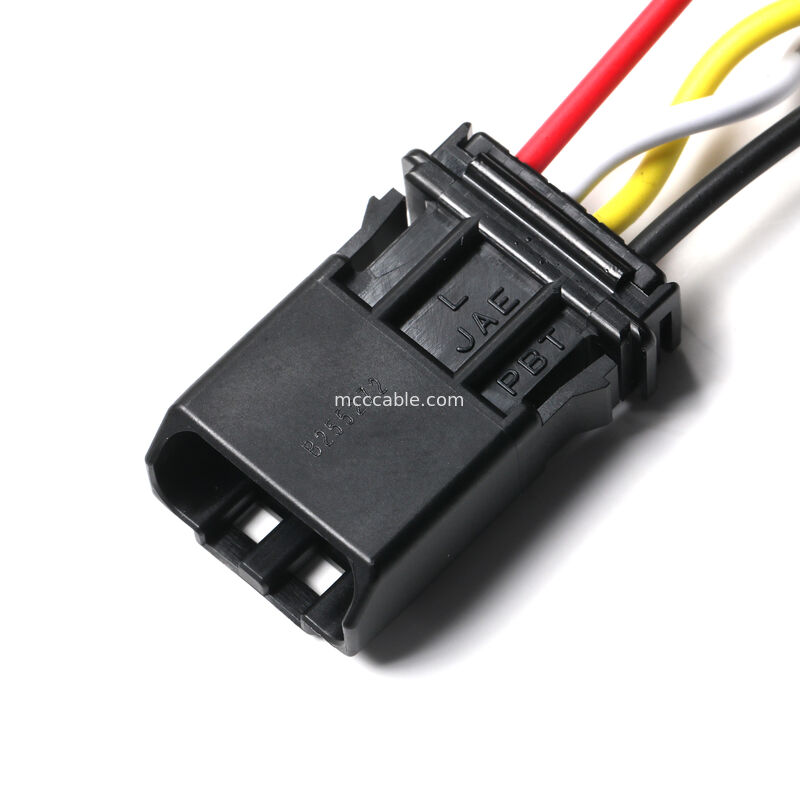

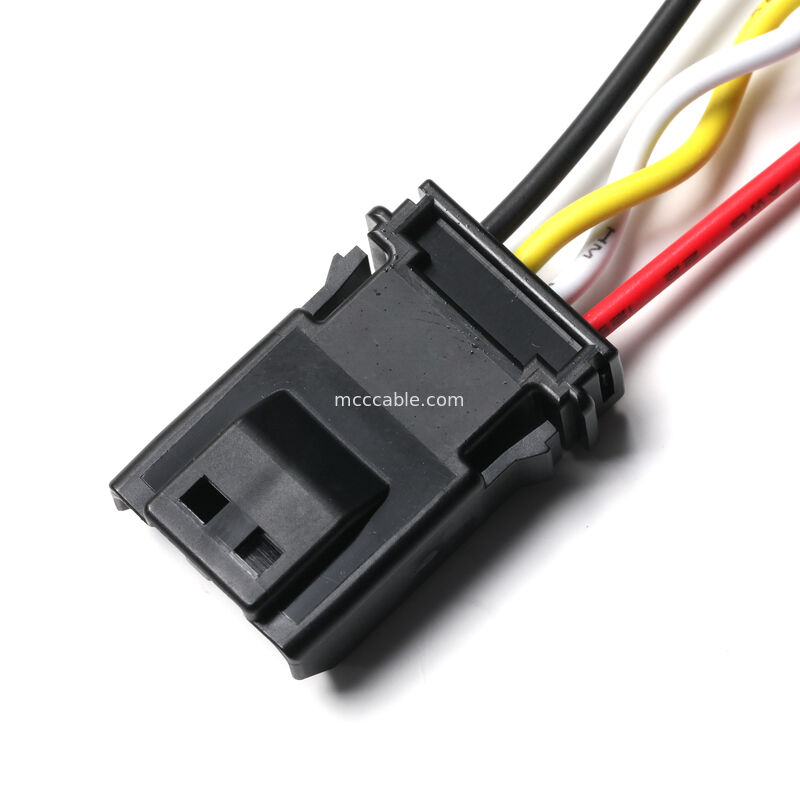

ECON25 4-Pin Wire Harness Assembly, 2.5mm Pitch TXL
22AWG Twisted Pair Cable
ECON25 4-Pin Wire Harness Assembly:
The ECON25 4-pin wire harness assembly is designed with a compact 2.5 mm pitch
connector housing and TXL 22 AWG insulated wires.

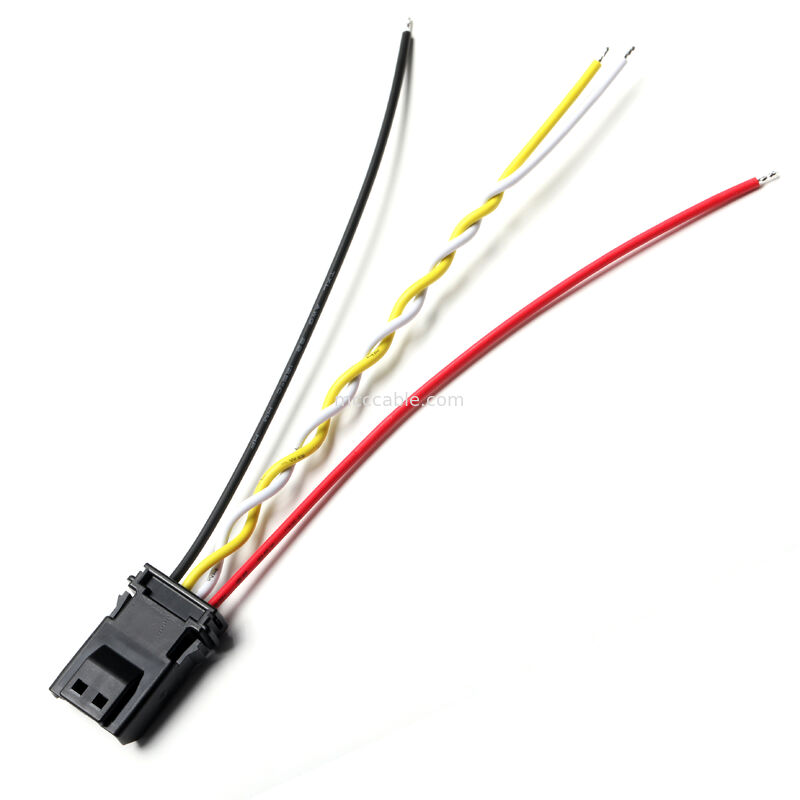

This assembly features a twisted-pair wire configuration to improve signal stability and
reduce interference in low-voltage control and signal transmission systems.
The harness is manufactured according to engineering drawings and supplied as a
ready-to-install solution for OEM and custom wiring applications.
ECON25 4-Pin Wire Harness Assembly Key Features:
2.5 mm pitch, 4-pin connector housing

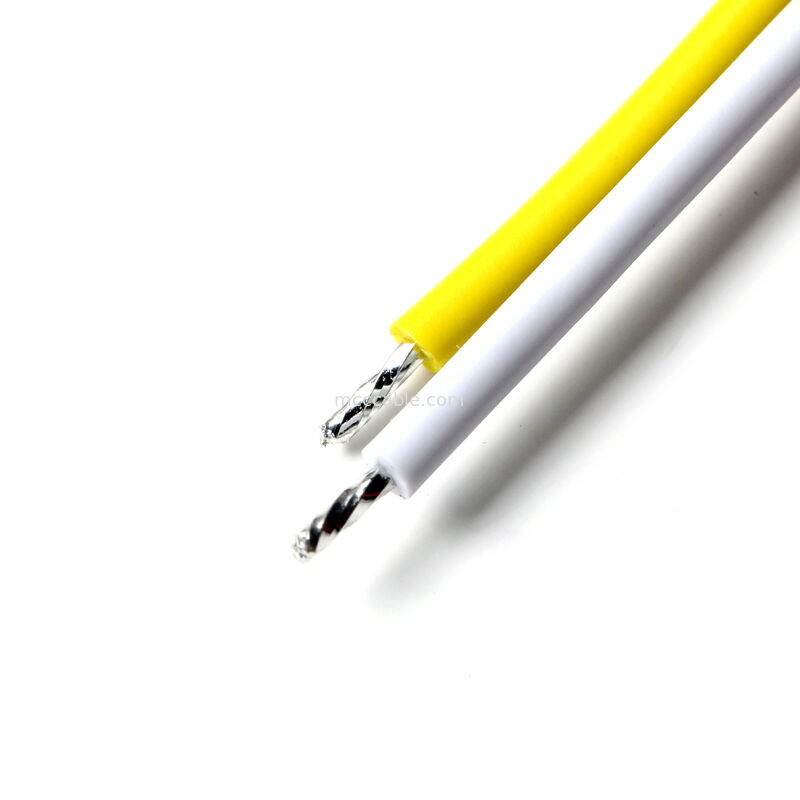

TXL 22 AWG XL-PE insulated wire
Twisted-pair configuration for enhanced signal integrity
Crimped terminal connection for reliable electrical contact
Compact structure suitable for space-limited installations
100% electrical continuity testing before shipment
ECON25 4-Pin Wire Harness Assembly Typical Applications:
Industrial control systems
Automotive electronic modules
Low-voltage signal transmission
Sensor and actuator connections
Custom electronic equipment wiring
ECON25 4-Pin Wire Harness Assembly Technical Specifications:
| Item | Specification |
|---|---|
| Connector Pitch | 2.5 mm |
| Pin Count | 4 Pins |
| Wire Type | TXL, XL-PE insulation |
| Wire Gauge | 22 AWG |
| Wire Configuration | Twisted Pair (Yellow & White) |
| Rated Voltage | ≤ 100 V |
| Operating Temperature | Up to 105 °C |
| Compliance | RoHS |
ECON25 4-Pin Wire Harness Assembly Customization Options:
Cable length
Wire color combination
Wire gauge (within compatible range)
Pin assignment / wiring configuration
Terminal type or tinning length
Packaging and labeling options
