Place of Origin:
China
Brand Name:
Customization
Certification:
UL ，ISO13485 , ISO9001.2005 , ISO14001
Model Number:
Custom Shielded Power Cable Assembly

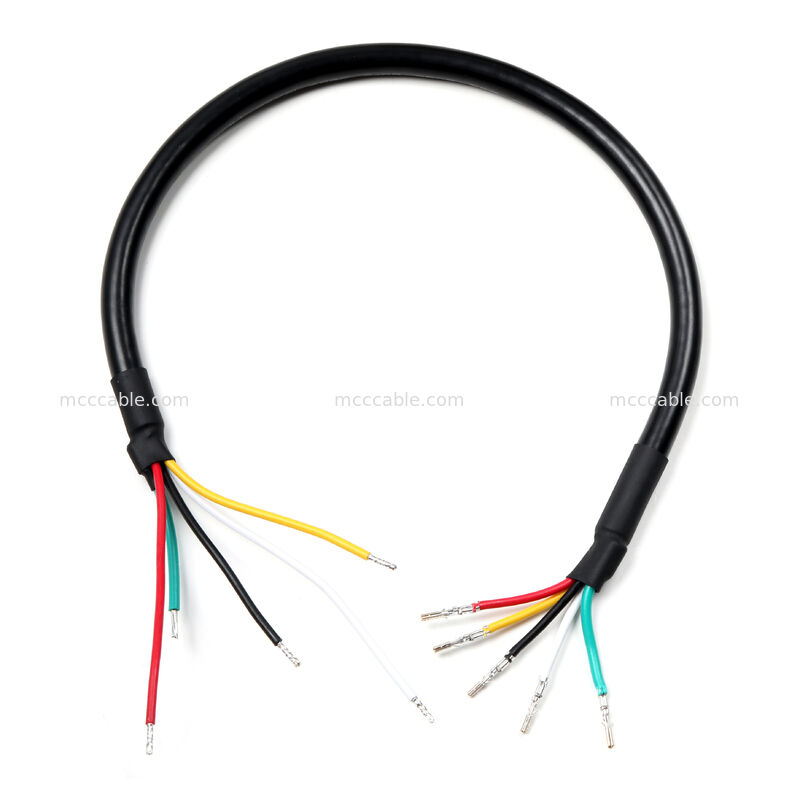

Custom Shielded Power Cable Assembly with 18AWG 4-Core
Crimp Terminals
18AWG Shielded Power Cable Assembly Overview:
This custom shielded power cable assembly is manufactured strictly according to the
customer-approved drawing. The cable uses a UL2464 18AWG 4-core shielded
construction with additional braid, designed for internal power input and output connections.

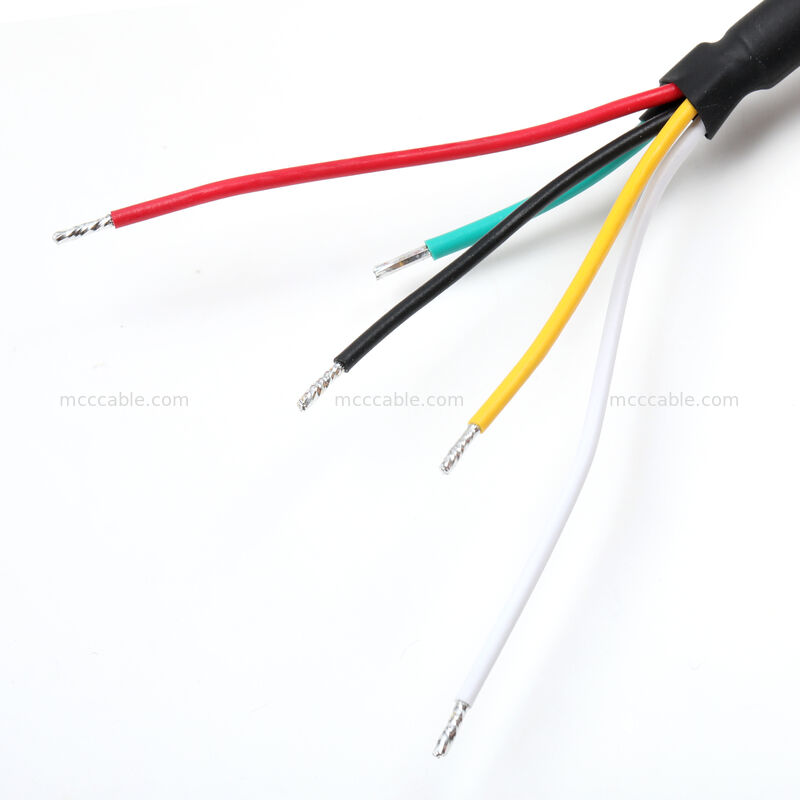

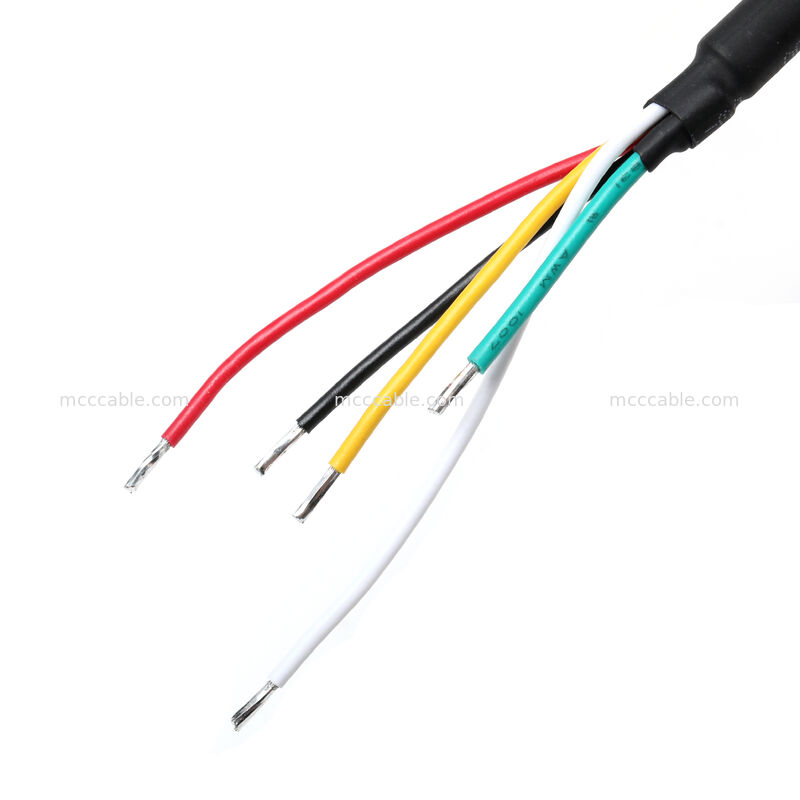

Both ends are processed with defined stripping, tinning, and crimp terminal preparation
as shown in the drawing, ensuring consistency during harness integration and final assembly.
18AWG 4-Core Shielded Cable Construction:
| Item | Specification |
|---|---|
| Cable Type | UL2464 18AWG × 4C + AB |
| Conductor Colors | Black / Red / Yellow / White |
| Shield | Braided shield, twisted as fifth wire |
| Outer Diameter | 6.5 mm |
| Jacket Color | Black |
| Additional Wire | 18AWG Green wire (splice) |
Crimp Terminal and End Processing Details:

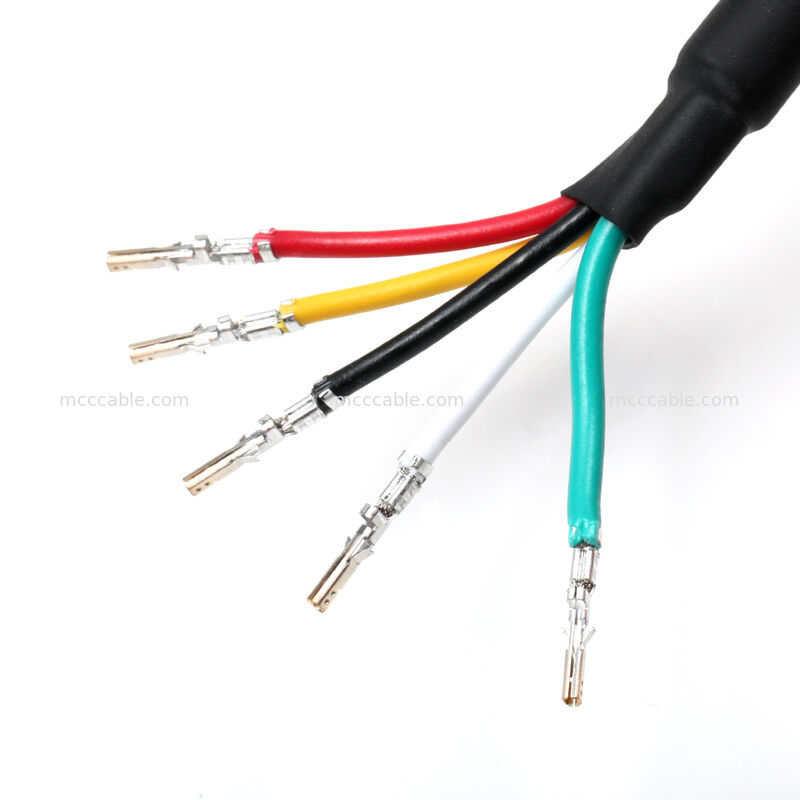

This cable assembly uses female crimp terminals applied directly to the stripped conductors,
with defined tinning lengths on each wire.
One side includes a shield splice wire, covered by green heat shrink tubing, as specified in
the drawing notes. Heat shrink colors and positions differ by revision and model, ensuring
correct identification during installation.
Assembly, Testing, and Compliance:
Each cable assembly is produced with controlled soldering and crimping processes and is
subjected to the following inspections:
These steps ensure the cable meets internal power harness assembly requirements.
Sino-Media is a specialized cable assembly manufacturer. We utilize cutting-edge
automation equipment, premium raw materials, a robust quality assurance system,
and a skilled technical team to deliver high-quality, custom cable and harness
components in small quantities. Our engineering, production, and quality control
teams ensure the excellence of these unique components. Our mission is to enhance
product quality continuously, meet customer needs, and maintain expertise in the
materials we use and recommend. Our dedication to customer satisfaction drives
the company’s ongoing growth.
Q1. Is it a factory?
A:Yes,we have more than 16 years of design and manufacturring experience!
Q2. Is there any certification?
A:Yes,there are IS09001,ISO14001,TS16949,ISO13485,UL CERIFIED.
Q3. What is our specialty?
A:We can design products on the application.
Q4. Do you accept OEM/ODM orders?
A: Yes, we accept OEM/ODM orders. For oem orders, moq is 100pcs. For ODM orders, moq
1000PCs. Mould fee will be charged according to design.
Q5. How long will it need for completing an order?
A: For small order and products in stock, it will take less than 3 days for preparation and delive
ry, and shipment time depends on clients' choice, fastest 7 days and longest 1 month.
For big order, as we need to confirm all things include materiel preparation, production, this pro
cedure will take 5 to 21 working days according to order quantity, testing 1 to 3 working days, a
nd finally, packing 1 day, so fastest 7 days and longest 25 days without shipment.
Q6. As long term clients, what other service we can get?
1. New product will be offered with order, so you can see if it is potential product in the market a
nd promote it, and you will have the right to resell the product in your district.
2. Additional fee discount, cheaper price on purchasing products at smaller quantity.
3. We can offer assist on promotion images, and make images with clients' logo
Q7. How long is warranty for the cable, and if defective or faulty, how to protection your benifits?
A: All our cables are sold with 12-36 months warranty, and for big quantity order, we will offer 0.3%
to 0.5% backup for defective sent with order, so if you order 1000PCs, that means you can get 100
3pcs with backup. If you get faulty more than 5pcs, and less than 0.1%, please contact sales and
offer images, and we will solve your problem in the way of replacing with new order or refund.
Q8. Do you accept free sample order?
A: Yes, sample order is supported, some samples can be offered free exclusive of shipment freight.
How to contact us?
send your inquiry details in the below, click "send" now! free sample and best price are waiting for
you, if you can't find the product in our web, you can also send an inquiry to us, even if we don't make
it, we will find the same product with good quantity and good price.
Send your inquiry directly to us
