Shielded 18AWG 4-Core Power Cable Assembly with Crimp Terminals

Shielded 18AWG 4-Core Power Cable Assembly with
Crimp Terminals



Shielded 18AWG 4-Core Power Cable Overview:

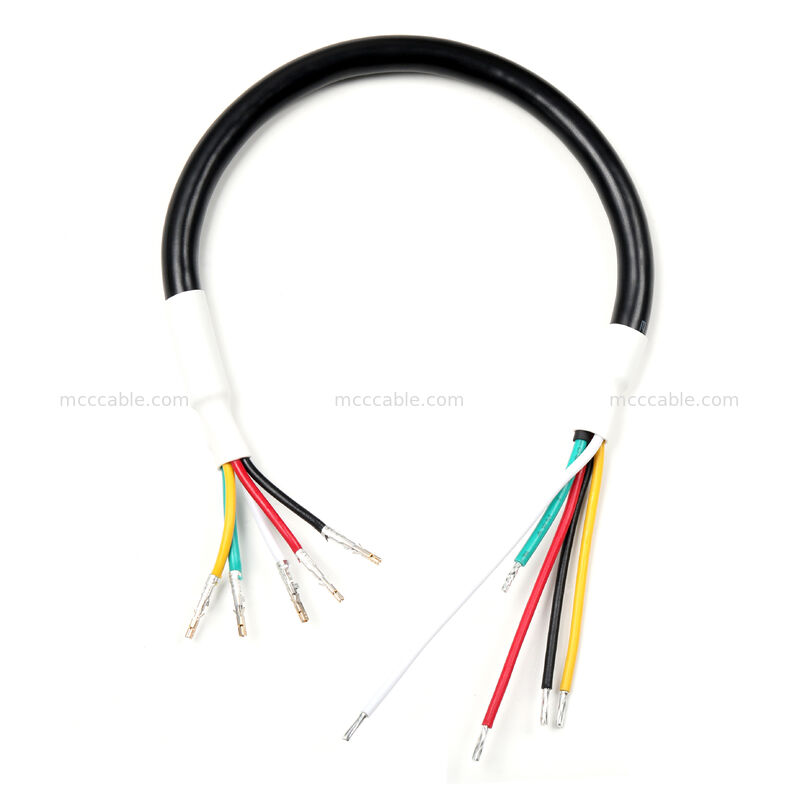

This product is a custom shielded power cable assembly designed for internal power
distribution and device-to-device power connections.
The cable uses UL2464 18AWG 4-core shielded construction with an additional braided
shield conductor, providing stable current transmission and improved noise suppression
in compact electrical systems.

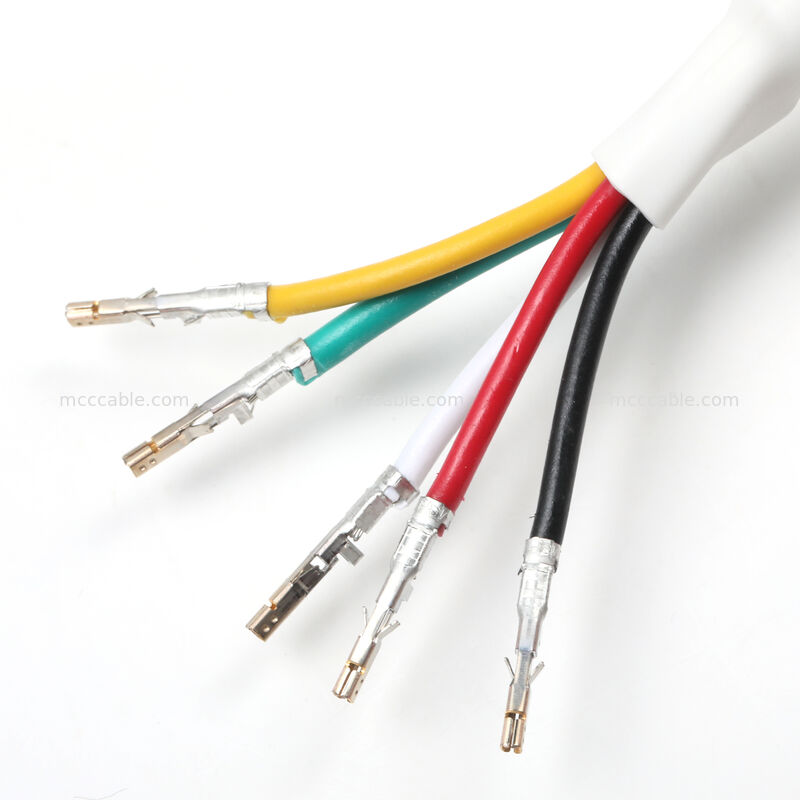

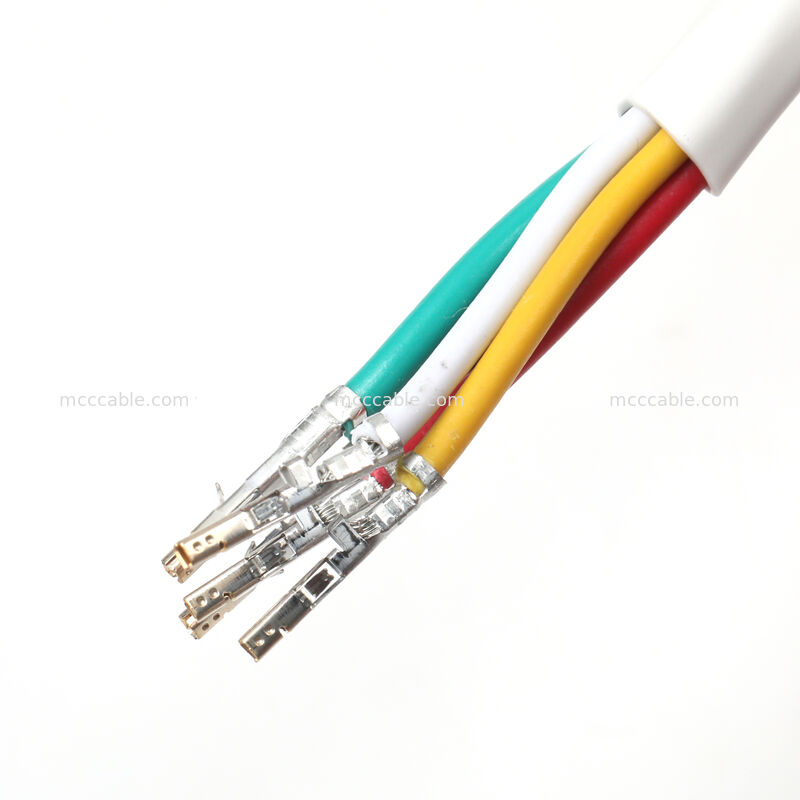

Both ends are terminated with female crimp terminals, suitable for insertion into power
connector housings or system-level power interfaces.
The assembly is produced according to customer drawings and supports multiple length
options for different installation requirements.

Shielded 18AWG 4-Core Cable Construction:

1. Cable type: UL2464 18AWG × 4C + braided shield
2. Conductor colors: Black / Red / Yellow / White

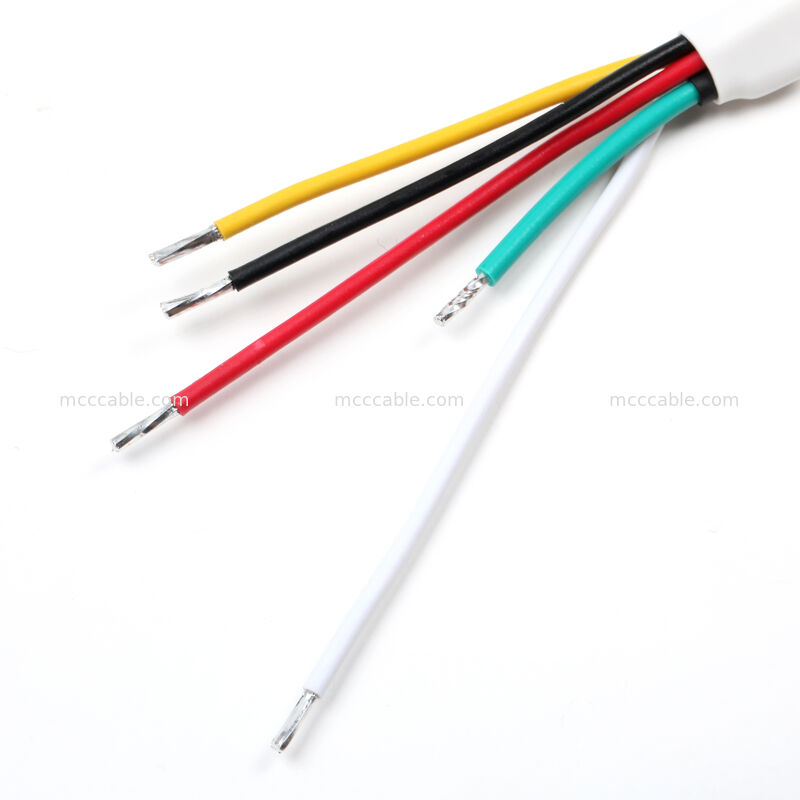

3. Additional shield wire: Green wire formed from twisted shield strands
4. Overall cable OD: Approx. 6.5 mm
5. Outer jacket color: Black
6. Shield handling: braided shield twisted and used as an independent conductor
   on one side
7. Heat shrink protection applied at both ends for strain relief and insulation

This construction ensures mechanical stability while maintaining consistent electrical
performance for power delivery applications.

Shielded 18AWG Power Cable Electrical & Mechanical Specifications:

Shielded 18AWG Power Cable Length Options & Differentiation:

This cable assembly is offered in multiple standard lengths based on customer drawings.
Although the structure and materials remain identical, each length is positioned for different
installation scenarios, avoiding duplicate listings while meeting practical system needs.

1. Short length – suitable for compact internal layouts
2. Medium length – ideal for module-to-module power routing
3. Extended length – allows flexible routing inside enclosures or cabinets

Custom lengths can also be produced upon request.

Shielded 18AWG Power Cable Applications:

1. Internal power wiring in electronic equipment
2. Power distribution between modules or sub-assemblies
3. Industrial control systems
4. Power routing inside enclosures or cabinets
5. Custom equipment requiring shielded power connections

This cable is intended for internal system use, where controlled routing, shielding, and
reliable crimp termination are required.

Customization & Manufacturing Support:

We provide custom cable assembly services based strictly on customer drawings and
specifications, including:

1. Cable length customization
2. Heat shrink color selection (white or black per model)
3. Shield termination method adjustment
4. Crimp terminal configuration
5. Labeling and packaging options

All assemblies are produced under controlled processes with full electrical testing prior
to shipment.
