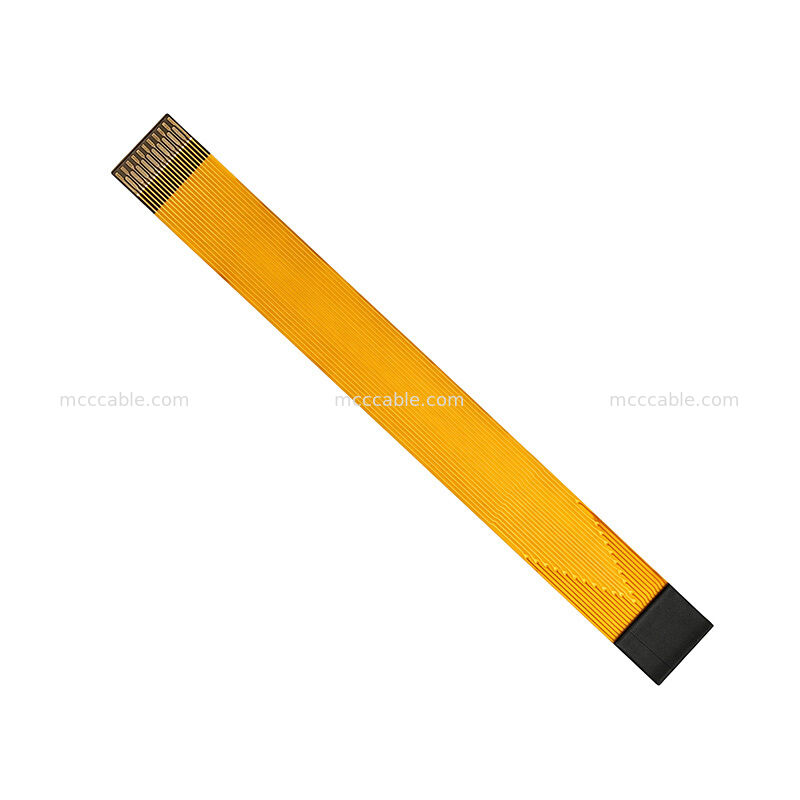

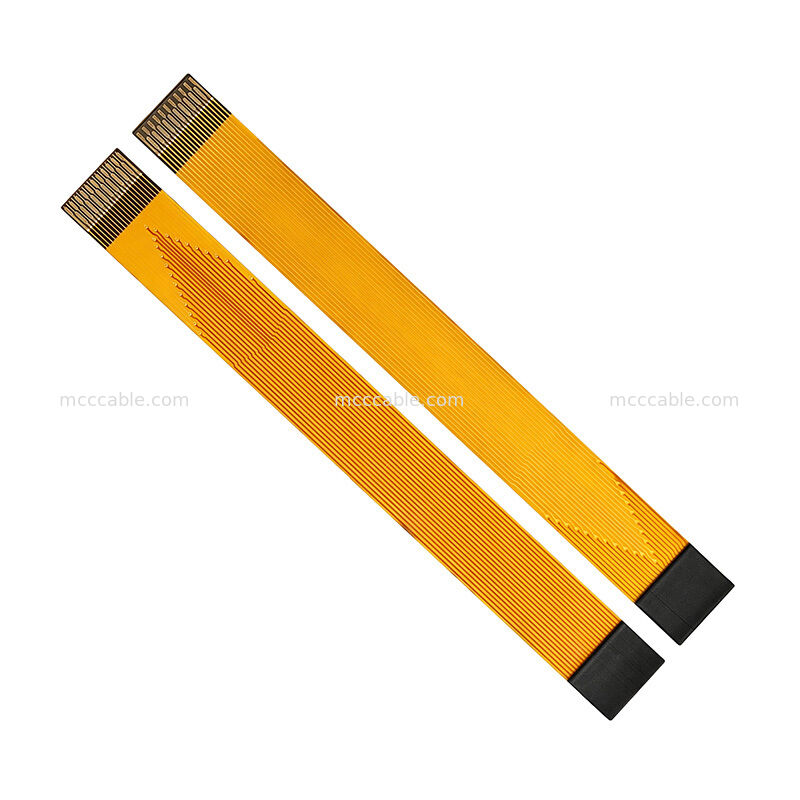

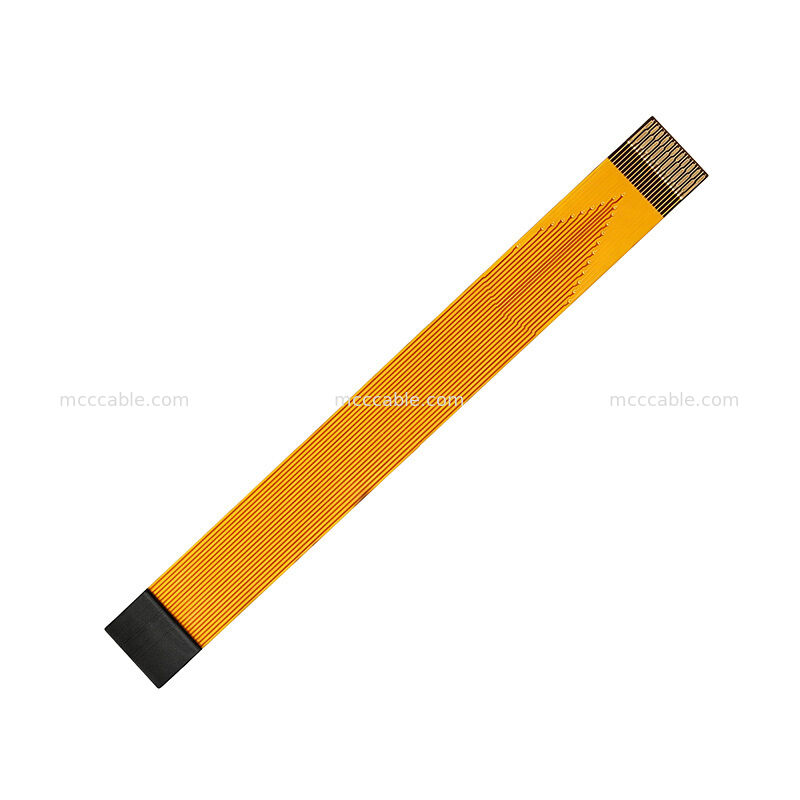

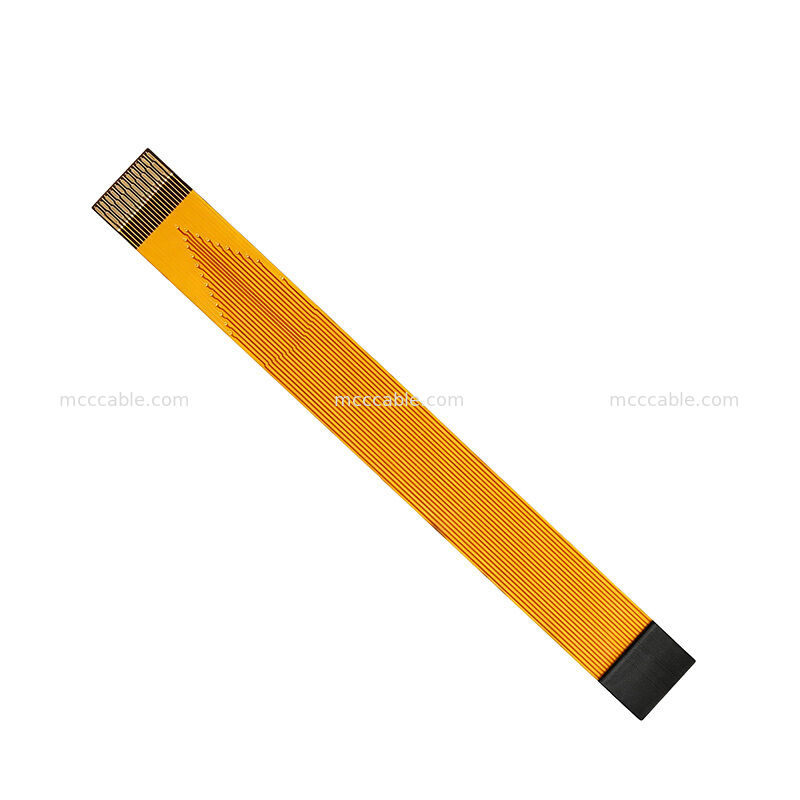

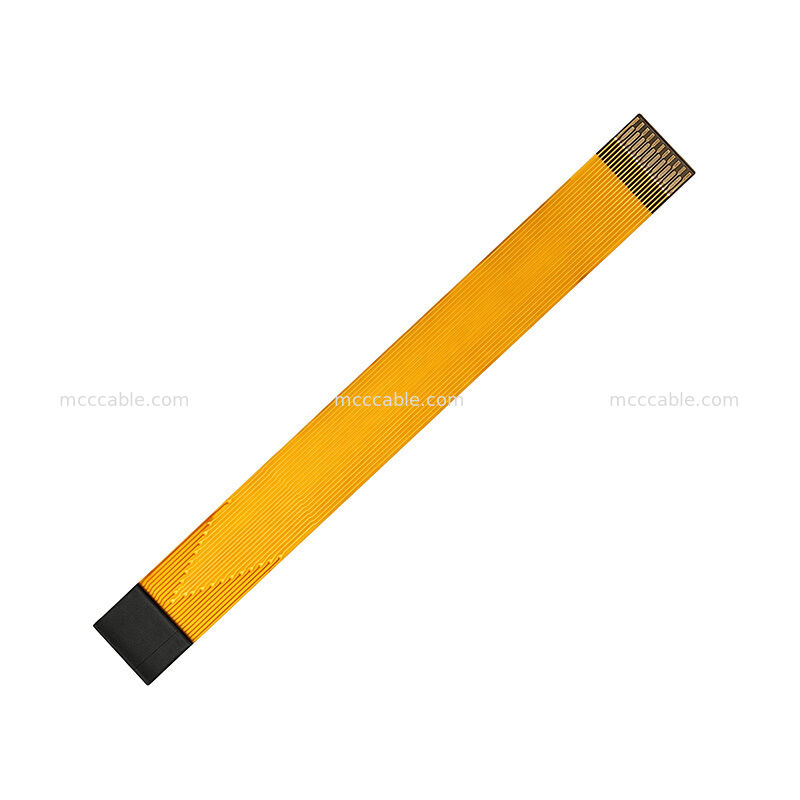

Ultra Thin Custom FPC Flexible Cable 0.10mm Line Width 0.07mm Spacing 60mm

Ultra Thin Custom FPC Flexible Cable

This ultra thin custom FPC flexible cable is designed with flexible circuit traces on both sides.

The structure includes front-side and back-side circuits, localized openings, and FPC reinforcement

at the specified areas.

The cable features a compact flexible construction with a minimum line width of 0.10 mm and

minimum line spacing of 0.07 mm.

FPC Flexible Cable Specifications

Custom FPC Cable Circuit Design

The custom FPC cable incorporates circuit patterns on both the front and back sides. The

drawing also specifies front-side and back-side opening areas for the flexible circuit structure.

The minimum line width is 0.10 mm, while the minimum line spacing is 0.07 mm, supporting a

compact circuit layout within the flexible cable design.

Ultra Thin FPC Flexible Cable Structure

The FPC flexible cable uses a thin flexible construction with reinforcement applied at specified

areas. The drawing indicates FPC reinforcement with an additional material thickness of

0.2 ± 0.03 mm at the designated reinforced sections.

The cable also includes specified opening and plugging areas according to the drawing

requirements.

60mm Custom FPC Flexible Cable

The specified cable length is 60 mm. The drawing also provides dimensional tolerances for

the cable structure, including a general outer dimension tolerance of ±0.1 mm and a cable

width tolerance of ±0.03 mm.

Other specified dimensional tolerances include opening, reinforcement and metal-layer

thickness requirements.

Custom FPC Cable Manufacturing

This FPC flexible cable is manufactured according to the specified circuit pattern, dimensions,

opening areas and reinforcement requirements.

The design supports customized FPC cable manufacturing for applications requiring a

compact flexible circuit connection and controlled line width and spacing.

FPC Flexible Cable Applications

The custom FPC flexible cable can be used for applications requiring:

• Compact flexible circuit connections
• Space-constrained electronic devices
• Flexible internal wiring
• Thin electronic assemblies
• Custom PCB-to-board or component connections
• Miniaturized electronic equipment
