Place of Origin:
China
Brand Name:
sino-tech
Certification:
UL ，ISO13485 , ISO9001.2005 , ISO14001
Model Number:
FFC Cable JAE FI-X30HL

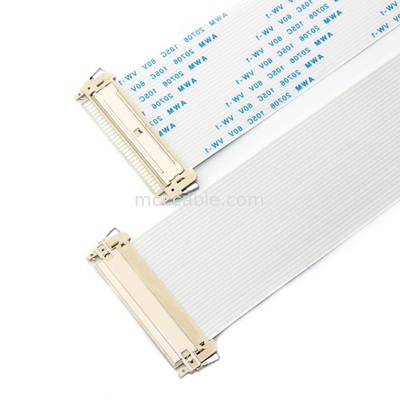

LVDS FFC Cable JAE FI-X30HL 30pin FFC FPC Cable for LCD Monitor Screen
| Flat FPC Cable | Specification |
| Flat FPC Cable Pitch | 0.4mm/0.5mm/0.8mm/ |
| Flat FPC Cable Conductor 1 | PCB 35P PITCH 0.5mm |
| Flat FPC Cable Conductor 2 | JST SUR 0.8PITCH 4P 34AWG WHITE |
| Flat FPC Cable Conductor 3 | 0.4mm PITCH 30Pin I-PEX 20523-030T-01 |
| Flat FPC Cable Sides | Same side contact &opposite side contact |
| Flat FPC Cable Pin contact | 2,3,4,5,6,7,8,9,10....60 pin (According to customers'request) |
| Flat FPC Cable Length | 20MM-10000MM (According to customers' request) |
| Flat FPC Cable Service | OEM/ODM products are acceptable |
| Flat FPC Cable MOQ | 100 Piece/Pieces |
This is determined by the material used in the FFC, FFC row line is composed of two layers of insulation fil
m, middle pressure flat copper conductors,so the thickness of the ribbon cable IT = + + conductor thickness
of film thickness on the thickness of the film, the film thickness of the comonly used are : 0. 043 mm, 0. 060
mm and 0.1mm, commonly used conductor thickness are : 0.03mm, 0.06 mm and 0. 10 mm,etc.
Q1. Is it a factory?
A:Yes,we have more than 15 years of design and manufacturring experience!
Q2. Is there any certification?
A:Yes,there are IS09001,ISO14001,TS16949,ISO13485,UL CERIFIED.
Q3. What is our specialty?
A:We can design products on the application.
Q4. Do you accept OEM/ODM orders?
A: Yes, we accept OEM/ODM orders. For oem orders, moq is 100pcs. For ODM orders, moq
1000PCs. Mould fee will be charged according to design.
Q5. How long will it need for completing an order?
A: For small order and products in stock, it will take less than 3 days for preparation and delive
ry, and shipment time depends on clients' choice, fastest 7 days and longest 1 month.
For big order, as we need to confirm all things include materiel preparation, production, this pro
cedure will take 5 to 21 working days according to order quantity, testing 1 to 3 working days, a
nd finally, packing 1 day, so fastest 7 days and longest 25 days without shipment.
Q6. As long term clients, what other service we can get?
1. New product will be offered with order, so you can see if it is potential product in the market a
nd promote it, and you will have the right to resell the product in your district.
2. Additional fee discount, cheaper price on purchasing products at smaller quantity.
3. We can offer assist on promotion images, and make images with clients' logo
Q7. How long is warranty for the cable, and if defective or faulty, how to protection your benifits?
A: All our cables are sold with 12-36 months warranty, and for big quantity order, we will offer 0.3%
to 0.5% backup for defective sent with order, so if you order 1000PCs, that means you can get 100
3pcs with backup. If you get faulty more than 5pcs, and less than 0.1%, please contact sales and
offer images, and we will solve your problem in the way of replacing with new order or refund.
Q8. Do you accept free sample order?
A: Yes, sample order is supported, some samples can be offered free exclusive of shipment freight.
