Custom High-Density FPC Cable Assembly
Custom High-Density FPC Cable Assembly with Gold Fingers
and PI Stiffener
Custom High-Density FPC Cable Assembly Product Overview:

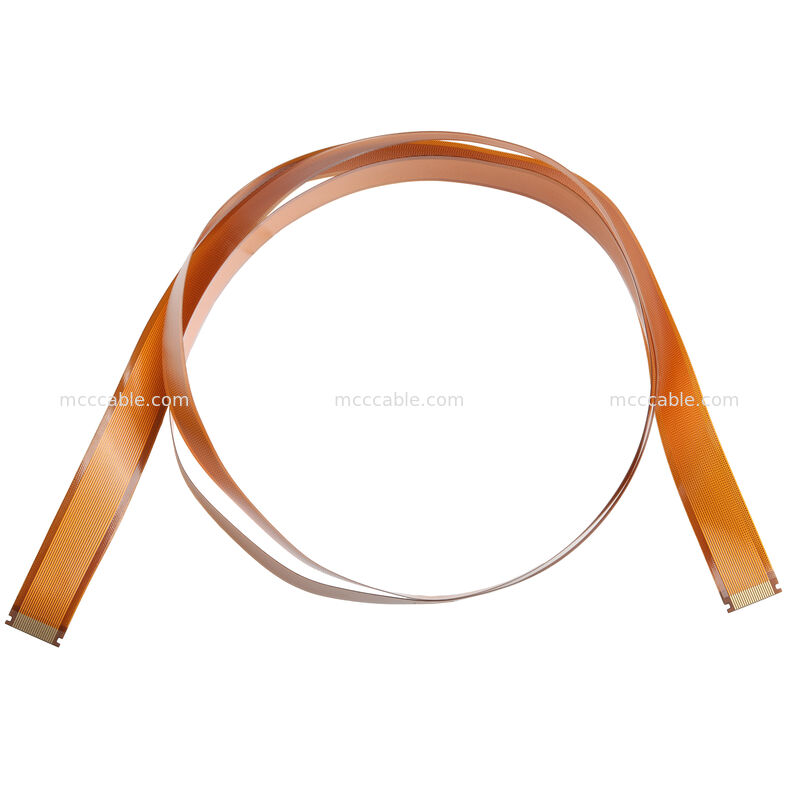

This custom high-density FPC cable assembly is designed for compact electronic systems
requiring reliable, space-saving, and highly stable signal transmission. The product uses
etched copper conductors on a flexible polyimide substrate, combined with ENIG gold finger
contact surfaces to ensure excellent electrical performance and long-term mating reliability.

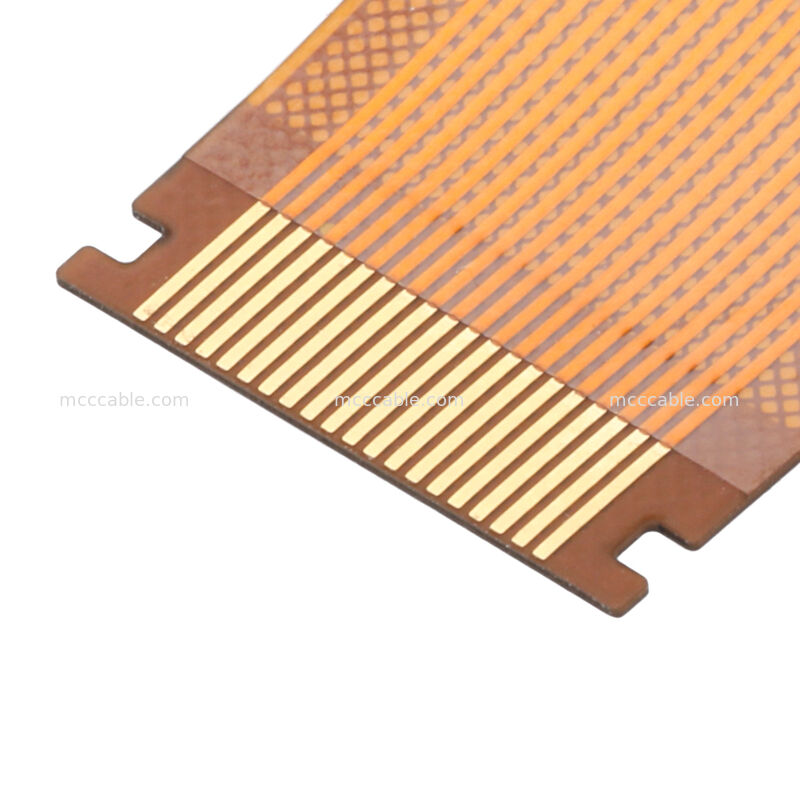

Both ends feature exposed gold fingers with precisely aligned PI stiffeners, allowing secure
insertion into ZIF or board-mounted FPC connectors. The flexible structure enables tight
bending radii and complex routing paths, making it ideal for applications where rigid PCBs
or traditional wire harnesses cannot be used.
This FPC cable assembly is manufactured to custom outlines, conductor layouts, and
thickness requirements, supporting high-density parallel signal routing in demanding
industrial, medical, and electronic equipment environments.
Custom High-Density FPC Cable Assembly Key Features:
High-density etched copper traces for stable multi-channel signal transmission
ENIG (Electroless Nickel Immersion Gold) surface treatment for reliable gold finger contacts

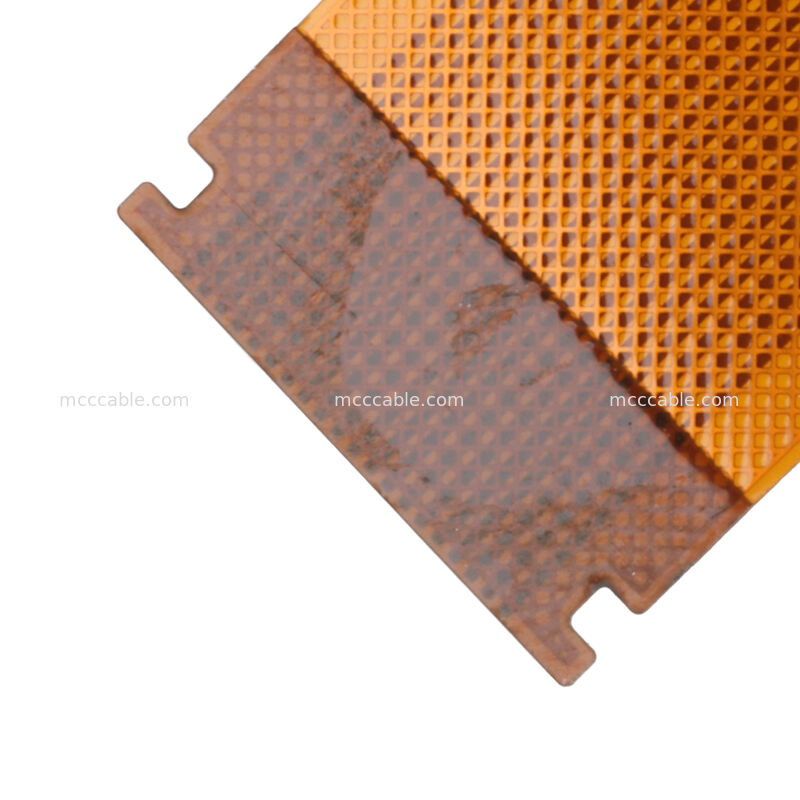

Integrated bottom PI stiffener to enhance insertion strength and dimensional stability
Ultra-thin flexible structure suitable for compact and space-constrained assemblies
Custom outline and pad geometry to match specific connector and housing designs
Designed for repeated insertion into ZIF and board-level FPC connectors
Custom High-Density FPC Cable Assembly Typical Applications:
Industrial control boards and embedded systems
Medical electronic equipment and diagnostic devices
Display modules and internal signal interconnects
Compact consumer electronics and handheld devices
Board-to-board flexible interconnection solutions
Equipment requiring lightweight, low-profile signal routing
Custom High-Density FPC Cable Assembly Technical Specifications:
| Item | Specification |
|---|---|
| Product Type | Custom FPC Cable Assembly |
| Conductor Material | Etched Copper |
| Substrate Material | Polyimide (PI) |
| Surface Finish | ENIG (Gold Fingers) |
| Total Thickness | 0.23 ± 0.03 mm |
| Stiffener Type | Bottom PI Stiffener |
| Contact Interface | Exposed Gold Fingers |
| Circuit Density | High-Density Parallel Traces |
| Flexibility | High, suitable for tight bending |
| Length | Custom |
| Operating Temperature | Custom per application |
Custom High-Density FPC Cable Assembly Customization Options:
Custom conductor count, trace width, and spacing
Flexible length and routing shape customization
Gold finger length, pitch, and plating thickness options
Single-side or dual-side stiffener configurations
Custom outline cutting and edge shaping
Electrical and mechanical validation based on application requirements
Sino-Media is a specialized cable assembly manufacturer. We utilize cutting-edge
automation equipment, premium raw materials, a robust quality assurance system,
and a skilled technical team to deliver high-quality, custom cable and harness
components in small quantities. Our engineering, production, and quality control
teams ensure the excellence of these unique components. Our mission is to enhance
product quality continuously, meet customer needs, and maintain expertise in the
materials we use and recommend. Our dedication to customer satisfaction drives
the company’s ongoing growth.
