Place of Origin:
China
Brand Name:
Customization
Certification:
UL ，ISO13485 , ISO9001.2005 , ISO14001
Model Number:
4Pin Nano-Fit to 4Pin MTA156 Power Wiring Harness
4Pin Nano-Fit to 4Pin MTA156 Power Wiring Harness 22AWG
UL1015
Power Wiring Harness Overview:

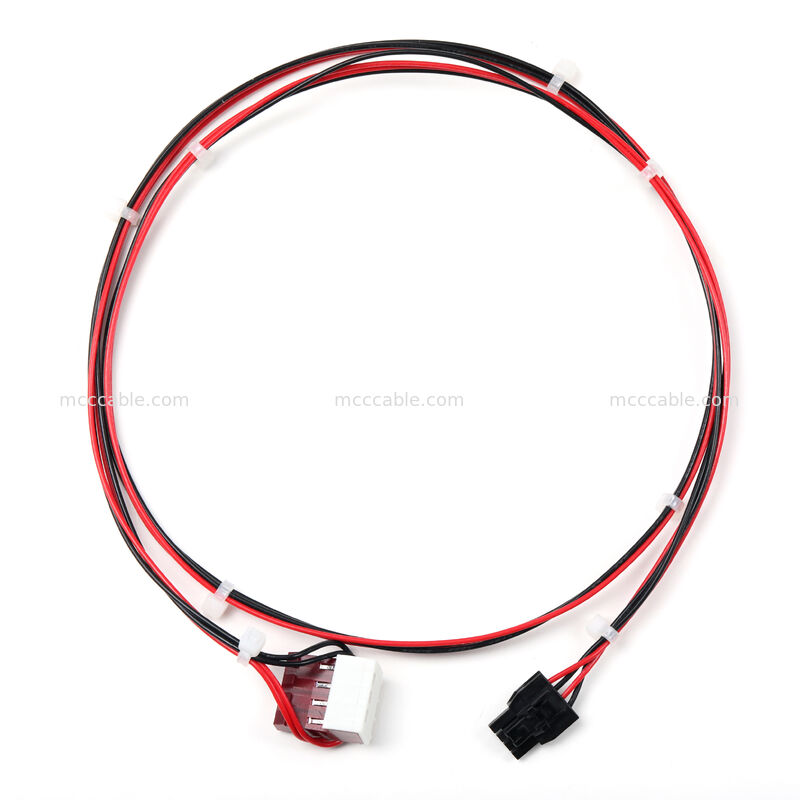

This power wiring harness is designed for internal low-voltage power connections in
electronic equipment and control systems. The harness connects a 4-pin Nano-Fit
connector to a 4-pin MTA156 connector, providing a reliable interface between power
modules and control boards.
The harness uses UL1015 22AWG copper wires with red and black color identification
to ensure stable power transmission. The connectors provide secure locking and stable
electrical contact for internal power distribution.
This wiring harness is commonly used in power supply systems, industrial equipment,
control electronics, and internal power routing applications.
OEM and ODM wiring harness manufacturing based on customer drawings and
specifications is supported.
Power Wiring Harness Construction:
Connector A
Connector B
Terminal type
Cable
Wire colors
Cable management
All structural details follow the approved engineering drawings.
Power Wiring Harness Electrical Data:
| Item | Specification |
|---|---|
| Harness Type | Power Wiring Harness |
| Connector A | 4 Pin Nano-Fit Female |

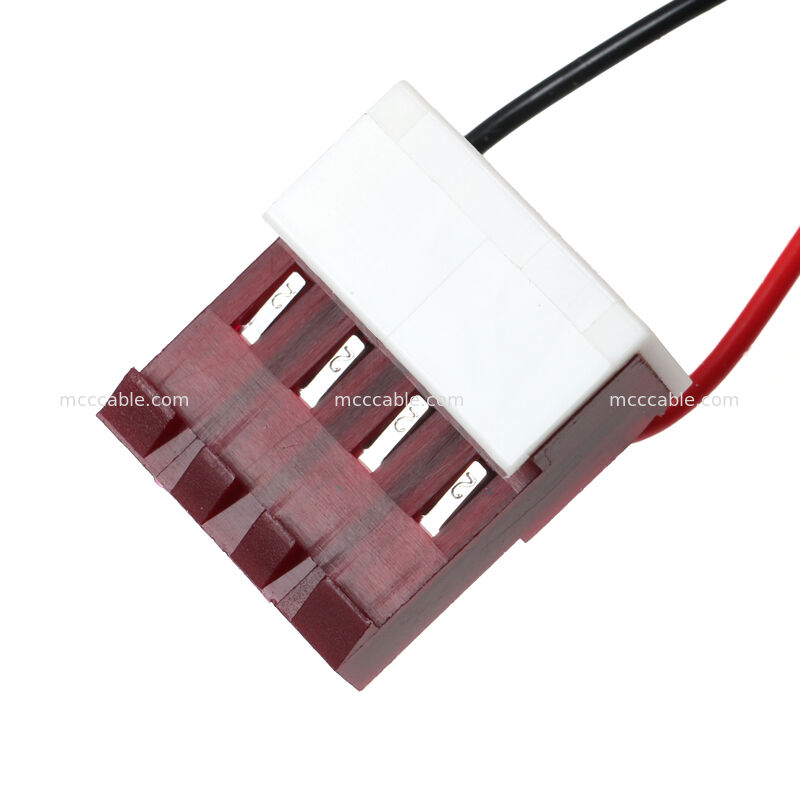

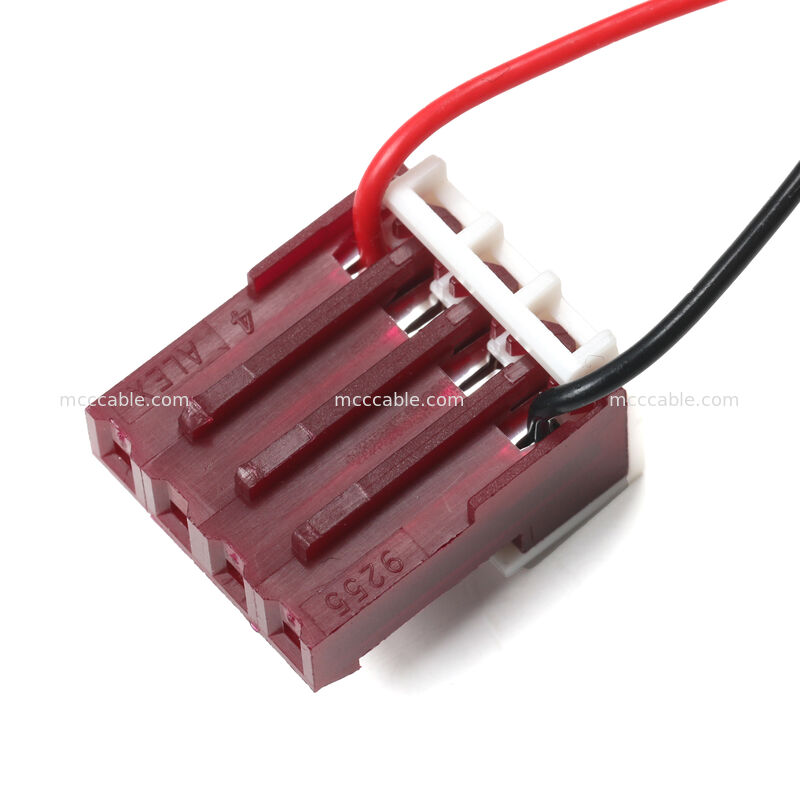

| Connector B | 4 Pin MTA156 Female |
| Wire Standard | UL1015 / CSA |
| Wire Gauge | 22 AWG |
| Conductor Material | Copper |
| Wire Colors | Red / Black |
| Cable Length | 800 mm |
| Assembly Type | Internal Power Harness |
Power Wiring Harness Applications:
This power wiring harness is suitable for internal power connections in systems such as:
It provides stable power transmission between different connector interfaces inside electronic
equipment.
Power Wiring Harness Customization:
This power wiring harness can be customized according to application requirements, including:
OEM and ODM wiring harness manufacturing services are supported.
