Custom 70093-0800 to 45559-0002 Sync Card Power Cable Assembly

Custom 70093-0800 to 45559-0002
Sync Card Power Cable Assembly



70093-0800 to 45559-0002 Cable Assembly Technical
Overview

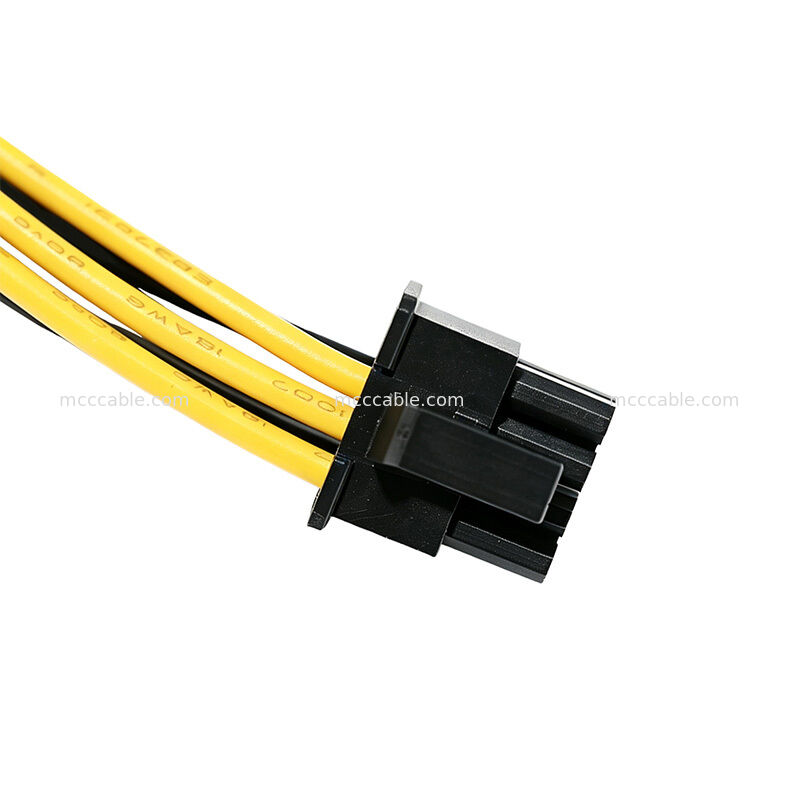

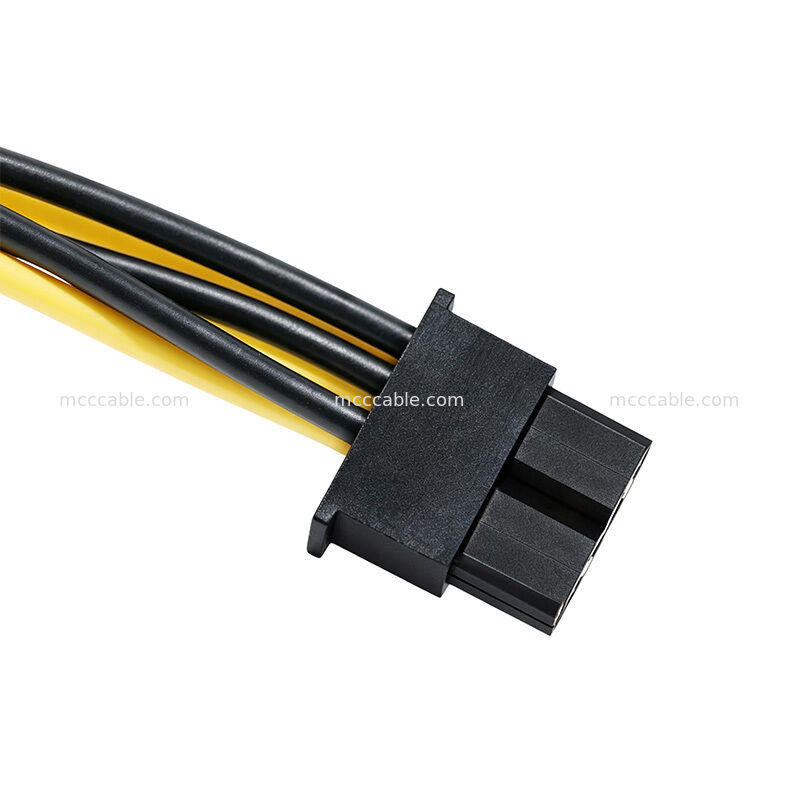

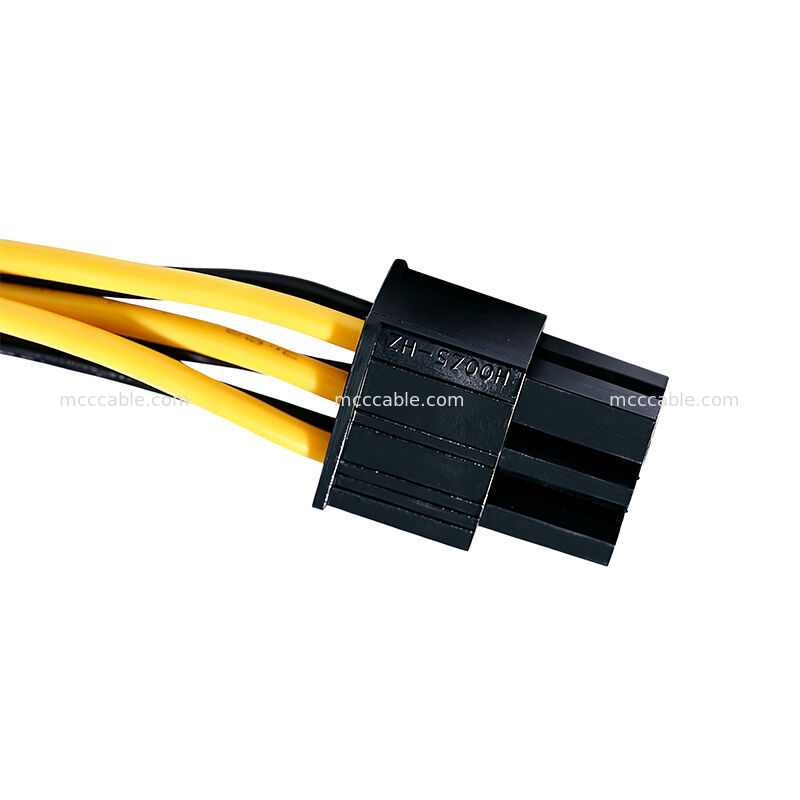

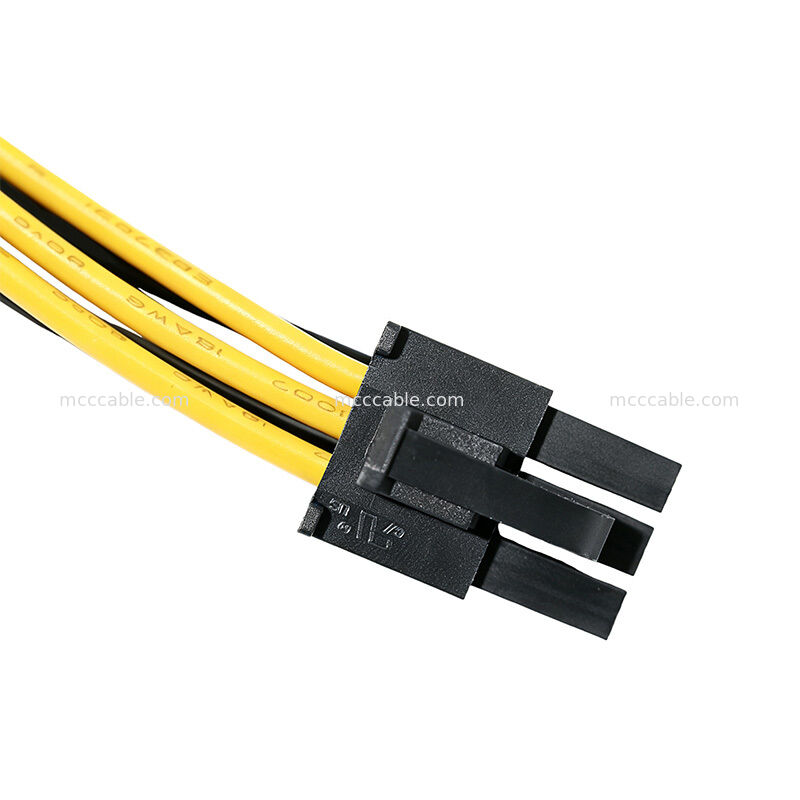

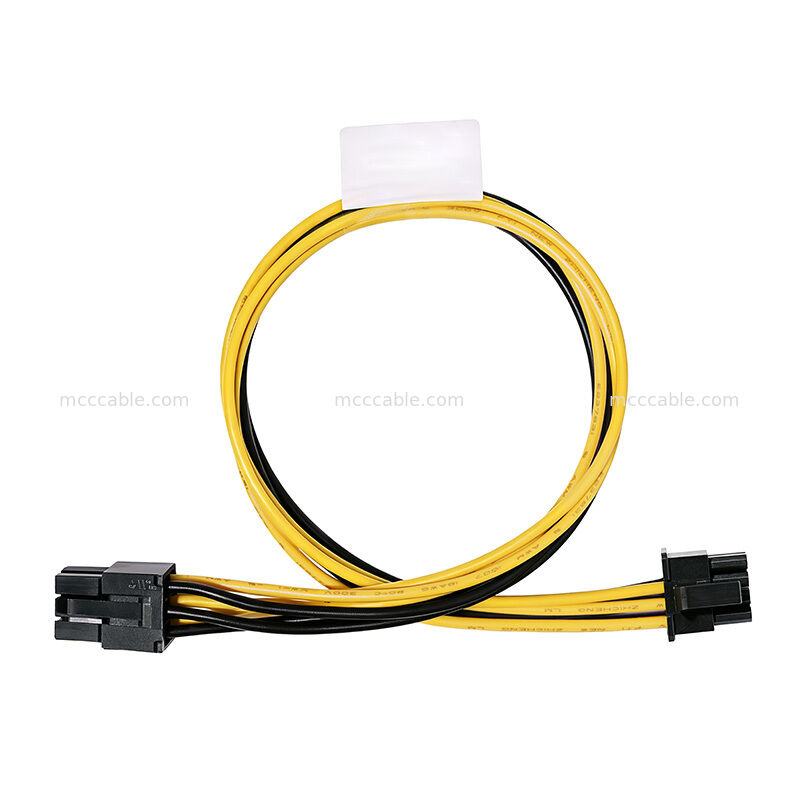

The 70093-0800 to 45559-0002 power cable assembly is a high-performance custom wire
harness engineered for Sync Card Power for X13DEG-OA systems. Featuring an 8-pin
3.00mm pitch connector on one end and a 6-pin 4.20mm pitch connector on the other, this
12-inch ($12'' \pm 0.5''$) assembly provides reliable +12V power delivery and ground
connection. Manufactured strictly in compliance with RoHS 3 environmental standards,it
guarantees high thermal and electrical durability for demanding industrial and server applications.

Electrical Pinout & Wiring Map for 70093-0800

The 70093-0800 8-position connector (CN1) converts to the 45559-0002 6-position connector
(CN2) using high-quality 18AWG copper conductors. Below is the detailed pin assignment:

Bill of Materials & Specifications for 70093-0800 Assembly

This custom power wire harness is integrated with industry-standard UL-recognized components:

CN1 Interface (70093-0800 Equivalent): Micro-Hi 8-Position Connector, 3.00mm pitch,
Black housing, UL94V-0 flame-retardant rating.

CN2 Interface (45559-0002 Equivalent): 6-Position Power Connector, 4.20mm pitch,
Black housing, UL94V-0 flame-retardant rating.

Crimp Terminals: High-conductivity tin-plated socket contacts suited for 16–24 AWG wiring.

Hook-Up Wire (300V UL1007): UL1007 recognized 18AWG stranded wire (Black for Ground,
Yellow for +12V).

Custom Identification: Custom wrap label applied at the center with part details, PO number,
and revision info per customer requirement.

Quality Assurance & Testing Standards for 45559-0002
Cables

To ensure high stability and seamless connectivity, all 70093-0800 to 45559-0002 cable
assemblies are subjected to rigorous manufacturing controls:

RoHS 3 Compliant: Free of hazardous materials, conforming to European
environmental directives.

Precision Crimp & Pull-Force Testing: Every terminal crimp is verified to prevent
disconnection or voltage drops.

100% Electrical Continuity Test: Fully tested for circuit continuity, short circuits, and
correct pinout alignment before shipment.

OEM Customization Services for 70093-0800 Cable
Assemblies

We provide complete custom manufacturing solutions based on your specific application
requirements:

Wire Gauge & Insulation: Options available in 16AWG, 18AWG, or Teflon high-temperature
wire configurations.

Custom Cable Lengths: Custom wire lengths tailored to your internal enclosure layout
beyond the standard 12-inch design.

Labeling & Packaging: Customized UL969 rated labeling, serialization, and customized
anti-static ESD packaging options.

Sino-Media is a specialized cable assembly manufacturer. We utilize cutting-edge
automation equipment, premium raw materials, a robust quality assurance system,
and a skilled technical team to deliver high-quality, custom cable and harness
components in small quantities. Our engineering, production, and quality control
teams ensure the excellence of these unique components. Our mission is to enhance
product quality continuously, meet customer needs, and maintain expertise in the
materials we use and recommend. Our dedication to customer satisfaction drives
the company’s ongoing growth.
