6.3mm Fully Insulated Female Terminal Wire Harness
with Tinned Wire Leads Overview

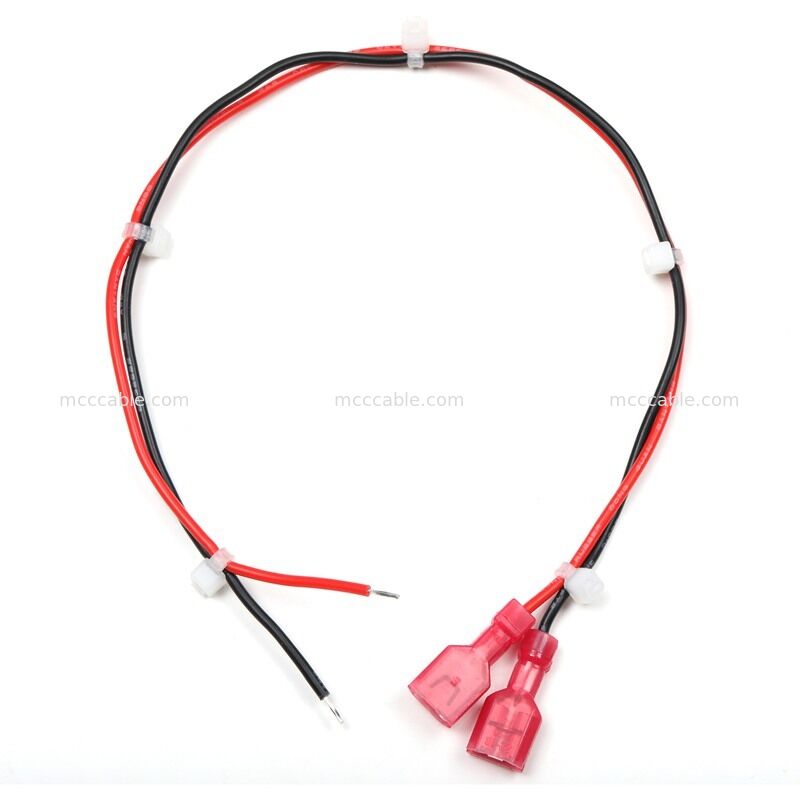

The 6.3mm Fully Insulated Female Terminal Wire Harness with Tinned Wire Leads is
designed for reliable power and signal distribution in electrical and electronic equipment.
The assembly features fully insulated female quick-disconnect terminals on one end and
stripped, tinned wire leads on the opposite end for direct soldering or terminal block
installation.

Constructed using UL3239 AWG22 wire, this harness offers excellent electrical
performance, temperature resistance, and long-term durability. The fully insulated
terminal design helps protect against accidental contact, while the tinned wire ends
simplify installation and improve solderability during assembly.

This wire harness is widely used in industrial control systems, power distribution units,
household appliances, automotive electronics, HVAC equipment, battery systems, and
electrical cabinets.

6.3mm Fully Insulated Female Terminal Wire Harness
with Tinned Wire Leads Specifications

Key Features of 6.3mm Fully Insulated Female Terminal
Wire Harness with Tinned Wire Leads

Fast and Reliable Electrical Connection

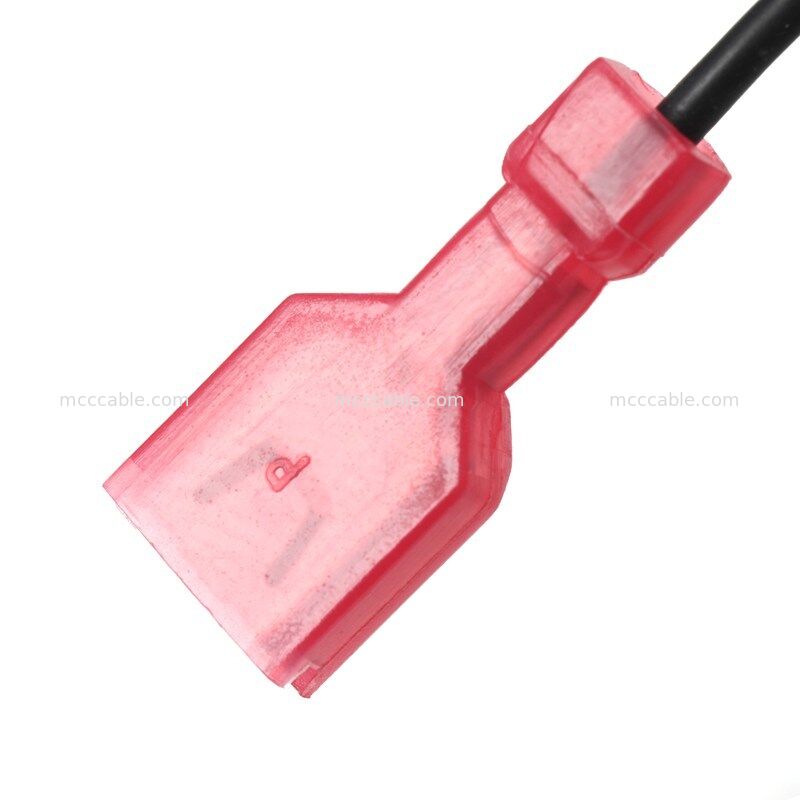

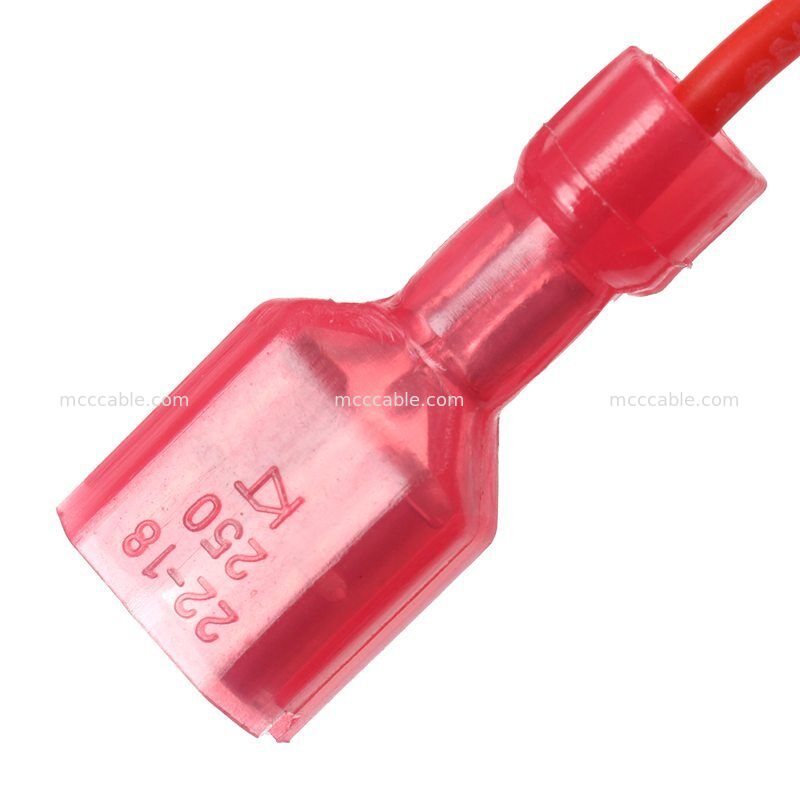

The fully insulated female terminals provide secure connections and allow quick installation
or replacement during maintenance.

Enhanced Operator Safety

The insulated housing helps prevent accidental contact with conductive parts during operation.

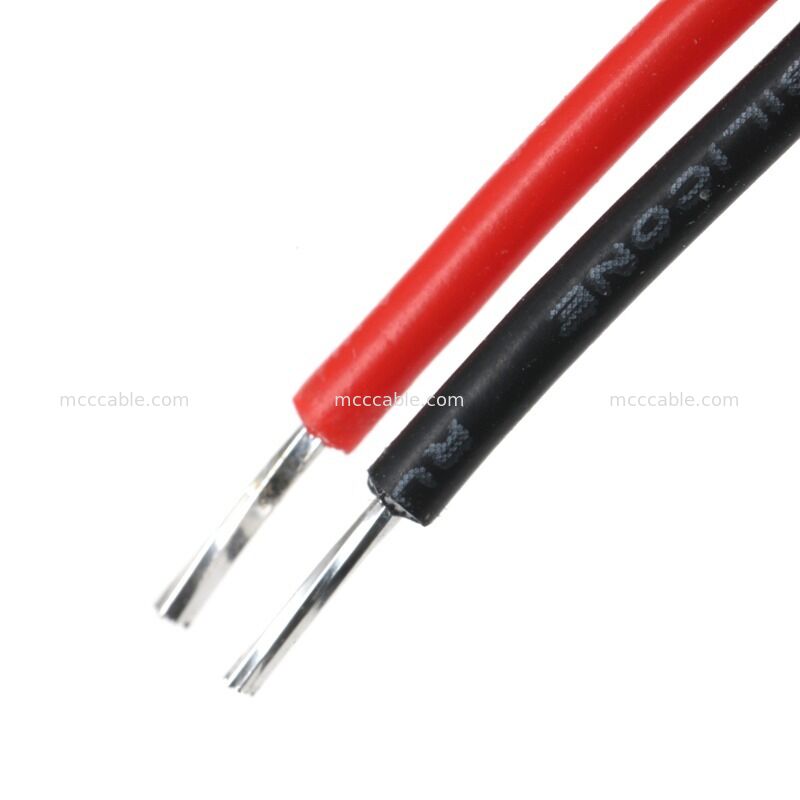

Easy Soldering Installation

Pre-tinned wire leads reduce assembly time and improve solder joint consistency.

Flexible Wiring Solution

The harness can be integrated into terminal blocks, PCBs, power modules, and custom
electrical assemblies.

Durable Wire Construction

UL3239 wire offers excellent heat resistance, flexibility, and electrical insulation performance.

Suitable for OEM Manufacturing

Ideal for equipment manufacturers requiring customized wiring solutions.

Applications of 6.3mm Fully Insulated Female Terminal
Wire Harness with Tinned Wire Leads

Industrial Control Equipment

Used for power and signal wiring in control panels, PLC systems, and automation equipment.

Electrical Cabinets

Suitable for internal power distribution and component interconnection.

HVAC Systems

Commonly used in heating, ventilation, and air conditioning control circuits.

Battery and Power Systems

Provides reliable connections between power modules and electrical devices.

Household Appliances

Applied in electrical appliances requiring quick-disconnect terminal connections.

Automotive Electrical Systems

Suitable for auxiliary power circuits, control systems, and low-voltage electrical assemblies.

Customization Options for 6.3mm Fully Insulated Female
Terminal Wire Harness with Tinned Wire Leads

We support complete customization services including:

• Different terminal sizes
• Different wire gauges
• Custom cable lengths
• Custom wire colors
• Special stripping lengths
• Tin plating options
• Heat shrink protection
• Label printing
• Small batch production
• Mass production manufacturing

Sino-Media is a specialized cable assembly manufacturer. We utilize cutting-edge
automation equipment, premium raw materials, a robust quality assurance system,
and a skilled technical team to deliver high-quality, custom cable and harness
components in small quantities. Our engineering, production, and quality control
teams ensure the excellence of these unique components. Our mission is to enhance
product quality continuously, meet customer needs, and maintain expertise in the
materials we use and recommend. Our dedication to customer satisfaction drives
the company’s ongoing growth.

Q1. Is it a factory?
A:Yes,we have more than 16 years of design and manufacturring experience!
Q2. Is there any certification?
A:Yes,there are IS09001,ISO14001,TS16949,ISO13485,UL CERIFIED.
Q3. What is our specialty?
A:We can design products on the application.
Q4. Do you accept OEM/ODM orders?
A: Yes, we accept OEM/ODM orders. For oem orders, moq is 100pcs. For ODM orders, moq

1000PCs. Mould fee will be charged according to design.
Q5. How long will it need for completing an order?
A: For small order and products in stock, it will take less than 3 days for preparation and delive

ry, and shipment time depends on clients' choice, fastest 7 days and longest 1 month.
For big order, as we need to confirm all things include materiel preparation, production, this pro

cedure will take 5 to 21 working days according to order quantity, testing 1 to 3 working days, a

nd finally, packing 1 day, so fastest 7 days and longest 25 days without shipment.
Q6. As long term clients, what other service we can get?
1. New product will be offered with order, so you can see if it is potential product in the market a

nd promote it, and you will have the right to resell the product in your district.
2. Additional fee discount, cheaper price on purchasing products at smaller quantity.
3. We can offer assist on promotion images, and make images with clients' logo
Q7. How long is warranty for the cable, and if defective or faulty, how to protection your benifits?
A: All our cables are sold with 12-36 months warranty, and for big quantity order, we will offer 0.3%

to 0.5% backup for defective sent with order, so if you order 1000PCs, that means you can get 100

3pcs with backup. If you get faulty more than 5pcs, and less than 0.1%, please contact sales and

offer images, and we will solve your problem in the way of replacing with new order or refund.
Q8. Do you accept free sample order?
A: Yes, sample order is supported, some samples can be offered free exclusive of shipment freight.
