Place of Origin:
China
Brand Name:
Customization
Certification:
UL ，ISO13485 , ISO9001.2005 , ISO14001
Model Number:
16AWG Earth Ground Wiring Harness

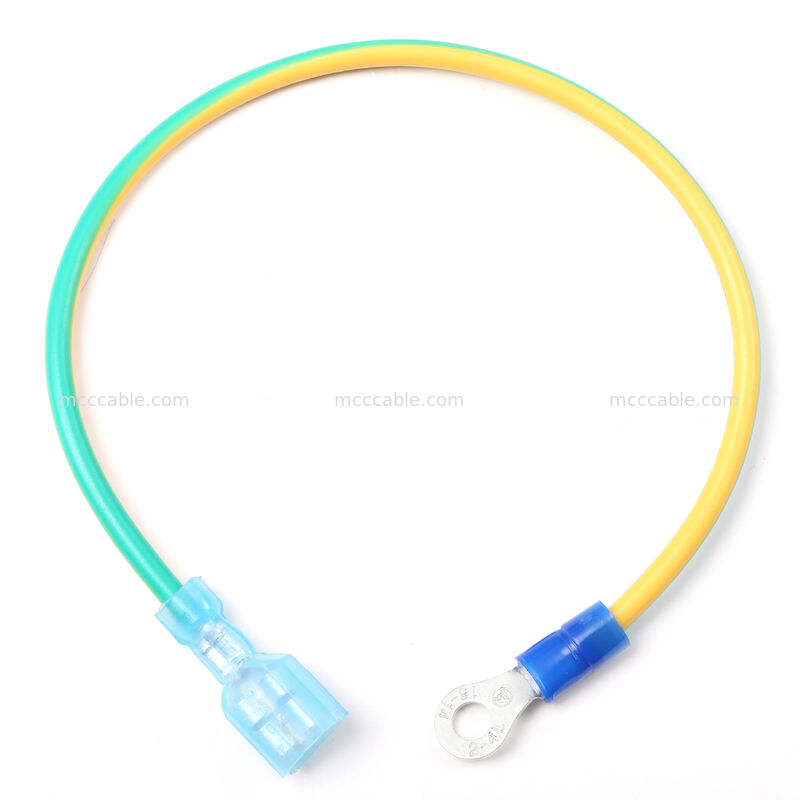

16AWG Earth Ground Wiring Harness 6.3mm Female Terminal
to M4 Ring
Earth Ground Wiring Harness Overview:
This earth ground wiring harness is designed for grounding connections in electrical

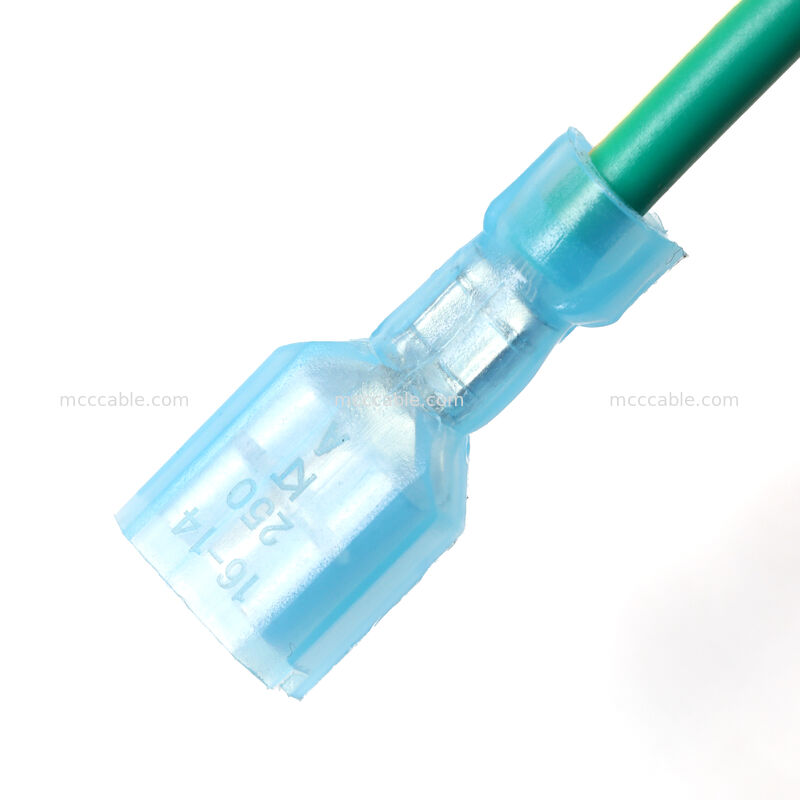

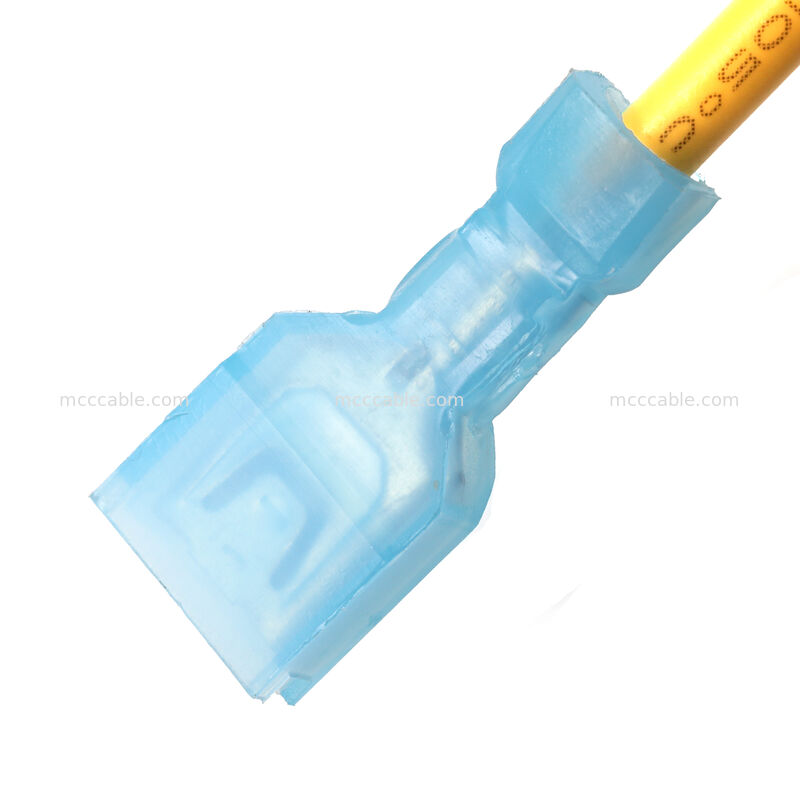

equipment and industrial systems. The harness connects a 6.3 × 0.8 mm fully insulated

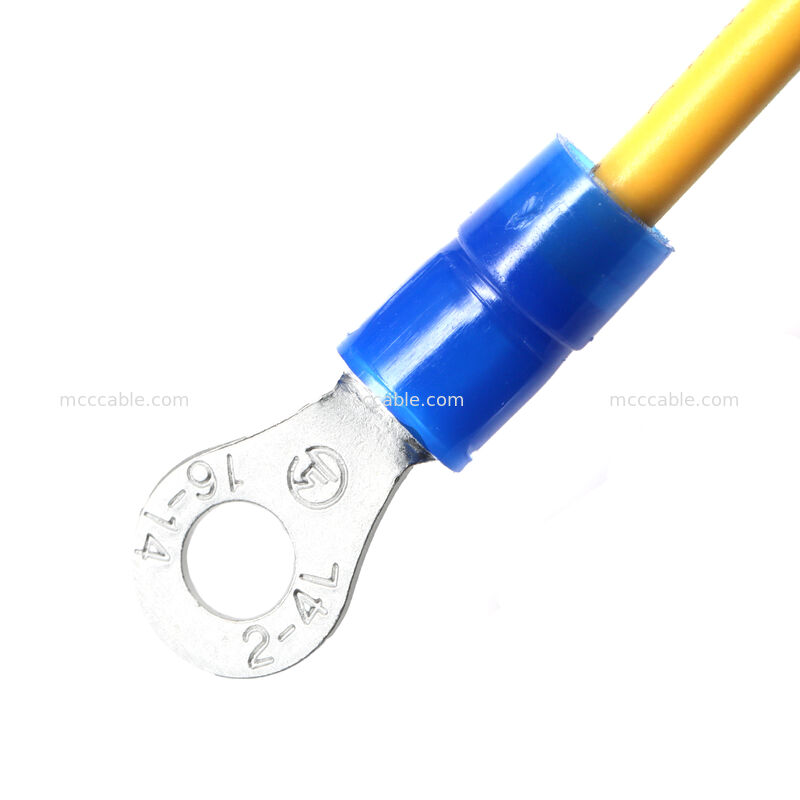

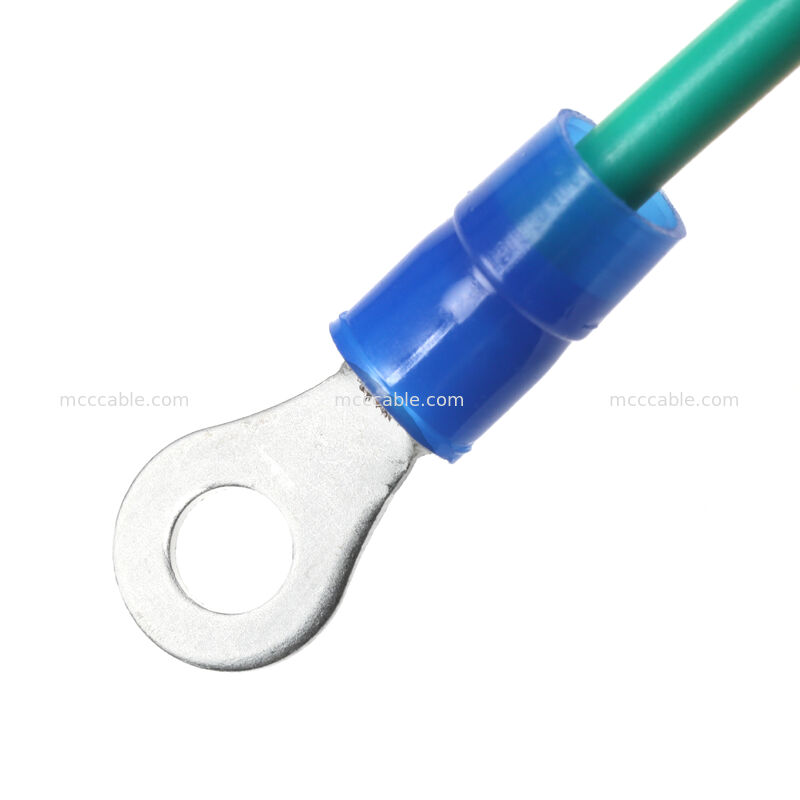

female terminal to an M4 ring terminal, providing a secure grounding path between
electrical components and the equipment chassis.
The harness uses 16AWG UL1015 insulated wire with green and yellow earth color
identification, ensuring reliable grounding performance and compliance with common
electrical wiring standards.
This grounding cable is commonly used in industrial equipment, power systems, control
cabinets, and electrical assemblies where protective grounding is required.
OEM and ODM wiring harness production based on customer drawings and specifications
is supported.
Earth Ground Wiring Harness Construction:
Terminal type
Ring terminal
Cable
Wire color
All structural details follow the approved engineering drawings.
Earth Ground Wiring Harness Electrical Data:
| Item | Specification |
|---|---|
| Harness Type | Earth Ground Wiring Harness |
| Wire Standard | UL1015 / CSA |
| Wire Gauge | 16 AWG |
| Conductor Material | Copper |
| Wire Color | Green / Yellow |
| Terminal Type | 6.3 × 0.8 mm Female Terminal |
| Ring Terminal | M4 |
| Cable Length | 180 mm |
| Assembly Type | Ground Cable |
Earth Ground Wiring Harness Applications:
This earth grounding cable is suitable for grounding connections in electrical systems such as:
It provides a reliable grounding path to ensure safe operation of electrical equipment.
Earth Ground Wiring Harness Customization:
This earth grounding wiring harness can be customized based on project requirements,
including:
OEM and ODM wiring harness manufacturing services are supported.
