2524640 to 2524533 4Pin to 2Pin 24V Power Supply Wire
Harness AWG22
Power Supply Wire Harness Overview:

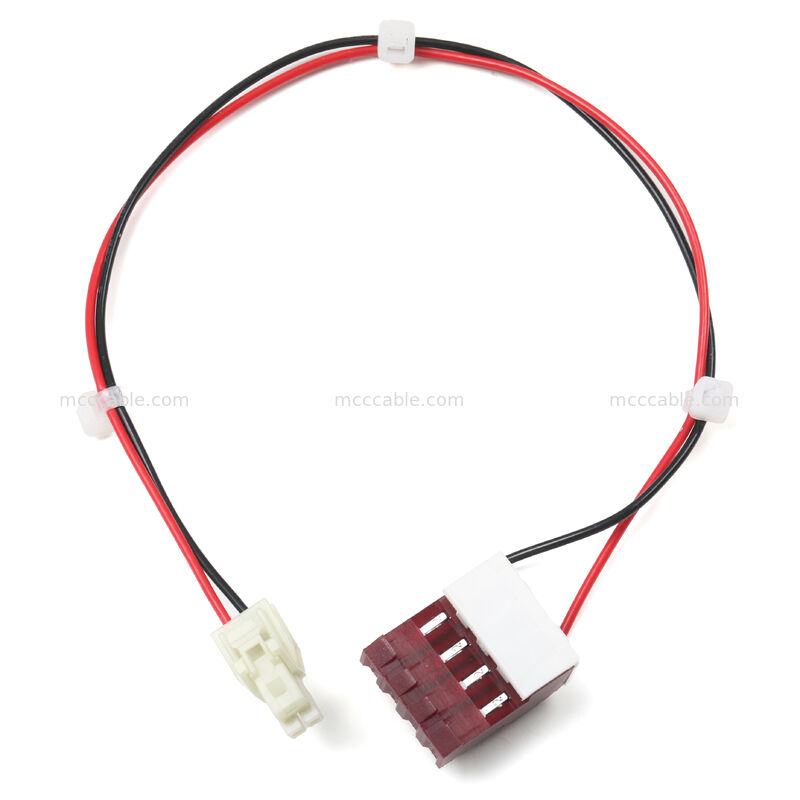

This power supply wire harness is designed for 24V DC power transmission between

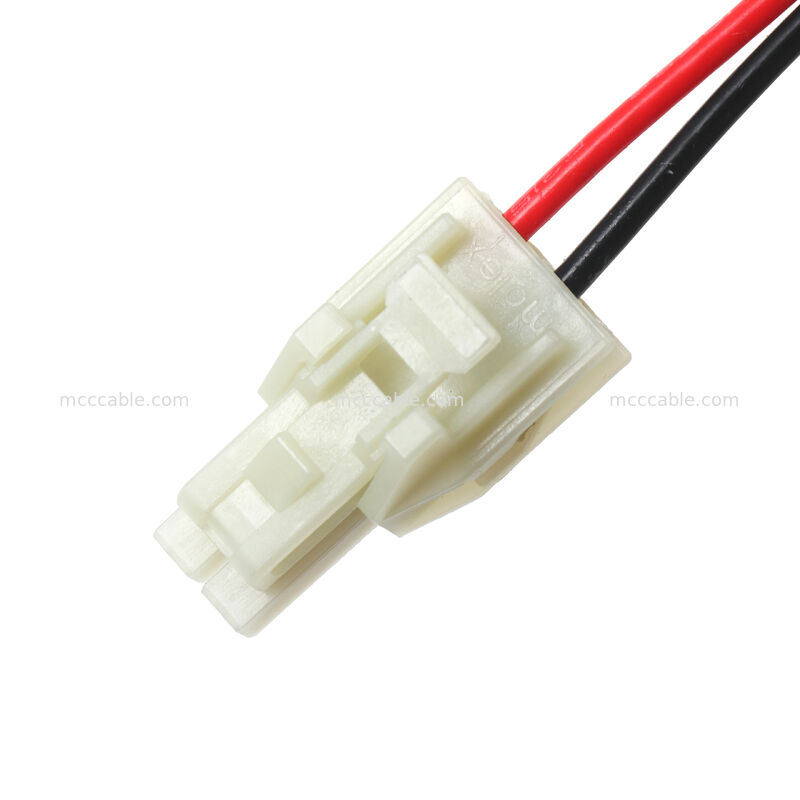

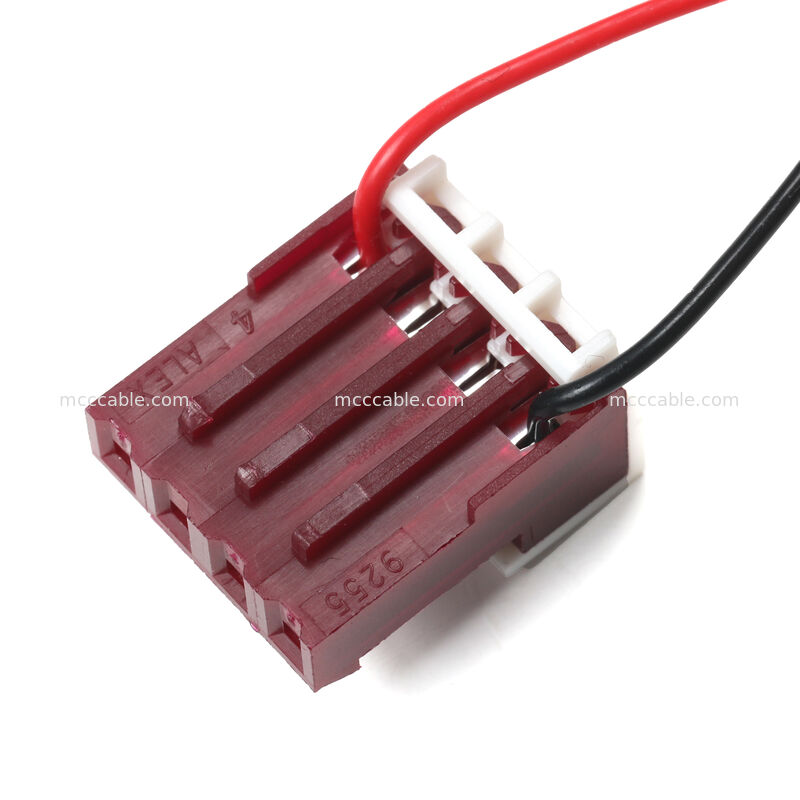

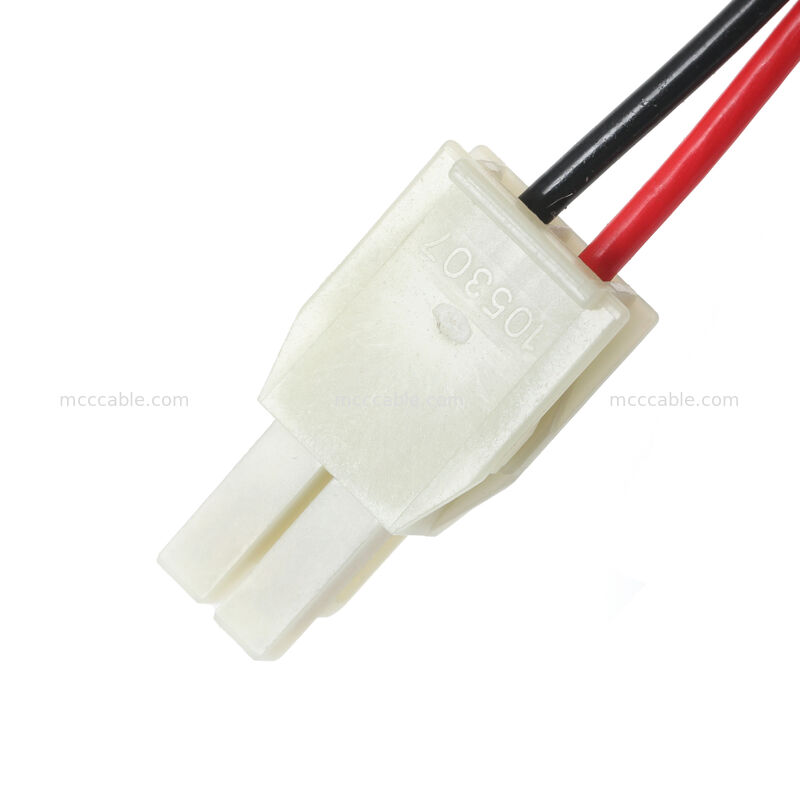

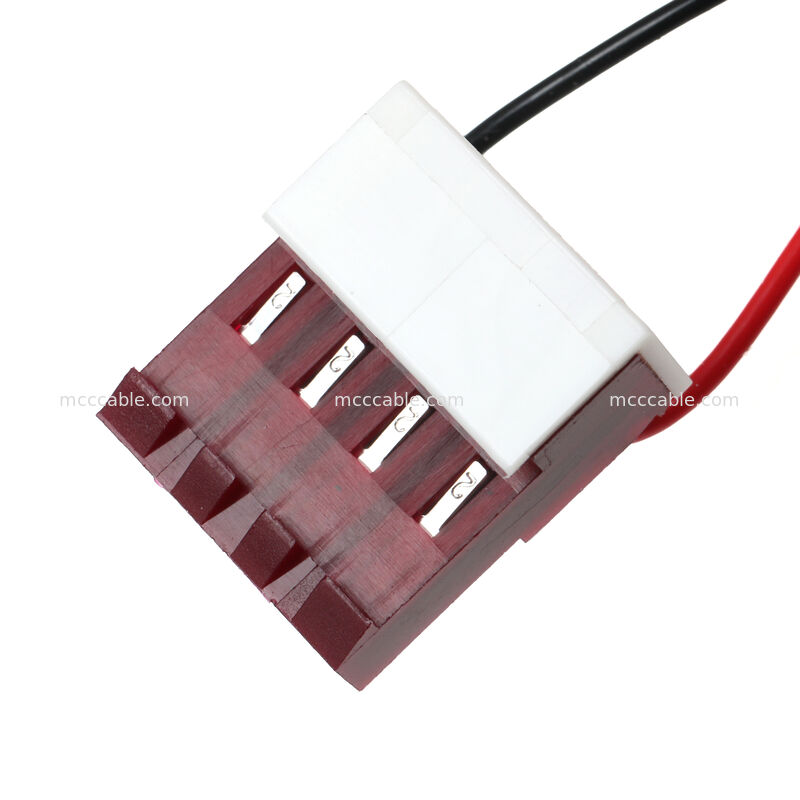

internal electronic modules. The harness connects a 4-pin power connector (2524640)
to a 2-pin connector (2524533), enabling reliable power delivery inside equipment or
control systems.
The cable uses UL1015 AWG22 insulated copper wires with red and black color coding
for positive and negative power lines. The harness is compact and easy to install in
equipment where stable low-voltage power distribution is required.
Multiple cable tie points are applied to keep the wiring organized and improve installation
reliability. The harness is commonly used in industrial equipment, control systems, and
electronic assemblies requiring stable DC power connections.
OEM and ODM wire harness manufacturing services are supported based on customer
drawings or specifications.
Power Supply Wire Harness Construction:
Connector A
Connector B
Cable structure
Cable management
All structural details follow the approved engineering drawings.
Power Supply Wire Harness Electrical Data:
| Item | Specification |
|---|---|
| Cable Type | Power Supply Wire Harness |
| Connector A | 2524640 4 Pin Connector |
| Connector B | 2524533 2 Pin Connector |
| Rated Voltage | 24V DC |
| Wire Type | UL1015 |
| Wire Gauge | AWG22 |
| Conductor Material | Copper |
| Wire Colors | Red / Black |
| Cable Length | 200 mm |
| Assembly Type | Internal Power Harness |
Power Supply Wire Harness Applications:
This wire harness is suitable for internal DC power connections in various electronic and
industrial systems, including:
The harness provides stable 24V DC power delivery between internal electronic modules.
Power Supply Wire Harness Customization:
This wire harness can be customized according to project requirements, including:
OEM and ODM wire harness manufacturing services are supported.
