Place of Origin:
China
Brand Name:
Customization
Certification:
UL ，ISO13485 , ISO9001.2005 , ISO14001
Model Number:
UL1015 18AWG Power Wiring Harness

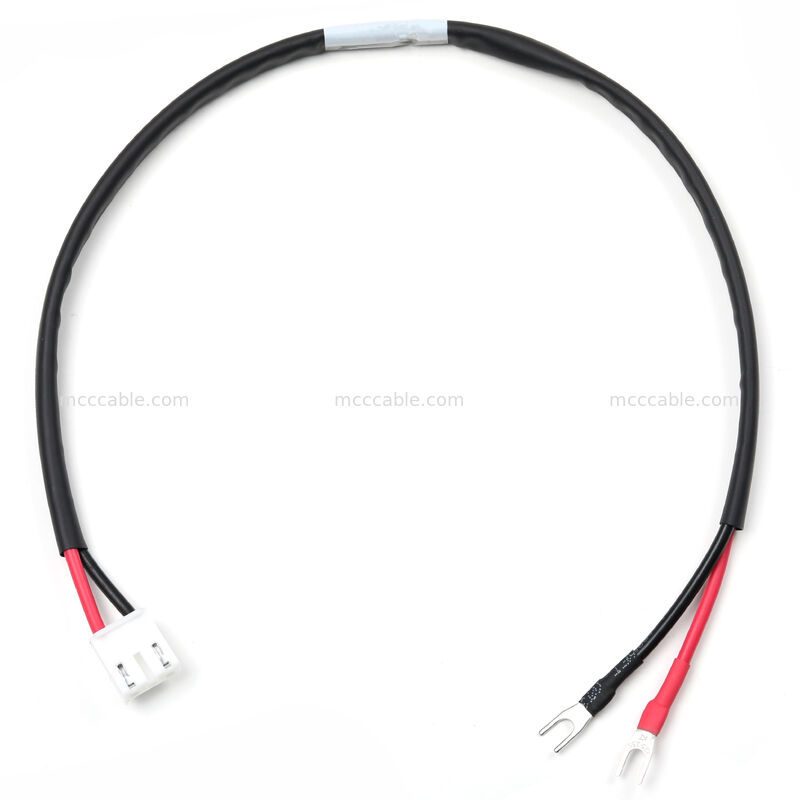

UL1015 18AWG Power Wiring Harness with 3-Pin Housing
and Blade Terminals
Power Wiring Harness Overview:
This power wiring harness is designed for internal power connection applications where
stable current transmission and secure terminal fixation are required.

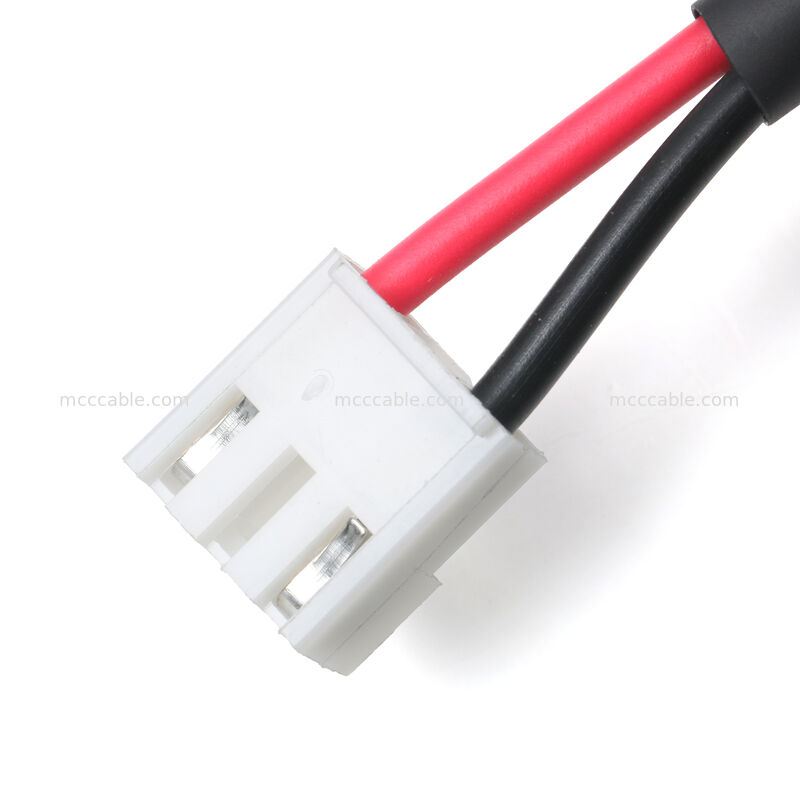

The assembly consists of UL1015 18AWG wires, a 3-pin wire-to-wire housing on one end,
and blade-style terminals on the opposite end, making it suitable for power distribution and
switch connection inside equipment.
The harness is intended for fixed internal installation and follows defined pin assignment
and color coding as specified in the engineering drawing.
Power Wiring Harness Construction:
All components and assembly methods strictly follow the approved drawing.
Power Wiring Harness Electrical & Mechanical Data:
| Item | Specification |
|---|---|
| Wire Standard | UL1015 |
| Wire Gauge | 18 AWG |
| Number of Positions | 3 Pins |
| Housing Pitch | 3.96 mm |
| Terminal Type | Blade / Fork Terminal |
| Conductor Resistance | ≤ 3.0 Ohms |
| Test Requirement | 100% open, short & intermittence test |
| Cable Length | 340 ± 10 mm |
| Label Size | 40 × 25 mm |
| Assembly Type | Internal Power Wiring Harness |
Power Wiring Harness Applications:
This wiring harness is commonly used for internal power connections in:
Power supply modules
Electrical control units
Industrial equipment
Display and electronic systems
Internal power distribution assemblies
It is designed for OEM internal wiring rather than external power cords.
Power Wiring Harness Customization & Service:
Customization is available based on project requirements, including:
Cable length adjustment
Wire color configuration
Terminal orientation
Label content and position
OEM and ODM wiring harness services are supported according to customer drawings
and specifications.
Sino-Media is a specialized cable assembly manufacturer. We utilize cutting-edge
automation equipment, premium raw materials, a robust quality assurance system,
and a skilled technical team to deliver high-quality, custom cable and harness
components in small quantities. Our engineering, production, and quality control
teams ensure the excellence of these unique components. Our mission is to enhance
product quality continuously, meet customer needs, and maintain expertise in the
materials we use and recommend. Our dedication to customer satisfaction drives
the company’s ongoing growth.
Q1. Is it a factory?
A:Yes,we have more than 16 years of design and manufacturring experience!
Q2. Is there any certification?
A:Yes,there are IS09001,ISO14001,TS16949,ISO13485,UL CERIFIED.
Q3. What is our specialty?
A:We can design products on the application.
Q4. Do you accept OEM/ODM orders?
A: Yes, we accept OEM/ODM orders. For oem orders, moq is 100pcs. For ODM orders, moq
1000PCs. Mould fee will be charged according to design.
Q5. How long will it need for completing an order?
A: For small order and products in stock, it will take less than 3 days for preparation and delive
ry, and shipment time depends on clients' choice, fastest 7 days and longest 1 month.
For big order, as we need to confirm all things include materiel preparation, production, this pro
cedure will take 5 to 21 working days according to order quantity, testing 1 to 3 working days, a
nd finally, packing 1 day, so fastest 7 days and longest 25 days without shipment.
Q6. As long term clients, what other service we can get?
1. New product will be offered with order, so you can see if it is potential product in the market a
nd promote it, and you will have the right to resell the product in your district.
2. Additional fee discount, cheaper price on purchasing products at smaller quantity.
3. We can offer assist on promotion images, and make images with clients' logo
Q7. How long is warranty for the cable, and if defective or faulty, how to protection your benifits?
A: All our cables are sold with 12-36 months warranty, and for big quantity order, we will offer 0.3%
to 0.5% backup for defective sent with order, so if you order 1000PCs, that means you can get 100
3pcs with backup. If you get faulty more than 5pcs, and less than 0.1%, please contact sales and
offer images, and we will solve your problem in the way of replacing with new order or refund.
Q8. Do you accept free sample order?
A: Yes, sample order is supported, some samples can be offered free exclusive of shipment freight.
