Place of Origin:
China
Brand Name:
Customization
Certification:
UL ，ISO13485 , ISO9001.2005 , ISO14001
Model Number:
6.3mm Female Blade Terminal Power Wiring Harness

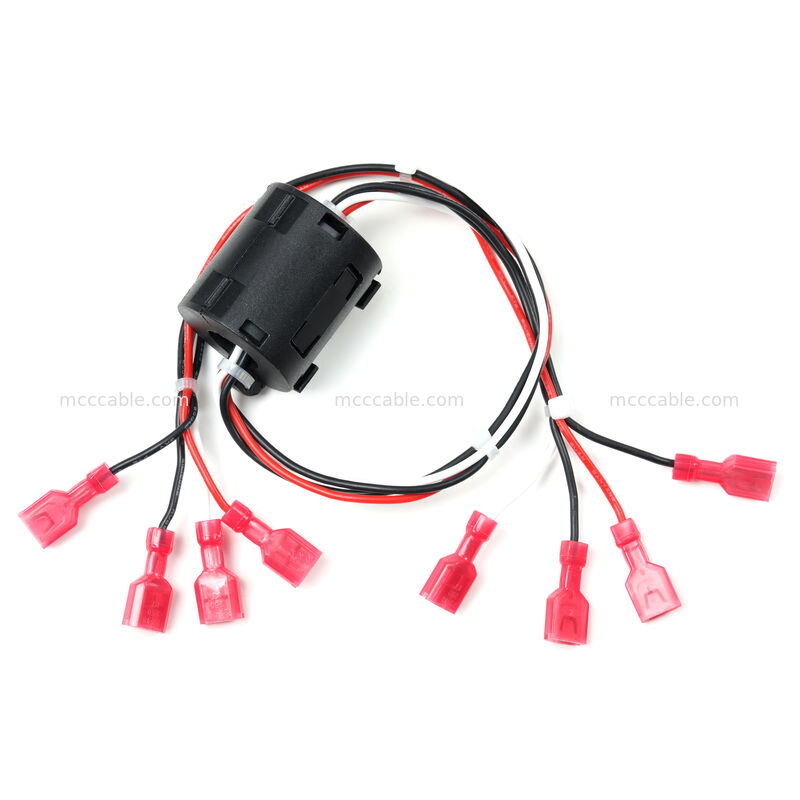

6.3mm Female Blade Terminal Power Wiring Harness with
Ferrite Core UL3239
Power Wiring Harness Overview:
This power wiring harness is designed for internal power distribution and EMI suppression

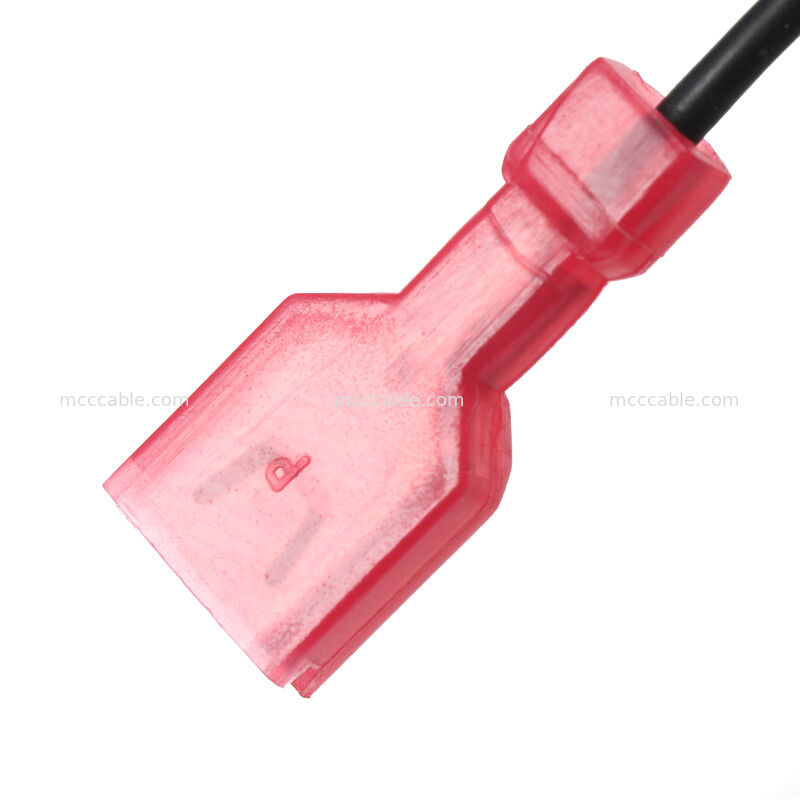

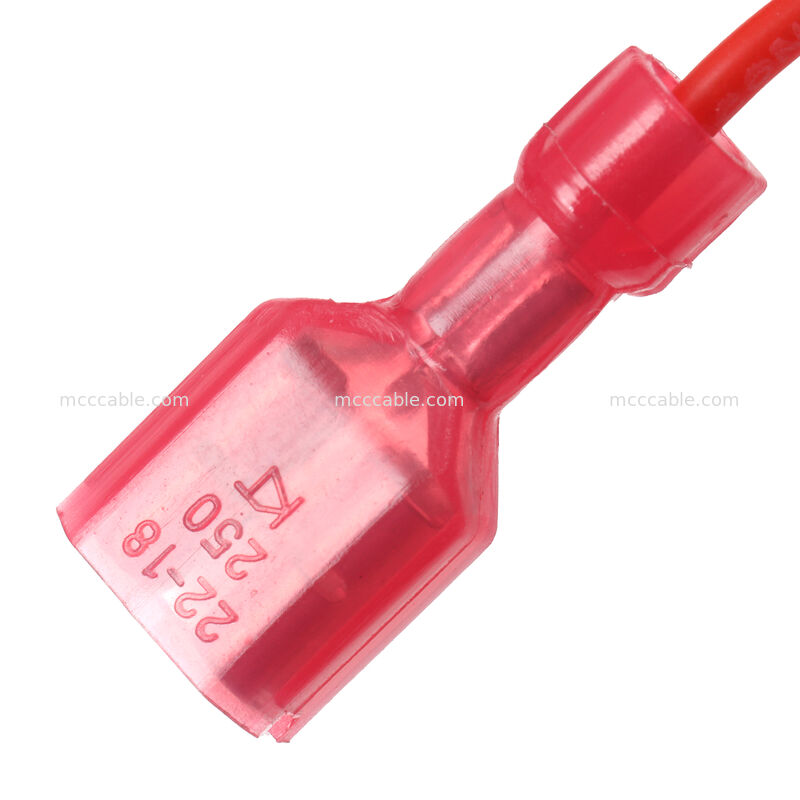

in electronic equipment. The harness uses 6.3 × 0.8 mm fully insulated female blade terminals
connected to UL3239 22AWG wires, providing stable electrical connections for power circuits.

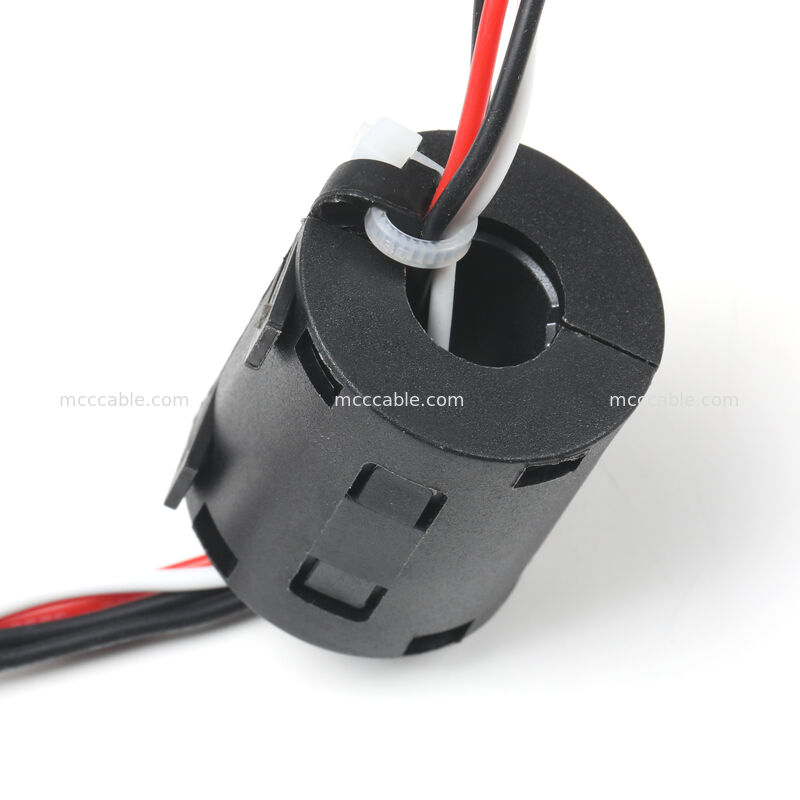

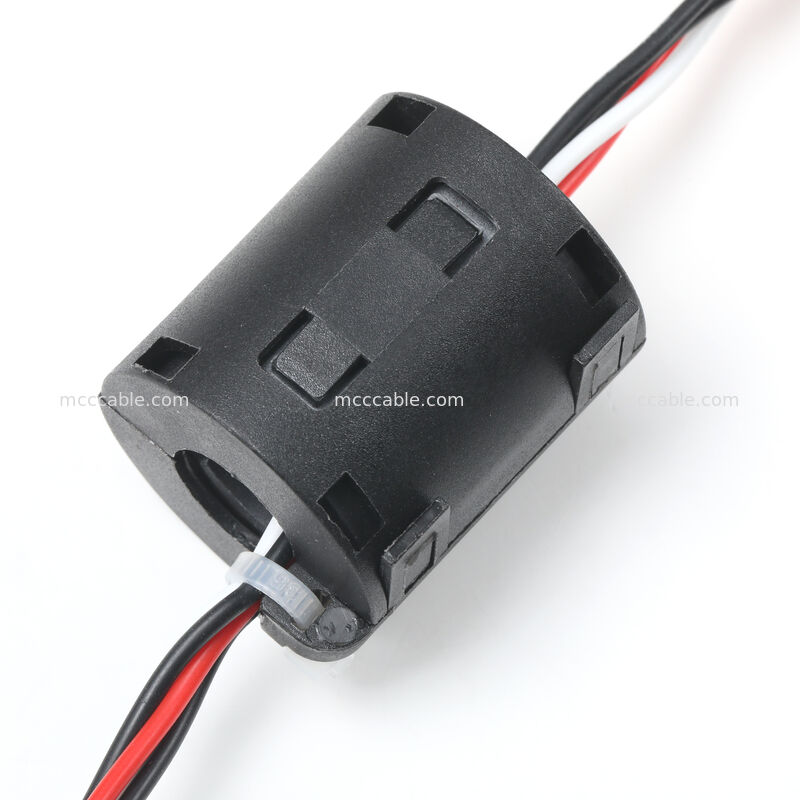

A round ferrite snap-on core is integrated into the cable assembly to reduce electromagnetic
interference generated by power transmission lines. The ferrite core helps improve system
stability in power electronics and industrial control equipment.
This wiring harness is commonly used in power modules, industrial electronics, control systems,
and internal power wiring applications.
OEM and ODM wiring harness manufacturing services are supported according to customer
drawings or specifications.
Power Wiring Harness Construction:
Terminal type
Cable
Wire colors
EMI protection
Cable management
All structural details follow the approved engineering drawings.
Power Wiring Harness Electrical Data:
| Item | Specification |
|---|---|
| Harness Type | Power Wiring Harness |
| Terminal Type | 6.3 × 0.8 mm Female Blade |
| Wire Standard | UL3239 |
| Wire Gauge | 22 AWG |
| Conductor Material | Copper |
| Wire Colors | Red / Black / White |
| EMI Protection | Ferrite Snap Core |
| Cable Length | 440 mm |
| Assembly Type | Internal Power Harness |
Power Wiring Harness Applications:
This power wiring harness is suitable for internal power connections in equipment such as:
The ferrite core helps suppress electromagnetic interference generated by power wiring.
Power Wiring Harness Customization:
This power wiring harness can be customized according to project requirements, including:
OEM and ODM wiring harness manufacturing services are supported.
