Place of Origin:
China
Brand Name:
Customization
Certification:
UL ，ISO13485 , ISO9001.2005 , ISO14001
Model Number:

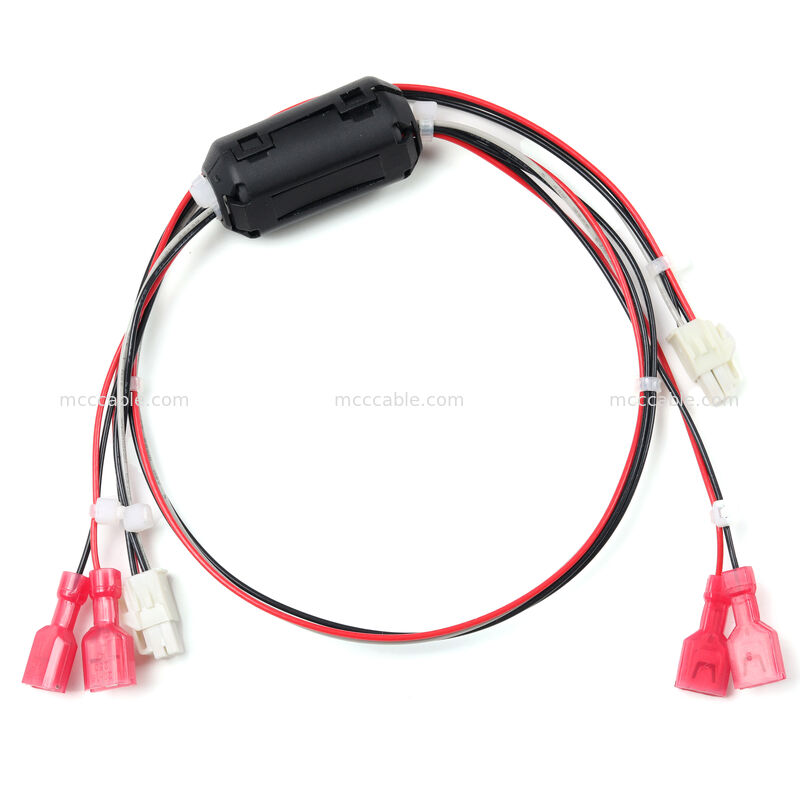

4Pin Nano-Fit to 6.3mm Female Blade Terminal Power Wiring Harness
4Pin Nano-Fit to 6.3mm Female Blade Terminal Power Wiring
Harness with Ferrite Core
Power Wiring Harness Overview:
This power wiring harness is designed for internal power distribution and control circuits in

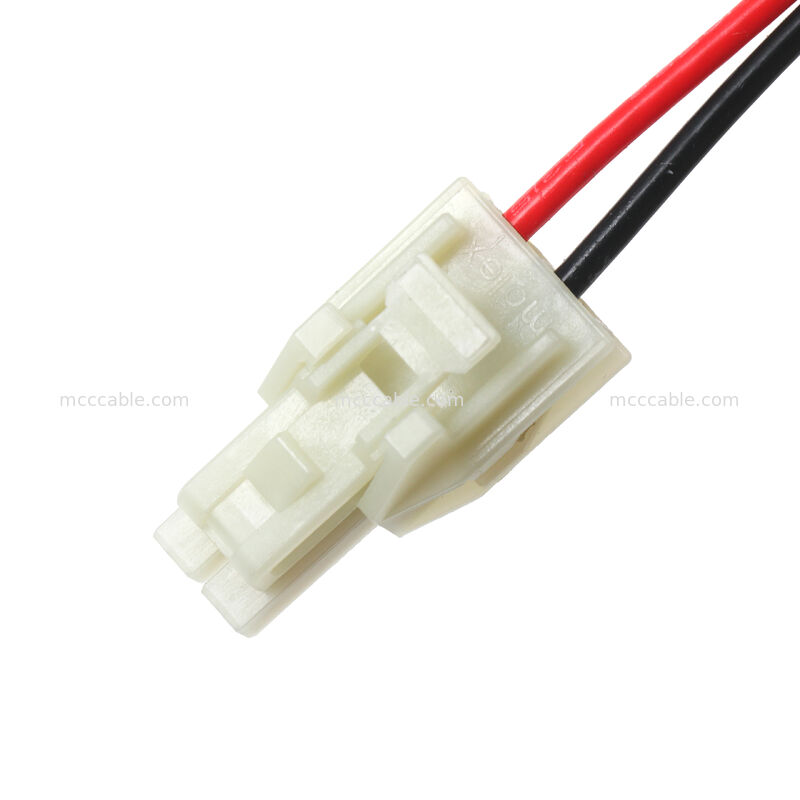

electronic equipment. The harness connects a 4-pin Nano-Fit connector to multiple

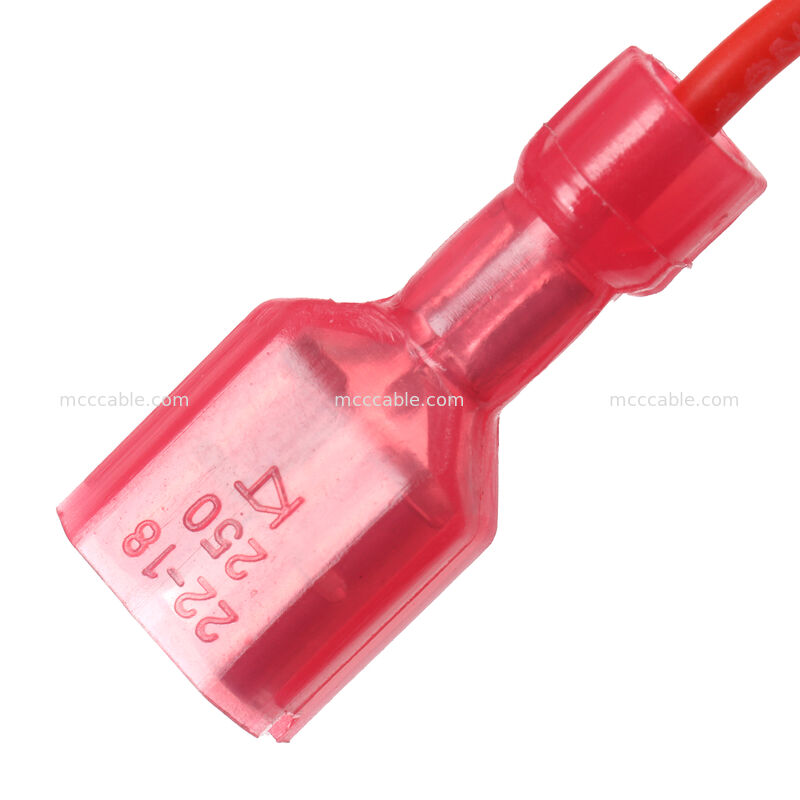

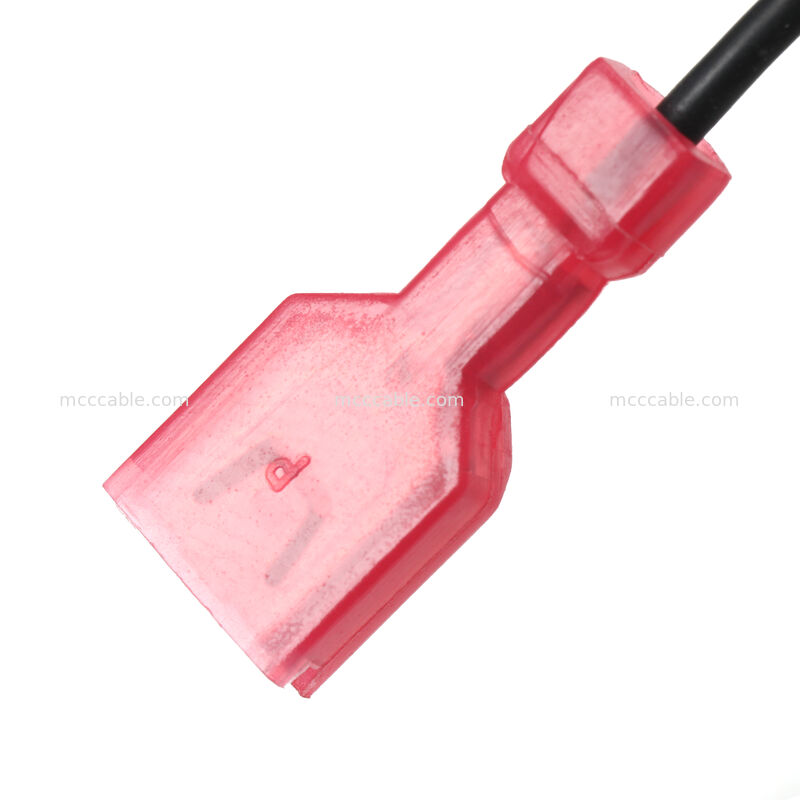

6.3×0.8mm fully insulated female blade terminals, providing a reliable connection between
control boards and power components.
The harness uses 22AWG copper wires for stable power transmission and is equipped with

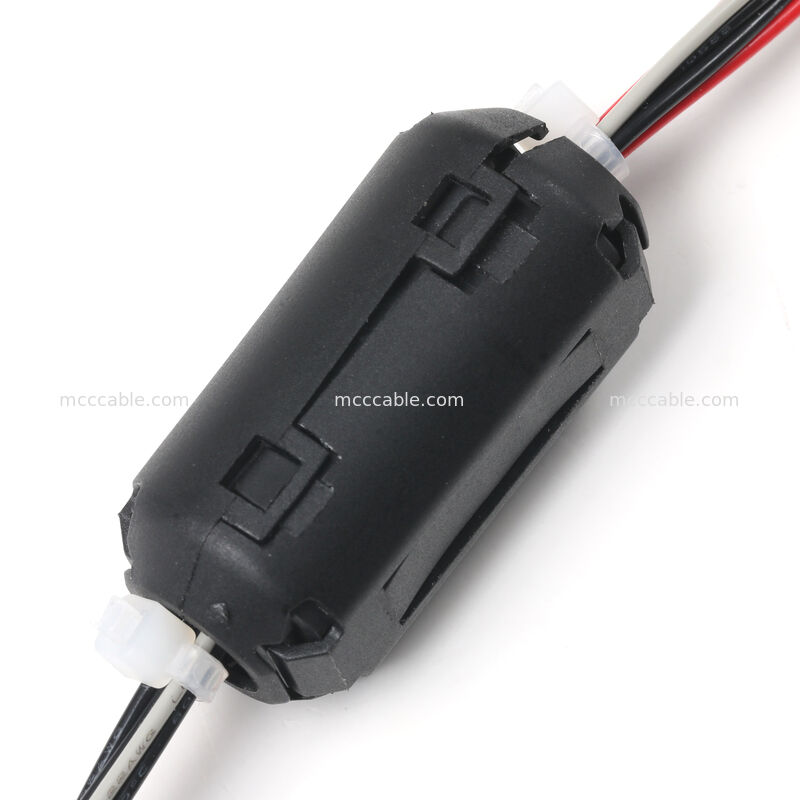

a ferrite snap-on core to reduce electromagnetic interference in power circuits.
This wiring harness is commonly used in power control modules, industrial electronics, and
equipment requiring stable low-voltage power distribution.
OEM and ODM wiring harness production based on customer drawings and specifications
is supported.
Power Wiring Harness Construction:
Connector
Terminal type
Cable
Wire colors
Cable protection
All structural details follow the approved engineering drawings.
Power Wiring Harness Electrical Data:
| Item | Specification |
|---|---|
| Harness Type | Power Wiring Harness |
| Connector Type | 4 Pin Nano-Fit Female |
| Terminal Type | 6.3 × 0.8 mm Female Blade |
| Wire Gauge | 22 AWG |
| Conductor Material | Copper |
| Wire Colors | Red / Black / Grey |
| EMI Protection | Ferrite Snap Core |
| Cable Length | 500 mm / 225 mm |
| Assembly Type | Internal Power Harness |
Power Wiring Harness Applications:
This power wiring harness is suitable for internal power distribution in electronic systems
such as:
The ferrite core helps reduce electromagnetic interference in power transmission circuits.
Power Wiring Harness Customization:
This power wiring harness can be customized based on application requirements, including:
OEM and ODM wiring harness manufacturing services are supported.
Sino-Media is a specialized cable assembly manufacturer. We utilize cutting-edge
automation equipment, premium raw materials, a robust quality assurance system,
and a skilled technical team to deliver high-quality, custom cable and harness
components in small quantities. Our engineering, production, and quality control
teams ensure the excellence of these unique components. Our mission is to enhance
product quality continuously, meet customer needs, and maintain expertise in the
materials we use and recommend. Our dedication to customer satisfaction drives
the company’s ongoing growth.
