High-Density Signal Cable Assembly with 40AWG Blue Wires and Latching Connectors

High-Density Signal Cable Assembly with 40AWG Blue Wires
and Latching Connectors



Applications of High-Density Signal Cable Assembly:

This high-density signal cable assembly is designed for internal signal transmission
between closely spaced electronic modules.
Based on the compact connector structure and fine-gauge parallel wiring shown in
the drawing, it is typically used in:

1. Display modules and embedded panels
2. Industrial control boards with limited routing space
3. Compact electronic systems requiring stable multi-channel signals
4. Equipment where controlled cable length and connector retention are critical

The latching connector design helps maintain reliable contact in environments where
vibration or repeated mating may occur.

Product Configuration of High-Density Signal Cable Assembly:

Electrical Characteristics of High-Density Signal Cable Assembly:

According to the drawing notes, this high-density signal cable assembly is electrically
verified to ensure stable signal transmission:

1. 100% open, short, and intermittence test applied
2. Conductor resistance: ≤ 2.0 Ohms
3. Insulation resistance: ≥ 2 MΩ @ 200V DC
4. Withstand voltage: 250V AC, 0.5 mA, 10 ms

These tests help ensure consistency and reliability for multi-pin signal interfaces in compact
electronic designs.

Structural Advantages of High-Density Signal Cable Assembly:

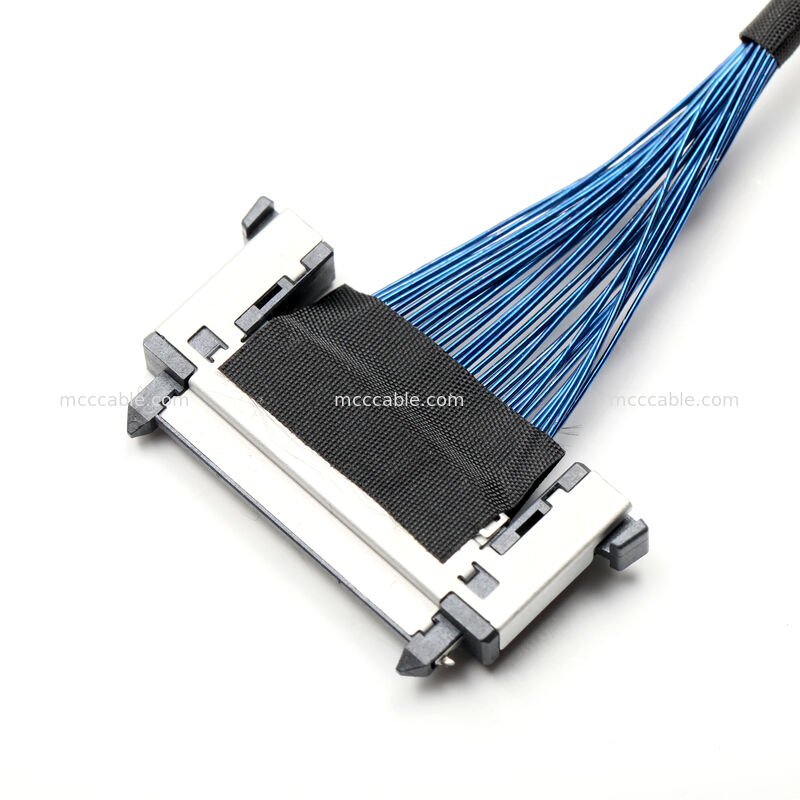

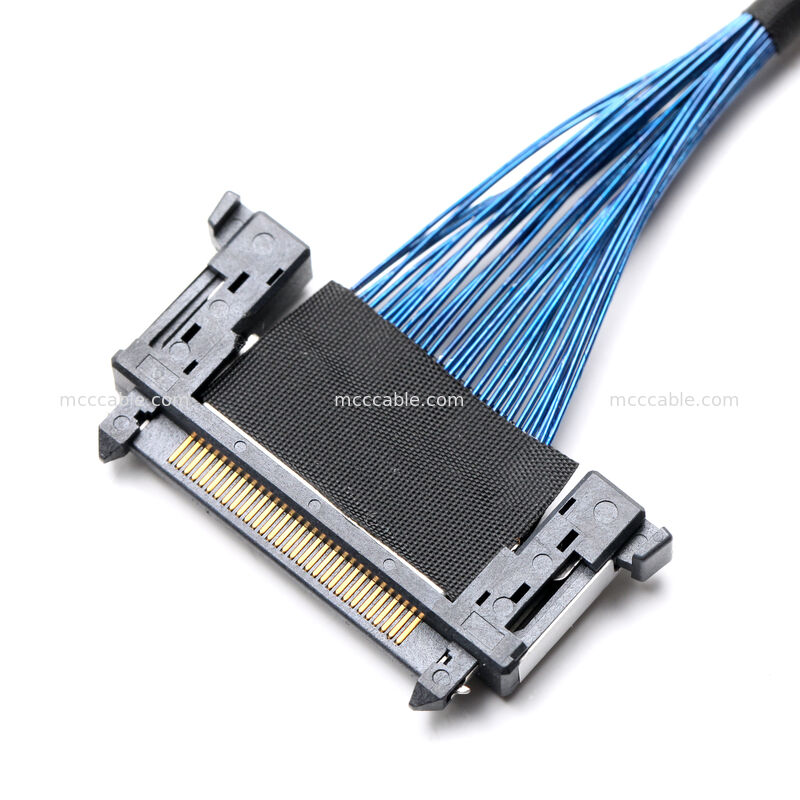

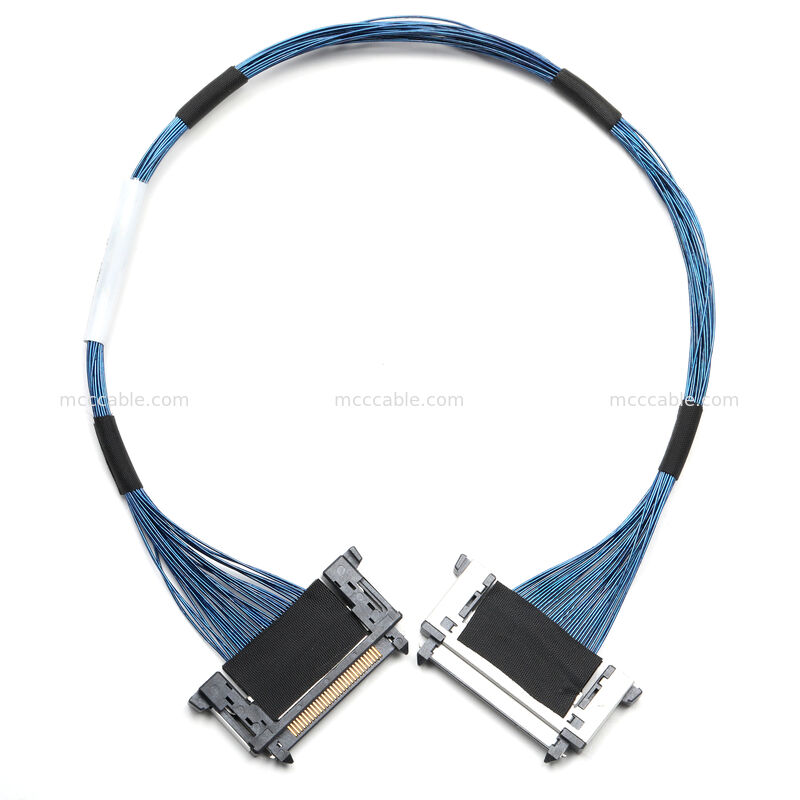

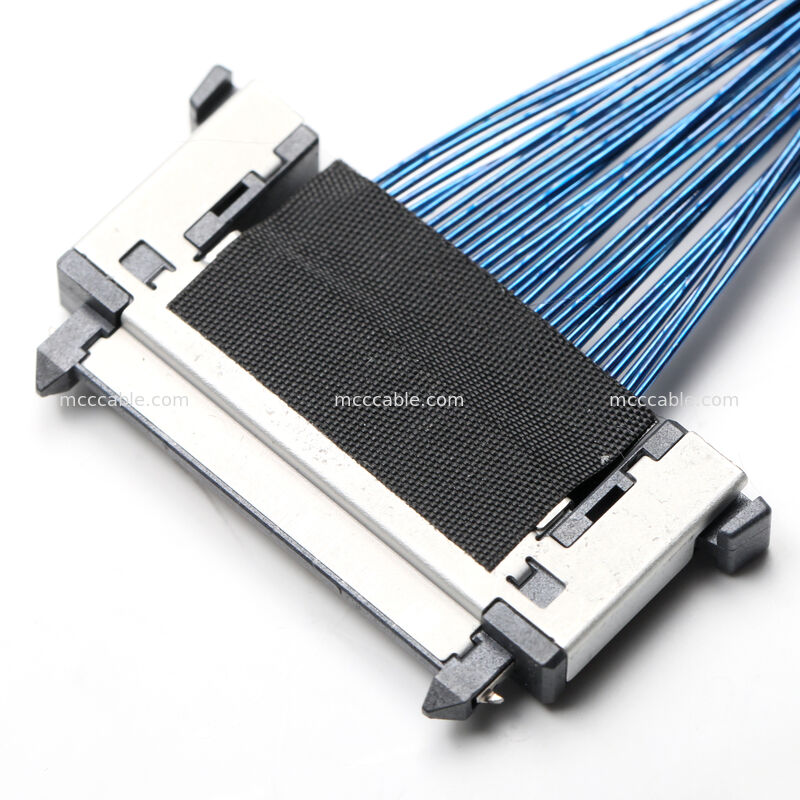

The structure shown in both the images and drawing emphasizes reliability in limited space:

1. Fine 40AWG wires allow high pin density without excessive cable thickness
2. Parallel wire routing supports organized signal paths
3. Fabric tape fixation improves strain relief and cable management
4. Latching connector structure enhances mating stability

This construction is suitable for applications where standard round cables are not practical.

Custom Options for High-Density Signal Cable Assembly:

Although this assembly is shown with a defined structure and length, customization is
supported at the manufacturing level:

1. Cable length can be adjusted per system layout
2. Pin assignment can follow customer-approved drawings
3. Wire color, bundling method, and fixation positions can be customized
4. Electrical testing scope can be aligned with application requirements

All custom builds are produced based on confirmed drawings to ensure dimensional and
electrical consistency.
